Global Tactical Vehicle

Global Tactical Vehicle

Military Trucks
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Global Tactical Vehicle
Designation
Global Tactical Vehicle
Alternate Designation
GTV
Equipment Type
Military Trucks
Manufacturer
BAE Mobility and Protection Systems
Date of Introduction
2009
Description

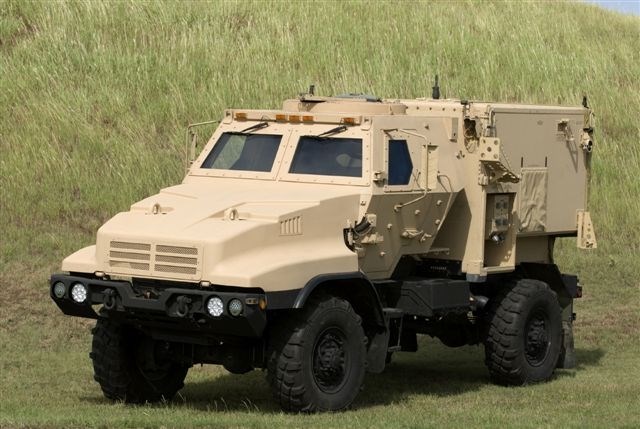

The BAE Systems Global Tactical Vehicle (GTV) is a member of the FMTV family and is powered by an Euro V emission regulation compliant diesel engine. The GTV maximizes tactical mobility and operational capability while meeting stringent emission control regulations. It also features the Long Term Armor Solution (LTAS) which allows to switch from truck to highly protected tactical armored vehicle without compromising load capability, mission certainty or weight-related safety. The GTV features the Mine Blast Resistant Seat (MBRS) and 4-point restraint system, which is easily modified to accept a 5-point restraint. The MBRS is lightweight and integrates the energy absorbing system into the seat itself. The vehicle platform is designed to incorporate modifications according to customer specifications. It was showcased for the first time at DSEi exhibition in London in September 2009.

Ground Specifications
Crew 3
Mobility Type Wheeled (6x6)
Max Speed 92.8 km/h
Range 483.0 km
Overview (Deagel)
Group Military Trucks
Status Active
Also Known As GTV
Origin United States of America
Contractor BAE Mobility and Protection Systems
Initial Operational Capability (IOC) 2009
Total Production ?
Specifications (Deagel)
Crew 3
Wheel Drive 6
Wheels 6
Degree — Approach Angle 40 °
Degree — Departure Angle 40 °
Dimensions — Ground Clearance 559 millimeter
Dimensions — Height 2.8 meter
Dimensions — Length 7.0 meter
Dimensions — Wheelbase 4.1 meter
Dimensions — Width 2.4 meter
Energy — Max Torque 1,100 Nm
Mass — Cargo 4,536 kilogram
Mass — Max Weight 11,281 kilogram
Mass — Towed Load 9,526 kilogram
Percentage — Gradient 60 %
Percentage — Side Slope 30 %
Performance — Fording Depth 762 millimeter
Performance — Max Range 483 kilometer
Performance — Turning Radius 20 meter
Power — Power 224 kW
Speed — Top Speed 92.8 kph
Time — Service Life 22 year
Volume — Fuel Tank Capacity 247 liter
Variants
Variant 1 LMTV A1
Variant 2 MTV A1
Variant 3 Global Tactical Vehicle
Details
Country of Origin United States
Sources

deagel.com: https://www.deagel.com/x/x/a001807

Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7 m
Width
2.4 m
Height
2.8 m
Weight
11281 kg
Operators (1)
United States
