JY-27 Wide Mat Chinese Long-Range Early Warning Radar
JJ-27 Wide Mat
Long-Range Early Warning Radar
Other
Basic Information
Name
JY-27 Wide Mat Chinese Long-Range Early Warning Radar
Designation
JJ-27 Wide Mat
Alternate Designation
JJ-27 Wide Mat
Equipment Type
Long-Range Early Warning Radar
Manufacturer
CETC
Date of Introduction
2005
Description

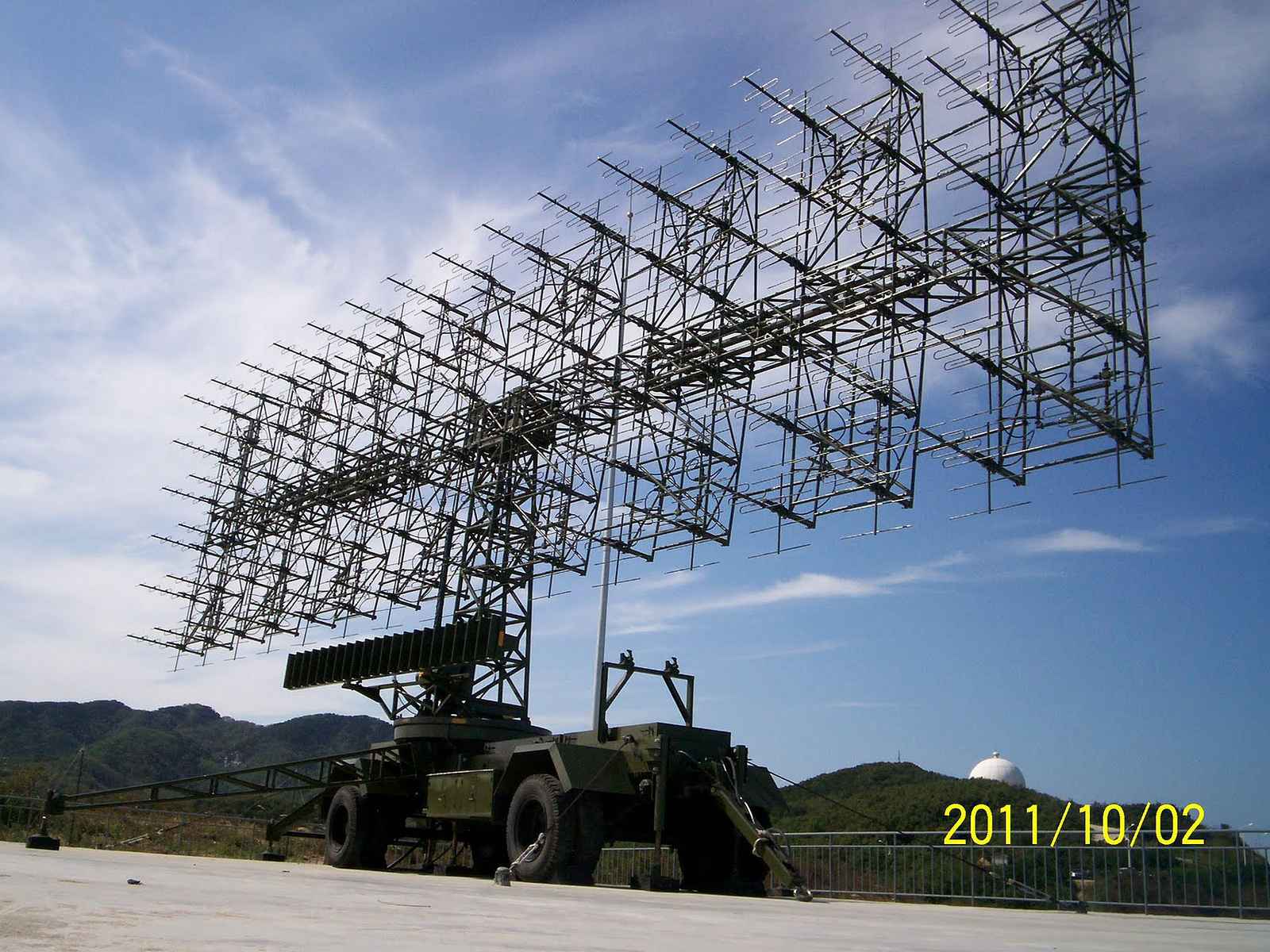

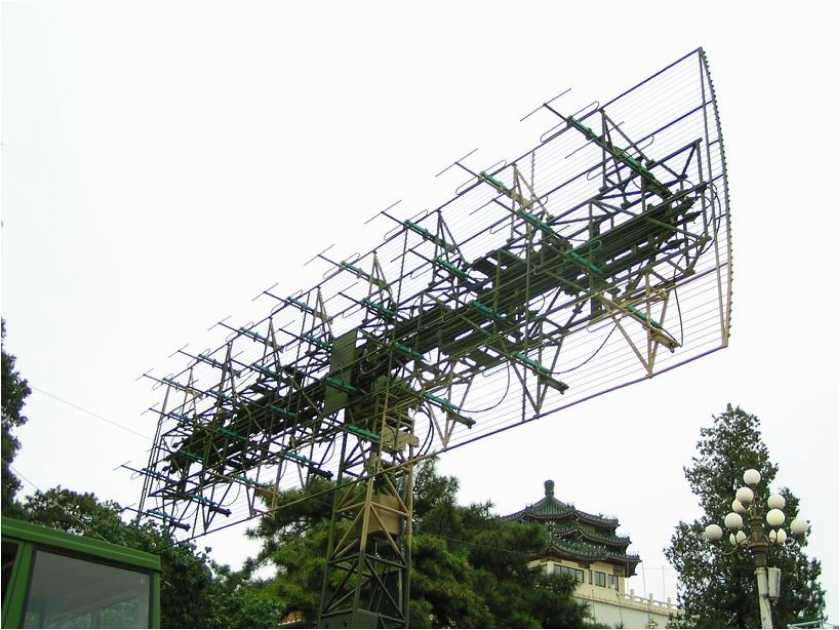

The JY-27 radar, manufactured by CETC, is a fully solid-state and fully coherent long-range early warning system. It is designed and developed to provide early warning information and detect low-observable air targets in so-called “Stealth Technology”. Besides, it provides early warning information for weapons systems as well. The newer antenna design is influenced by the 1L13 Nebo SV “Box Spring” and 1L119 Nebo SVU. The radiating elements are horizontally polarized.
System
Alternative Designation
JJ-27 Wide Mat
Type
Long-Range Early Warning Radar
Crew
INA
Chassis
INA
Frequency
240 – 390 MHz
( VHF-Band)
Pulsewidth
INA
Beamwidth
7 deg
Peak Power
INA
Instrumented Range, 4x8 Array
280 km
Instrumented Range, 6x16 Array
390 km
Range Resolution
600 km
Accuracy
±150 m ; ±1º
Elevation
INA
Traverse
360 deg
Dimensions
Length
INA
Width
INA
Height
INA
Weight, Combat
INA
Details
Country of Origin
China
Category
Radars
Land > Radars
Filter Label
J
Classification
Domain
Ground
Equipment Status
Active
Operators (3)
China
Pakistan
Venezuela
