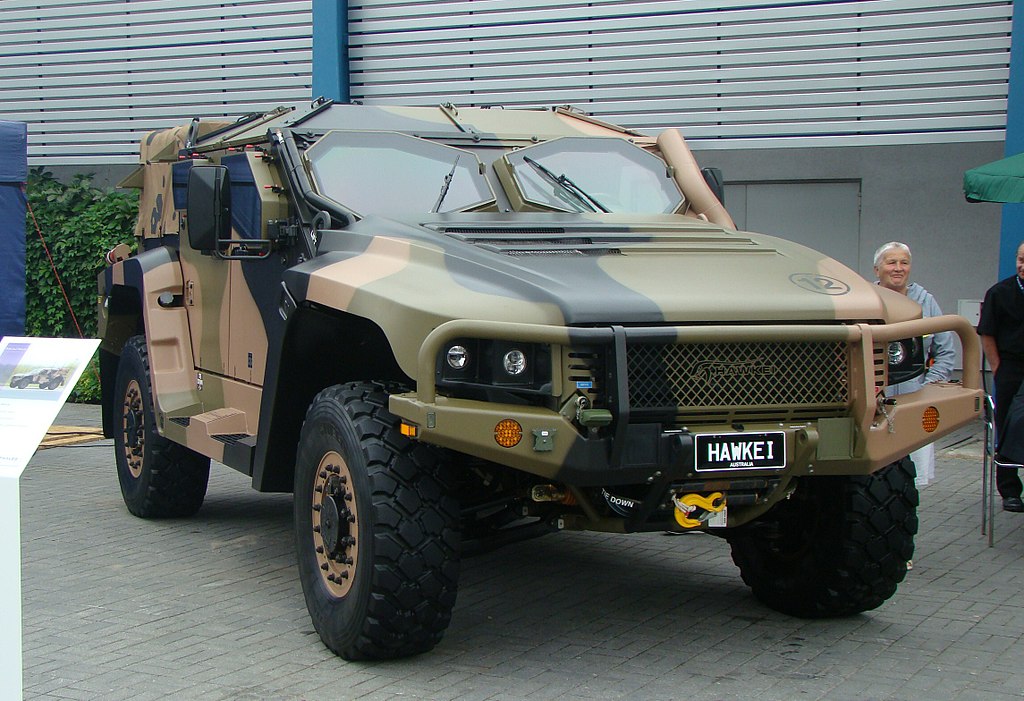

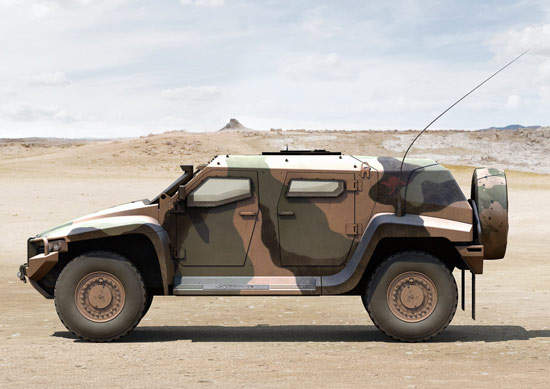

Hawkei PMV Australian 4x4 Protected Mobility Vehicle

Hawkei PMV

Protected Mobility Vehicle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Hawkei PMV Australian 4x4 Protected Mobility Vehicle
Designation
Hawkei PMV
Alternate Designation
Hawkei PMV
Equipment Type
Protected Mobility Vehicle
Manufacturer
Thales Australia
Date of Introduction
2016
Description

The Hawkei PMV is a light Four-wheel drive protected mobility vehicle originally designed to meet an Australian Defence Force (ADF) requirement for a light armored patrol vehicle to replace some of its Land Rover Perentie variants. The Hawkei is a highly mobile, highly protected, 7-tonne vehicle, with in-built systems to allow it to be used as a fighting platform. It has been developed with Vehicle Electronic Architecture to be mission system ready. Prime contractors include Thales Australia, Boeing Australia, Plasan (Israel), and PAC Group. In October 2015, the Australian Government announced the purchase of 1,100 Hawkes from Thales Australia. As part of a wider project to replace the ADF's fleet of operational support vehicles, Project Land 121 Phase 4 – Protected Mobility Vehicle (Light) or PMV-L, is a requirement for up to 1,300 specialized light armored vehicles to replace some of the in-service Land Rovers. Key criteria for the project included: off-road mobility, integrated vehicle electronic architecture, substantial payloads, high levels of protection against land mines, improvised explosive devices, and ballistic weapons while being light enough to be air transported by military helicopters. The three options considered as part of the project were: Option 1, Joint Light Tactical Vehicle (JLTV) Program - align the PMV-L requirement to the United States JLTV program to replace its fleet of High Mobility Multipurpose Wheeled Vehicle or 'Humvee' (awarded 25 August 2015 to Oshkosh offering L-ATV); Option 2, Manufactured and Supported in Australia (MSA); and Option 3, Market available – pursuit of this option is subject to Australian Government decisions on Options 1 and 2. Competitors for the MSA option included the combat-proven MOWAG Eagle IV from General Dynamics Land Systems; the British military then selected Ocelot from Force Protection; and the Hawkei offering from Thales Australia. The JTLV option included entries from BAE Systems/Navistar, AM General/General Dynamics, and Lockheed Martin. In December 2011 the Australian Department of Defence announced Hawkei as the preferred vehicle for further development and testing under the MSA option. In October 2015, Prime Minister Malcolm Turnbull and Minister for Defence Marise Payne announced the purchase of 1,100 Hawkeis and 1,000 trailers at a cost of $1.3 billion. In November 2017 it was reported that the Hawkei was being considered by Poland as part of a modernization of the country's military. This could result in an initial purchase of 50 vehicles, and as many as 700 over the long term. In September 2018 the Australian National Audit Office released a report which criticized aspects of the Hawkei project. The report judged that Australia should have remained in the JLTV program to provide competition for the Hawkei procurement and that the Department of Defence had not kept ministers fully informed about the Hawkei program. This included not providing ministers with a study that found that there were few benefits from building the vehicles in Australia. The ANAO was unable to publish some elements of the audit after Attorney-General Christian Porter ruled that publishing it would compromise national security. Thales had taken legal action earlier in the year seeking to have material removed from the report. As of December 2018, the Hawkei is facing reliability issues following a demonstration test conducted on 19 November 2018, delaying full-rate production.

Ground Specifications
Crew 4
Mobility Type Wheeled (4x4)
Main Weapon up to 12.7mm guns
Engine 6-Cylinder Turbocharged Diesel (200 hp)
Max Speed 130.0 km/h
Range 600.0 km
Variants
Command Dual cab manned by a crew of four to six, weapons system options including up to 12.7mm guns or 40mm grenade systems in various mounts with a remote operated option.
Border Protection Dual cab manned by a crew of four to six, various equipment options including force protection radar, surveillance and communications systems.
Special Operations Vehicle Dual cab manned by a crew of four to six with up to three weapon systems. Front co-driver swing mount; Roof mounted manual gunring or remote weapon station; and/or Rear-facing swing mount.
Utility Single-extended cab with a flat-bed cargo area measuring; L: 2,000 mm (79 in) x W: 2,400 mm (94 in). The vehicle is manned by a crew of 2-3 and has a kerb weight of 6,800 kg (14,991 lb) with a rated cargo load of 3,000 kg (6,614 lb). The load bed is designed to accommodate four 1000mm × 1200mm (40" x 48") NATO standard military pallets or a single tricon (one-third ISO 20 ft) container.
System
Alternative Designation Hawkei PMV
Type Protected Mobility Vehicle
Manufacturer Thales Australia
Crew Generally 4 to 6
Passenger Capacity INA
Dimensions
Length 5,780mm
Width 2,396mm
Height 2,300mm
Weight, Combat 7,000 kg (15,432 lb) (kerb), 10,000 kg (22,046 lb) (GVM)
Automotive
Engine Name Steyr M16
Engine Type six-cylinder turbocharged diesel engine.
Engine Power 200 kW (268 hp) @ 4,000rpm 610 N⋅m (450 lb⋅ft) @ 2,000rpm
Range 600 km
Speed, Maximum Road 130km/h (max) 100km/h (governed)
Speed, Average Cross INA
Speed Maximum Swim Not Amphibious
Steering System Power rack and pinion
Suspension AxleTech 3000, fully independent suspension, coil and double wishbone
Transmission List of ZF transmissions#8-speed auto, eight-speed automatic
Main Weapon System

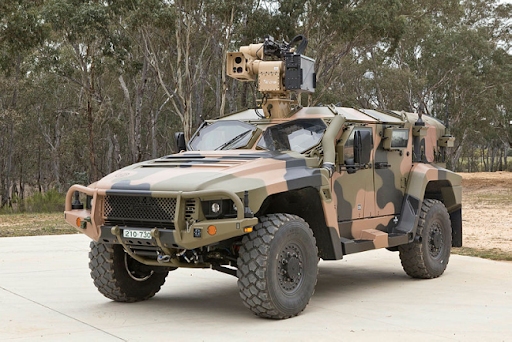

Note A remotely controlled weapon station (RCWS) is installed in the Hawkei vehicle. It is an automated control weapon station principally used for light and medium-caliber weapons. The RCWS can accommodate remote control weapons encompassing 5.56mm, 7.62mm, and 12.7mm machine guns, 40mm automatic grenade launchers, anti-tank missiles, and observation pods. The RCWS can accommodate weapons up to 12.7mm machine guns and is manufactured by Samson Technologies Corporation, US.
Protection
Armor Greater than STANAG 4569, Level 1. Additional Applique armor is provided by Plasan composite and V-shaped monocoque hull.
Applique Armor INA
Active Protection System INA
Mine Clearing No
Self-Entrenching Blade No
NBC Protection INA
Smoke Equipment INA
Details
Country of Origin Australia
Category Tactical Utility Vehicles
Land > Infantry Vehicles > Tactical Utility Vehicles
Filter Label
H
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.78 m
Width
2.4 m
Height
2.3 m
Weight
3175.14 kg
Operators (2)
Poland
Australia
