M1079 American 4x4 Light Medium Tactical Vehicle (LMTV) Van

M1079

Light Medium Tactical Vehicle (LMTV)

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

M1079 American 4x4 Light Medium Tactical Vehicle (LMTV) Van

Designation

M1079

Alternate Designation

M1079

Equipment Type

Light Medium Tactical Vehicle (LMTV)

Manufacturer

—

Date of Introduction

1996

Description

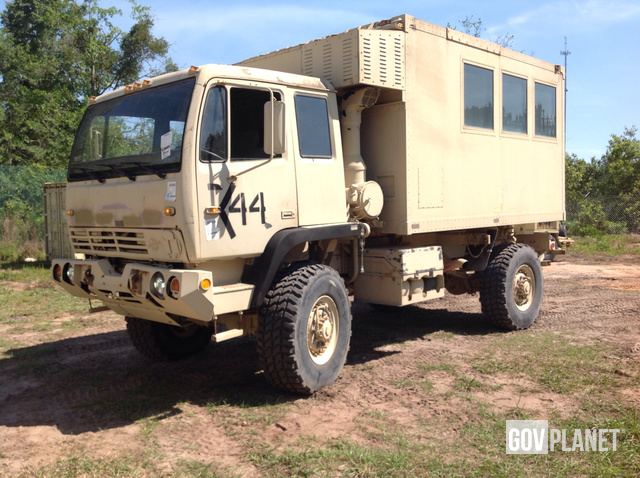

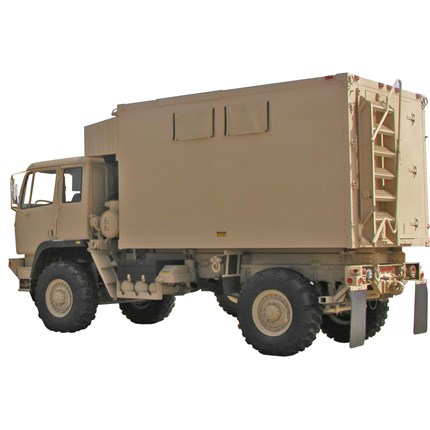

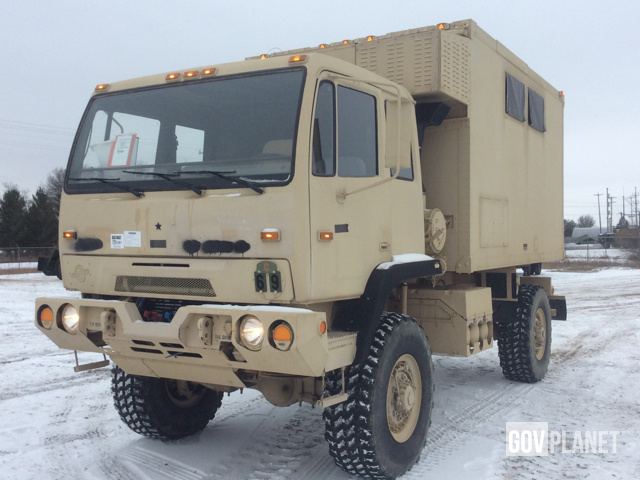

The M1079 Van is designed to be used as a mobile shop by Direct Support Unit Maintenance contact teams. The M1079 van body is constructed of aluminum and is equipped with 3 double paned windows, blackout shields, double rear doors, removable steps, and an AC/DC electrical junction box and multiple outlets. The van body can be equipped with heater and/or air conditioner. The M1079 can be equipped with a self-recovery winch kit capable of fore and aft vehicle recovery operations. The winch has 308 feet of line capacity and 10,000 pounds bare drum line pull at 110% overload.

Ground Specifications

Crew 3

Mobility Type Wheeled (4x4)

Main Weapon 12.7-mm machine gun mount

Engine 403-cu in (6.6-liter) liquid-cooled, turbocharged, aftercooled, in-line 6-cylinder diesel (225 hp)

Active Protection None

Max Speed 88.0 km/h

Range 483.0 km

Variants

Note *M1078 A0/A1/A1R/A1P2 - LMTV Cargo NSN 2320-01-549-8577 *M1078 A0/A1/A1R/A1P2 - LMTV Cargo with winch[6] NSN 2320-01-549-8611 *M1079 A0/A1/A1R/A1P2 - LMTV Van NSN 2320-01-552-7745 *M1079 A0/A1/A1R/A1P2 - LMTV Van with winch NSN 2320-01-552-7749 *M1080 A0/A1/A1R/A1P2 - LMTV Chassis 3.9 m NSN 2320-01-552-7791 *M1081 A0 - LMTV Cargo-airdrop LVAD *M1082 A1/A1R/A1P2 - Trailer, LMTV cargo[6] NSN 2320-01-449-1775 *M1083 A0/A1/A1R/A1P2 - MTV Cargo NSN 2320-01-549-8610 *M1083 A0/A1/A1R/A1P2 - MTV Cargo with winch NSN 2320-01-549-8565 *M1084 A0/A1/A1R/A1P2 - MTV Cargo with material handling equipment (MHE)[6] NSN 2320-01-552-7739 *M1084 A0/A1/A1R/A1P2/RSV - MTV Cargo with MHE (HIMARS RSV) NSN 2320-01-552-7767 *M1085 A0/A1/A1R/A1P2 - MTV Cargo, Long Wheelbase Cargo (LWB) NSN 2320-01-552-7773 *M1085 A0/A1/A1R/A1P2 - MTV LWB Cargo with winch NSN 2320-01-552-7770 *M1085 A0/A1/A1R/A1P2 - MTV LWB Cargo w/ Sideboard Delete NSN 2320-01-552-7770 *M1086 A0/A1/A1R/A1P2 - MTV LWB Cargo with MHE NSN 2320-01-552-7780 *M1086 A0/A1/A1R/A1P2 - MTV LWB Cargo with MHE & winch[6] NSN 2320-01-552-7776 *M1087 A1R/A1P2 - MTV Expansible Van NSN 2320-01-552-7781 *M1088 A0/A1/A1R/A1P2 - MTV Tractor NSN 2320-01-552-7759 *M1088 A0/A1/A1R/A1P2 - MTV Tractor with winch NSN 2320-01-552-7759 *M1089 A0/A1/A1R/A1P2 - MTV Wrecker Oshkosh-produced M1089 have different recovery equipment NSN 2320-01-595-3994 *M1090 A0/A1 - MTV Dump *M1091 - MTV 1,500 gallon Fuel Tanker Type Classified but did not enter production *M1092 A0/A1/A1R/A1P2 - MTV Chassis 4.1 m NSN 2320-01-552-7793 *M1093 A0 - MTV Cargo-airdrop LVAD *M1094 A0 - MTV Dump-airdrop LVAD *M1095 A1/A1R/A1P2 - Trailer, MTV Cargo NSN 2320-01-449-1776 *M1096 A0/A1/A1R/A1P2 - MTV LWB Chassis 4.5 m NSN 2320-01-552-7796 *M1140 A1/A1R HIMARS High Mobility Artillery Rocket System, launcher chassis *M1147 LHS (palletized) Load Handling System Trailer[6] NSN 2320-01-508-7887 *M1148 A1R/A1P2 LHS (palletized) Load Handling System Truck, eight metric tonnes / 8.8-ton NSN 2320-01-557-4546 *M1157 A1R/A1P2 10-ton Dump[6] NSN 2320-01-552-7787 *M1157 A1R/A1P2 10-ton Dump with winch NSN 2320-01-552-7782 *XM1160 10-ton MEADS air defence chassis (5.5 m wheelbase ) Mongoose Mobile Launcher Chassis (MLC) (cancelled) M1273 A1P2 MTV 10-ton chassis[6] NSN 2320-01-621-6239

System

Alternative Designation M1079

Type Light Medium Tactical Vehicle (LMTV) Van

Family FMTV Series

Configuration 4x4

Crew 3 ea

Winch The M1079 can be equipped with a self-recovery winch kit capable of fore and aft vehicle recovery operations. The winch has 308 feet of line capacity and 10,000 pounds bare drum line pull at 110% overload.

Dimensions

Length 6.70 m

Width 2.44 m

Height, Top of Cab 2.76 m

Height, Air Transport 2.59 m

Height, Air Drop 2.18 m

Weheeelbase 3.90 m

Ground Clearance 559 mm

Payload Capacity 2,268 kg

Curb Weight 8,156 kg

Automotive

Engine Name 1 x Caterpillar 3116 ATAAC

Engine Type 403-cu in (6.6-liter) liquid-cooled, turbocharged, aftercooled, in-line 6-cylinder diesel

Engine Power 225 hp (168 kW) at 2,600 rpm

Transmission Allison MD-D7 automatic transmission; 7 forward/1 reverse gears

Power-to-Weight Ration 18.9-32.62 hp/metric ton

Maximum Speed 88 km/h

Range 483 km

Approach Angle 40 deg

Departure Angle 40 deg

Gradient 60 percent

Side Slope 30 percent

Fording, Unprepared 0.91 m

Fording, Prepared 1.52 m

Main Weapon System

Note 1 x 12.7-mm machine gun mount over cab

Protection

Armor Current and recent operational scenarios now call for logistic trucks of the FMTV type to at least have the option of cab armoring. When it entered production, armoring was not considered an option for the FMTV. The first protection solution for the FMTV was not in answer to such scenarios, but was developed by Stewart & Stevenson and O'Gara-Hess & Eisenhardt Armoring Company (OHE). Called the Crew Protected Cab, it was specifically for the HIMARS variant and offered flash and Foreign Object Debris (FOD) protection during launch. Designs followed for an Enhanced Crew Protected Cab, and later an Armor Protected Cab, each adding more ballistic capability against direct fire, artillery burst and mines.

Applique Armor To meet emerging threats on deployed operations, in March 2004 DRS Technical Services was awarded a $16.3 million contract to provide 272 armor protection kits for the FMTV. A total of 1,862 kits are understood to have been produced in total. These kits were based around ballistic-protection panels installed on standard FMTV cabs. In answer to demands for greater crew protection, BAE Systems developed the Low Signature Armored Cab (LSAC) for all variants of the FMTV. The LSAC replaced the standard FMTV cab (with which it shares internals) in a remove and replace operation. To meet the US Army's current Long Term Armor Strategy (LTAS) for armored cabs, BAE Systems developed the LTAS cab for the FMTV. BAE Systems states that it produced over 9,000 LTAS cabs for the FMTV A1P2 variant. All Oshkosh FMTV vehicles include the company's own LTAS-compliant armor solution. LTAS is based around the A and B kit principles, this allowing for vehicles to be armored as required, and with the add-on applique package adaptable to prevailing threats and upgradeable as new armoring technologies emerge. The A-Kit, which includes a new cab, modifies the FMTV to allow the addition of armour; the B-Kit being the bulk of the armor itself.

Active Protection System No

NBC Protection INA

Smoke Equipment INA

Image Sources

Notes https://www.dvidshub.net/image/5228118/new-army-command-post-vehicles-being-developed-counter-modern-threats; https://midwestmilitaryequipment.com/1995-stewart-stevenson-m1079-2-1-2-ton-lmtv-4x4-camper-truck-1/; https://www.armscom.net/products/shop_van_shelter_by_aar_mobility_systems;

Details

Country of Origin United States

Category Survivability

Land > Survivability

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

6.7 m

Width

2.44 m

Height

2.76 m

Weight

8156 kg

Operators (14)

United States

Israel

Afghanistan

Argentina

Cameroon

Canada

Iraq

Jordan

New Zealand

Saudi Arabia

Singapore

Somalia

Thailand

United Arab Emirates
