Akizuki

Akizuki

Frigates
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Akizuki
Designation
Akizuki
Alternate Designation
19DD, DD115
Equipment Type
Frigates
Manufacturer
Mitsubishi Heavy Industries, Mitsui Engineering & Shipbuilding
Date of Introduction
2012
Description

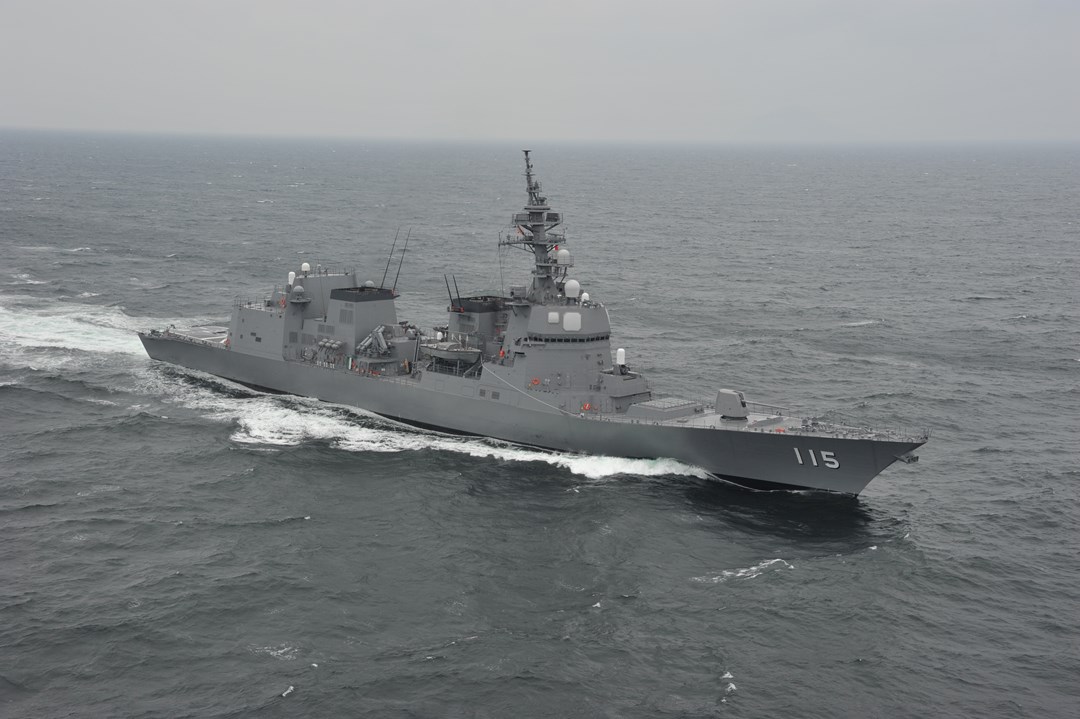

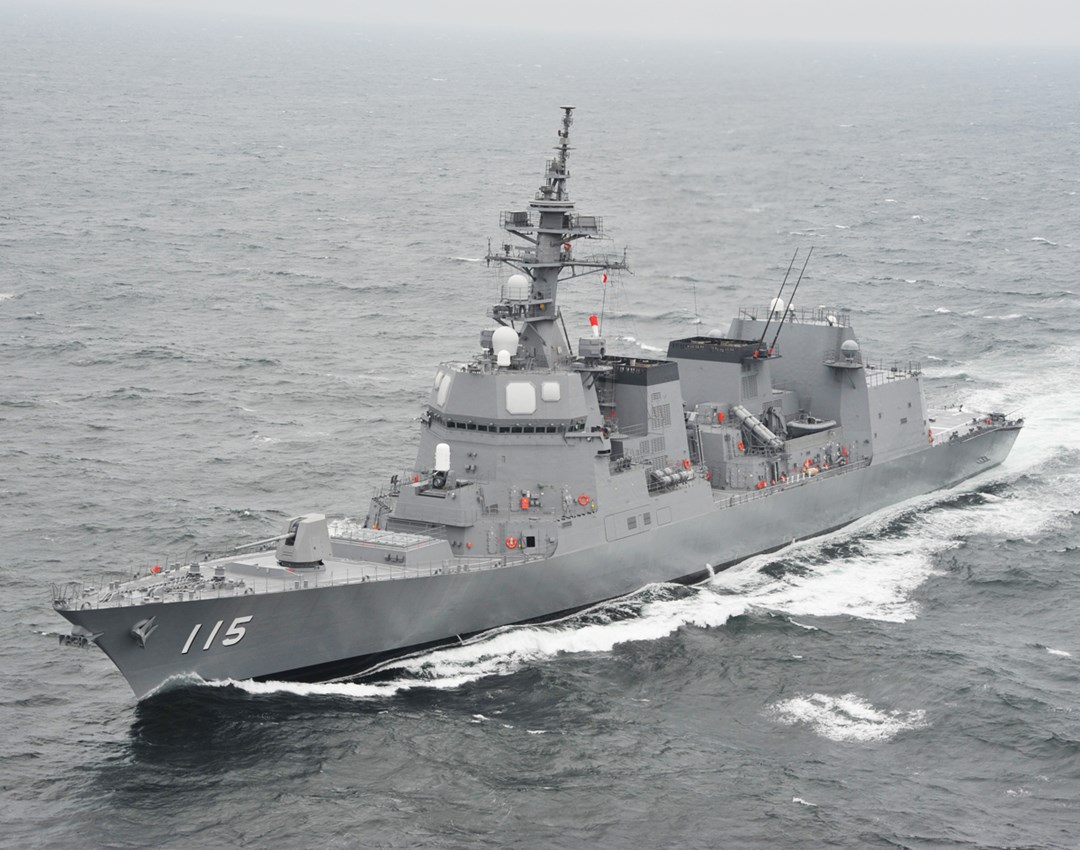

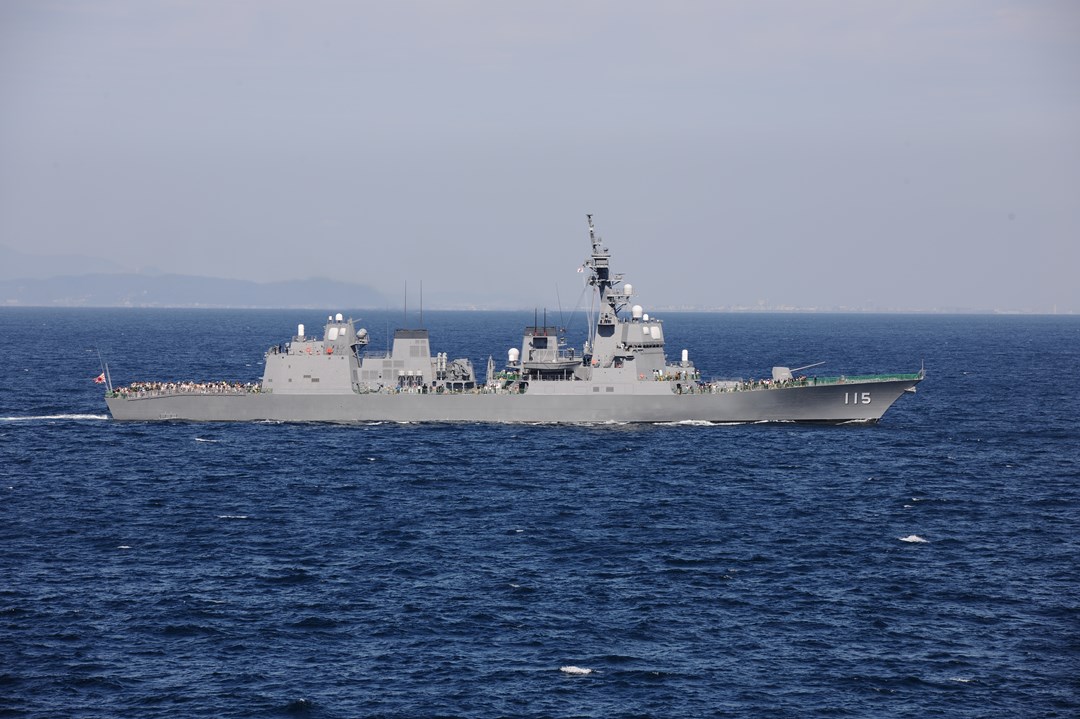

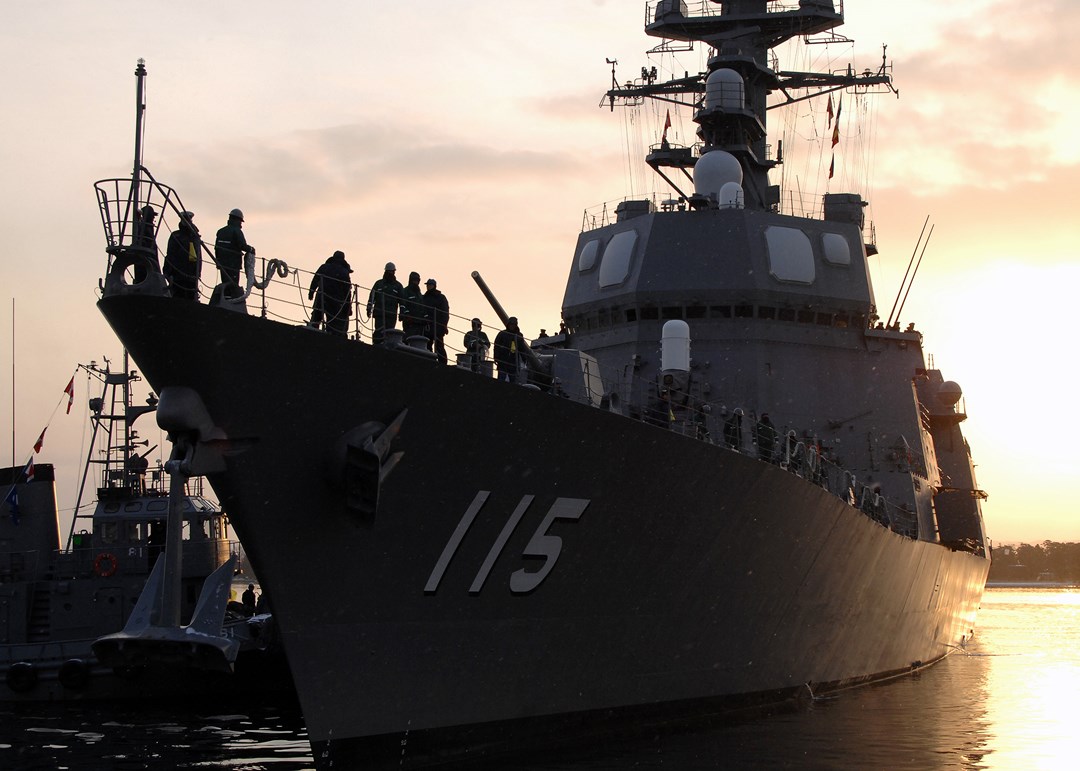

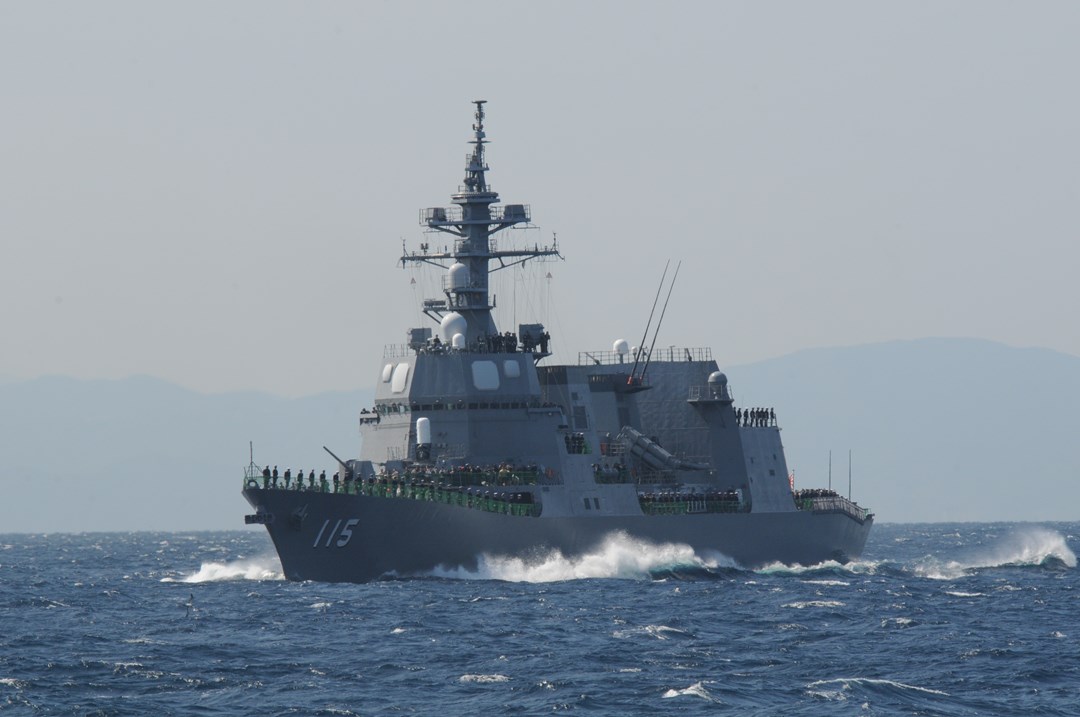

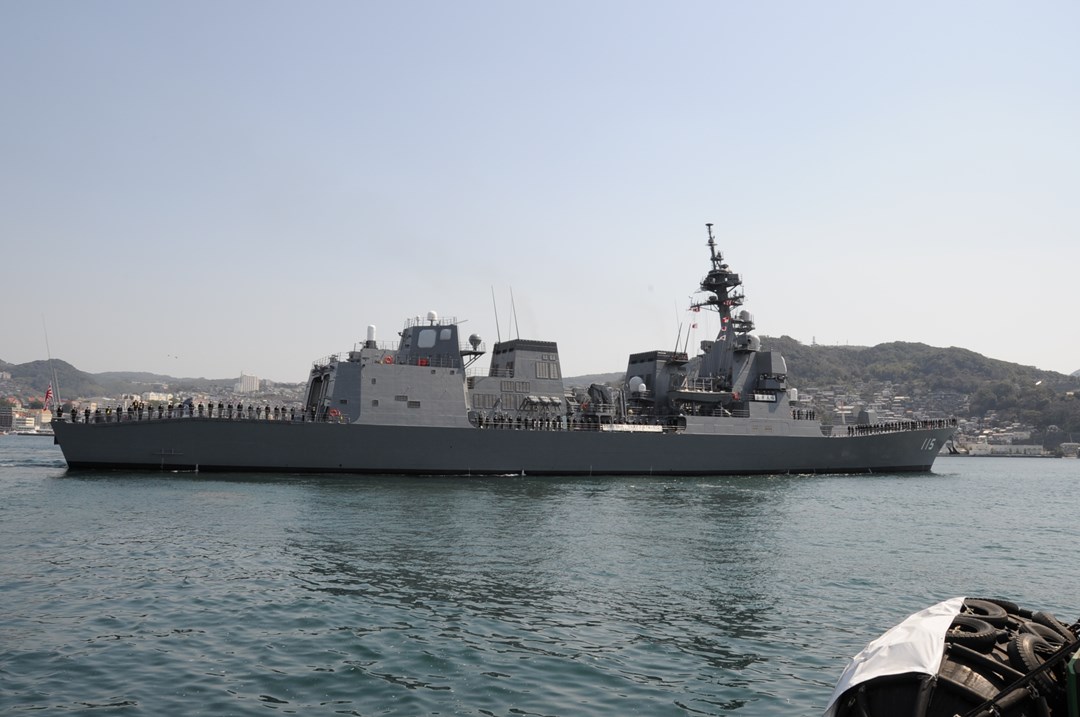

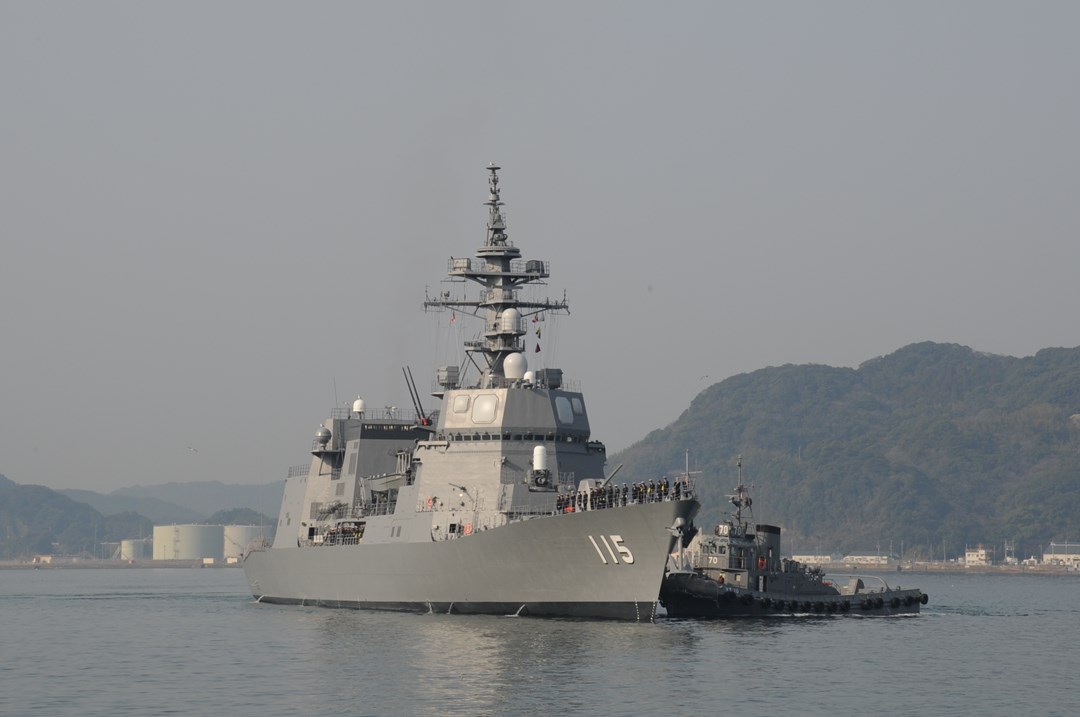

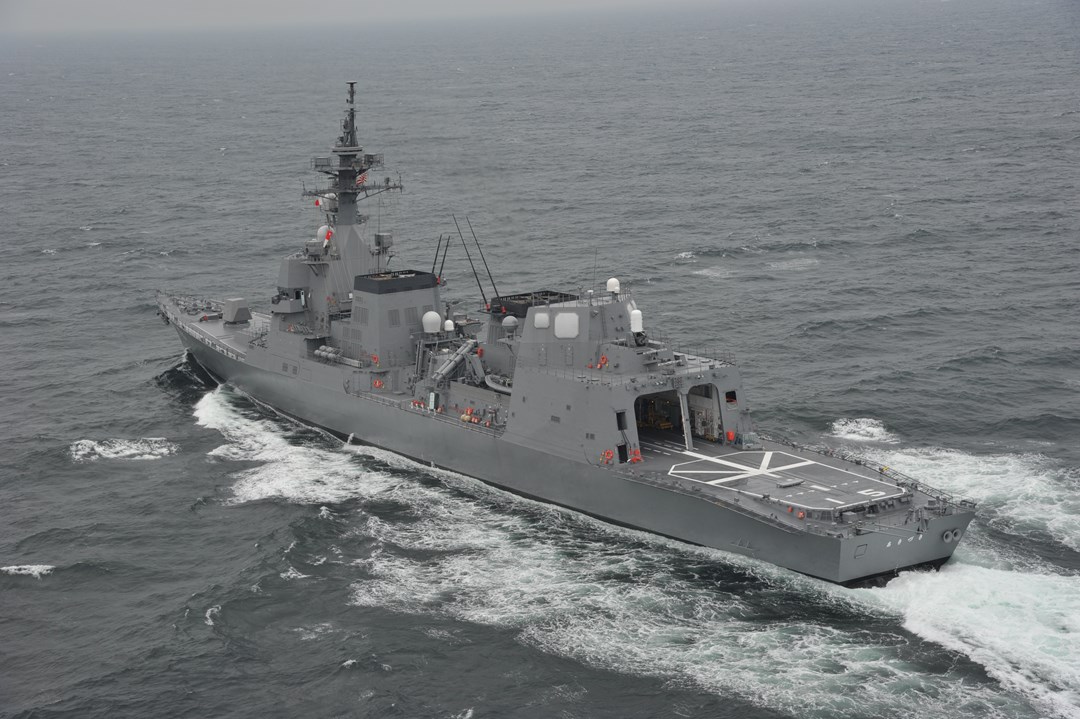

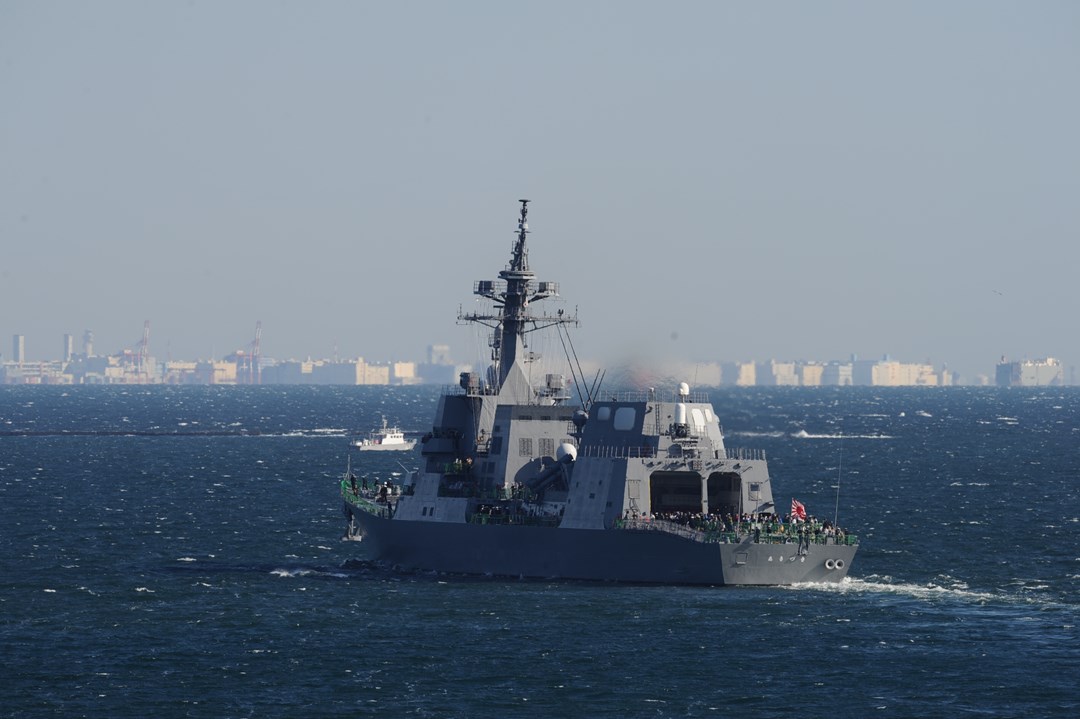

The Japan Marine Self Defense Force (JMSDF) Akizuki, also known as DD 19, is a 5,000t class multi-role frigate, destroyer for JMSDF, aimed at providing local area defense in support of the Japanese destroyer units. The new frigate will be equipped with Evolved Sea Sparrow Missiles (ESSM) and Vertical Launch ASROC (VLA) in vertical launching systems, anti-ship missiles (Harpoon?), two 20mm advanced gun systems (Phalanx?), a 5-in naval gun, and Enhanced FCS-3 (FCS-3A) anti-aircraft active phased array radar system. In addition, the Akizuki frigate will be provided with an aft flight deck and hangar, hull-mounted sonar array and the upper ship's structure designed to be as stealth as possible. According to Japan's National Defense Program Guidelines (NDPG) of 2007, the JMSDF is required to possess eight destroyer units for mobile operations with each unit consisting of four vessels. Three of these vessels are multi-role destroyers (DD) and the fourth is an Aegis-equipped ship (DDG). The Akizuki primary mission will be to protect the DDG ship from potential air attacks while it is engaged in ballistic missile defense (BMD) operations. The lead ship was funded in fiscal year 2007 and was commissioned in 2012. Following NDPG, JMSDF may procure up to eight vessels of this class but finally only got four.

Naval & Littoral Specifications
Crew 200
Displacement 6800.00 tonnes
Beam 18.30 m
Draft 5.40 m
Max Speed 30.0 knots
Overview (Deagel)
Group Frigates
Status Active
Also Known As 19DD, DD115
Origin Japan
Contractors Mitsubishi Heavy Industries, Mitsui Engineering & Shipbuilding
Initial Operational Capability (IOC) March 14, 2012
Total Production 4
Specifications (Deagel)
Crew 200
Number of Aircraft 2
Dimensions — Beam 18.3 meter
Dimensions — Draft 5.4 meter
Dimensions — Length 151 meter
Dimensions — Main Gun Caliber 127 millimeter
Mass — Full Displacement 6,800 ton
Mass — Standard Displacement 5,050 ton
Power — Total Combined Power 64,000 hp
Speed — Top Speed 30 knot
Gear (Deagel)
Item 1 Anti-Ship Missiles: RGM-84D Harpoon (8)
Item 2 Anti-Submarine Rockets: RUM-139 VL ASROC
Item 3 ASW Helicopters: SH-60J (2)
Item 4 Missile Launchers: Mk 41 Tactical Length (32)
Item 5 Naval Gun Systems: 127/64 Lightweight (1)
Item 6 Radar Systems: FCS-3A (4)
Item 7 Sea-Based Air Defense Systems: Mk 15 Phalanx Block 1B (2)
Item 8 Ship Power Plants: LM2500 (2)
Item 9 Surface-to-Air Missiles: ESSM
Details
Country of Origin Japan
Category Frigates
Naval > Frigates
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
151 m
Width
18.3 m
Height
Weight
6800000 kg
Operators (1)
Japan
