VBTP-MR

VBTP-MR

Wheeled Armored Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
VBTP-MR
Designation
VBTP-MR
Alternate Designation
Guarani, Viatura Blindada Transporte de Pessoal Media de Rodas
Equipment Type
Wheeled Armored Vehicles
Manufacturer
Iveco Defence Vehicles
Date of Introduction
2012
Description

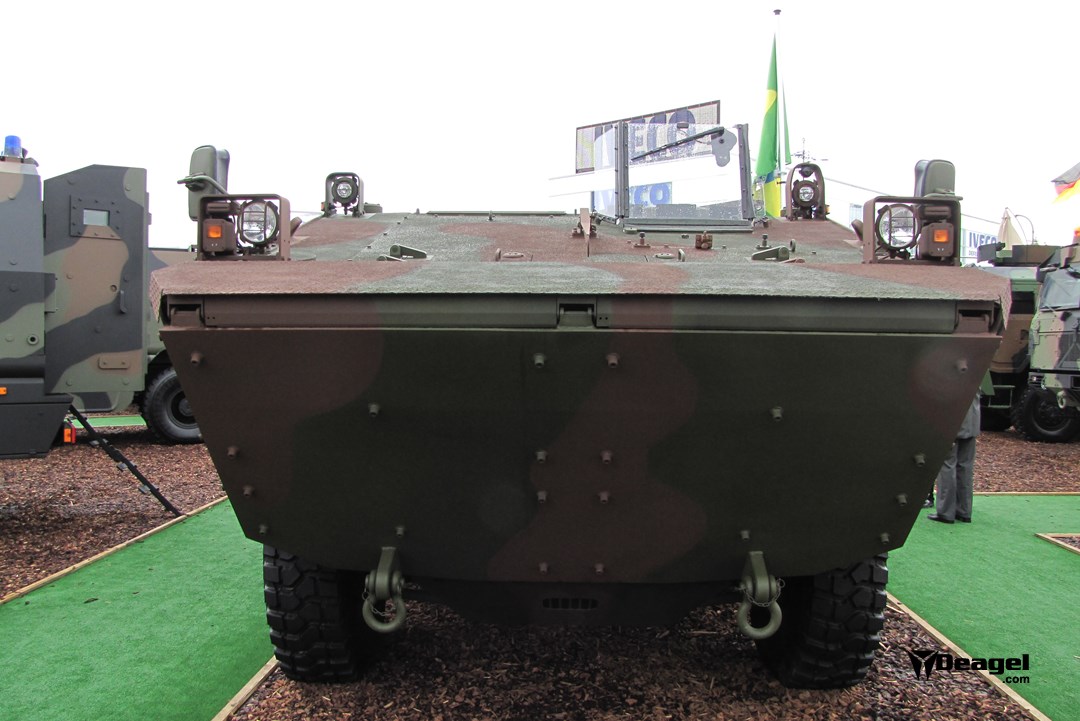

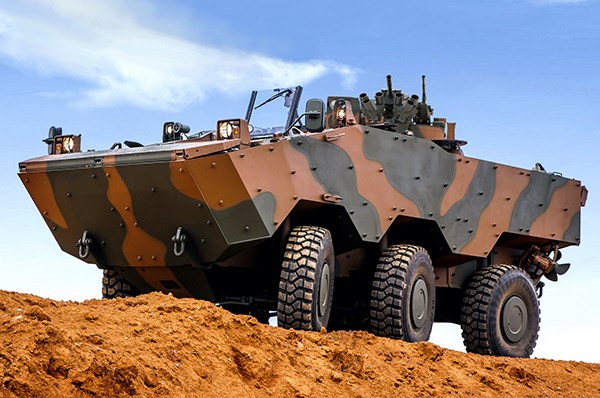

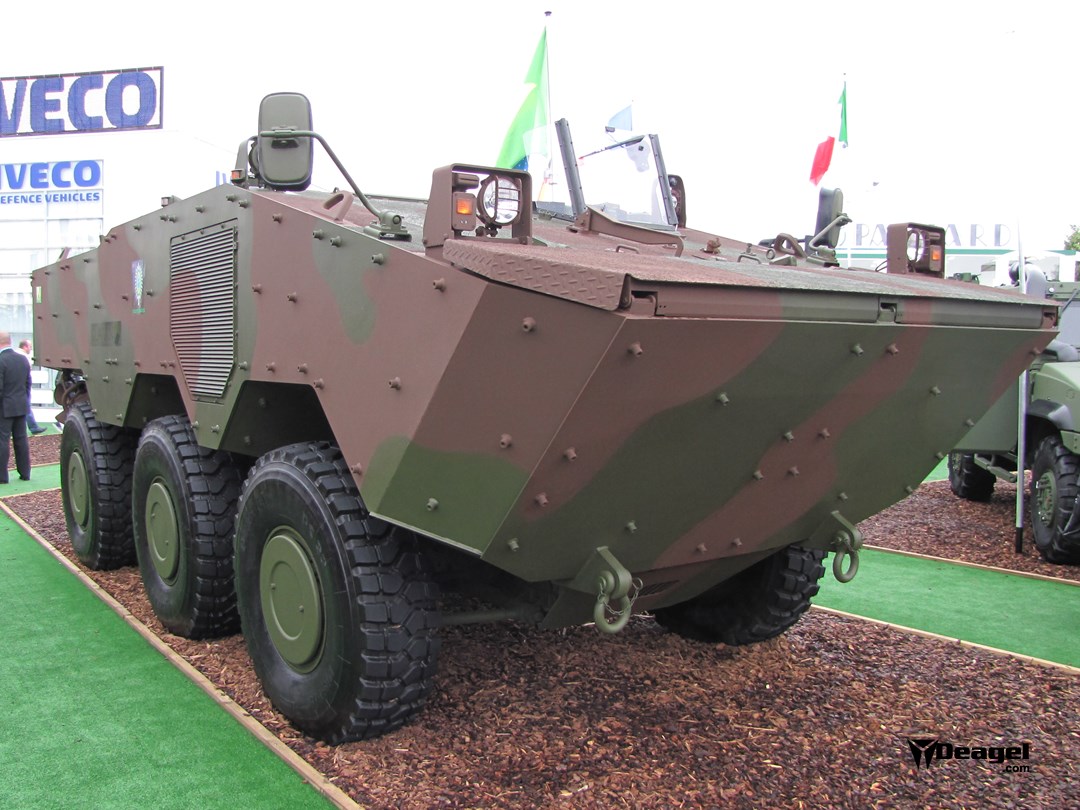

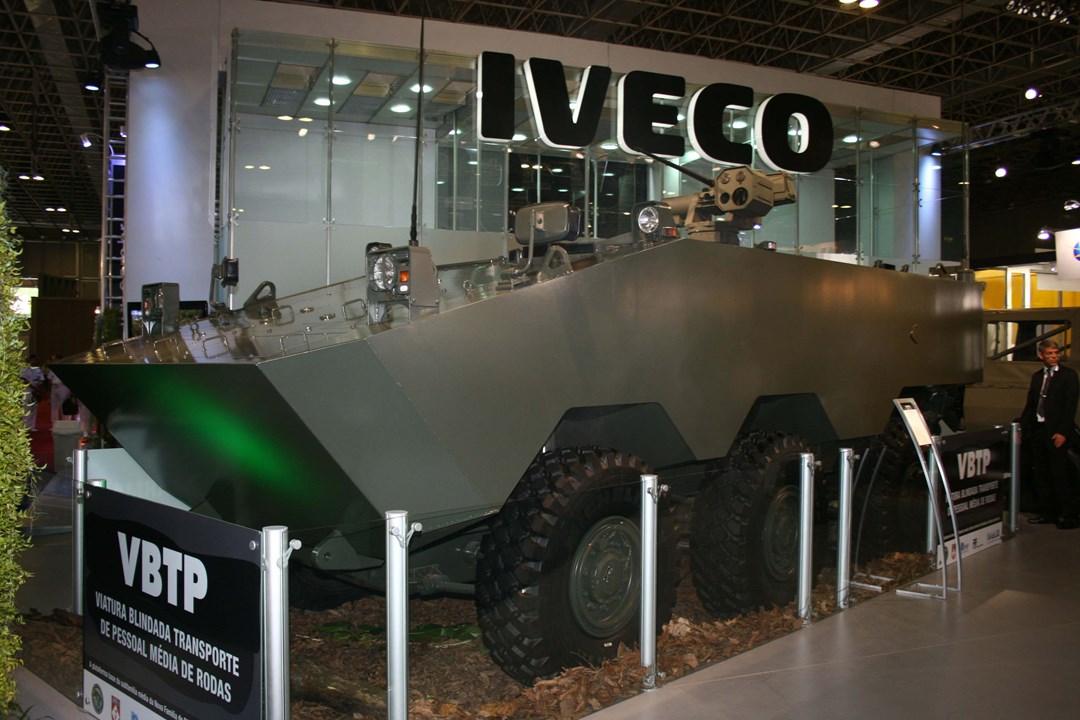

The VBTP-MR (Viatura Blindada Transporte de Pessoal Media de Rodas) is a family of 18t class, 6x6, diesel engine powered armored vehicles with amphibious capability and capable of carrying 11 soldiers. The VBTP-MR can be equipped with a turret armed with remote control weapon station for several different applications. This armored vehicle can be transported by an aircraft of type C-130 Hercules. The VBTP-MR vehicle family is being developed jointly by the Brazilian Army (through the project Mobility Strategy and the DCT - Department of Science and Technology) and Iveco Defence Vehicles with the help of major specialist Brazilian companies. The Brazilian Army selected the Iveco Defence Vehicles in 2007 for the development of a new family of vehicles as the replacement for the aging Urutu vehicle fleet introduced in the 1970s. The first prototype is under construction in Brazil and will be ready in the first half of 2010. Another 16 units of a pilot batch will be produced by Iveco in Brazil between 2010 and 2011. With the first production model expected to roll off the production line and delivered to the Brazilian Army in 2012. The 6 billion Brazilian Reals production contract for 2,044 vehicles was awarded to Iveco on December 18, 2009. Deliveries are expected to begin in 2012 and complete by 2030. In January 2011, the UT30 BR unmanned turret equipped with a 30mm cannon was selected by the Brazilian Army to be installed onboard a few hundreds VBTP-MR 6x6 armored vehicles. The contract valued at $260 million was awarded to Aeroeletronica.

Ground Specifications
Crew 3
Troop Capacity 8
Max Speed 90.0 km/h
Range 600.0 km
Overview (Deagel)
Group Wheeled Armored Vehicles
Status Active
Also Known As Guarani, Viatura Blindada Transporte de Pessoal Media de Rodas
Origin Brazil
Contractor Iveco Defence Vehicles
Initial Operational Capability (IOC) 2012
Total Production 2,226
Unitary Cost BRL 2.9 million
Specifications (Deagel)
Crew 3
Troops 8
Wheel Drive 6
Wheels 6
Degree — Approach Angle 48 °
Degree — Departure Angle 45 °
Dimensions — Ground Clearance 0.45 meter
Dimensions — Height 2.3 meter
Dimensions — Length 6.9 meter
Dimensions — Main Gun Caliber 30 millimeter
Dimensions — Track 2.3 meter
Dimensions — Wheelbase 2 meter
Dimensions — Width 2.7 meter
Energy — Max Torque 1,500 Nm
Mass — Combat Weight 18.3 ton
Mass — Empty Weight 14.5 ton
Percentage — Gradient 60 %
Percentage — Side Slope 30 %
Performance — Ditch Crossing Ability 1.3 meter
Performance — Max Range 600 kilometer
Performance — Step Climbing Ability 0.50 meter
Performance — Turning Radius 9.9 meter
Power — Power 280 kW
Speed — Top Speed 90 kph
Speed — Top Swimming Speed 9 kph
Gear (Deagel)
Item 1 Weapon Stations: REMAX (1)
Item 2 Weapon Stations: UT-30 BR (1)
Details
Country of Origin Brazil
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.9 m
Width
2.7 m
Height
2.3 m
Weight
18300 kg
Operators (5)
Brazil
Argentina
Ghana
Lebanon
Philippines
