EC11 Chinese Unmanned Aerial Vehicle (UAV)
EC11
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
EC11 Chinese Unmanned Aerial Vehicle (UAV)
Designation
EC11
Alternate Designation
EC11
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
T-DRONES
Date of Introduction
2025
Description
The EC11 Chinese Unmanned Aerial Vehicle (UAV) is a commercial-grade quadcopter developed by T-DRONES (a Chinese manufacturer based in Nanchang) designed for industrial applications requiring extended endurance and moderate payload capacity. Unlike military UCAVs such as China's GJ-11 stealth drone, the EC11 represents the commercial/industrial segment of China's unmanned systems portfolio.
Air & Air Defense Specifications
Engine
T-DRONES motor and electronic speed controller (ESC) architecture specifically engineered for extended flight duration. The system delivers stable power delivery across the flight envelope while maintaining efficiency during cruise and high-payload operations. The propeller design incorporates quick-release mechanisms with a tool-free knead-lock interface, enabling individual propeller changes in approximately 3 seconds. This design prioritizes field maintainability and operational efficiency during extended deployment scenarios.
Max Speed
72.0 km/h
Range
50.0 km
Endurance
60.00 hrs
Payload Capacity
5 kg
System
Alternate Designation
EC11
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
T-DRONES
Payload Capacity
5.0 kg

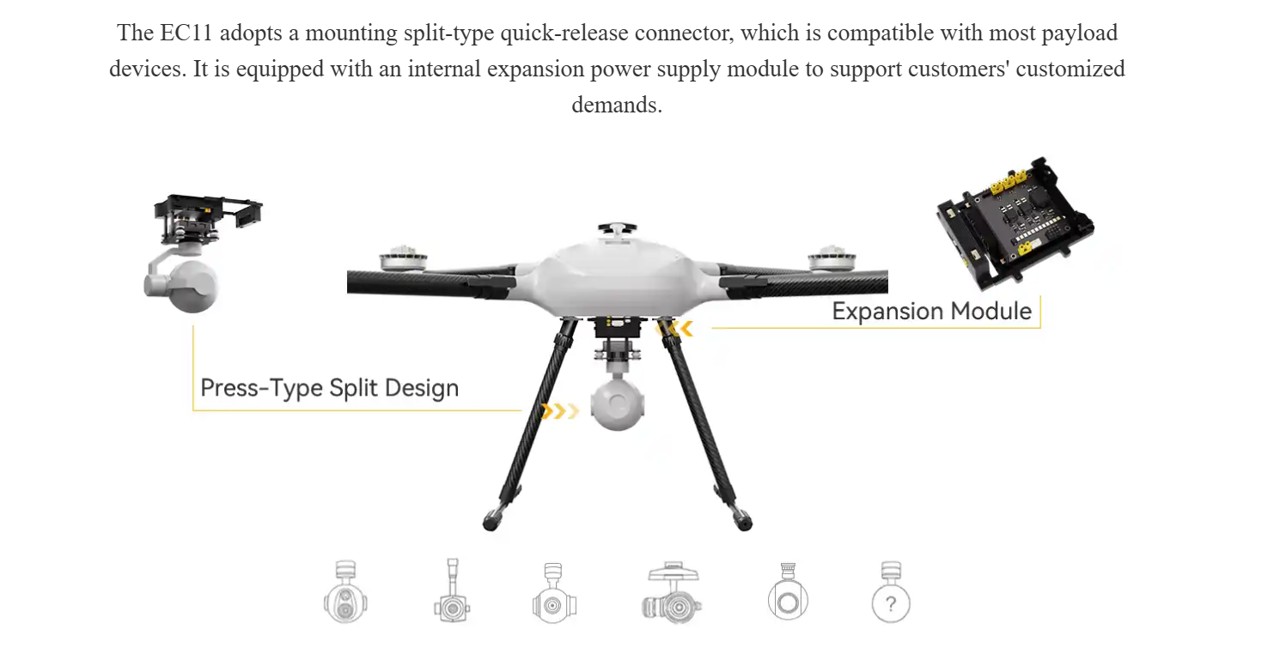

Payload Integration
The platform supports modular payload bays and standardized mounting interfaces, enabling rapid mission reconfiguration: The 0.5–5 kg payload range accommodates:
Electro-optical (EO) and infrared (IR) camera systems.
Multispectral and hyperspectral imaging sensors.
LiDAR units for 3D terrain mapping.
Environmental sampling equipment.
Telecommunications relay packages.
Noise Characteristics
A critical operational advantage involves the platform's acoustic signature: the EC11 operates at an average noise level of 50 decibels (dB) at 5 meters distance.
Dimensions
Wheelbase
1,130 mm
Maximum Takeoff Weight
15 kg (Including payload and battery)
Automotive
Engine Name
IPET I7 propulsion system
Engine Type
T-DRONES motor and electronic speed controller (ESC) architecture specifically engineered for extended flight duration. The system delivers stable power delivery across the flight envelope while maintaining efficiency during cruise and high-payload operations. The propeller design incorporates quick-release mechanisms with a tool-free knead-lock interface, enabling individual propeller changes in approximately 3 seconds. This design prioritizes field maintainability and operational efficiency during extended deployment scenarios.
Engine Power
INA
Battery
The EC11 operates on a 12S LiPo intelligent battery with 36,000 mAh capacity (36 Ah), delivering nominal voltage of 44.4V (43.2V minimum, 50.4V maximum). The battery integrates CAN (Controller Area Network) protocol communications, enabling real-time voltage, temperature, and state-of-charge monitoring through the flight control system.
Maximum Speed
72 km/h
Cruise Speed
INA
Maximum Range
50 km
Service Ceiling
INA
Endurance
60 min with 5.0 kg payload.
Details
Country of Origin
China
Category
UAVs
Air > UAVs
Filter Label
E
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
15 kg
Operators (1)
China
