Zhotvi Vodi Class (Project 266M Class) Ukrainian Coastal Minesweeper
Zhotvi Vodi Class
Mine Clearing Vehicle
Other
Basic Information
Name
Zhotvi Vodi Class (Project 266M Class) Ukrainian Coastal Minesweeper
Designation
Zhotvi Vodi Class
Alternate Designation
Zhotvi Vodi Class; Project 266M Class
Equipment Type
Mine Clearing Vehicle
Manufacturer
Sudostroitel'noye Obyedineniye "Almaz" (Sredniy Neva)
Date of Introduction
1997
Description

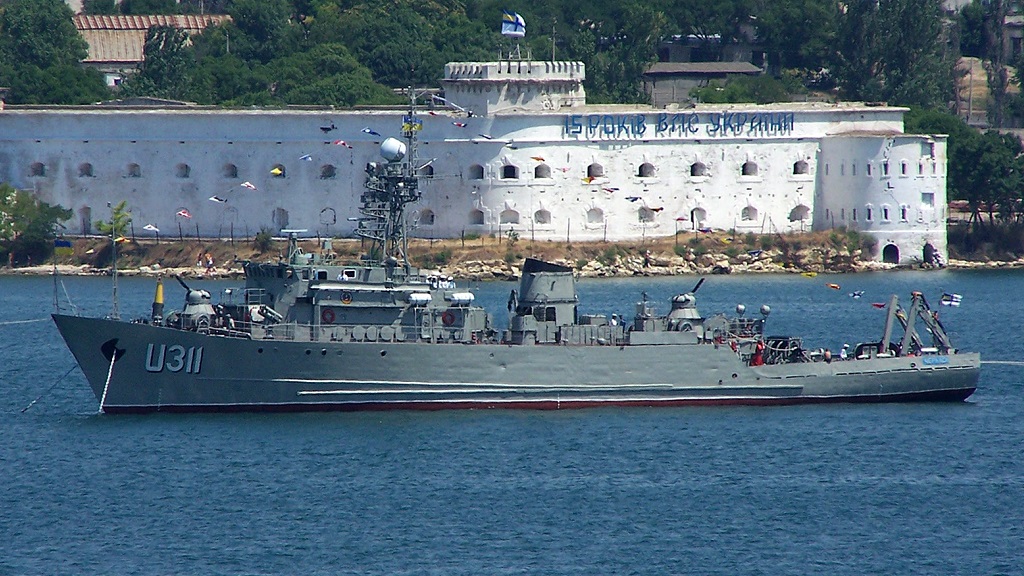

The Zhotvi Vodi Class (Project 266M Class) Ukrainian Coastal Minesweeper is a Ukrainian designation after transfer from the Russian Navy in 1997. Only two ships were transferred to Ukraine. The Natya-I class ships have aluminum-steel alloy, long-forecastle hulls with a short, raked bow with sheer extending to abaft the forward 30-mm twin gun mount. The superstructure is set well forward and has a tall, quadruped mast stepped abaft the bridge. The single, capped stack rises out of the main deck above the superstructure. The Cheraski (U-311) was placed in commission upon transfer, but Zhotvi Vodi (U-310) was not commissioned until mid-2000. Both are equipped to serve as anti-submarine warfare (ASW) escorts, with the RBU-1200 launchers also used for detonating mines.
Naval & Littoral Specifications
Crew
68
Beam
10.20 m
Draft
3.60 m
Variants
Cheraski (U-311)
Ukrainian sister ship to the Vhotvi Vodi (U-310)
System
Alternative Designation
Zhotvi Vodi Class; Project 266M Class
Type
Mine Countermeasures Ship
Builder
Sudostroitel'noye Obyedineniye "Almaz" (Sredniy Neva), Kolpino, Russia
Crew
68 total (6 Off. + 62 Enl.)
Dimensions
Length
61.0 m
Beam
10.2 m
Draft
3.6 m
Displacement, Standard
750 tons
Displacement, Full Load
873 tons
Propulsion System
Engine Name
M503-3E
Engine Type
2 x Diesel (2 shafts)
Engine Power
5,000 bhp
Propellers
2 x shrouded, controllable-pitch propellers
Maximum Range
5,200 nm
Maximum Speed
18 kts
Endurance
3 days
Minesweeping Equipment
Sonar
1 x MG-7 and 1 x MG-69 Lan-2
Contact Sweep Equipment
1 x VKT-1 mechanical sweep; 1 x AT-2 acoustic sweep; 1 x .SEMT-1 solenoid coil sweep
Automated Mine Warfare System
Yes
Mine Disposal Charges
Yes, 32 mine-disposal charges in lieu of mines.
Mine Trawler Net
Yes, net trawl deployed over the stern ramp
Gun Weapon Systems
Gun Weapon System #1
Name
2 x AK-230 30mm Naval Gun
Type
Naval Gun
Caliber
30 mm
Crew
1
Barrel Length
2,140 mm
Width
865 mm
Height
INA
Weight, Gun Mount
156 kg
Barrels
2
Action
Gas-operated revolver cannon
Elevation
+87° to -12° (50°/sec)
Traverse
±180° (35°/sec)
Rate of Fire (Max)
1,000 rounds/min (Cyclic)
Muzzle Velocity
1,050 m/s
Maximum Firing Range
5,000 m
Effective Firing Range
2,500 m (aerial); 4,000 m (maritime)
Feed System
Belt-fed
Sights
The weapon is remote-directed, typically by a fire-control system linked to either a Drum Tilt or Muff Cobb radar systems.
Gun Weapon System #1 Ammunition
Type
HEI-Frag, Frag-T, API
Caliber
30 mm
Shell Weight
0.39 kg
Basic Load
INA
Gun Weapon System #2
Name
2 x 2M-3M Naval dual-purpose gun
Type
Naval dual-purpose gun
Caliber
25 mm
Crew
1
Barrel Length
2.0 m
Height
INA
Weight, Gun Mount
110 kg
Barrels
2
Action
Gas-operated
Elevation
-10 / +85 degrees
Traverse
360 degrees
Rate of Fire
450 rds/min (Cyclic)
Muzzle Velocity
900 m/s
Effective Firing Range
2,800 m
Feed System
Belt-fed (65 rd belts)
Sights
Optical
Gun Weapon System #2 Ammunition
Type
HE-FRAG, AP, Tracer, Bursting Charge
Caliber
25 mm
Shell Weight
0.644 - 0.672 kg
Basic Load
INA
Missiles
Name
SA-N-5 Grail [9M32M]
Type
Surface to Air Missile
Length
1.42 m
Weight
9.0 kg
Purpose
Anti-air, Stern Chase
Guidance
IR Seeker
Range (Maximum)
18 km
Rockets
Name
2 x RBU-1200
Type
Subsurface Rocket
Purpose
Anti-submarine Warfare (ASW)
Length
1.24 m
Weight
72.0 kg
Wing Span
0.25 m
Quantity
5 Rockets (standard loadout)
Fire Control Systems
FCS Name
INA
Computerized FCS
Yes
Integrated Bridge System
Yes
Radar Systems
Navigation Radar
Kivach navigation radar
Fire Control Radar
Drum Tilt
Surface Search
Don 2
Radar Warning Receiver
Bell Tap
Protection
Hull
The hull was built of low magnetic steel.
Countermeasures
INA
NBC Water Washdown System
Yes
Details
Country of Origin
Russia
Category
Naval
Naval
Filter Label
Z
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
61 m
Width
10.2 m
Height
—
Weight
9 kg
