Tunguska-M

Tunguska-M

Local Air Defenses
Spotted an error? Sign in to suggest an edit.
Tunguska-M

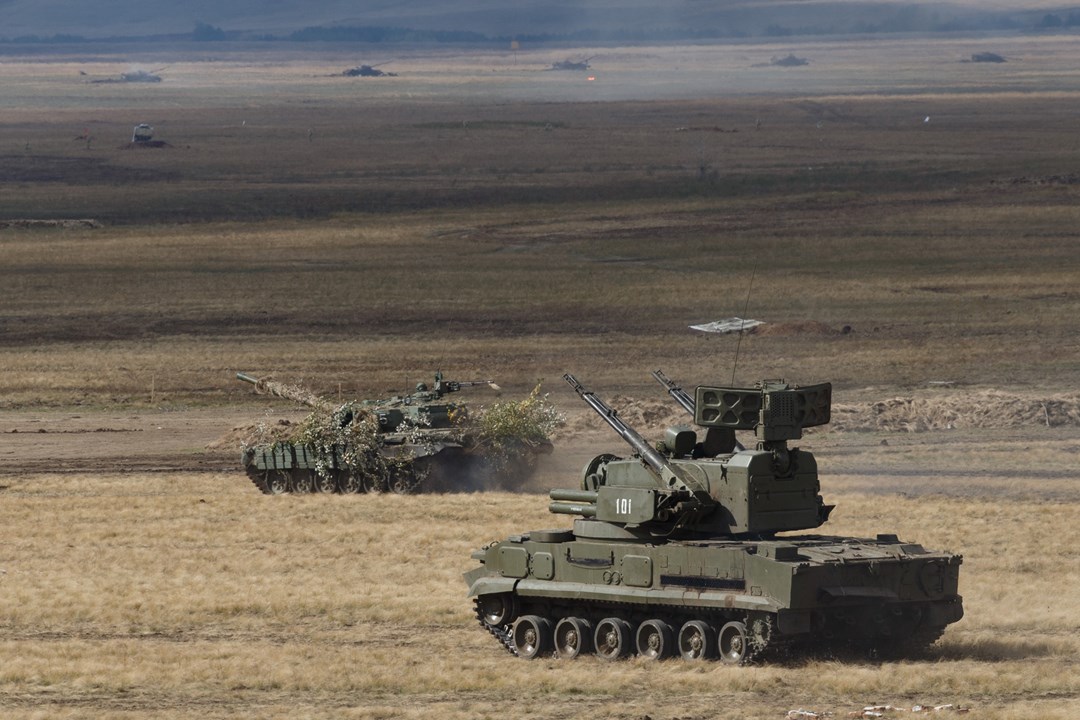

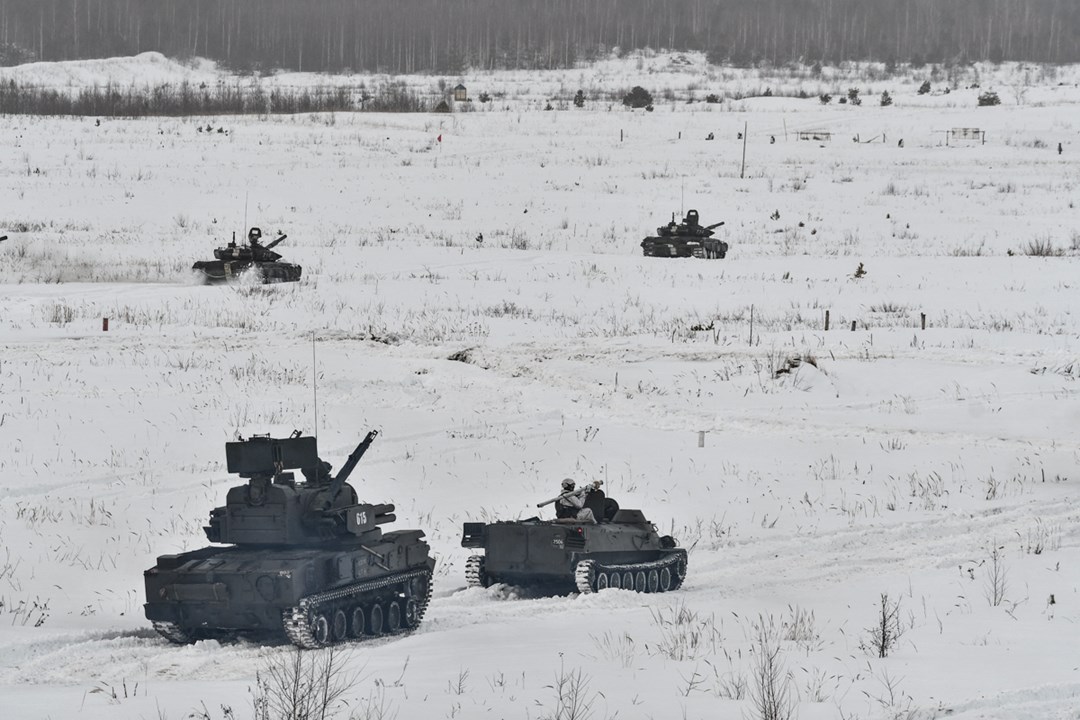

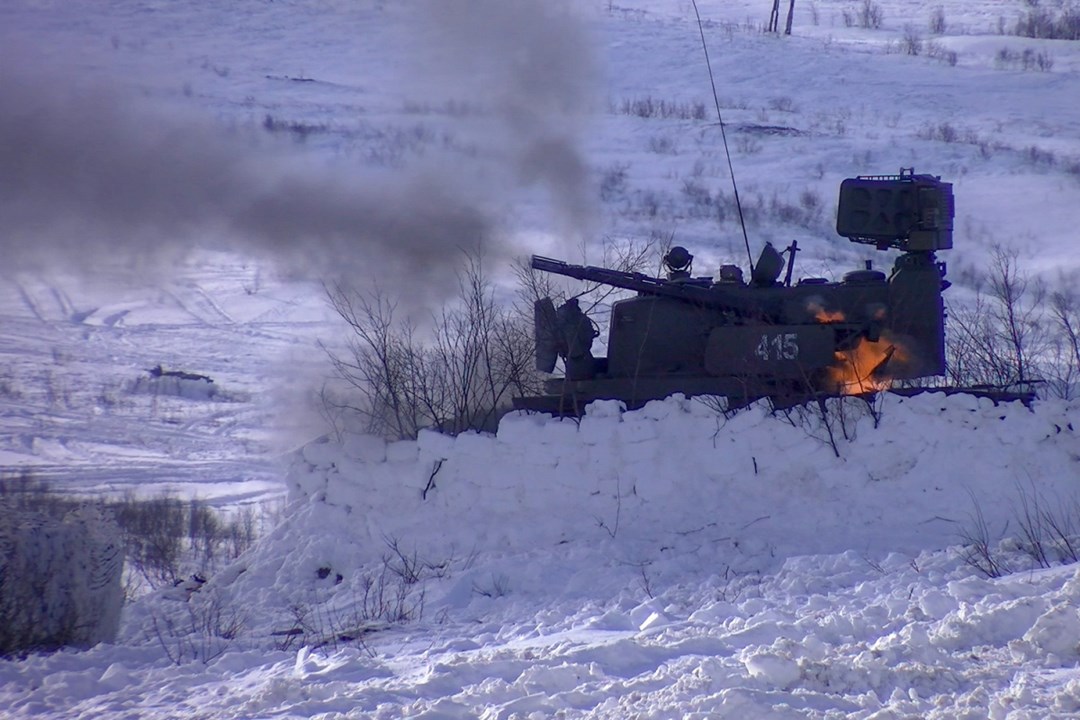

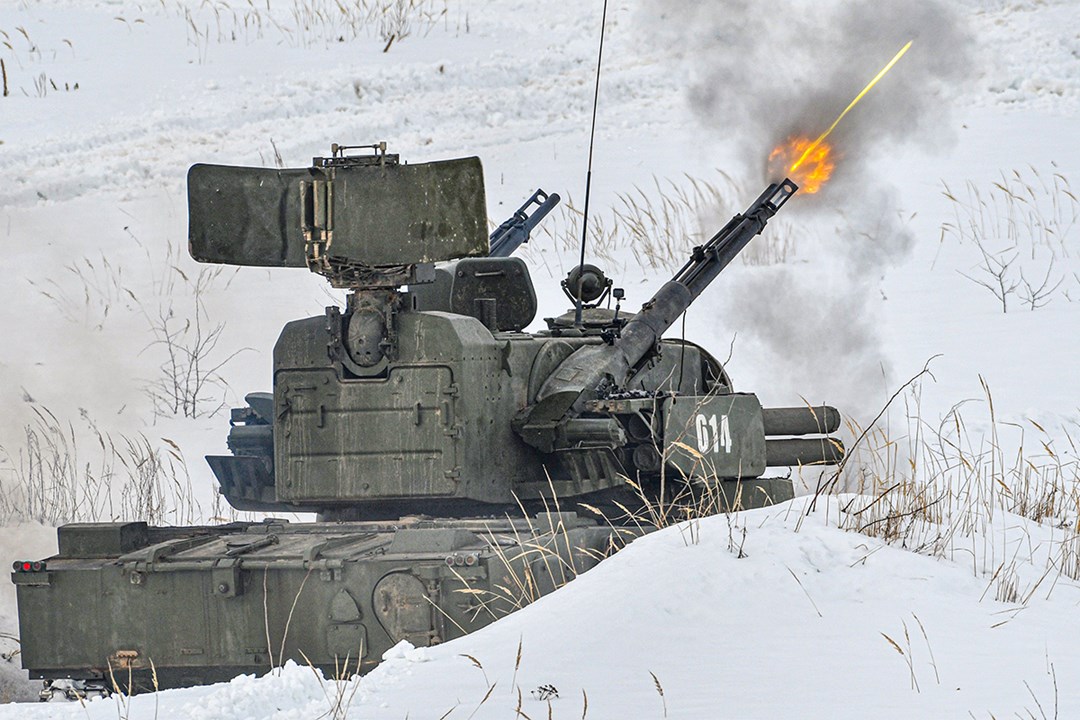

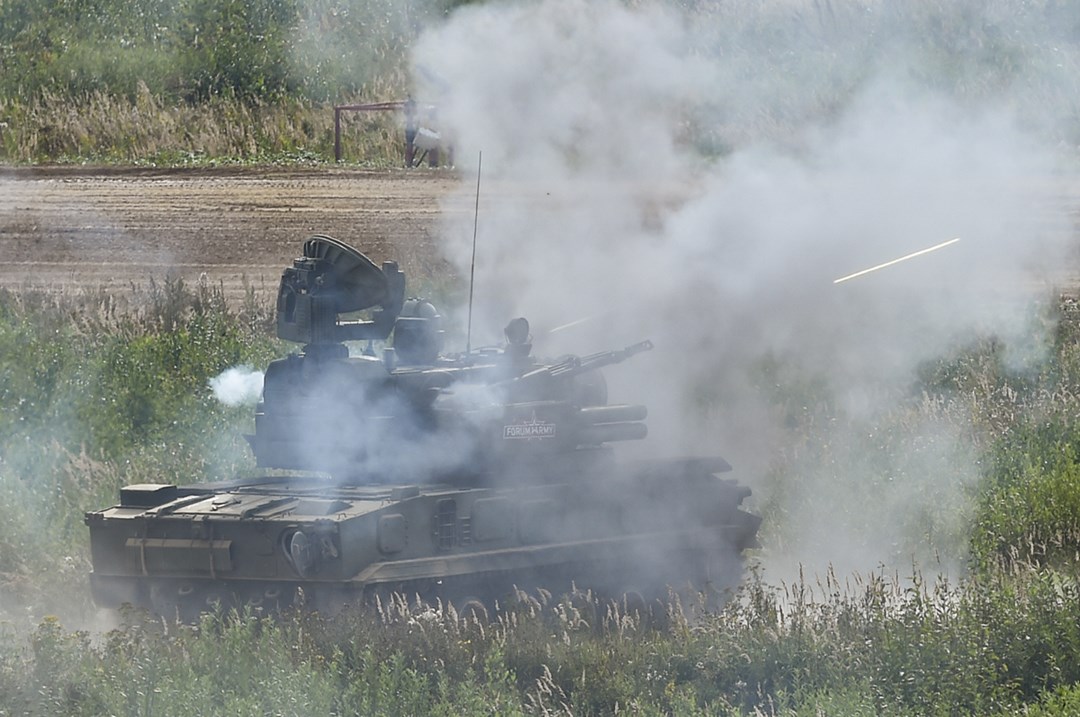

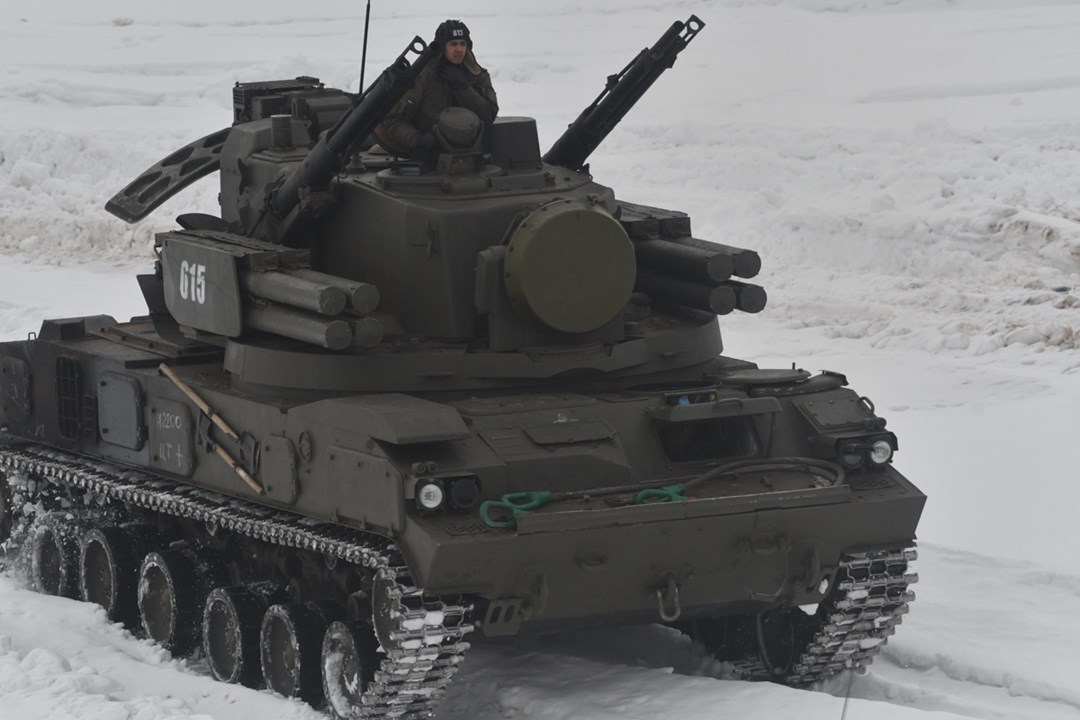

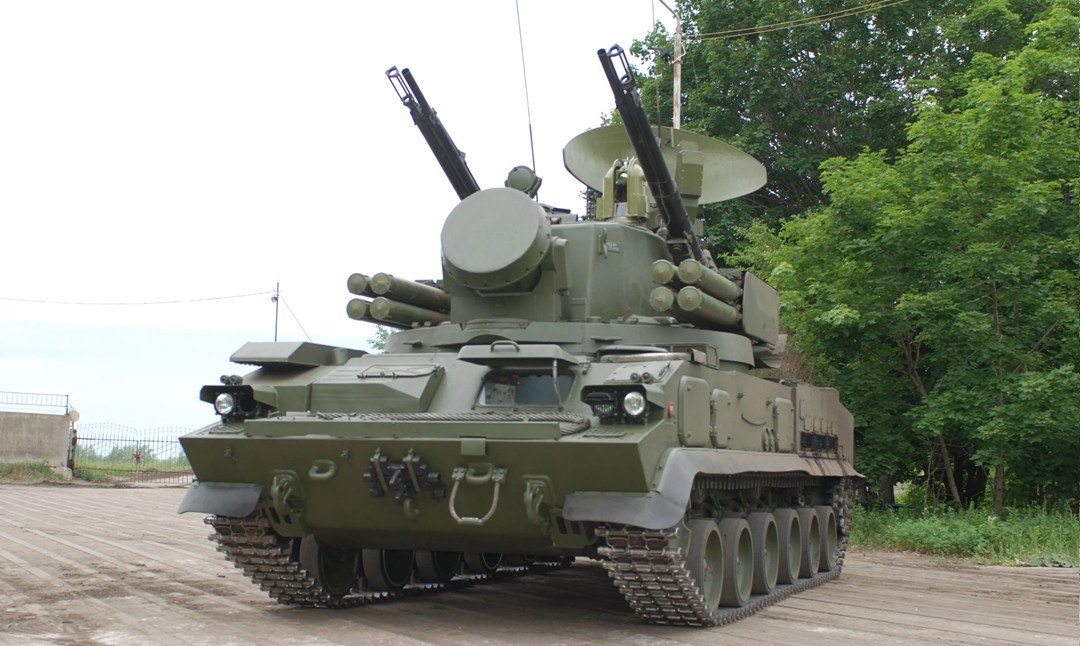

Operational Photo
deagel.com
Basic Information
Name
Tunguska-M
Designation
Tunguska-M
Alternate Designation
2K22M1, 2S6M, 9K22, SA-19 Grison, Tunguska-M1
Equipment Type
Local Air Defenses
Manufacturer
Almaz-Antey Concern, KBP
Date of Introduction
1990
Description

The Tunguska-M is a short range missile/gun weapon system mounted on a 2S6 tracked armored vehicle. Its features a detection/tracking/fire control radar system and optical sensors mounted on the armored vehicle turret. It is intended to protect ground armored units from air strikes carried out by helicopters and fixed-wing aircraft at low altitude in any weather condition. Each Tunguska-M weapon system comprises 8 sealed 9M311 missiles and two 30mm two-barrel 2A38M guns. The 30mm 2A38M gun provides a rate of fire of 4,800 rounds per minute at ranges from 200 to 4,000 meters. The 30mm guns can also engage targets flying from 0 to 3,000 meters of altitude. The Tunguska entered service in 1990 and features firing on the move capability to better achieve its goals.

Ground Specifications
Crew 4
Mobility Type Tracked
Main Weapon 30mm 2A38M guns (30mm)
Max Speed 65.0 km/h
Range 500.0 km
Overview (Deagel)
Group Local Air Defenses
Status Active
Also Known As 2K22M1, 2S6M, 9K22, SA-19 Grison, Tunguska-M1
Origin Russia
Contractors Almaz-Antey Concern, KBP
Initial Operational Capability (IOC) 1990
Total Production ?
Unitary Cost USD $16.0 million
Specifications (Deagel)
Ammunition Load 1904
Crew 4
Number of Barrels 4
Number of Cannons 2
Number of Weapons 8
Rolling Rubber Wheels 6
Dimensions — Main Gun Caliber 30 millimeter
Mass — Combat Weight 34,000 kilogram
Percentage — Gradient 70 %
Percentage — Side Slope 47 %
Performance — Ditch Crossing Ability 2 meter
Performance — Fording Depth 1 meter
Performance — Main Gun Max Range 4,000 meter
Performance — Main Gun Min Range 200 meter
Performance — Max Detection Range 25 kilometer
Performance — Max Range 500 kilometer
Performance — Target's Max Altitude 3,500 meter
Performance — Target's Min Altitude 0.000 meter
Performance — Weapon Max Range 10,000 meter
Performance — Weapon Min Range 2,500 meter
Rate — Max Rate of Fire 4,800 roundperminute
Speed — Cross Country Speed 40 kph
Speed — Target's Max Speed 500 mps
Speed — Top Speed 65 kph
Temperature — Max Operating Temperature 65 ° Celsius
Temperature — Min Operating Temperature -50.00 ° Celsius
Time — Reaction Time 10 second
Time — SetUp Time 8.4 second
Gear (Deagel)
Item 1 Medium Caliber Cannons: 2A38M (2)
Item 2 Surface-to-Air Missiles: 9M311 (8)
Item 3 Surface-to-Air Missiles: 9M311-M1 (8)
Details
Country of Origin Russia
Category Air Defense
Land > Air Defense
Sources

deagel.com: https://www.deagel.com/x/x/a000373

Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
34000 kg
Operators (6)
Russia
Germany
Ukraine
India
Belarus
Morocco
