HJ-9
HJ-9
Anti-Tank Guided Missiles

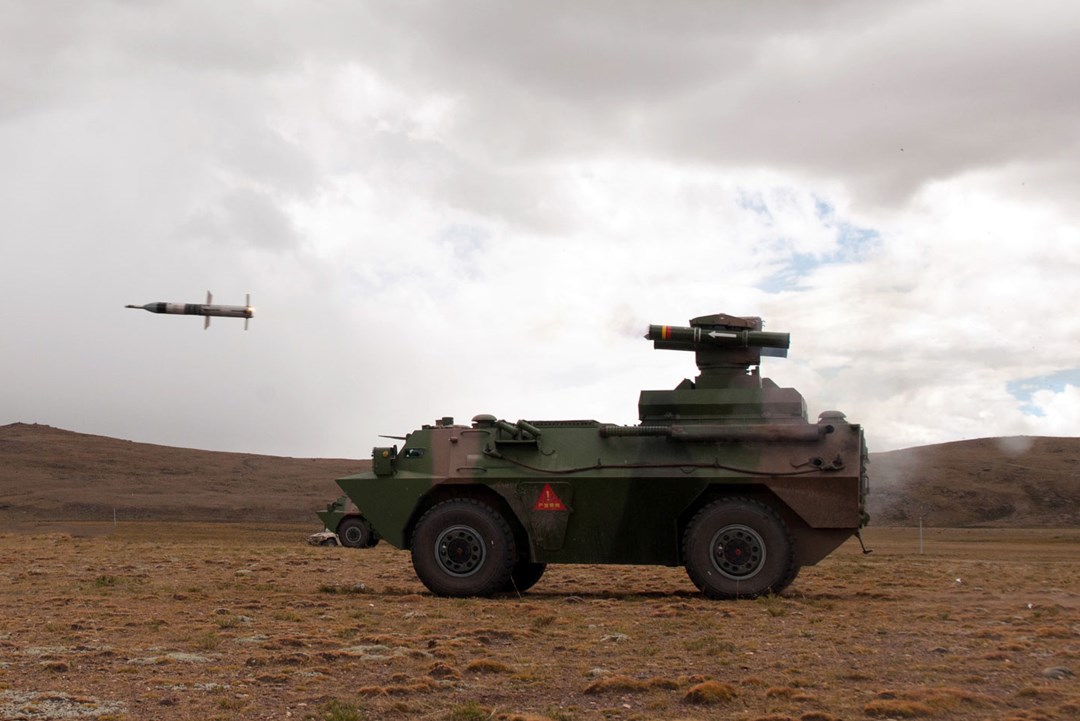

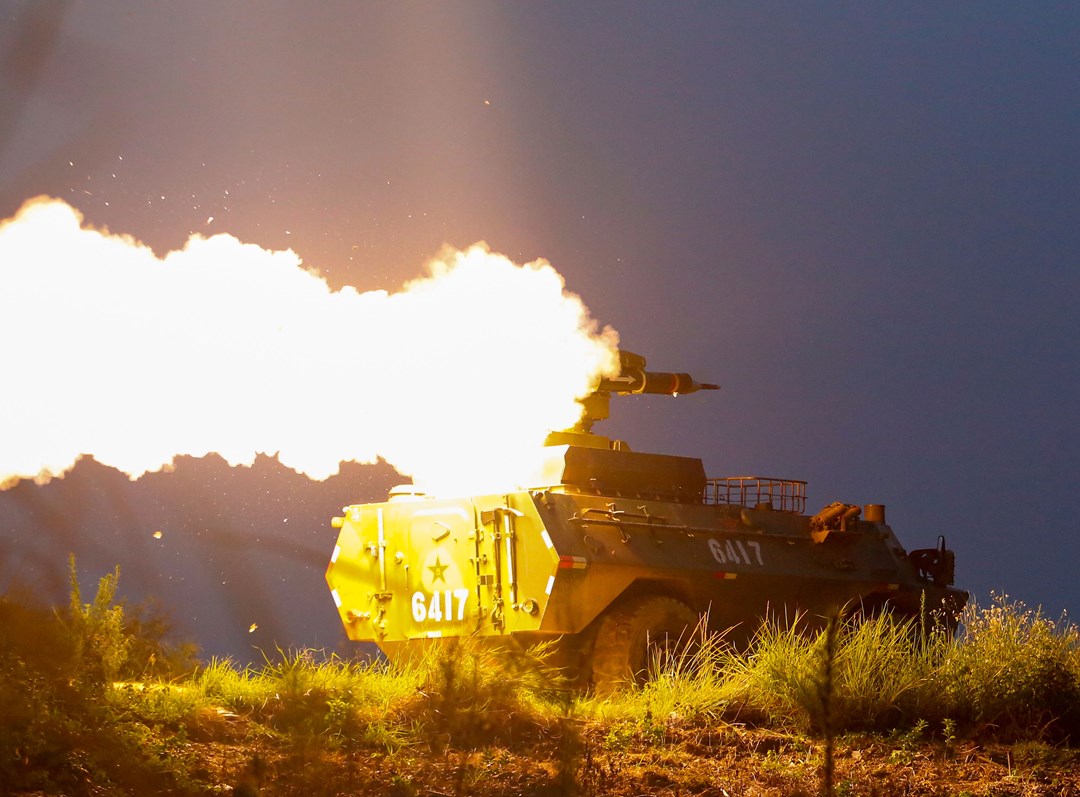

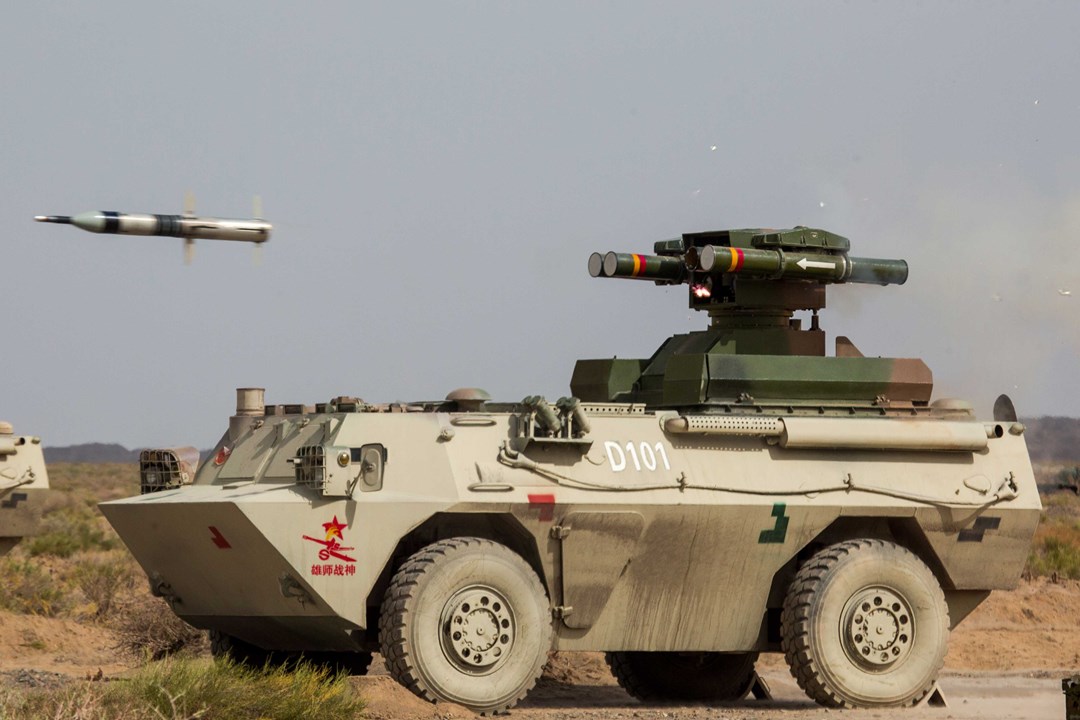

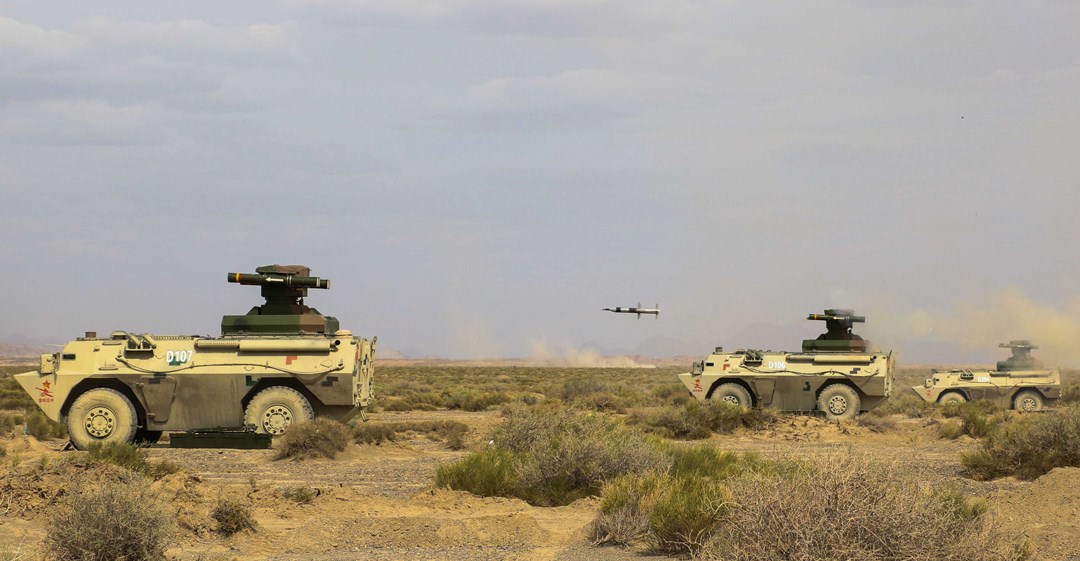

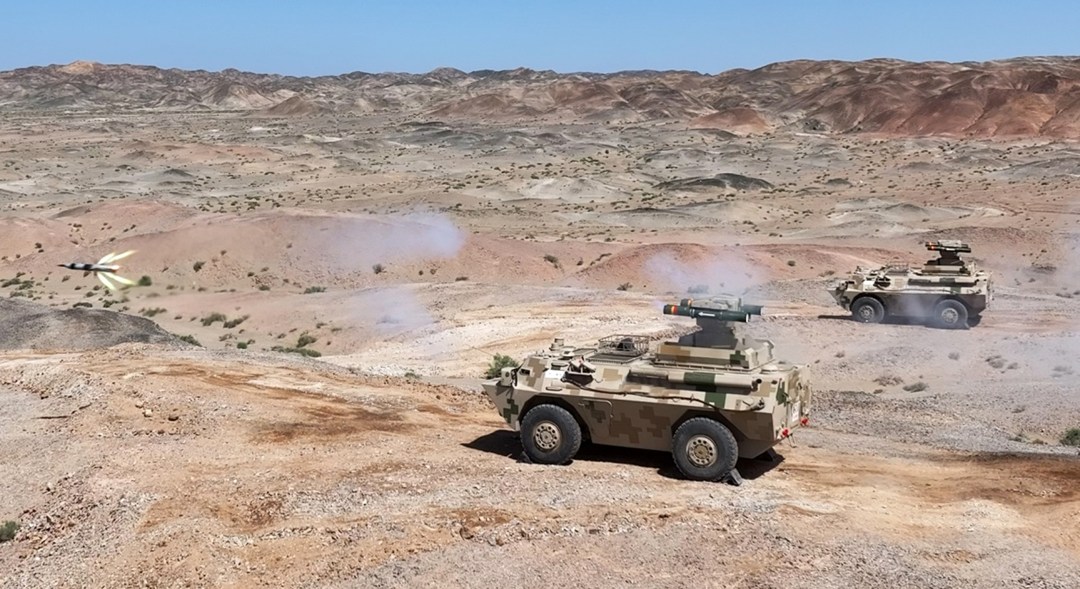

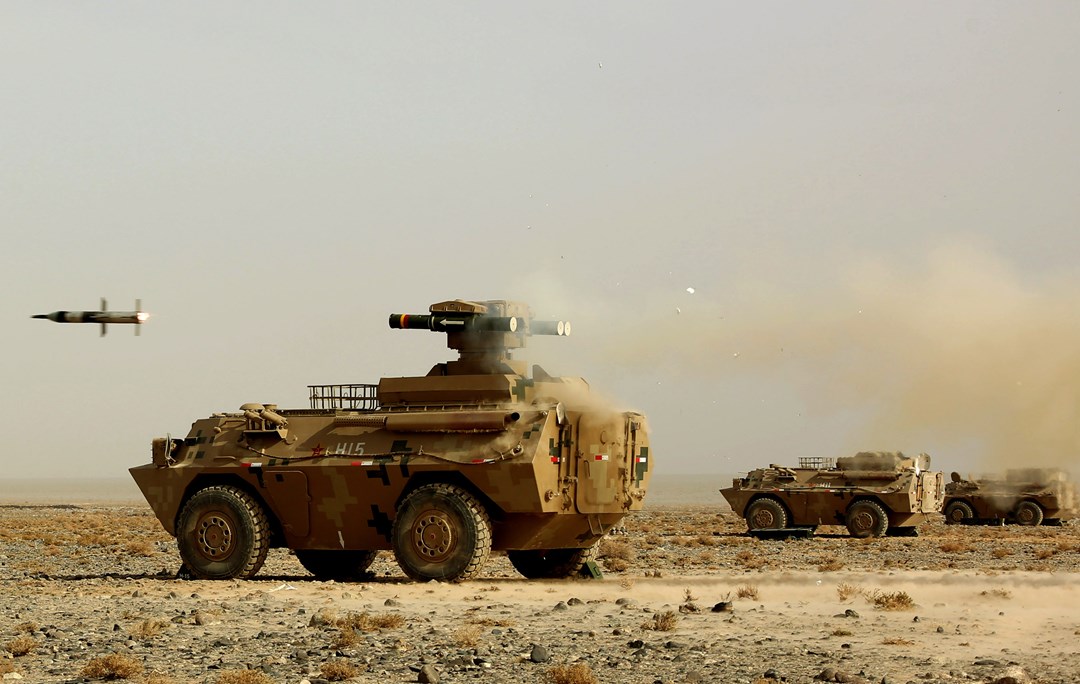

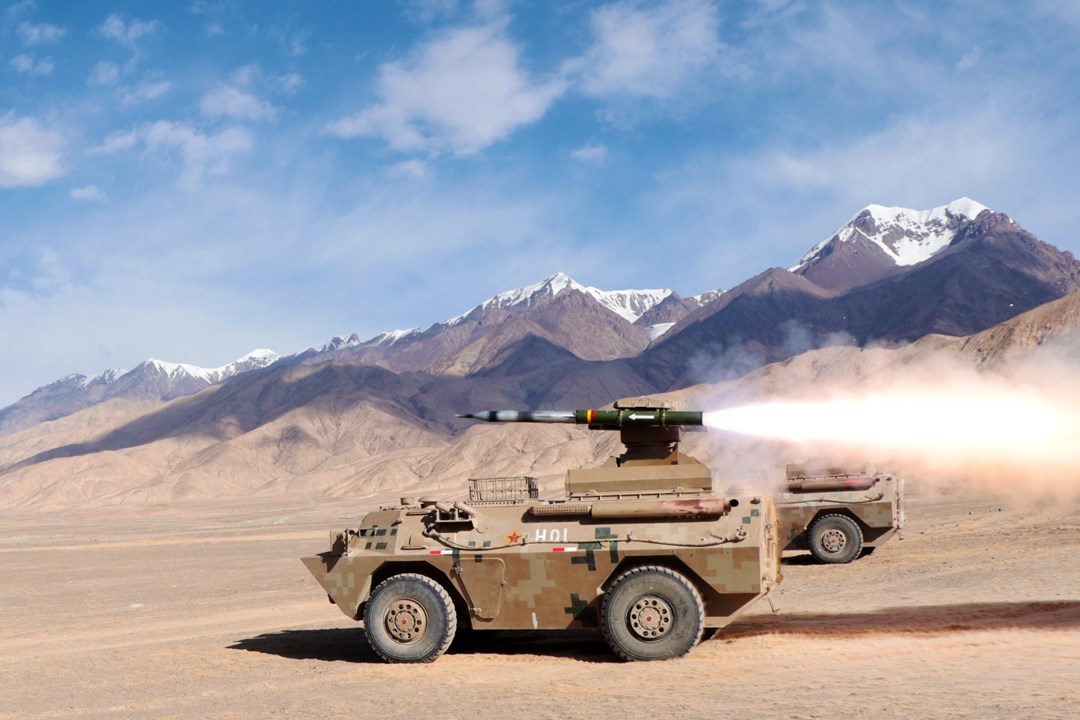

Operational Photo
Basic Information
Name
HJ-9
Designation
HJ-9
Alternate Designation
HJ-9A (millimeter wave guided variant), HJ-9B (laser-beam riding guided variant), HongJian-9 (Chinese name), Red Arrow 9 (US name)
Equipment Type
Anti-Tank Guided Missiles
Manufacturer
NORINCO
Date of Introduction
1995
Description

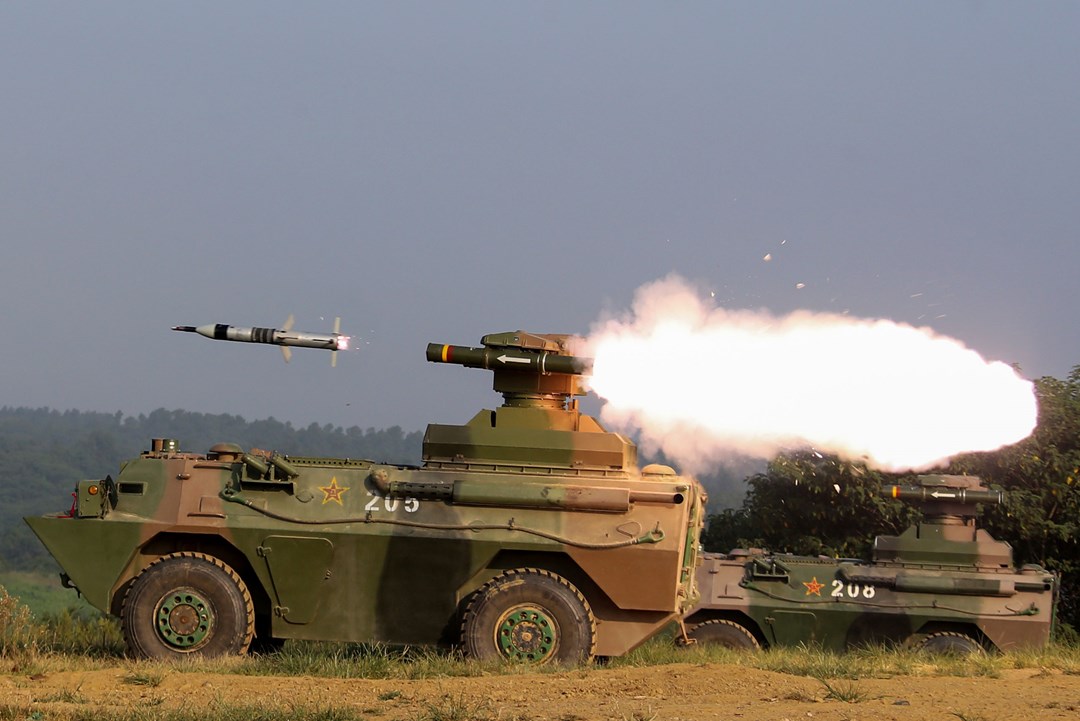

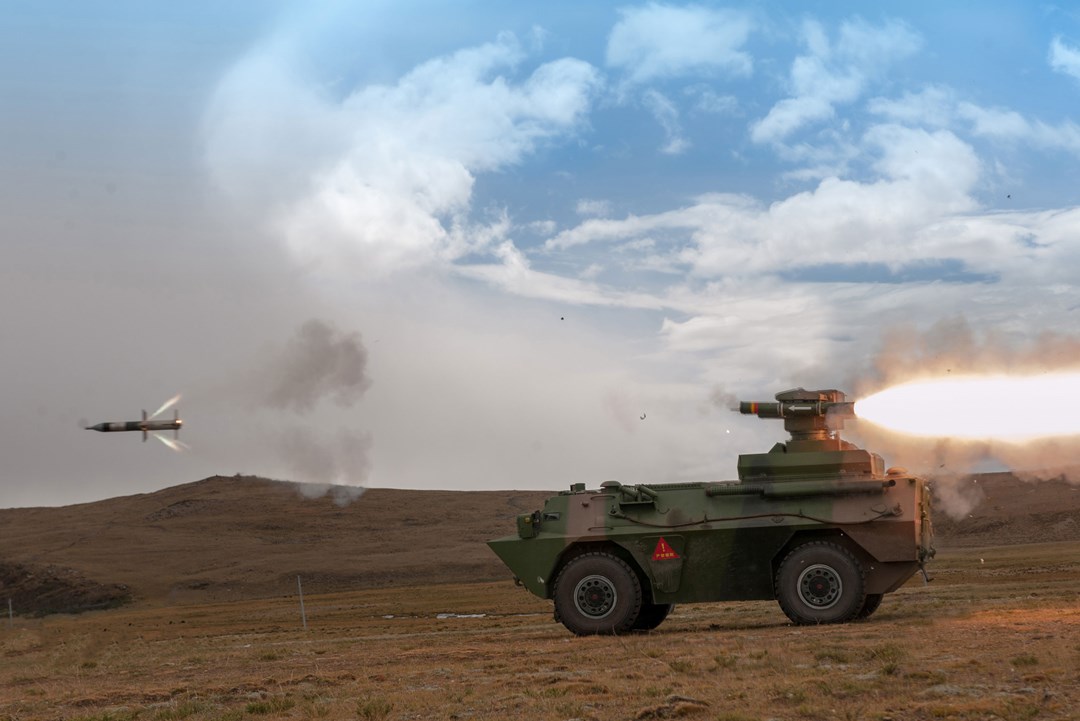

The HJ-9 is a heavyweight, all-weather, long-range, anti-tank missile designed for launch from ground vehicles and introduced by the People's Liberation Army (PLA) in the late 1990s. Basically, the vehicle-mounted HJ-9 was designed to take out main battle tanks at ranges of up to 5,000 meters. The missile is provided with three alternative guidance systems: laser Semi-Automatic Command Line of Sight (SACLOS) (HJ-9); millimeter wave (HJ-9A); or laser-beam riding (HJ-9B). The HJ-9 is provided with a tandem shaped-charge warhead capable of piercing up to 1,200mm of armor. The warhead is also suitable against Explosive Reactive Armor (ERA) protected main battle tanks.
Ground Specifications
Range
5.0 km
Overview (Deagel)
Group
Anti-Tank Guided Missiles
Status
Active
Also Known As
HJ-9A (millimeter wave guided variant), HJ-9B (laser-beam riding guided variant), HongJian-9 (Chinese name), Red Arrow 9 (US name)
Origin
China
Contractor
NORINCO
Initial Operational Capability (IOC)
1995
Total Production
?
Specifications (Deagel)
Dimensions — Diameter
152 millimeter
Mass — Weight
37 kilogram
Performance — Max Range
5,000 meter
Performance — Piercing in Armor
1,200 millimeter
Details
Country of Origin
China
Sources
deagel.com: https://www.deagel.com/x/x/a001876
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
37 kg
Operators (2)
China
Morocco
