Easy Site American Unmanned Aerial Vehicle (UAV)
Easy Easy
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Easy Site American Unmanned Aerial Vehicle (UAV)
Designation
Easy Easy
Alternate Designation
Easy Easy
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Easy Aerial
Date of Introduction
2024
Description
The Easy Site American Unmanned Aerial Vehicle (UAV) are designed for ground operations that require a more robust payload capacity, as opposed to our Easy Mobile systems which provide rugged solutions with lighter payload capacity for on the move operations.
Air & Air Defense Specifications
Max Speed
40.2 km/h
Endurance
45.00 hrs
Service Ceiling
0 m
Payload Capacity
2 kg
System
Alternate Designation
Easy Easy
Type
Tethered Unmanned Aerial Vehicle (UAV)
Manufacturer
Easy Aerial
Payload Capacity
2.99 kg
Computing Power
Intel i7
Internal Web Server
Free Flight System
Advanced, affordable, and portable, our autonomous free-flight aerial monitoring system can be configured to meet a multitude of operational requirements. Not only can the drone automatically deploy from a ground station upon a security trigger such as a vibration sensor, fire alarm, or distress call, but it also can self-deploy and recharge for each scheduled mission. With an Easy Site free flight system, each drone can take off from and land in a different ground station, allowing for long-range inspections and monitoring missions while recharging at multiple locations.

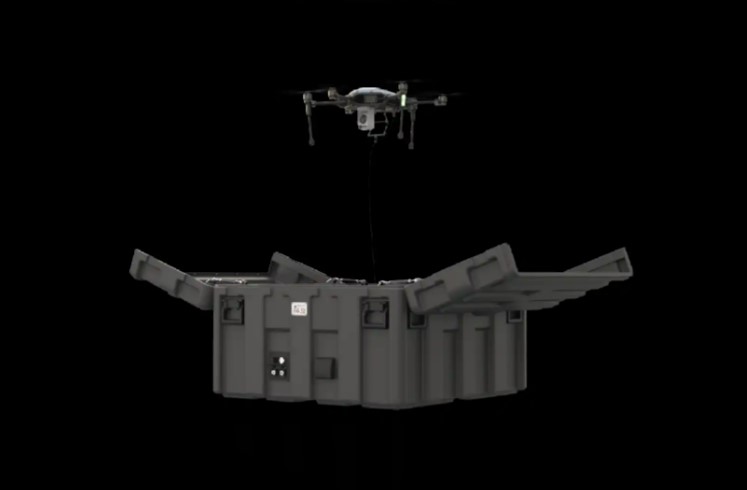

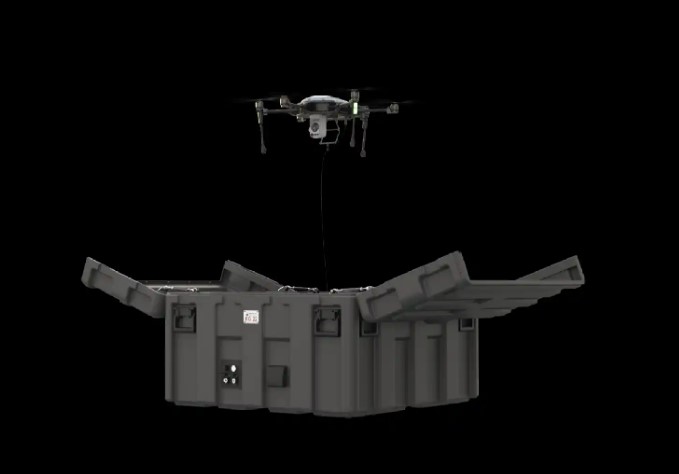

Tethered System
The tethered version of the Easy Site system features unlimited flight time and unparalleled data security. The entire operation, from takeoff to landing, is completely autonomous and can be performed remotely without the need for on-site intervention. The system features a 60m (200 ft) or a 100m (330 ft) data-over-power (DOP) enhanced tether for resilient, and secure data security. This persistent solution can support continuous flight even in extreme weather conditions, and it offers precise hovering over the ground station, including vehicle-follow functionality, even in GPS-denied environments.
Dimensions
Length
116.84 cm
Height
116.84 cm
Height
71.12 cm
System Weight (without Payload)
105.77 kg
Automotive
Engine Name
INA
Engine Type
Propeller
Engine Power
100-240 V AC
2000W DC
Maximum Speed
40.23 km/h
Maximum Range
INA
Service Ceiling
0.1 km
Endurance
45 min with empty payload, 30 min with maximum payload (2.26kg)
or Persistent Tethered Flight
Image Sources
Details
Country of Origin
United States
Category
UAVs
Air > UAVs
Filter Label
E
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.17 m
Width
—
Height
1.17 m
Weight
105.77 kg
Operators (1)
United States
