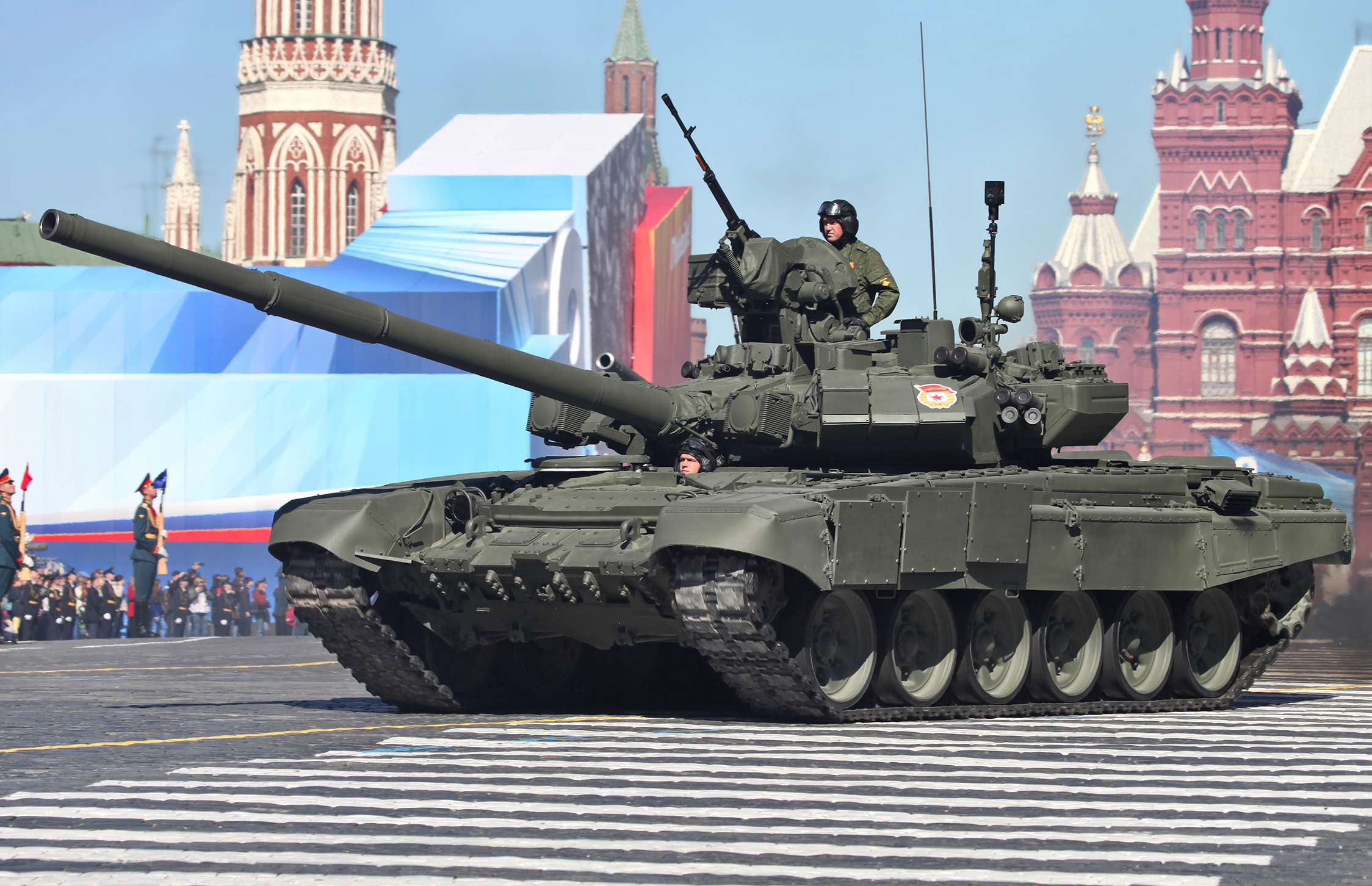

T-90S

T-90S

Main Battle Tanks
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
T-90S
Designation
T-90S
Alternate Designation
Bheeshma (Indian Army nickname), Object 188 (industrial name), T-90A (Russian Army variant), T-90M Bhishma (Indian Army nickname), T-90SA, T-90SK (command and control C2 version), Vladimir
Equipment Type
Main Battle Tanks
Manufacturer
Uralvagonzavod production association
Date of Introduction
1993
Description

The first version of the T-90 known as the T-90A was ordered by the Russian Army while the T-90S is a version intended for export customers but ultimately adopted by the Russian Army. The T-90S advanced fire control system permits to engage targets at night and all-weather conditions firing on the move or stationary with a great probability of kill. The advanced fire control system with two sights provided to the gunner and the commander means hunter-killer capability for the T-90S MBT. Kontakt-5 multi-layer armor, Explosive Reactive Armor (ERA), and an TShU-1 Shtora-1 advanced electro-optical countermeasures system provides enhanced survivability against anti-tank weapons, even against those features top-attack mode. The Shtora-1 system has IR-emitters and laser countermeasures. Kontakt-5 armor in the front section is equivalent to 800-830mm thick of conventional armor against armor piercing discarding sabot (APDS) rounds and 1,150-1350mm against high explosive anti-tank (HEAT) projectiles. The T-90A is powered by an economic V-84MS multi-fuel diesel engine with an optional V-92S2 1,000-hp diesel engine available for export customers (T-90S). The T-90SK is a command and control version featuring improved communications. The T-90S entered active service with the Russian Army in 1993. India and Algeria as well as other countries are the export customers for the T-90S with more than 2,000 ordered or on order. Venezuela may become an export customer for the T-90 tank in the near future. India will become the largest T-90 operator in the world with more than 1,600 tanks with many of them to be assembled locally under license in India. All in, more than 3,600 T-90 tanks may be produced for the Russia and export customers worldwide.

Ground Specifications
Crew 3
Max Speed 60.0 km/h
Range 550.0 km
Overview (Deagel)
Group Main Battle Tanks
Status Active
Also Known As Bheeshma (Indian Army nickname), Object 188 (industrial name), T-90A (Russian Army variant), T-90M Bhishma (Indian Army nickname), T-90SA, T-90SK (command and control C2 version), Vladimir
Origin Russia
Contractor Uralvagonzavod production association
Initial Operational Capability (IOC) 1993
Total Production 3,376
Unitary Cost RUB 60 million
Specifications (Deagel)
Ammunition Load 42
Crew 3
Rolling Rubber Wheels 6
Dimensions — Ground Clearance 0.49 meter
Dimensions — Height 2.2 meter
Dimensions — Length 9.4 meter
Dimensions — Length without Gun 6.9 meter
Dimensions — Main Gun Caliber 125 millimeter
Dimensions — Width 3.4 meter
Mass — Combat Weight 46,500 kilogram
Percentage — Gradient 58 %
Percentage — Side Slope 47 %
Performance — Ditch Crossing Ability 2.8 meter
Performance — Front Armor Protection APFSDS Round 830 millimeter
Performance — Front Armor Protection HEAT Projectile 1,350 millimeter
Performance — Max Range 550 kilometer
Performance — Step Climbing Ability 0.85 meter
Power — Power 1,000 hp
Pressure — Ground Pressure 0.94 kg/cm2
Rate — Max Rate of Fire 7 roundperminute
Speed — Cross Country Speed 45 kph
Speed — Top Speed 60 kph
Gear (Deagel)
Item 1 Anti-Tank Guided Missiles: Invar
Item 2 Anti-Tank Guided Missiles: Kobra
Item 3 Anti-Tank Guided Missiles: Refleks
Item 4 Armor Kits: Kontakt-5
Item 5 ATGM & RPG Countermeasures: Shtora-1
Item 6 Large Caliber Cannons: 2A46M-3/4 (1)
Item 7 Optronic Systems: Catherine FC (1)
Item 8 Projectiles: 3UBK20
Item 9 Vehicle Engines: V-84MS (1)
Variants
Variant 1 T-90S
Variant 2 T-90MS
Variant 3 T-90M
Details
Country of Origin Russia
Category Tanks
Land > Tanks
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.4 m
Width
3.4 m
Height
2.2 m
Weight
46500 kg
Related Equipment (1)
Operators (12)
Russia
India
Algeria
Azerbaijan
Cyprus
Iraq
Saudi Arabia
Syria
Turkmenistan
Uganda
Venezuela
Vietnam
