Maestrale

Maestrale

Frigates
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Maestrale
Designation
Maestrale
Alternate Designation
Equipment Type
Frigates
Manufacturer
Fincantieri
Date of Introduction
1982
Description

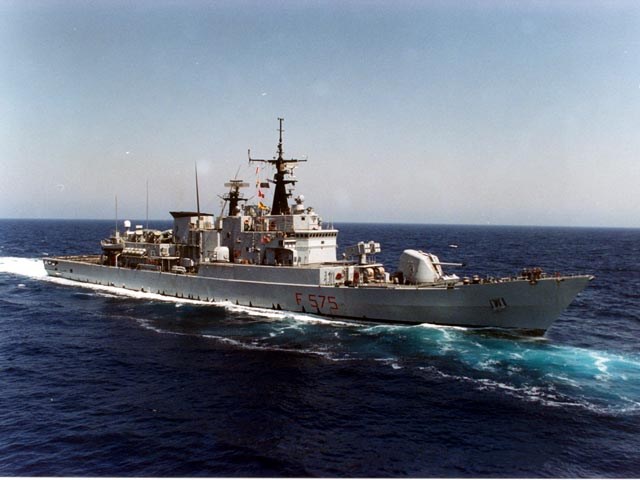

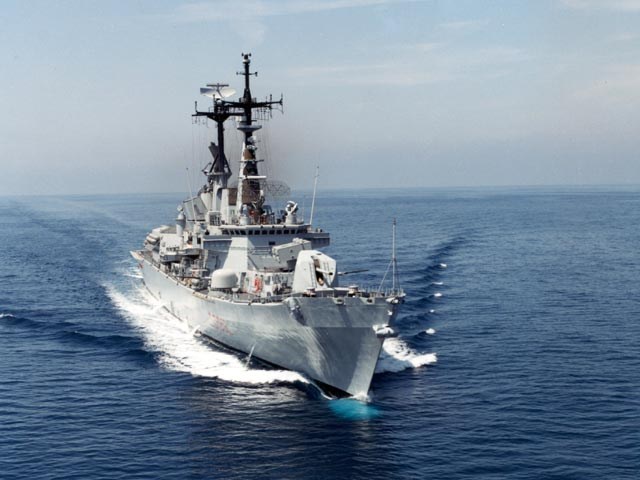

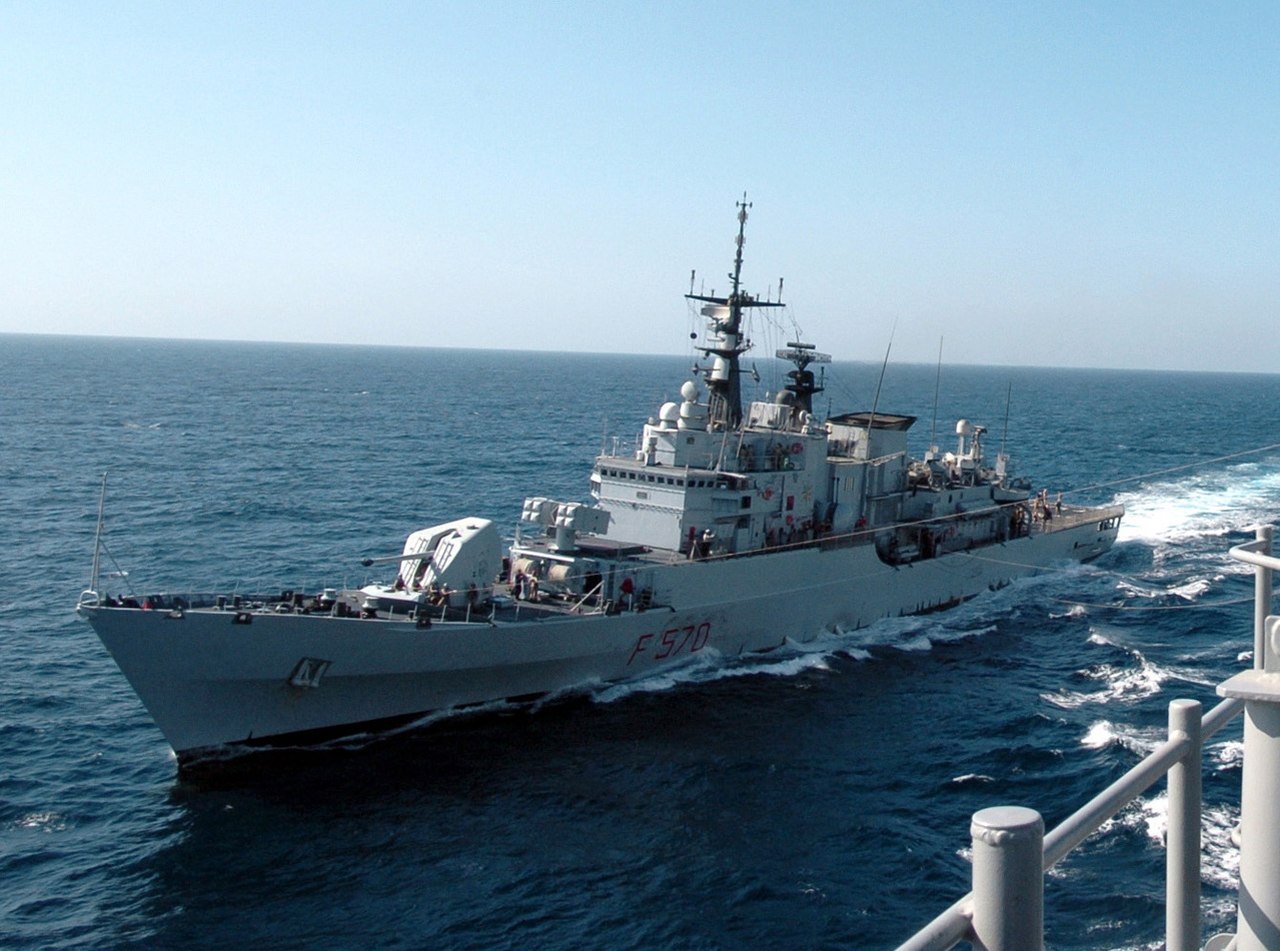

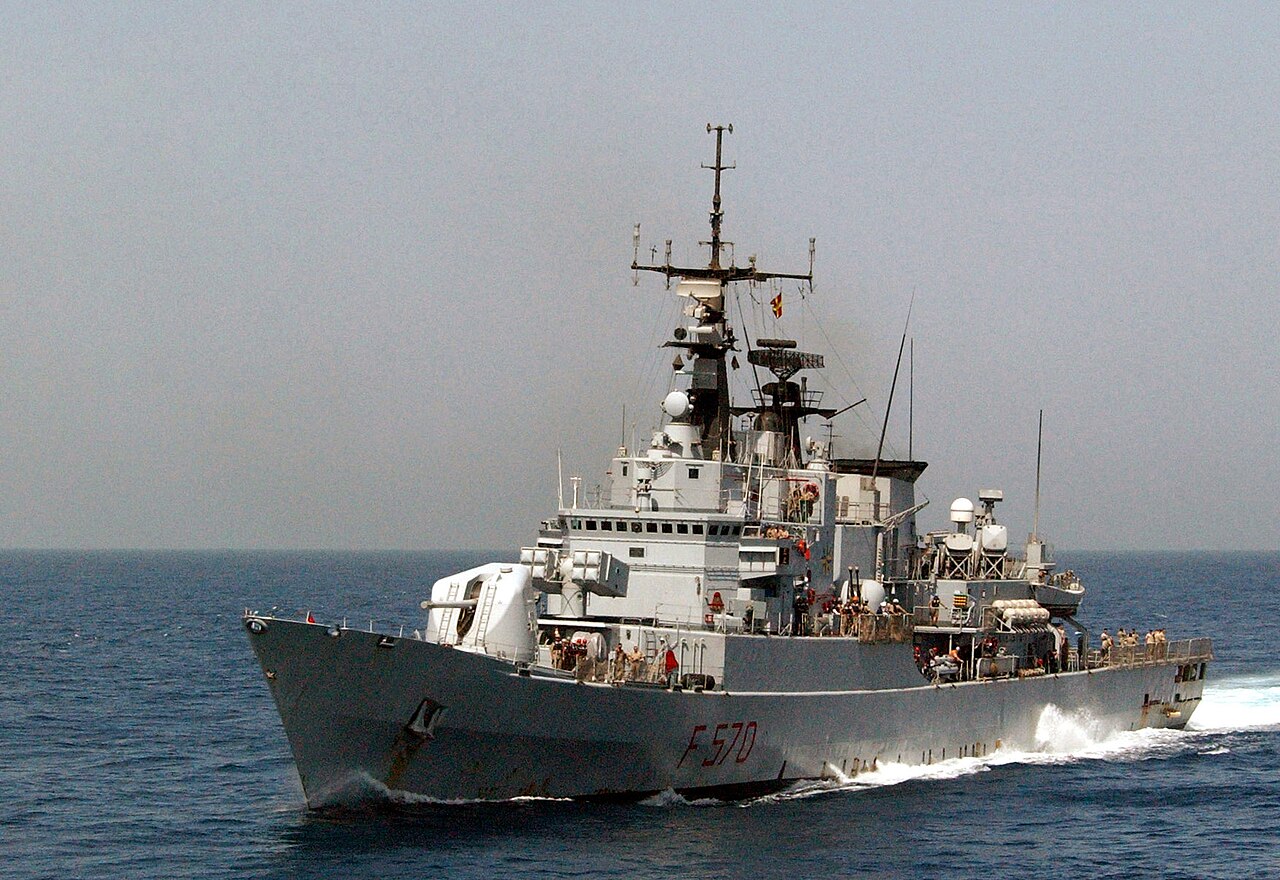

The Maestrale class frigates were designed to perform primarily anti-surface warfare missions and anti-air and anti-submarine warfare as secondary roles. The Italian Navy ordered 8 frigates of this class with the lead ship commissioned in 1982. Basically, the Maestrale frigate evolved from Lupo frigate design featuring increased displacement and larger aft flight deck and hangar. The propulsion system combines diesel and gas engines (CODOG) enabling the entire ship to reach a maximum speed of 35 knots. The weapon system consists of two AB-212 helicopters (UH-1 model), 8 Otomat anti-ship missiles (4 Teseo missile systems), 1 Albatros with 8 Aspide missiles + 16 Aspides on storage, one 127mm naval gun, two 40mm anti-air guns, and A184 torpedoes. According to Italian Navy plans, the Maestrale-class frigates will commence to withdraw from active service in 2010.

Naval & Littoral Specifications
Crew 225
Displacement 3040.00 tonnes
Beam 12.90 m
Max Speed 33.0 knots
Overview (Deagel)
Group Frigates
Status Active
Origin Italy
Contractor Fincantieri
Initial Operational Capability (IOC) 1982
Total Production 8
Specifications (Deagel)
Crew 225
Number of Weapons 32
Dimensions — Beam 12.9 meter
Dimensions — Length 122 meter
Dimensions — Main Gun Caliber 127 millimeter
Mass — Full Displacement 3,040 ton
Performance — Max Range 11,200 kilometer
Power — Total Combined Power 50,000 shp
Speed — Top Speed 17 mps
Gear (Deagel)
Item 1 Anti-Ship Missiles: Otomat Mk2 Block IV (8)
Item 2 Civil Helicopters: AB212 (2)
Item 3 Decoy Systems: AN/SLQ-25A SSTD (1)
Item 4 Naval Gun Systems: 127/54 Compact (1)
Item 5 Sea-Based Air Defense Systems: Albatros (1)
Item 6 Ship Power Plants: LM2500 (2)
Item 7 Surface-to-Air Missiles: Aspide (24)
Details
Country of Origin Italy
Category Frigates
Naval > Frigates
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
122 m
Width
12.9 m
Height
Weight
3040000 kg
Operators (2)
Italy
Indonesia
