Type 312 Class (Futi Class) Chinese Minesweeper

Type 312 Class

Mine-Resistant Ambush Protected (MRAP)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Type 312 Class (Futi Class) Chinese Minesweeper
Designation
Type 312 Class
Alternate Designation
Type 312 Class; Futi Class
Equipment Type
Mine-Resistant Ambush Protected (MRAP)
Manufacturer
Date of Introduction
1984
Description

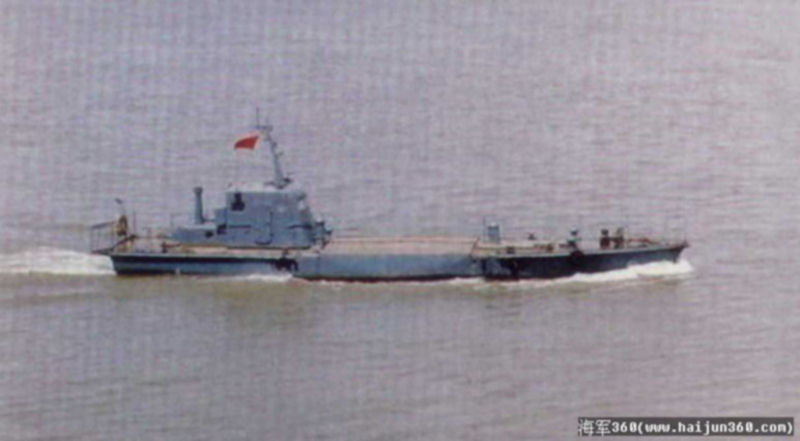

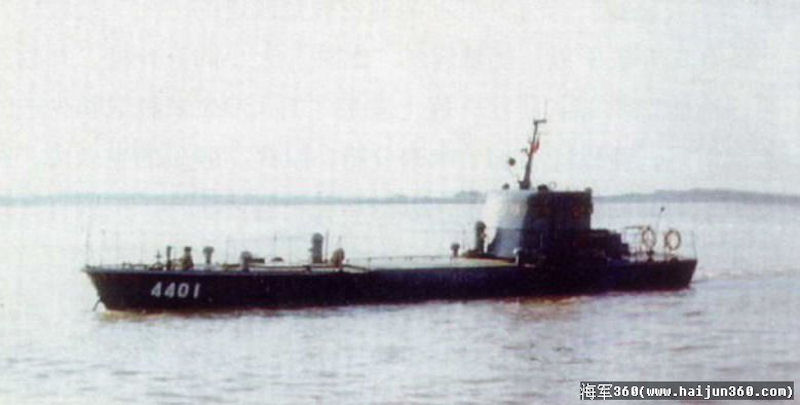

The Chinese Type 312 class minesweeper was also known as Futi class. It was the first remote minesweeping drone, and was successfully used in the Vietnam War. Although originally designed as a minesweeping drone, the Type 312 can also be manned by a 3-man crew as a regular minesweeper. The chief designer was Mr. Diao Haiguang (刁海光) of the 710th Institute, and from the start of the project to the completion of the first two units (two units are being built simultaneously), it only took less than two years when the first two units entered the service for the People's Liberation Army Navy. Due to its small size, this class is maintained on land and thus is in better conditions than most of other larger boats and ships in the reserve fleet. The drone can be remotely operated from more than 5 km (3.1 mi) away.

Naval & Littoral Specifications
Crew 3
Beam 4.20 m
Draft 1.30 m
Variants
46 FUTI Class MINESWEEPING DRONES (MSD)(Chinese Project No. 312) 4 active; 42 in reserve
System
Alternative Designation Type 312 Class; Futi Class
Type Minesweeper
Builder Hudong-Zhonghua Shipyard
Crew 3 total (for ferrying only)
Dimensions
Length 20.9 m
Beam 4.2 m
Draft 1.3 m
Displacement, Standard INA
Displacement, Full Load 47 tons full load
Propulsion System
Engine Name 1 x Type 12-150C
Engine Type Diesel
Engine Power 300 total bhp
Maximum Range 150 miles at 21.3 km/h (11.5 kts)
Maximum Speed 21.3 km/h (11.5 kts)
Gun Weapon Systems
Note Machine gun mount available for manned operation
Fire Control Systems
FCS Name INA
Computerized FCS No
Battle Management System No
Radar Systems
Navigation Radar INA
Protection
Active Protection System None
Countermeasures No
NBC Water Washdown System INA
Details
Country of Origin China
Category Naval
Naval
Filter Label
T
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
20.9 m
Width
Height
Weight
Operators (1)
China
