Il-38

Maritime Patrol Aircrafts

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Il-38

Designation

Il-38

Alternate Designation

Il-18, Il-20 Coot-A, Il-22 Coot-B, May

Equipment Type

Maritime Patrol Aircrafts

Manufacturer

Ilyushin Aviaton Complex

Date of Introduction

1967

Description

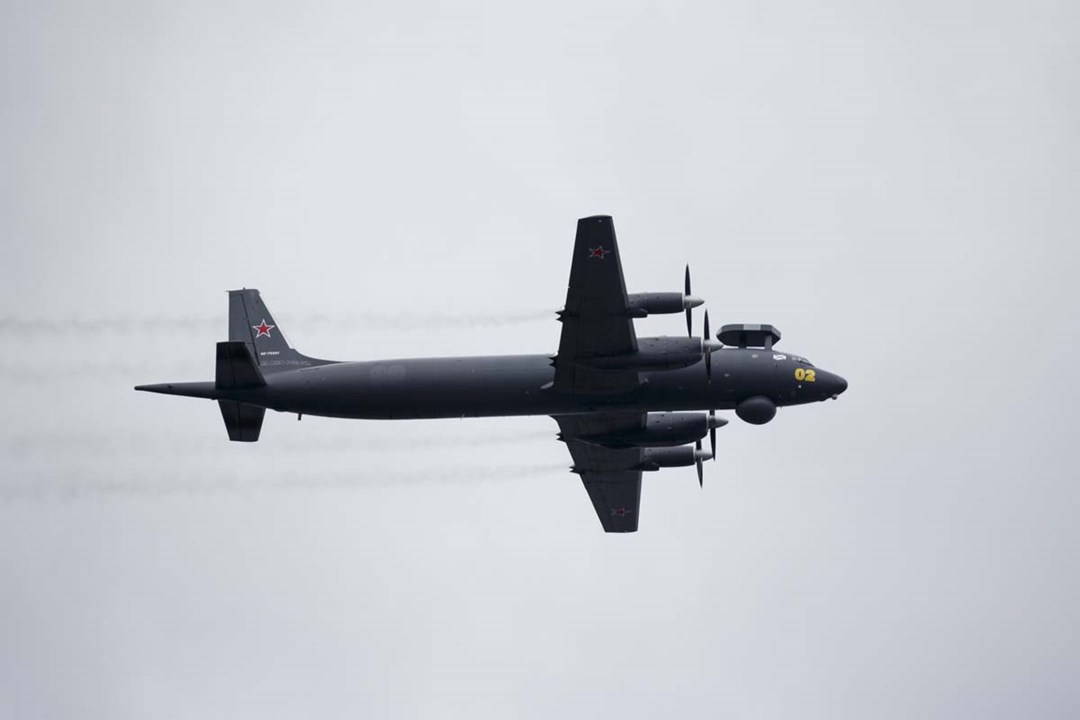

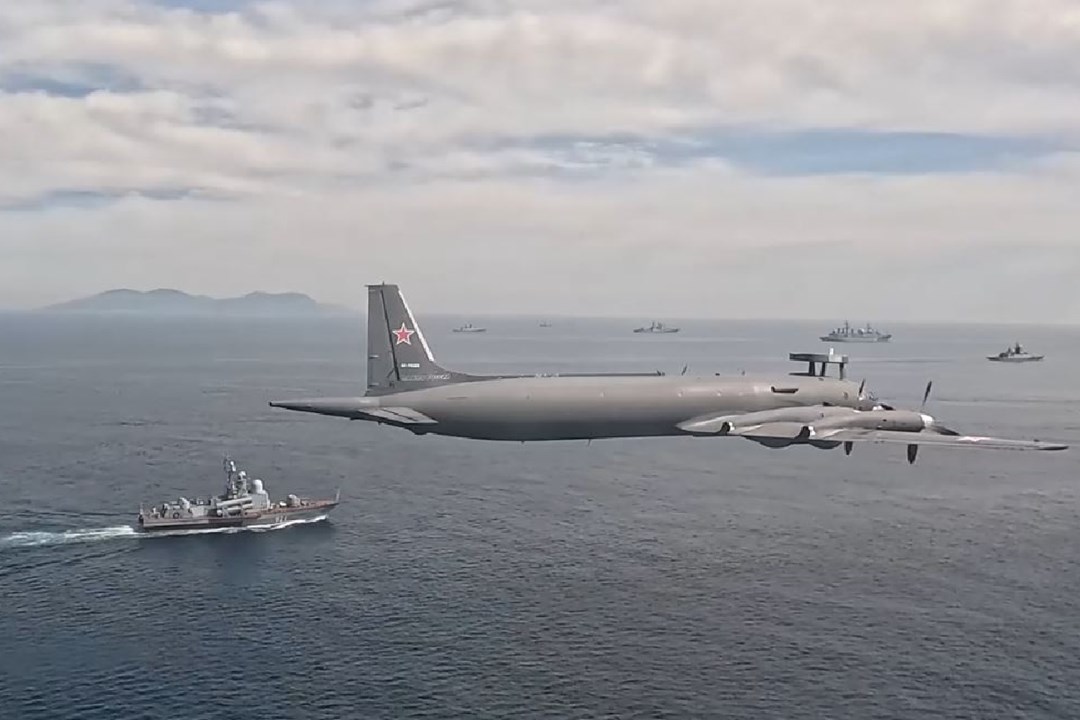

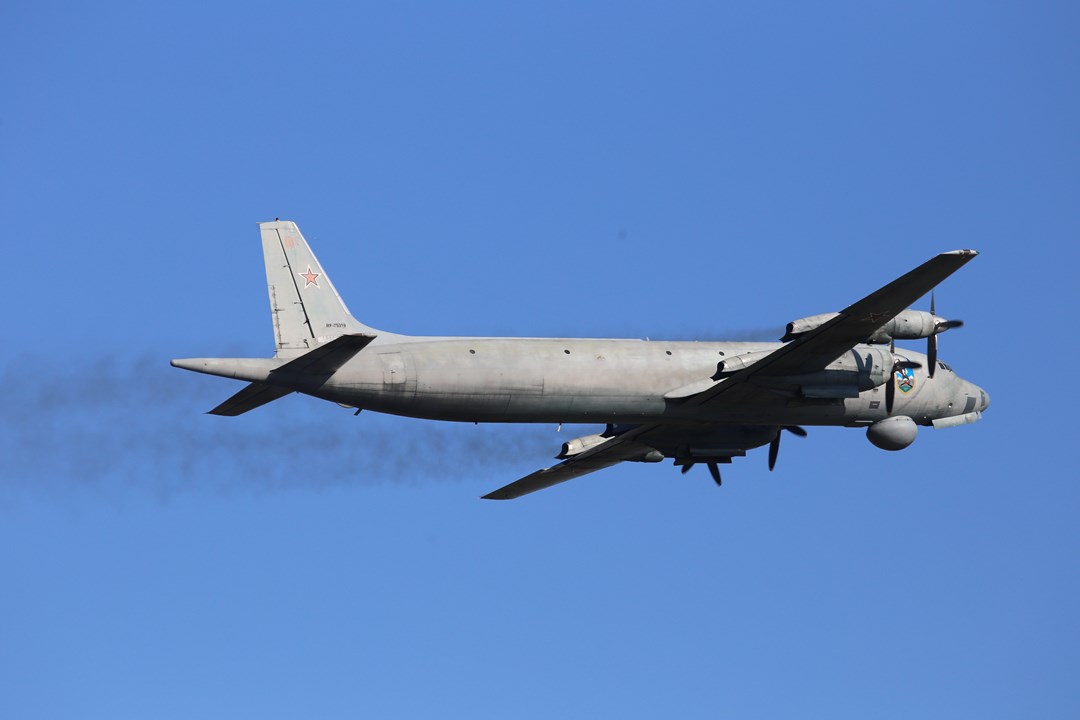

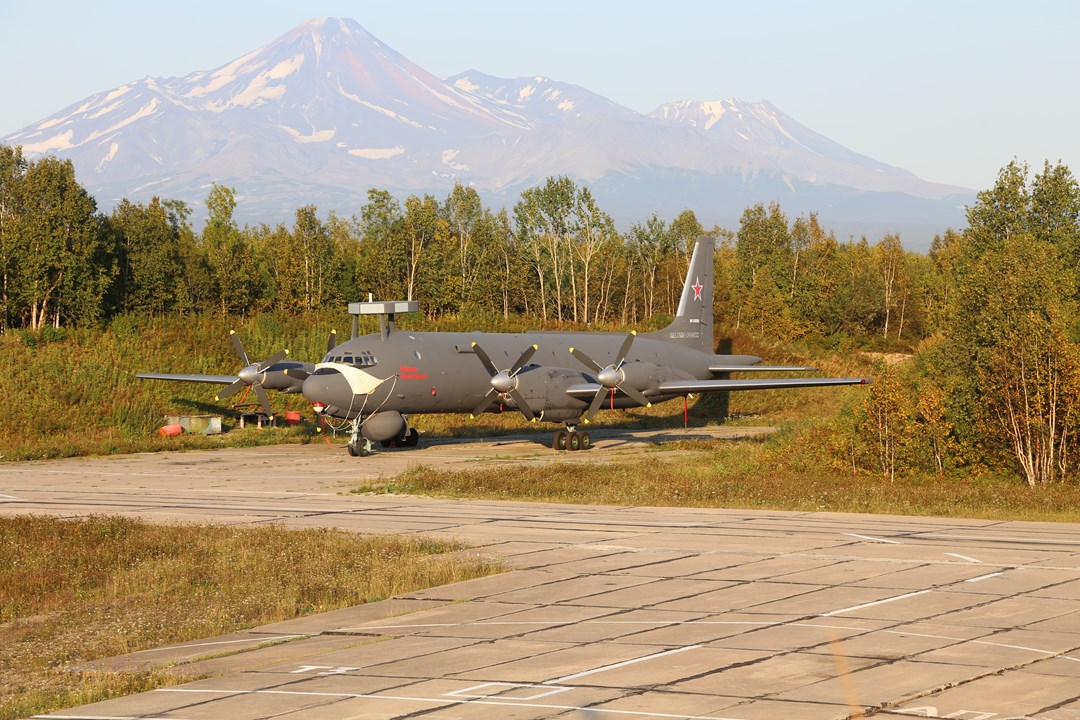

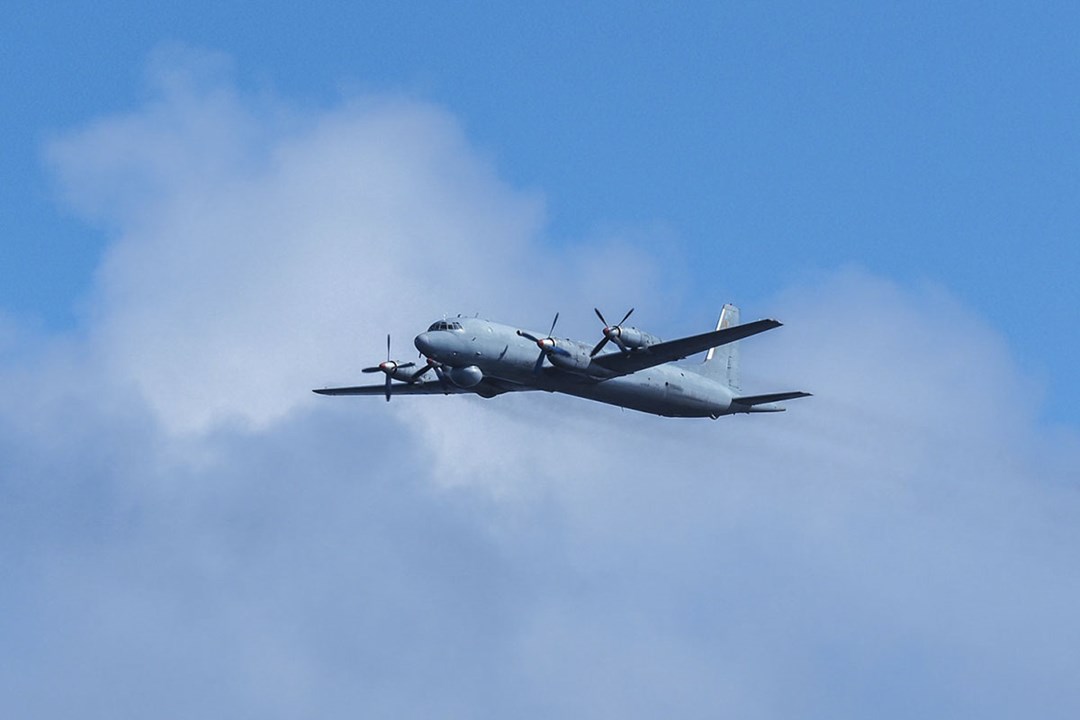

The Ilyushin Il-38, May NATO name, is an anti-submarine warfare (ASW) and maritime patrol aircraft derived from the stretched fuselage of the Il-18 turboprop airliner which first flew in 1957. The first fly of the militarized Il-38 occurred on September 28, 1961 and the aircraft was fully operational with the Soviet Navy by 1967. It is powered by four AI-20M turboprop engines driving four-blade propellers. Each engine is rated at 4,190-shp of power. The Il-38 was deployed by the Soviet Union and exported to India in the 1970s. After the collapse of the Soviet Union the Il-38 aircraft were split among Community of Independent States (CIS) members primarily Russia and Ukraine. In 2010 the Il-38 along with the Tu-142 remain the backbone maritime patrol capability of Russia and India. The Il-114MP maritime patrol aircraft is a potential replacement for the Il-38.

Air & Air Defense Specifications

Crew 9

Max Speed 722.0 km/h

Range 7200.0 km

Wingspan 37.40 m

Overview (Deagel)

Group Maritime Patrol Aircrafts

Status Active

Also Known As Il-18, Il-20 Coot-A, Il-22 Coot-B, May

Origin Russia

Contractor Ilyushin Aviaton Complex

Initial Operational Capability (IOC) 1967

First Flight September 28, 1961

Total Production ?

Specifications (Deagel)

Crew 9

Number of Engines 4

Propeller Blades 4

Area — Wing Area 140 square meter

Dimensions — Height 10.2 meter

Dimensions — Length 36.9 meter

Dimensions — Wingspan 37.4 meter

Mass — Empty Weight 36,000 kilogram

Mass — Max Takeoff Weight 63,500 kilogram

Performance — Max Range 7,200 kilometer

Power — Max Power at TakeOff 16,760 shp

Speed — Cruise Speed 610 kph

Speed — Economical Speed 400 kph

Speed — Top Speed at High Altitude 722 kph

Time — Flight Endurance 12 hour

Gear (Deagel)

Item 1 Anti-Ship Missiles: BrahMos A

Item 2 Bombs: Zagon-1

Item 3 Bombs: Zagon-2

Item 4 Turboprop Engines: AI-20M (4)

Variants

Variant 1 Il-38

Variant 2 Il-38N

Variant 3 Il-22PP Porubshchik

Details

Country of Origin Russia

Category Maritime Patrol

Air > Maritime Patrol

Sources

deagel.com: https://www.deagel.com/x/x/a002618

Classification

Domain

Air & Air Defense

Equipment Status

Active

Dimensions

Length

36.9 m

Width

37.4 m

Height

10.2 m

Weight

63500 kg

Operators (4)

Russia

Ukraine

India

Soviet Union
