NMS-L 4x4 Turkish Tactical Light Armored Vehicle

NMS-L

Tactical Vehicle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
NMS-L 4x4 Turkish Tactical Light Armored Vehicle
Designation
NMS-L
Alternate Designation
NMS-L
Equipment Type
Tactical Vehicle
Manufacturer
Nurol Makina
Date of Introduction
2025
Description

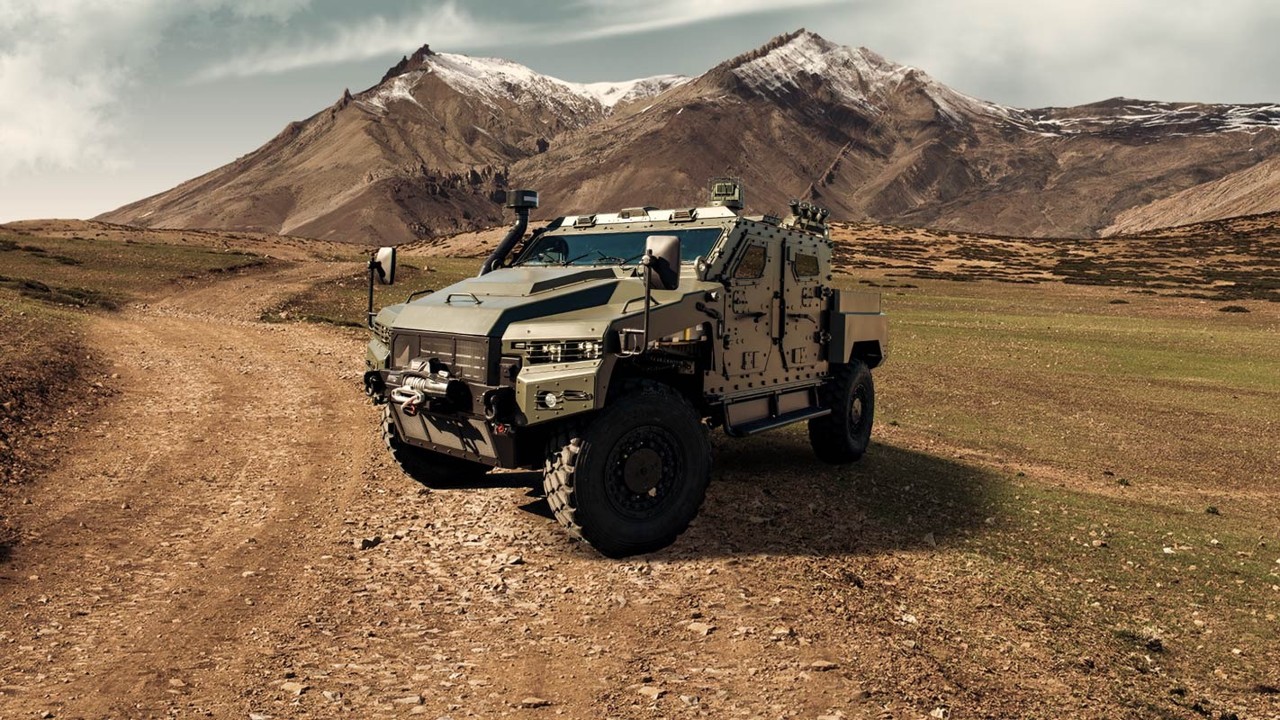

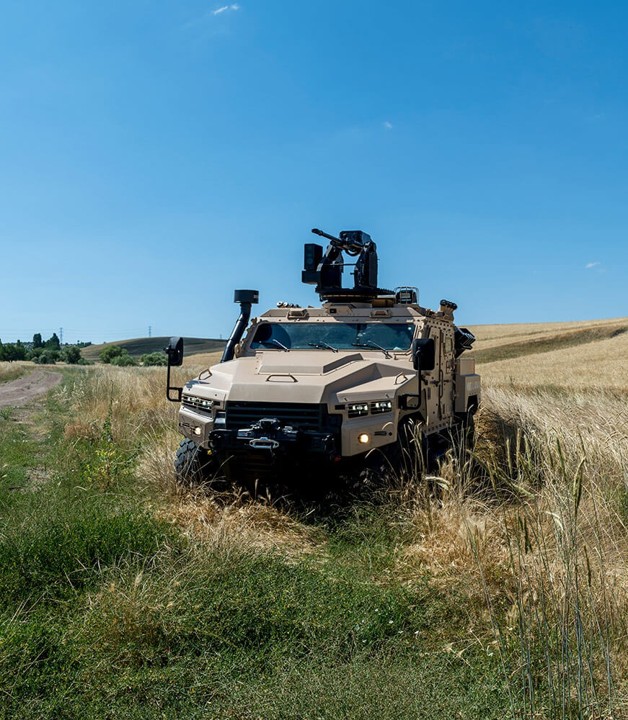

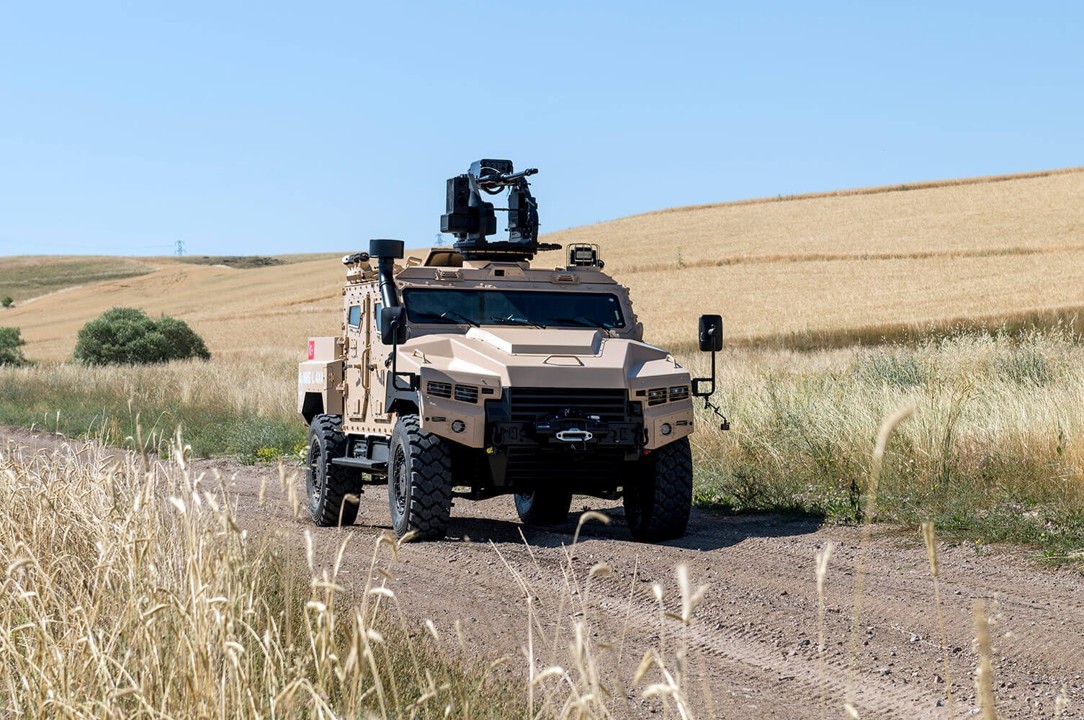

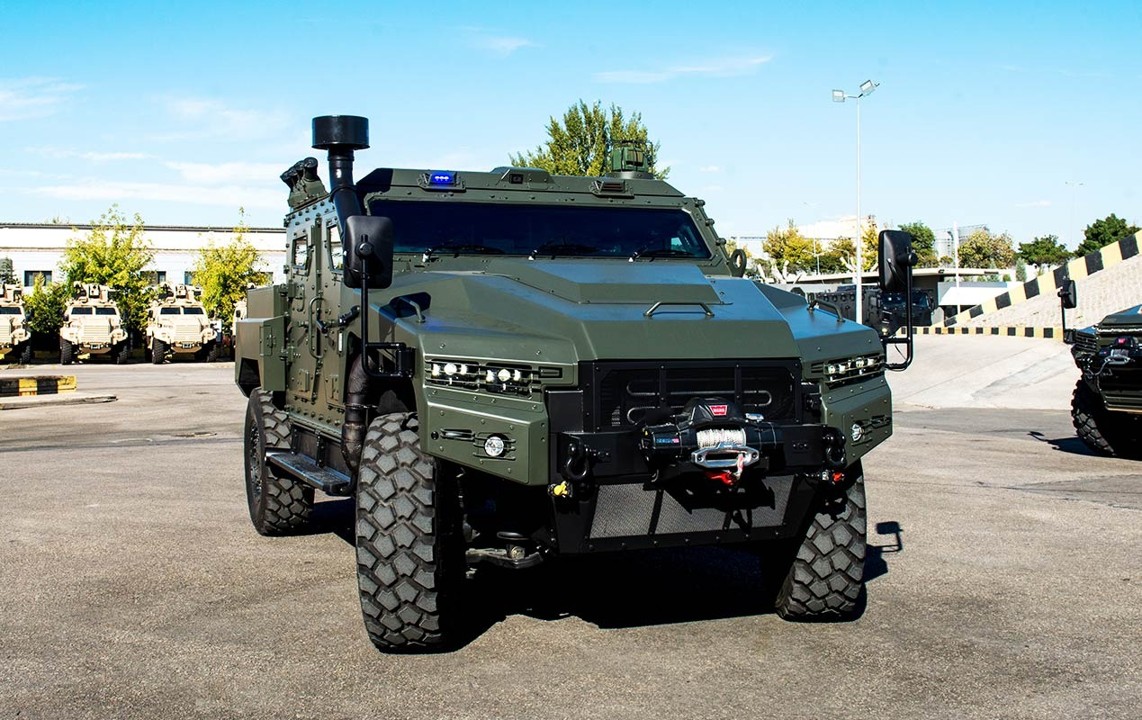

The NMS-L 4x4 Turkish Tactical Light Armored Vehicle is designed as a lighter, more deployable variant of the company's standard NMS 4x4 (Yörük) platform. The vehicle emphasizes rapid deployment capabilities, modular protection, and multi-role versatility for military and security forces. The NMS-L builds upon the operational experience gained from the NMS 4x4 platform but incorporates a modular architecture with several key distinctions. The vehicle features a mechanical monocoque hull where main cabin components are assembled using mechanical fasteners only, enabling easier maintenance and field modifications. A key distinguishing feature of the NMS-L is its emphasis on air transportability. With a gross vehicle weight of approximately 10 tons, the vehicle is specifically designed for helicopter transport, including sling-loading under a CH-47 Chinook. This capability makes the NMS-L particularly suitable for rapid deployment missions requiring strategic airlift. The NMS-L 4x4 represents Nurol Makina's response to military requirements for lighter, air-deployable protected mobility platforms that maintain high levels of survivability while offering the strategic mobility necessary for rapid deployment operations across diverse operational environments.

Ground Specifications
Crew 2
Mobility Type Wheeled (4x4)
Engine Diesel (300 hp)
NBC Protection Yes
Max Speed 140.0 km/h
Range 700.0 km
Variants

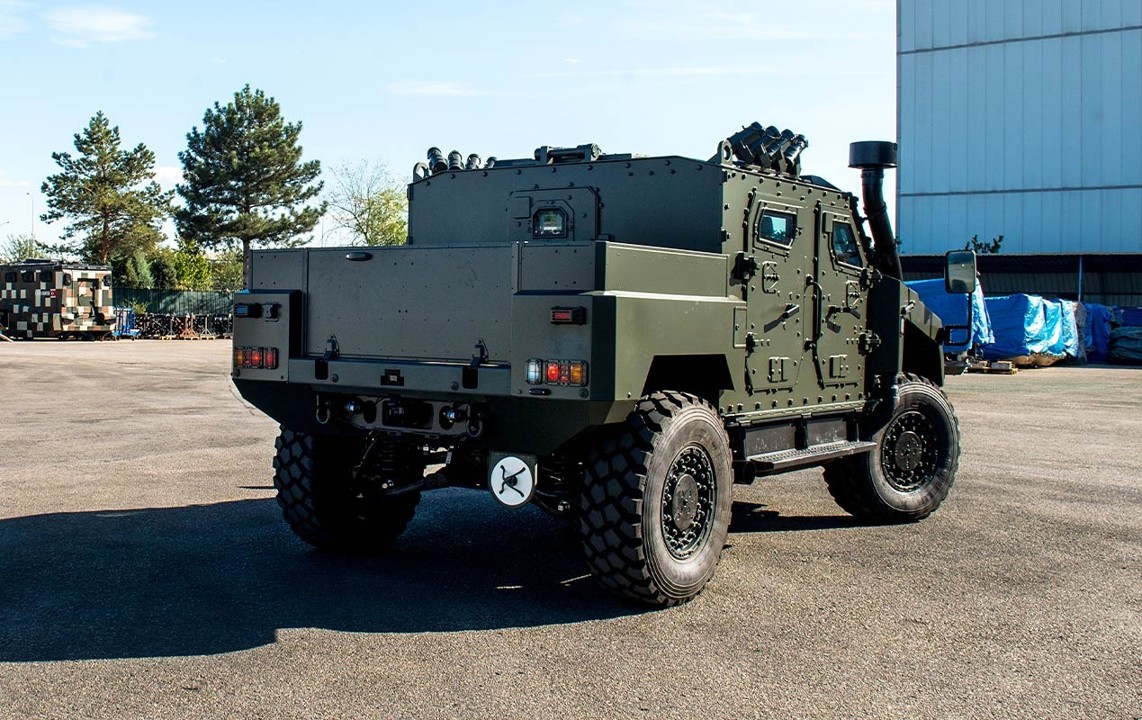

Note The vehicle is available in multiple configurations including a baseline version with crew compartment and a pickup variant featuring a flatbed for mounting logistical payloads or weapon systems such as loitering munitions. An extended wheelbase (EWB) version is also available for specialized roles.
System
Alternative Designation NMS-L
Type Tactical Light Armored Vehicle
Manufacturer Nurol Makina
Configuration 4x4
Crew 2 ea
Passengers 3 ea
Payload Capacity 2.5 tons (at base protection level)
Situational Awareness and Support Systems 360° Driver Enhancement System with four external cameras providing panoramic view; Night vision front camera; Thermal imaging systems; Military GPS and advanced tracking system; Public address system and integrated sirens for civil protection roles; External simplex microphone.
Operational Temperature -32°C to +55°C
Dimensions
Length 4.9 m
Width 2.4 m
Height 2.1 m
Weight, Combat 10 tons
Automotive
Engine Name INA
Engine Type Diesel
Engine Power 300 hp
Maximum Range 700-1,000 km
Maximum Speed 140-150 km/h
Amphibious No
Gradient 70%
Side Slope 40%
Vertical Step 0.5 m
Trench 0.9 m
Fording 0.9 m
Turning Radius 6.0 m
Main Weapon System

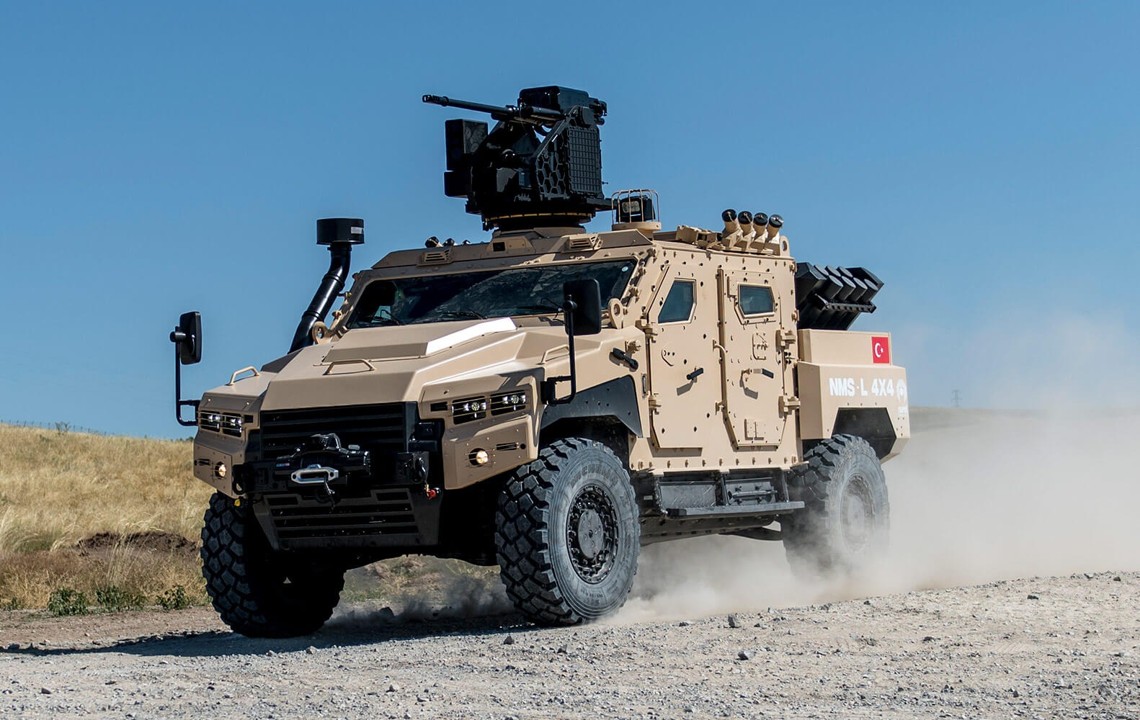

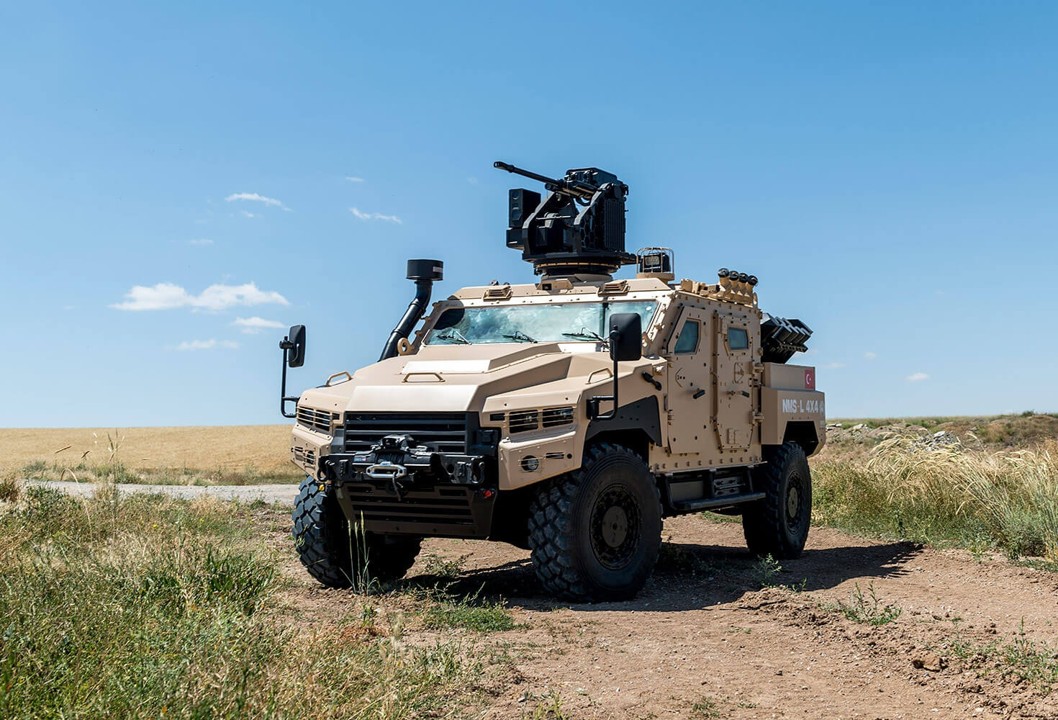

Note The NMS-L supports various weapon configurations through manual or remote-controlled weapon stations (RWS). Standard armament typically includes 12.7mm or 7.62mm machine guns mounted in RWS. Advanced configurations have been showcased with: 40mm automatic grenade launchers; Anti-tank guided missile systems; Eight-cell launcher for Ilgar loitering munitions (on pickup variant); Counter-UAS configurations with radar and auxiliary power units.
Protection
Armor The NMS-L provides ballistic protection to NATO STANAG 4569 Level 2, with mine and IED protection to Level 3a and 2b. The V-shaped hull design enhances survivability against mine blasts. Ballistic-resistant glass windows.
Applique Armor The vehicle incorporates scalable composite armor allowing protection levels to be tailored to specific threat environments.
NBC Protection Yes
Smoke Equipment Yes
Details
Country of Origin Turkey
Category Wheeled Light Armored Vehicles
Land > Infantry Vehicles > Wheeled Light Armored Vehicles
Filter Label
N
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4.9 m
Width
2.4 m
Height
2.1 m
Weight
10000 kg
Operators (4)
United Kingdom
Turkey
Estonia
Indonesia
