BAT-2 Russian Combat Engineer Vehicle
BAT-2
Combat Vehicle
Other
Basic Information
Name
BAT-2 Russian Combat Engineer Vehicle
Designation
BAT-2
Alternate Designation
BAT-2
Equipment Type
Combat Vehicle
Manufacturer
Soviet Union - Malyshev factory
Date of Introduction
1988
Description

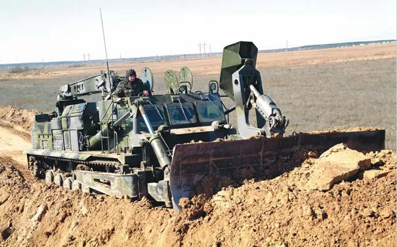

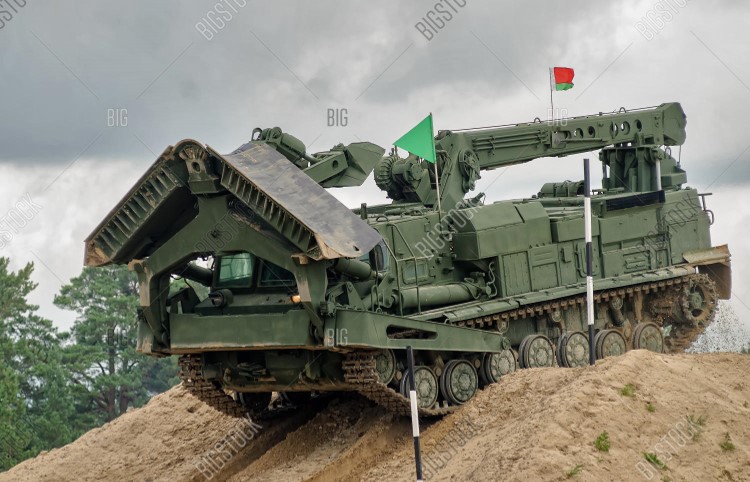

The BAT-2 armored tracklayer is used for road and track clearing and grading. It can drive graded tracks across various terrain and snow. The vehicle is also used to create earth barriers, dig ditches. It can be also used during disaster relief operations. The BAT-2 is also described as a combat engineering vehicle due to its versatility.
Ground Specifications
Crew
2
Mobility Type
Tracked
Engine
V-12 Multi-Fuel (700 hp)
Max Speed
60.0 km/h
Range
500.0 km
Variants
BAT-M Russian Tracked Route-Clearing Vehicle
The BAT tractor dozer consists of the AT-T heavy tractor, based on the very early chassis and lower hull of the T-44, and later T-54/T-55 tanks with 500 mm wide tracks and a 13 teeth drive sprocket wheel.
System
Alternative Designation
BAT-2
Type
Combat Engineer Vehicle
Manufacturer
Soviet Union - Malyshev factory
Chassis
MT-T heavy tracked transporte
Crew
2 ea
Passengers
8 ea
Dimensions
Length
9.64 m
Width
4.2 m
Height
3.69 m
Weight
39,700 kg
Ground Clearance
0.425 m
Ground Pressure
0.81 kg/cm² (79434 Pa) (11.52 psi)
Engineering Equipment

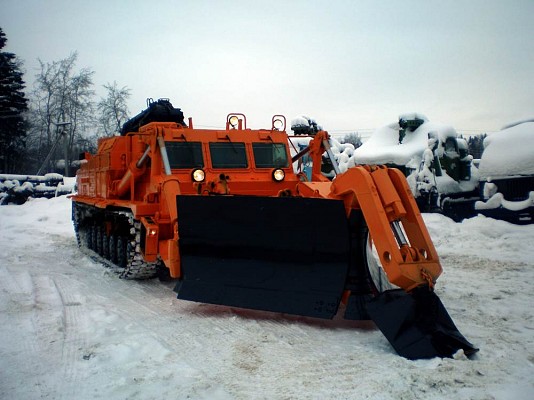

Front Dozer Blade
Yes, The blade widths can be varied to suit the task. As a bulldozer the blade is 4.5 m wide, for road or track clearing it is 4.2 m wide, when grading it may have a width variable between 4.1 and 4.35 m. The blade may also be tilted through 10° for some operations, while a blade-mounted skid allows the blade to follow terrain contours.
Dozer Blade Width
4.5 m
Dozer Blade Rout-Clearing Capacity
350 to 450 m3/h
Dozer Blade Digging Ditches Capacity
200 to 250 m3/h

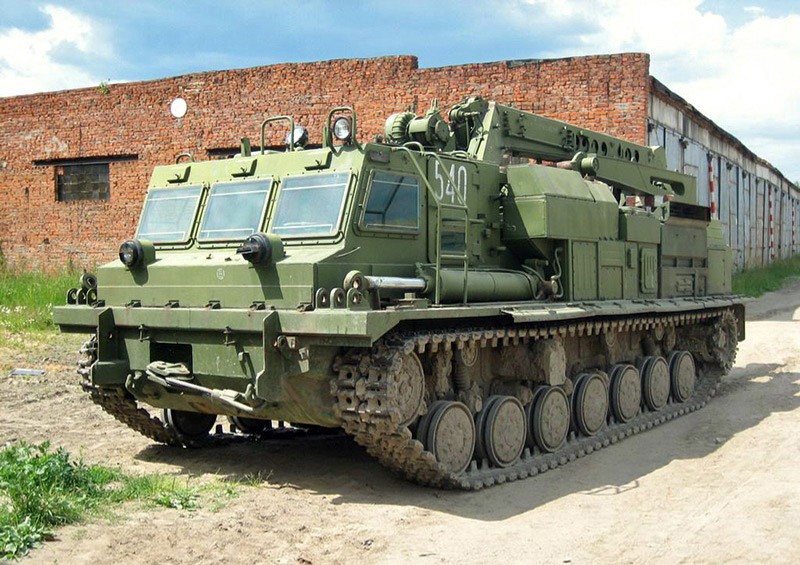

Hydraulic Crane
turntable-mounted hydraulic crane mounted at the rear of the cab
Hydraulic Crane Boom Outreach Length
7.3 m
Hydraulic Crane Load-Lifting Capacity
2,000 kg
Hydraulic Winch Capacity
25 Tons
Hydraulic Winch Cable Length
100 m
Automotive
Engine Name
V-64-4
Engine Type
V-12, multifuel
Engine Power
700 hp
Power-to-Weight Ratio
17.63 hp/t
Fuel Capacity
INA
Maximum Speed
60 km/h
Drive Graded Track Speed
up to 6.8 km/h
Range
500 km
Main Weapon System
Note
The BAT-2 carries no defensive armament.
Protection
Hull Armor
Steel, 14mm
Applique Armor
INA
Mine Clearing
No
NBC Protection
Yes, overpressure
Smoke Equipment
INA
Details
Country of Origin
Russia
Category
Mobility
Land > Combat Support Vehicles > Mobility
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.64 m
Width
4.2 m
Height
3.69 m
Weight
39700 kg
Operators (3)
Russia
Ukraine
Hungary
