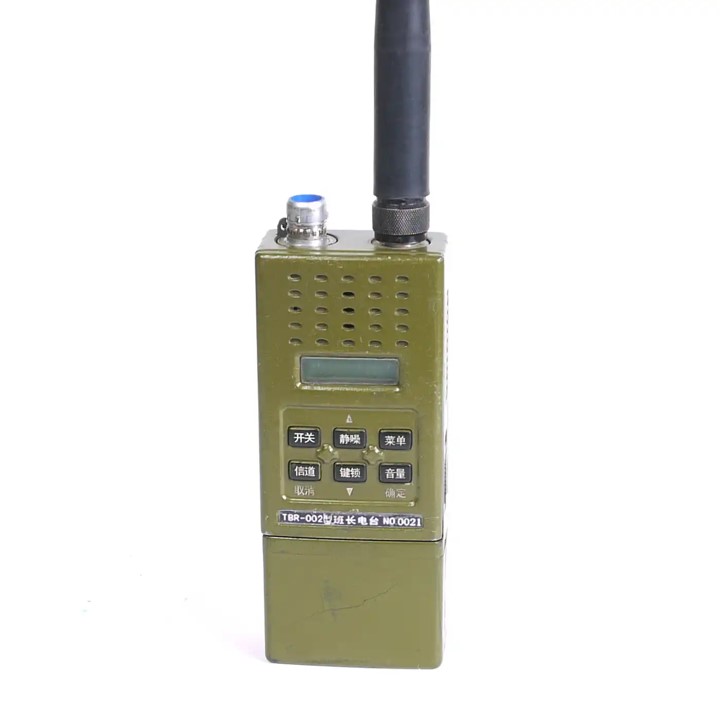

TBR-002 Chinese Squad Leader VHF FM Transceiver
TBR001A
Squad Leader VHF FM Transceiver
Other
Basic Information
Name
TBR-002 Chinese Squad Leader VHF FM Transceiver
Designation
TBR001A
Alternate Designation
TBR001A
Equipment Type
Squad Leader VHF FM Transceiver
Manufacturer
—
Date of Introduction
2008
Description

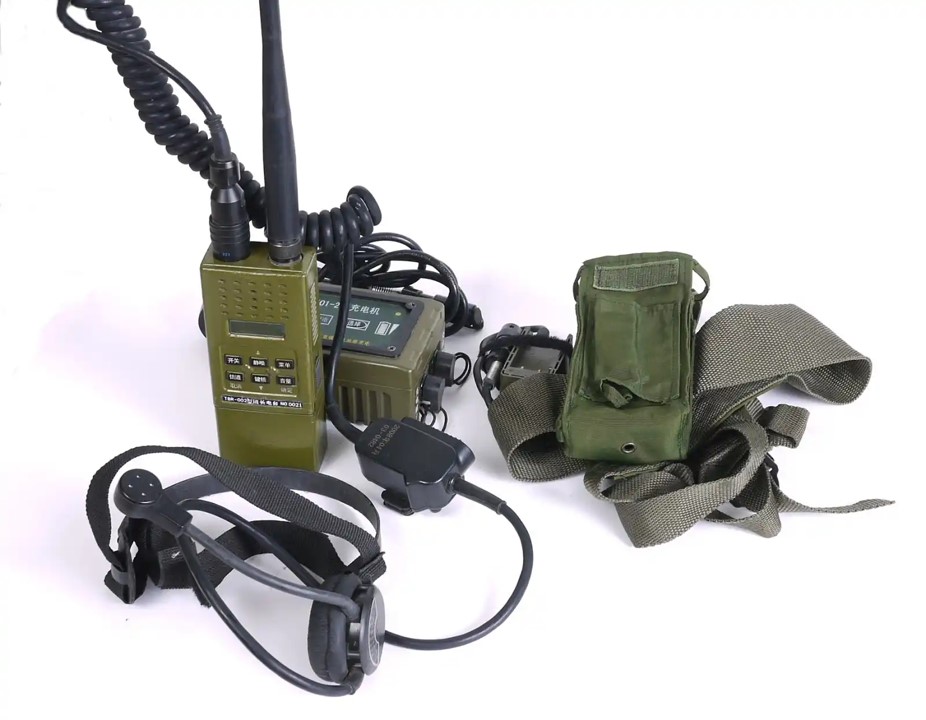

The TBR-002 Chinese Squad Leader VHF FM Transceiver is a further development of TBR001A radio. The biggest improvement over 001A is the channel frequency could be set on the radio itself, no need of a specific device anymore. The antenna, battery unit, headset, and charging station are also redesigned. It was introduced into PLA infantry unit around 2008. It is designed to communicate between squad leaders and platoon/company commanders.
Ground Specifications
Crew
1
System
Alternative Designation
TBR001A
Type
Squad Leader VHF FM Transceiver
Crew
1 ea
Frequency
45.000 MHz to 54.975 MHz, channel spacing is 25 kHz.
Preset Channels
There are 10 preset channels.
Output Power
The output power is 0.1W on low and 0.8W on high.
Headset
Yes
Speaker

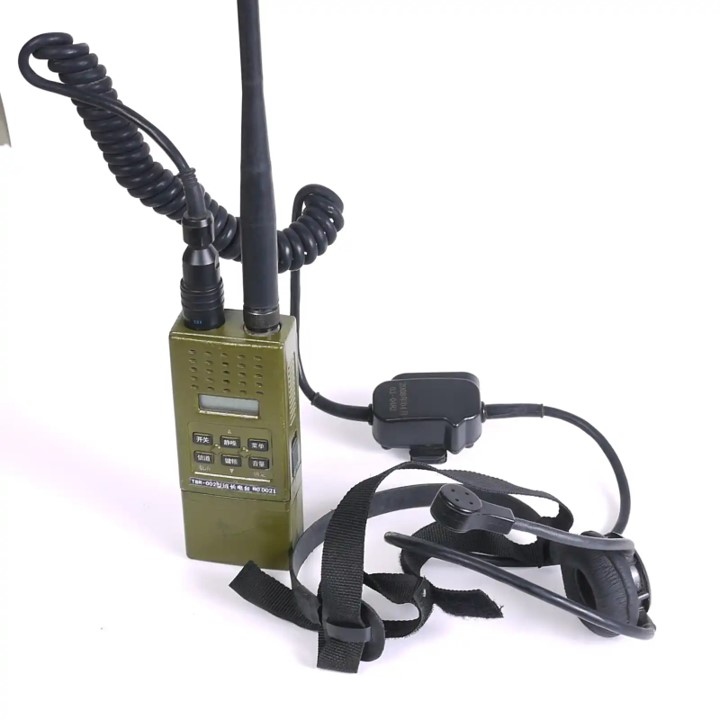

There is a speaker and PTT control on the radio so that the radio could be operated without a headset.
Communication Distance
2 km
Battery
7.2V 2000mAh rechargeable Lithium battery unit.
Note
The TBR002 transceiver is the current equipment in service with PLA infantry units. The latest information shows that PLA starts to shift from traditional VHF transceiver to network based UHF communication device.
Dimensions
Length
134 mm
Width
55 mm
Height
30 mm
Weight, Combat
460 kg
Details
Country of Origin
China
Category
Very High Frequency (VHF) Radios
Land > Communication Equipment > Very High Frequency (VHF) Radios
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.13 m
Width
0.06 m
Height
0.03 m
Weight
460 kg
Operators (1)
China
