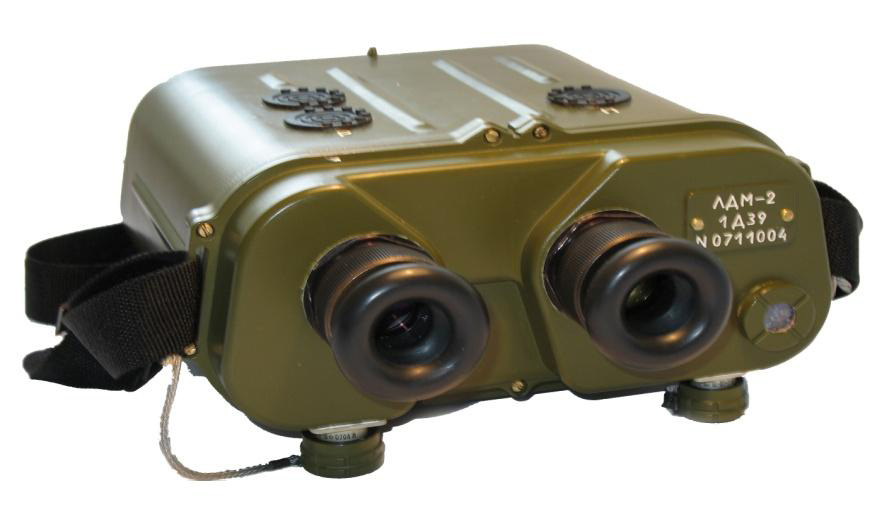

LDM-2 Russian Man-Portable Laser Rangefinder
LDM-2
Man-Portable Laser Rangefinder
Other
Basic Information
Name
LDM-2 Russian Man-Portable Laser Rangefinder
Designation
LDM-2
Alternate Designation
LDM-2
Equipment Type
Man-Portable Laser Rangefinder
Manufacturer
—
Date of Introduction
2015
Description

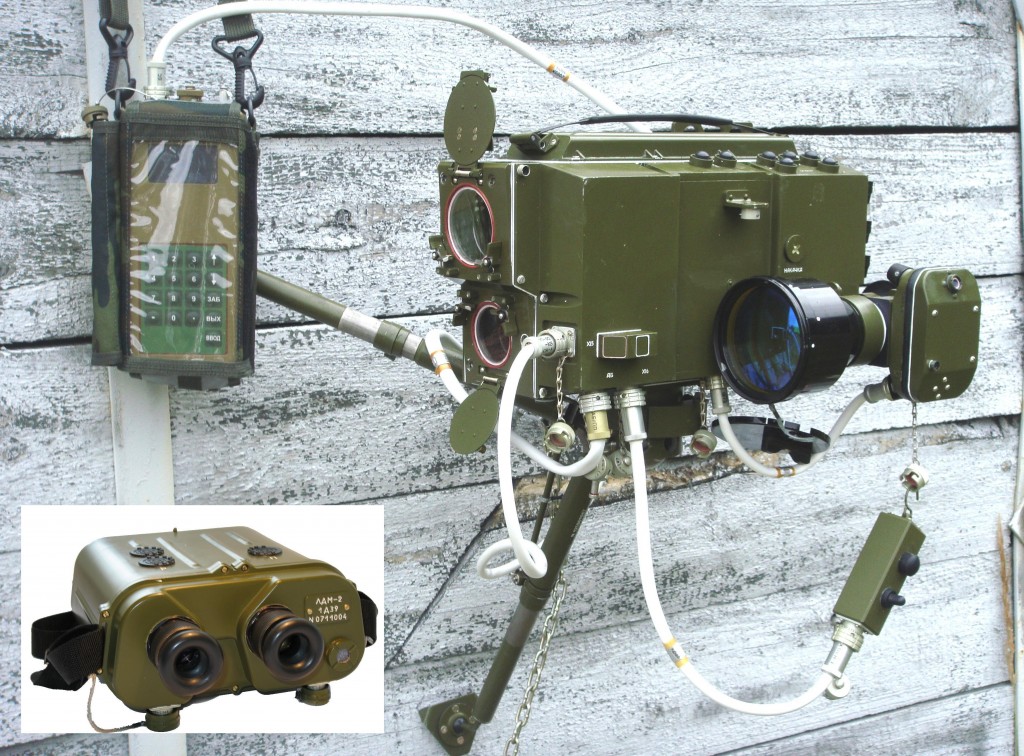

The LDM-2 Laser Rangefinder Module is designed for flash ranging of terrain, target recognition and acquisition, determination of spherical coordinates with automatic determination of magnetic azimuth and elevation as well as automated transmission of the measured coordinates to external users. SYSTEM COMPOSITION *PPU-21 transmitting/receiving module *Accessory set *Transport case *Operation manual The LDM-2 Laser Rangefinder Module displays first, second and last targets (as an operator’s option) in the range of a laser beam. Mode of operation, readiness to measure a target range, azimuth and elevation, operating time, battery charge are displayed in the eyepiece.
Ground Specifications
Crew
1
System
Alternative Designation
LDM-2
Type
Man-Portable Laser Rangefinder
Crew
1 ea
Measurement range (at an accuracy no more than ±10 m)
50...9,000
Recognition range of “tank-sized” target and burst ranging
4,000
Magnification
x7
Field of view
6°
Angular resolution
7 Seconds of Arc
Exit pupil diameter
5 mm
Removal of exit pupil
18 mm
Dioptric adjustment
±4 Diopters
Operation per battery (number of shots/charge)
300
Laser wavelength
1.54 um
Azimuth range (at accuracy of ±0-15 d.g.)
from +30-00 to -30-00 deg
Elevation range (at accuracy of ±0-06 d.g.)
from +3-00 to -3-00 deg
Dimensions
Length
INA
Width
INA
Height
INA
Weight, Combat
1.8 kg
Image Sources
Notes
INA;
Details
Country of Origin
Russia
Category
Land Based Sensors
Land > Land Based Sensors
Filter Label
L
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
1.8 kg
Operators (1)
Russia
