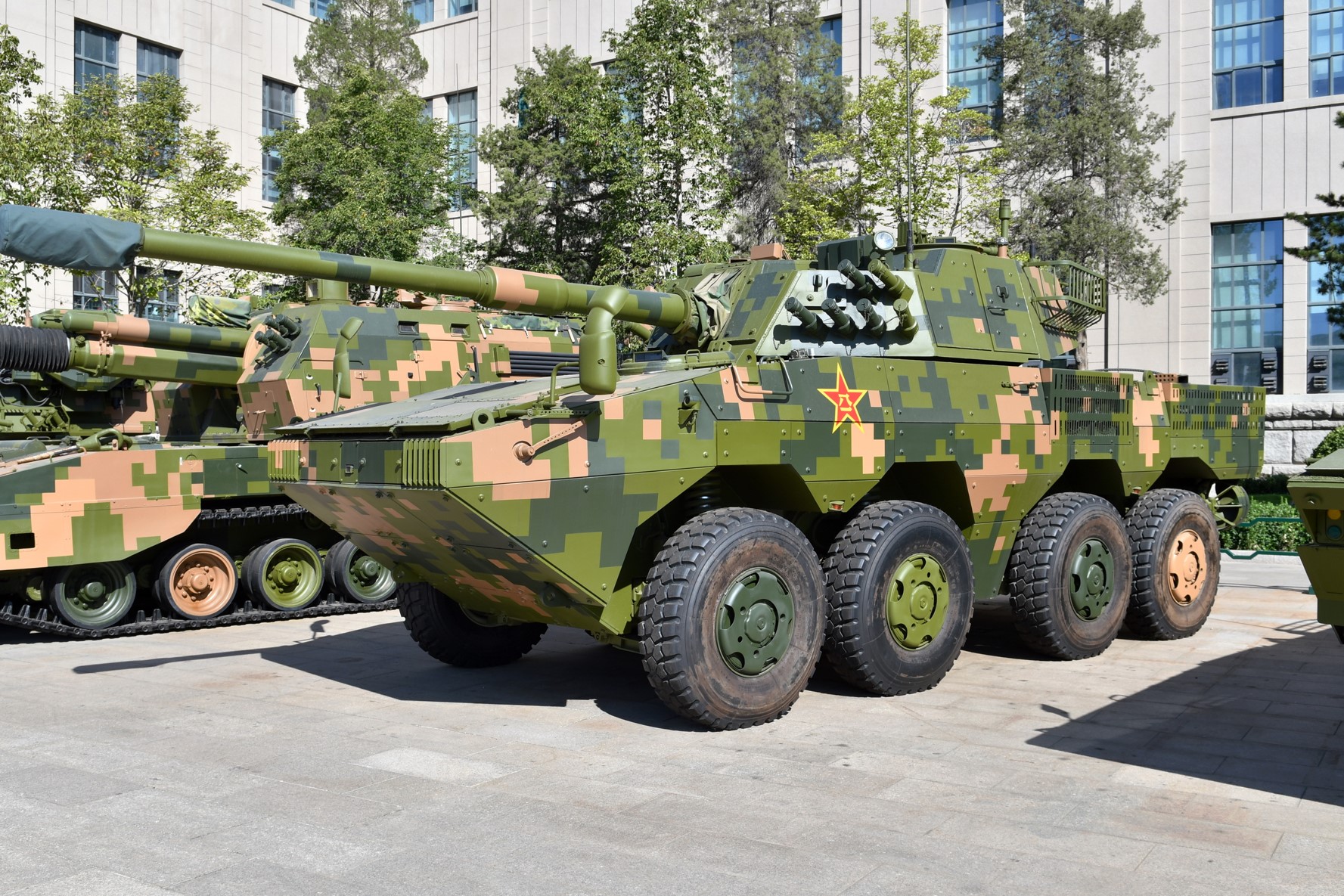

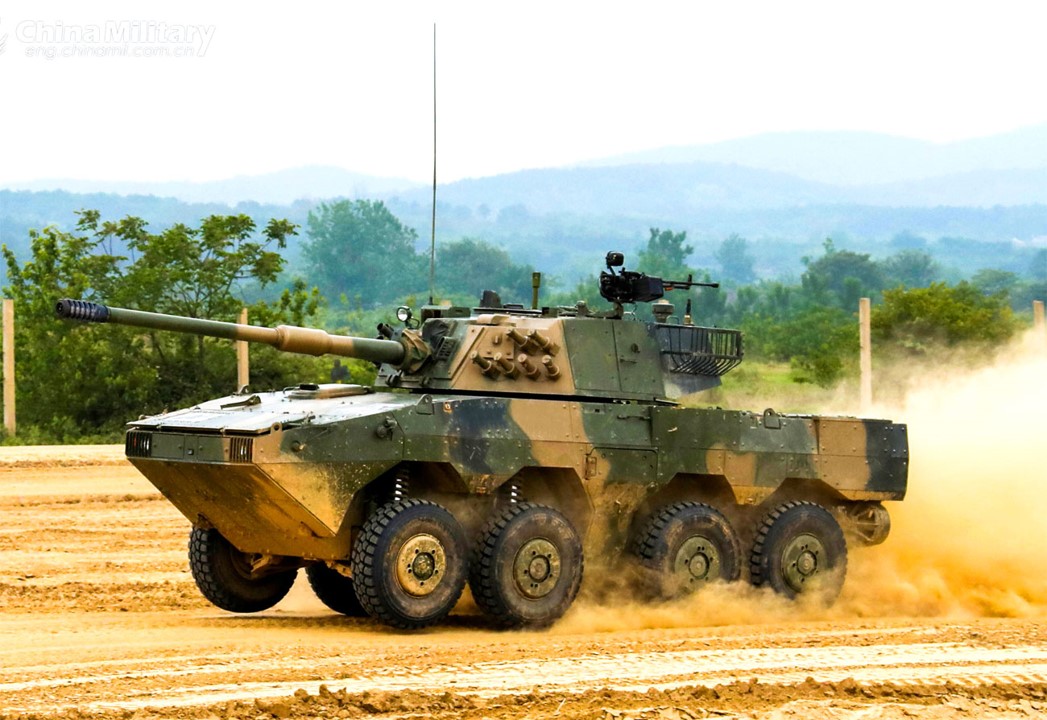

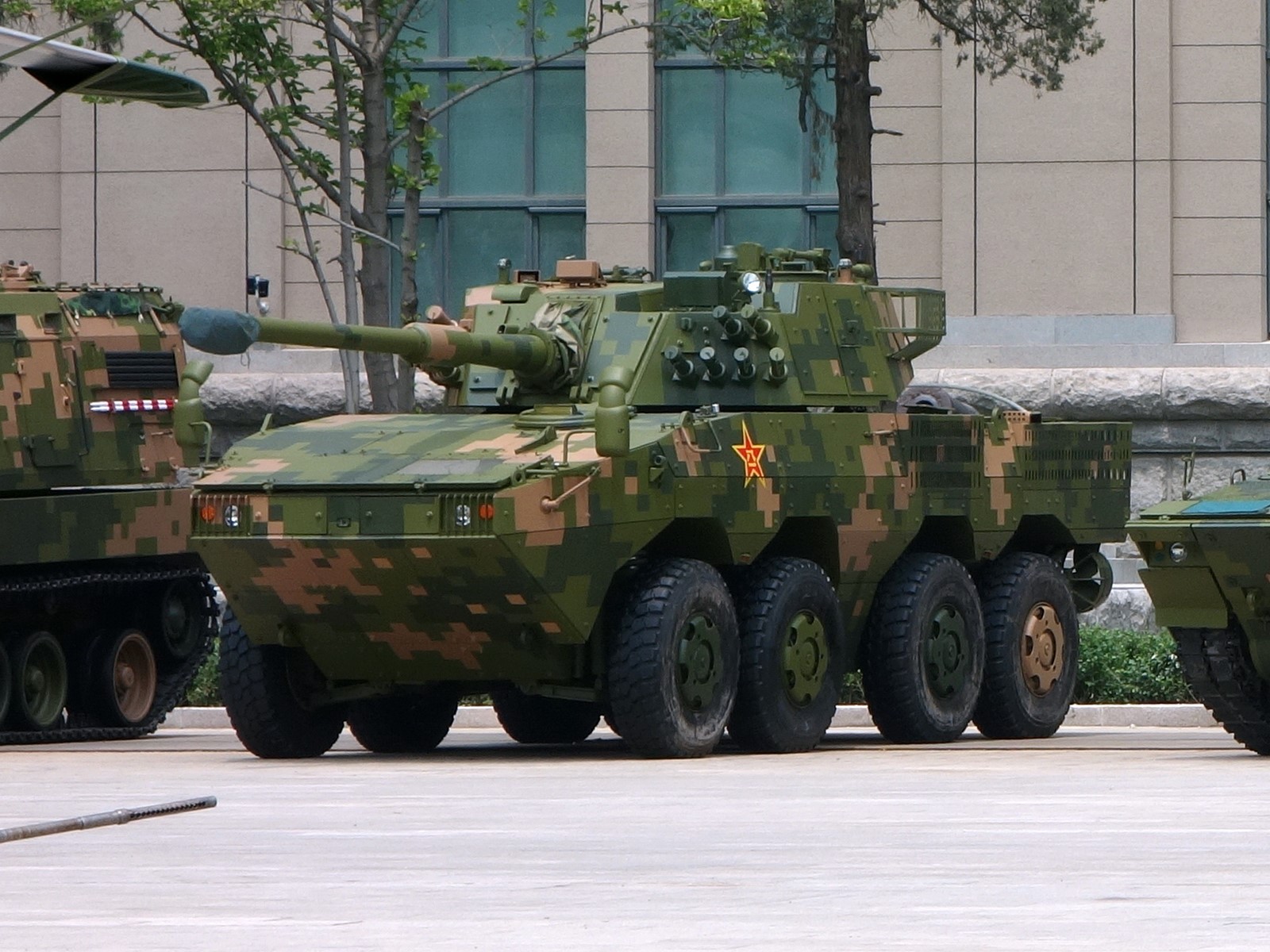

ZTL-11 (Type 11) Chinese 8x8 Armored Fighting Vehicle
ZLT-11
Armored Combat Vehicle
Other
Basic Information
Name
ZTL-11 (Type 11) Chinese 8x8 Armored Fighting Vehicle
Designation
ZLT-11
Alternate Designation
ZLT-11; Type 11; ST1
Equipment Type
Armored Combat Vehicle
Manufacturer
NORINCO
Date of Introduction
2009
Description
The ZTL-11 (Type 11) Chinese 8x8 Armored Fighting Vehicle is based on the type 08 8x8 wheeled armored vehicles family.
Ground Specifications
Crew
4
Mobility Type
Wheeled (8x8)
Main Weapon
105mm rifled gun
Engine
6-Cylinder Turbocharged Diesel (440 hp)
Armor
Welded steel armor; modular armor - thought to consist of a combination of composites and armor plates
Amphibious
Yes
Max Speed
100.0 km/h
Range
800.0 km
Variants
ST-1
Export variant based on Type 11 Assault gun, armed with a L7 105mm rifled gun.
System
Alternative Designation
ZLT-11; Type 11; ST1
Type
Armored Fighting Vehicle
Manufacturer
Norinco
Crew
4 ea
Maximum Effective Range
800 km
Amphibious
Yes
Dimensions
Length
8.0 m
Width
3.0 m
Height
2.1 m
Weight
20,000 kg
Automotive
Engine Name
BF6M1015FC
Engine Type
6-cylinder water cooled turbocharged diesel
Engine Power
440 hp
Power-to-Weight Ratio
16.28 hp/t
Fuel Capacity
INA
Suspension
independent
Automatic Transmission
Yes
Tires
14.00 × 20 run-flat
Range
800 km
Speed, Maximum Road
100 km/h
Speed, Average Cross
80 km/h
Speed, Maximum Swim
8 km/h
Amphibious
Yes
Gradient
60%
Vertical Obstacle
40%
Angle of Approach
45°
Angle of Departure
38°
Trench
1.8 m
Turning Radius
10 m
Communications
Radio
INA
Satellite Communications
Yes
Main Weapon System
System
Name
1 x Royal Ordnance L7
Type
Rifled Tank Gun
Caliber
105 mm
Length
5.89 m
Barrel Length
5.46 m
Weight
1,282 kg
Multi-Purpose Muzzle Break
Yes
Elevation
–4.5° to +18°
Traverse
360 %
Manual Load Time
6-8 rd/m
Bore Evacuator
Yes
Muzzle Velocity
1,740 m/s
Max Range
5 km
Ammunition
Name
BTA2
Type
APFSDS
Caliber
105 mm
Shell
105×617mm R
Penetration
220 mm of RHA set at 66.4° from a range of 2,000 m.
Basic Load
36 Rounds
Auxiliary Weapon System
System
Name
1 x QJY-88
Type
Light Machine Gun
Caliber
5.8 mm
Manufacturer
China North Industries Corporation
Length
1,151 mm
Barrel Length
600 mm
Weight
7.6 kg
Action
gas-operated
Rate of Fire
650–700 rounds/min
Muzzle Velocity
895 m/s
Effective Firing Range
800–1000 m
Feed System
Belt, 100 & 200 round cartridge case
Sights
Iron sight
Ammunition
Type
Rifle
Caliber
5.8 mm
Cartridge
5.8×42mm DBP88 "Heavy rounds"
Basic Load
2,000 Rounds
Fire Control
FCS Name
INA
Computerized FCS
Yes
Thermal, Vehicle Commander
Yes
Thermal, Gunner
Yes
Laser Surveying Machine
Yes
Laser Range Finder
Yes
Liquid Crystal Digital Information Display
Yes
Ballistic Calculator
Yes
Main Gun Stabilization
Yes, Bi axial
IFF
Yes
Launch Speed
6-8 rpm
Hokuto Satellite Position Measurement System
Yes
Fire on the Move
Yes
Protection
Armor Type
Welded steel armor; modular armor – thought to consist of a combination of composites and armor plates
Hull Armor
12.7 mm
Turret Armor
7.62 mm
Applique Armor
Available
Explosive Armor
INA
Active System
Yes
Mine Clearing
No
Self-Entrenching Blade
No
NBC Protection
Yes, Optional
Smoke Equipment
Yes
Night Vision
Yes
Anti-Aircraft
Yes
Automatic Fire Extinguishing System
Yes
Details
Country of Origin
China
Category
Wheeled Heavy Armored Vehicles
Land > Heavy Armored Vehicles > Wheeled Heavy Armored Vehicles
Filter Label
Z
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8 m
Width
3 m
Height
2.1 m
Weight
20000 kg
Operators (5)
China
Gabon
Nigeria
Thailand
Venezuela
