MV3 Chinese 4x4 Anti-Tank Vehicle
MV3
Anti-Tank Guided Missile (ATGM) Vehicle
Other
Basic Information
Name
MV3 Chinese 4x4 Anti-Tank Vehicle
Designation
MV3
Alternate Designation
MV3
Equipment Type
Anti-Tank Guided Missile (ATGM) Vehicle
Manufacturer
First Automobile Works (FAW)
Date of Introduction
2022
Description

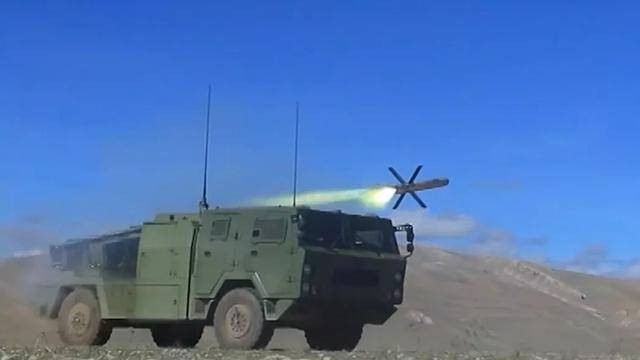

The MV3 Chinese 4x4 Anti-Tank Vehicle is integrated with the NORINCO HJ10 system, a state-of-the-art anti-tank missile, suggests a significant enhancement in the PLA's ground combat capabilities. The combination of the MV3's rapid deployment capabilities with the firepower of the HJ10 missile system is expected to provide the PLA with a formidable edge in modern warfare scenarios.
Ground Specifications
Crew
1
Mobility Type
Wheeled (4x4)
Main Weapon
NORINCO HJ10 system
Engine
Diesel (350 hp)
Max Speed
90.0 km/h
Range
1000.0 km
System
Alternative Designation
MV3
Type
Anti-Tank Vehicle
Manufacturer
First Automobile Works (FAW)
Configuration
4x4
Crew
1 ea
Cab Seating
1 + 1
Maximum Cargo Capacity
10 tons
Dimensions
Length
INA
Width
INA
Height
INA
Weight, Empty
10 tons
Automotive
Engine Name
INA
Engine Type
Diesel
Engine Power
350 hp
Range
1,000 km
Speed, Maximum Road
90 km/h
Speed Maximum Swim
Not Amphibious
Gradient
60 %
Side Slope
40 %
Vertical Step
0.5 m
Trench
0.6 m
Fording Depth
1.2 m
Main Weapon System
Name

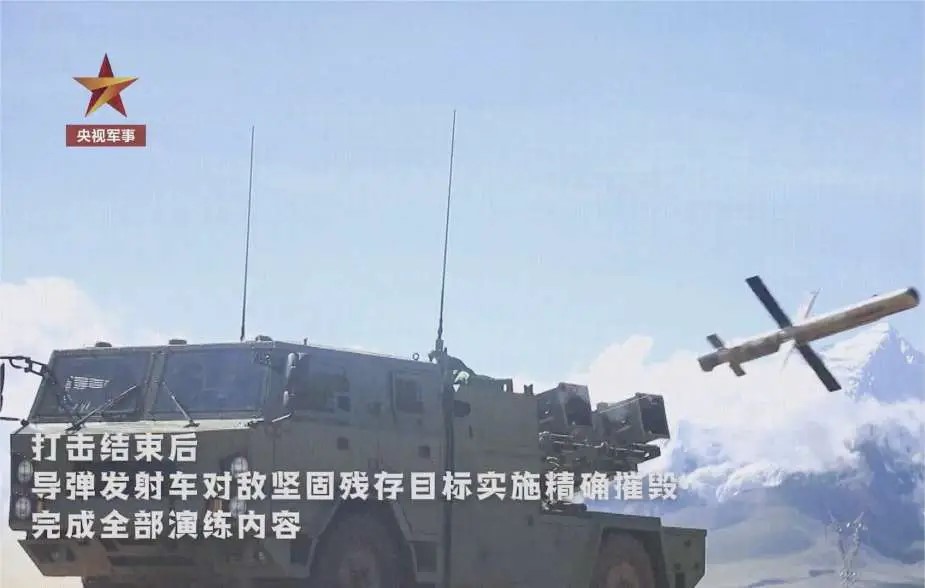

6 x HJ-10 missiles are capable of being carried by this platform in two banks of three missiles.
Type
Anti-Tank Missile
Length
1,850 mm
Diameter
170 mm
Weight
43 kg
Warhead
HEAT
Guidance System
One of the standout features of the HJ-10 is its advanced guidance system. This system is a combination of a television/thermal imaging (IIR) homing head, an inertial system, and a two-way fiber optic data transmission channel. The image of the target generated by the homing head is transmitted to the operator's console, and control commands are sent to the missile via the same channel. This sophisticated guidance system allows for a wide range of combat applications, including fire-and-forget technology, command guidance, composite paths, target acquisition, and redirection after launch.
Maximum Range
10 km
Minimum Range
3 km
Search Speed
150 m/s
Attack Speed
250 m/s
Penetration
Capable of penetrating up to 1,400 mm of conventional steel armor that's protected by explosive reactive armor.
Protection
Armor
INA
Applique Armor
Available
Mine Clearing
No
NBC Protection
No
Smoke Equipment
No
Details
Country of Origin
China
Category
Wheeled Anti-Tank Vehicles
Land > Anti-Tank Vehicles > Wheeled Anti-Tank Vehicles
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
43 kg
Operators (1)
China
