Museco

Museco

Reconnaissance Rotorcrafts
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Museco
Designation
Museco
Alternate Designation
Equipment Type
Reconnaissance Rotorcrafts
Manufacturer
EMT, Swiss UAV
Date of Introduction
Description

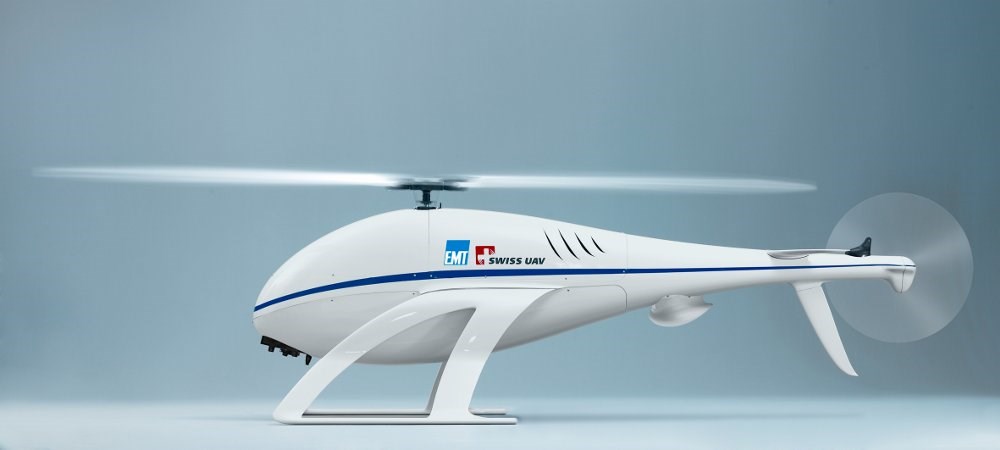

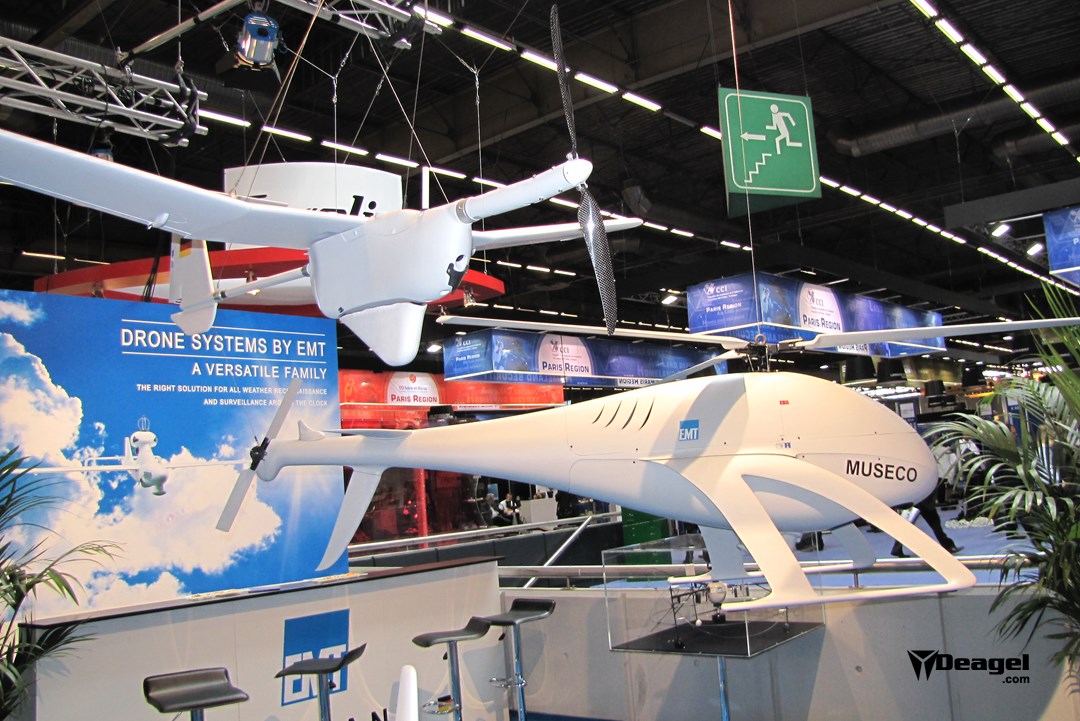

The Museco is a tactical unmanned rotorcraft with a radius of operation in excess of 100 kilometers and a flight endurance of two hours operating from land locations or ships at sea. The rotorcraft provides all-weather reconnaissance, identification and target location in real time equipped with a modular payload that may include infrared, electro-optical or synthetic aperture radar (SAR) sensors. Besides, the air vehicle can carry meteorological sensors, gas and particle samplers, radio relay, mine sweeping sensors and sensors for radioactive contamination. Museco is powered by a 14 Kw heavy fuel turboshaft engine. It can follow either a pre-programmed flight path or being directed by an operator at the control station using a two-way microwave data link. As of summer 2010 EMT is still developing the Museco tactical unmanned rotorcraft system.

Air & Air Defense Specifications
Range 100.0 km
Overview (Deagel)
Group Reconnaissance Rotorcrafts
Status Under Development
Origin Germany
Contractors EMT*, Swiss UAV
First Flight April 8, 2010
Total Production ?
Specifications (Deagel)
Crew 0
Main Rotor Blades 3
Dimensions — Height 0.95 meter
Dimensions — Length 2.8 meter
Dimensions — Main Rotor Diameter 3 meter
Dimensions — Width 0.86 meter
Mass — Max Takeoff Weight 75 kilogram
Performance — Radius of Operation 100 kilometer
Power — Max Power at TakeOff 14 kW
Time — Flight Endurance 2 hour
Details
Country of Origin Germany
Category Rotary Wing Aircraft
Air > Rotary Wing Aircraft
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
2.8 m
Width
0.86 m
Height
0.95 m
Weight
75 kg
