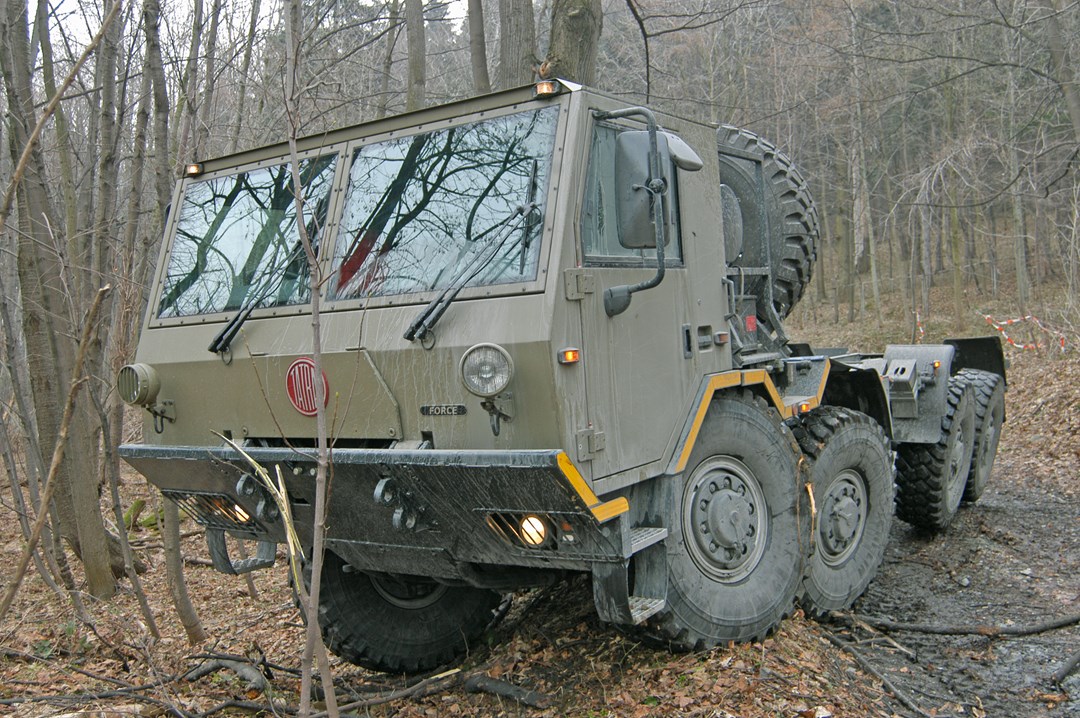

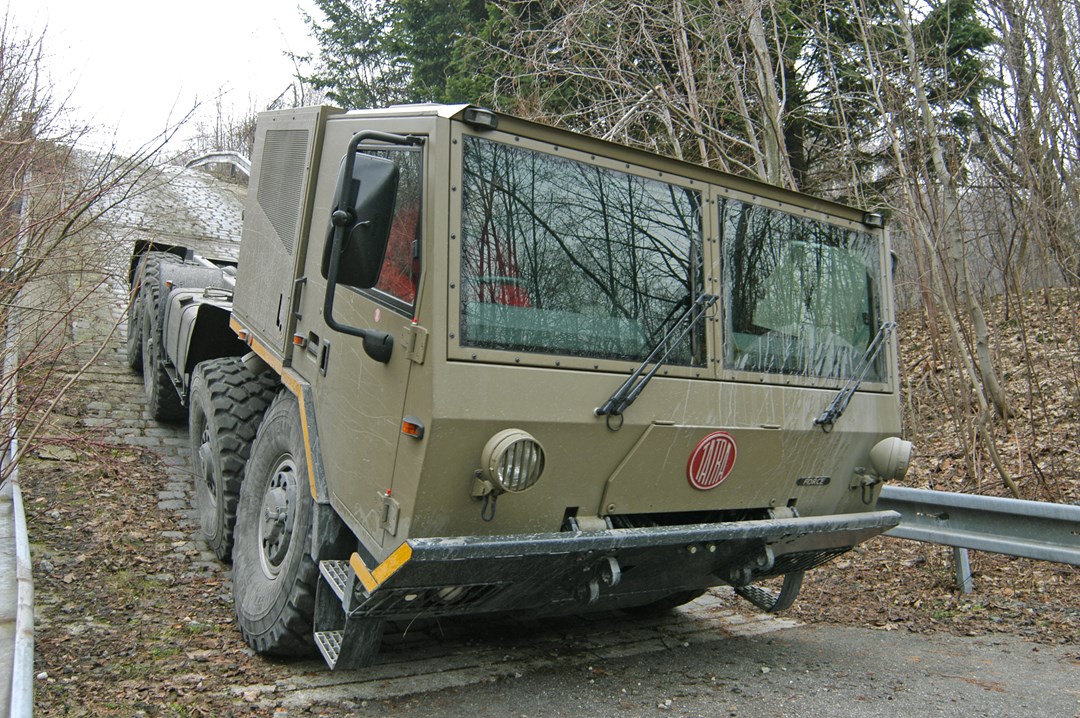

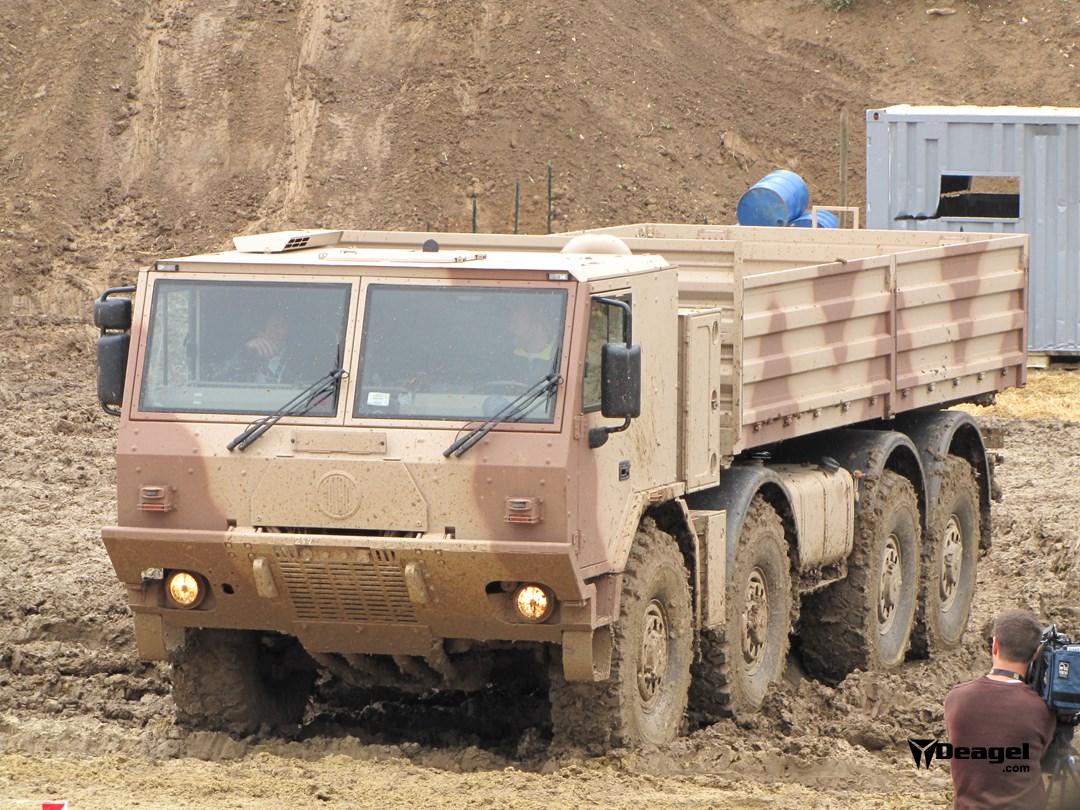

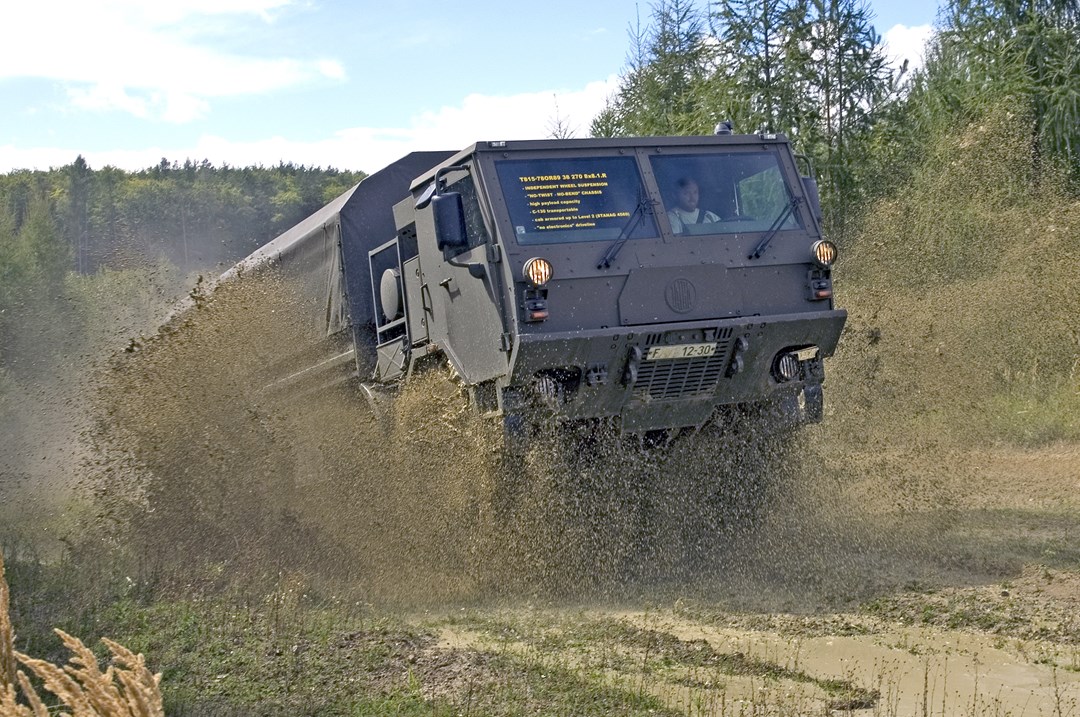

TATRA T 815-7

TATRA T 815-7

Military Trucks
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
TATRA T 815-7
Designation
TATRA T 815-7
Alternate Designation
Equipment Type
Military Trucks
Manufacturer
TATRA
Date of Introduction
Description

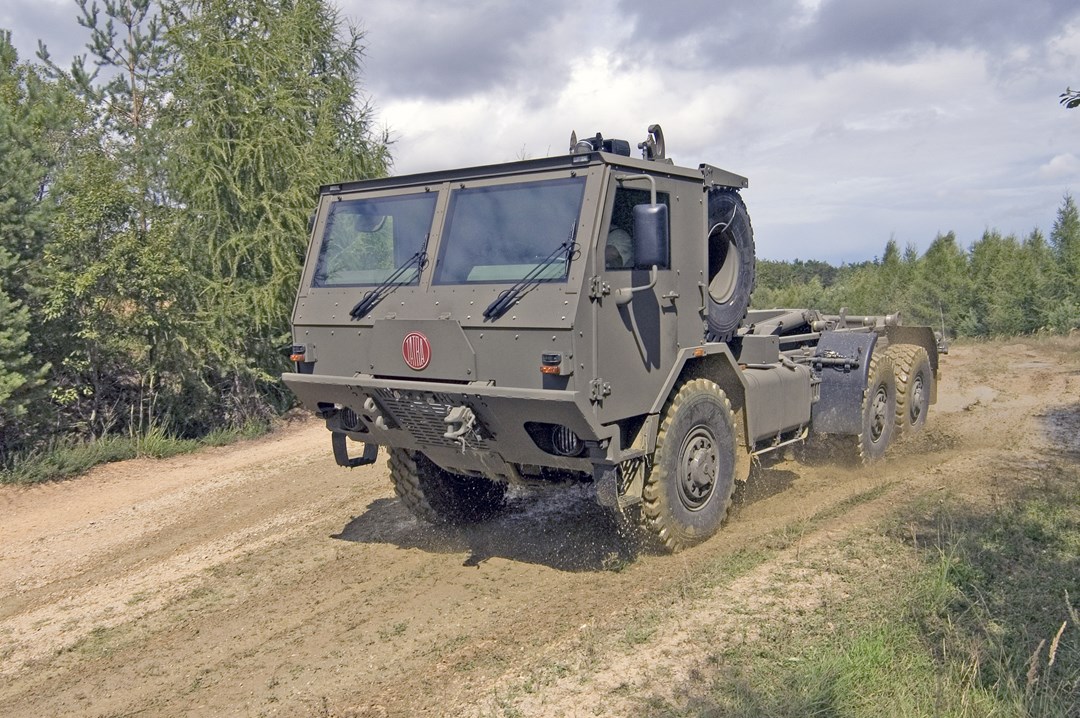

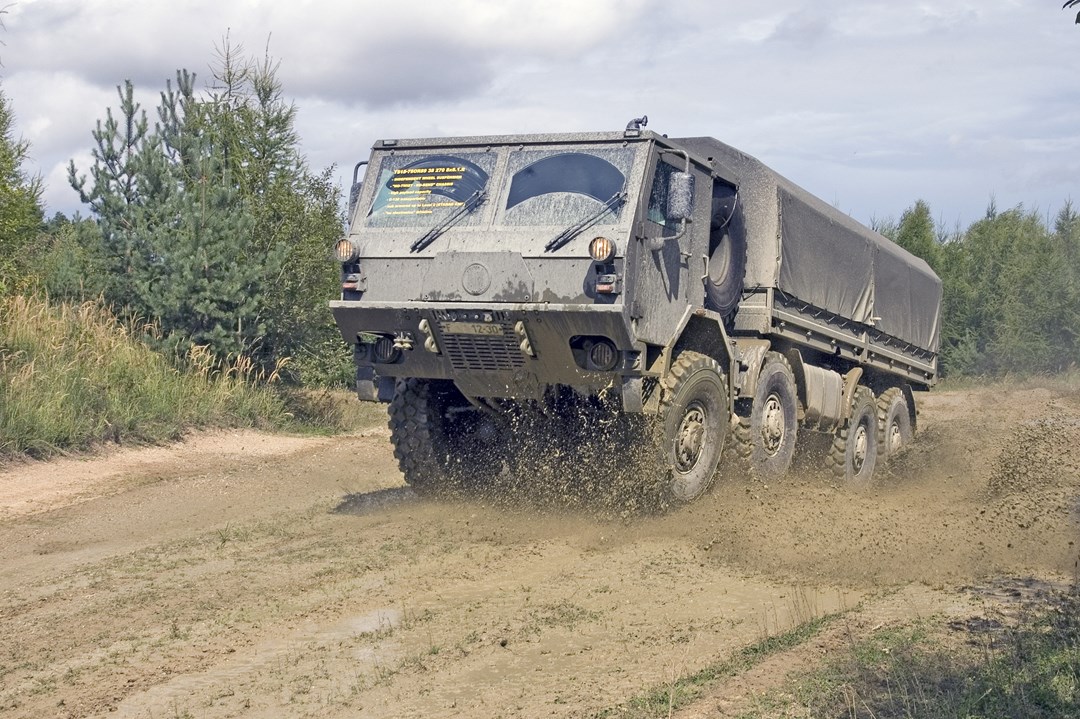

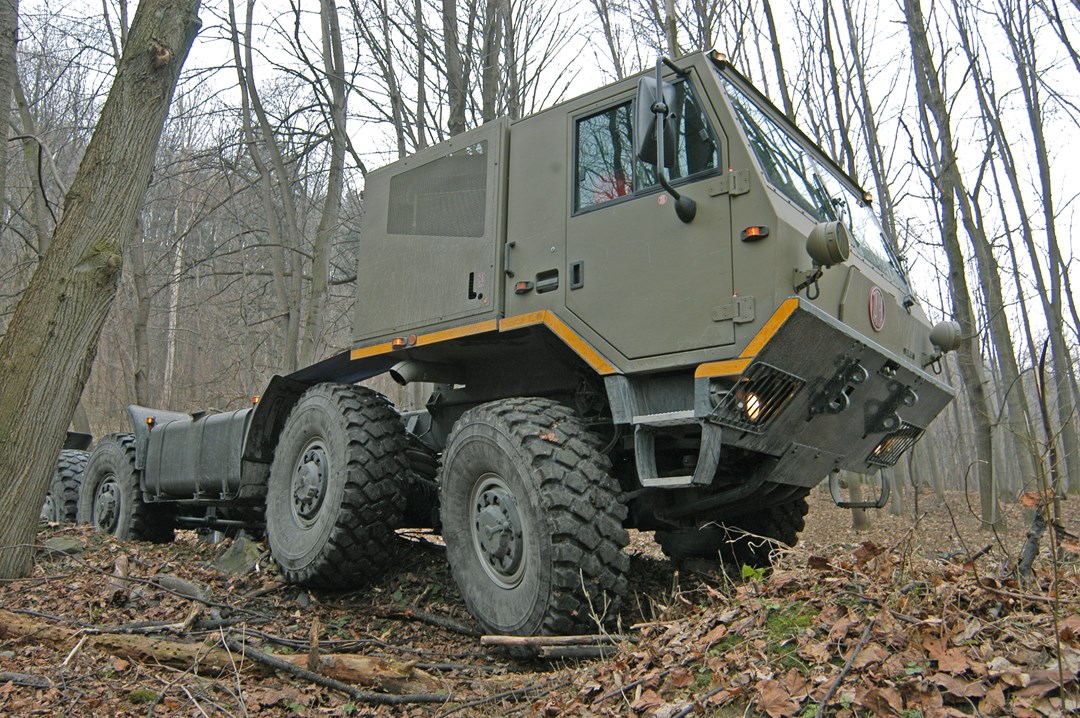

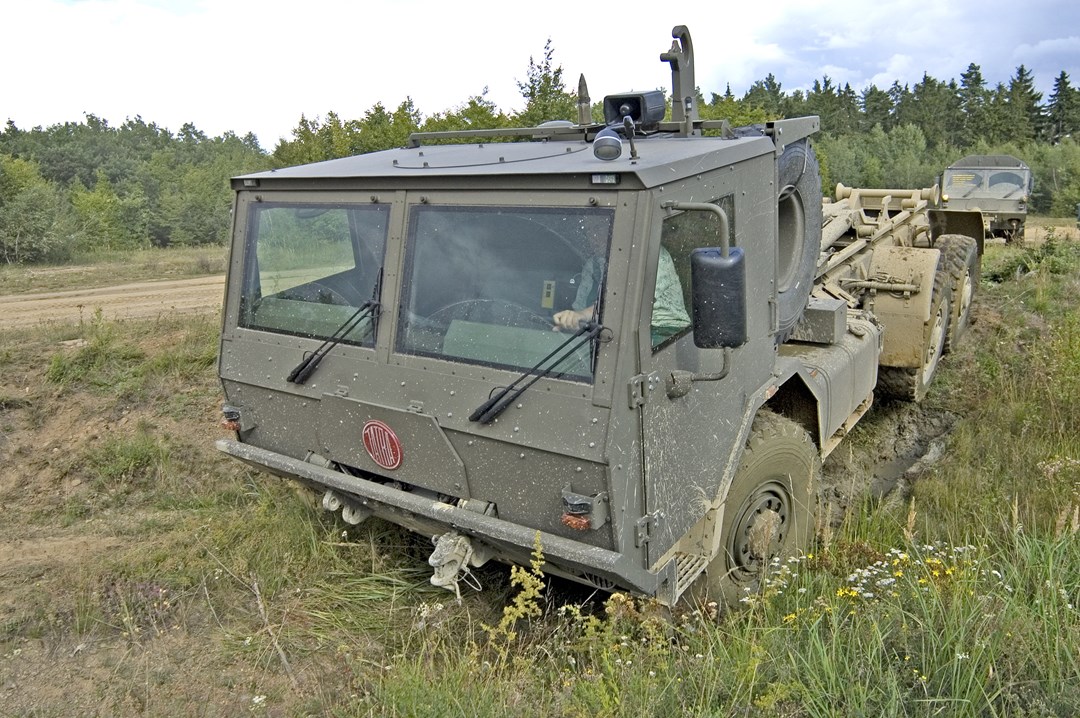

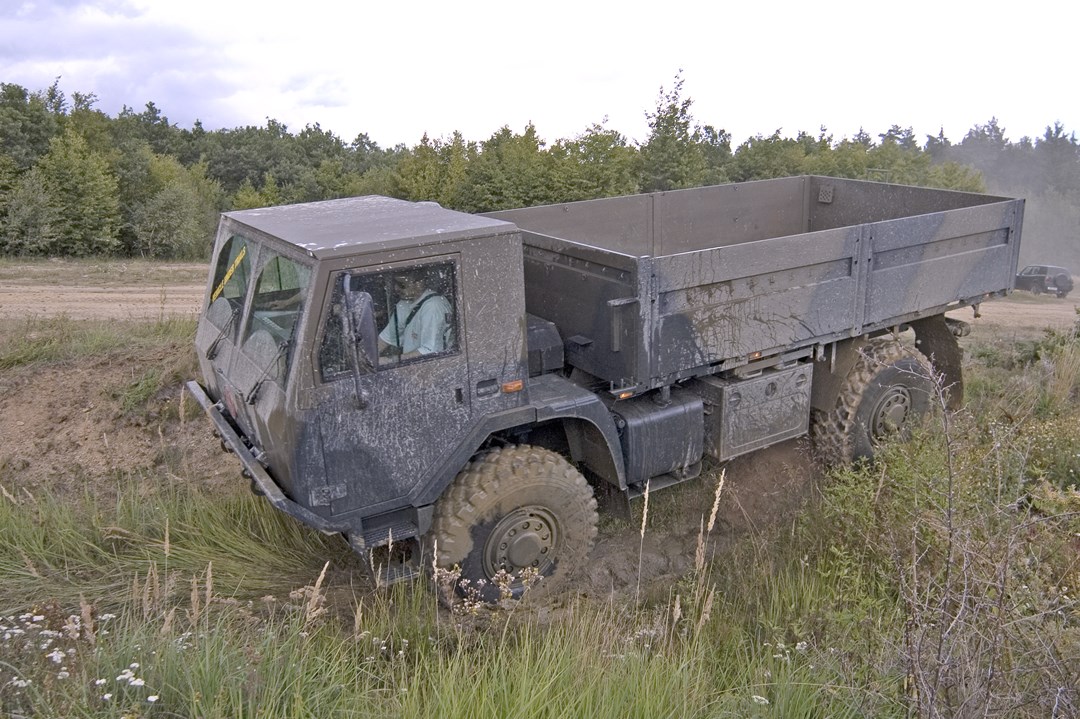

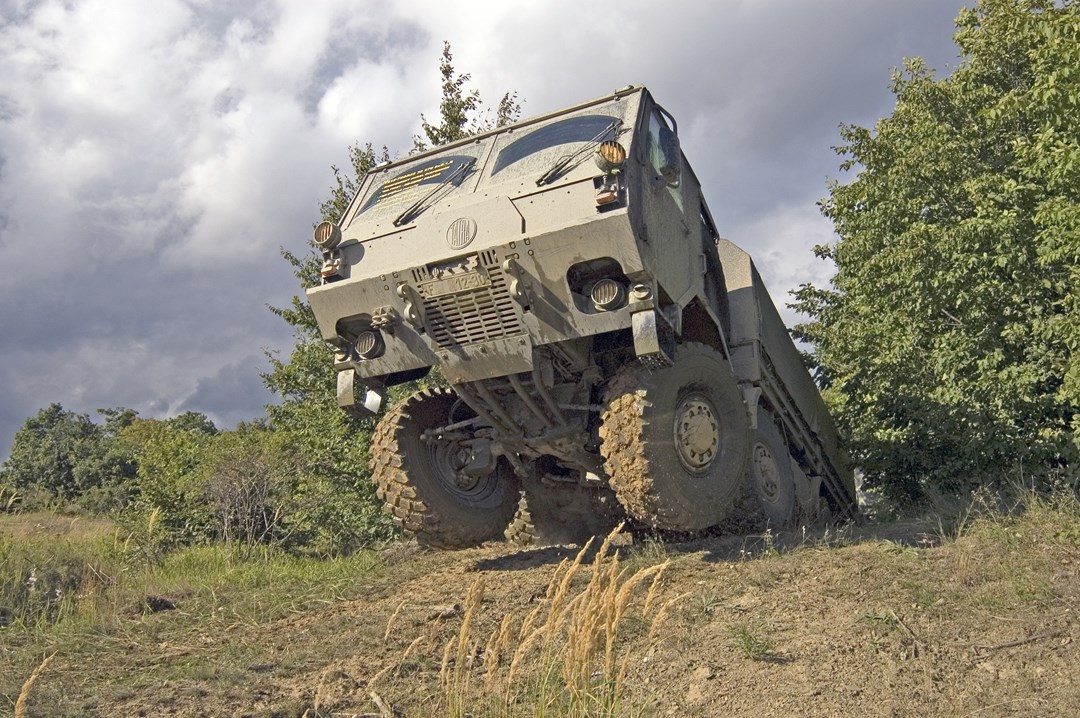

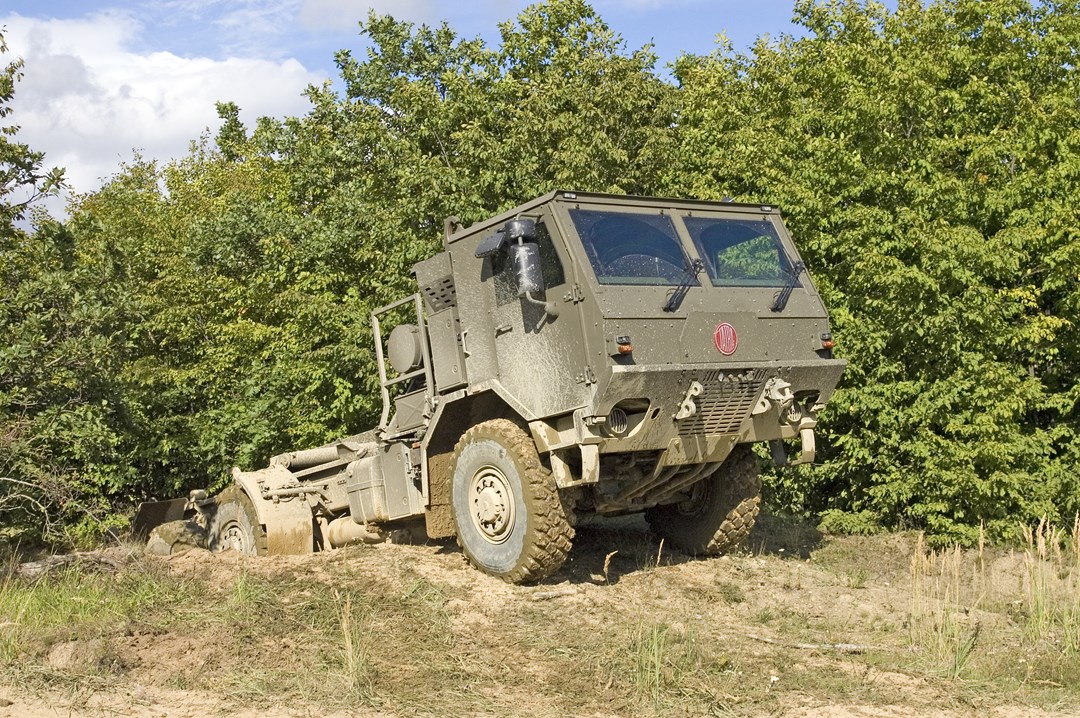

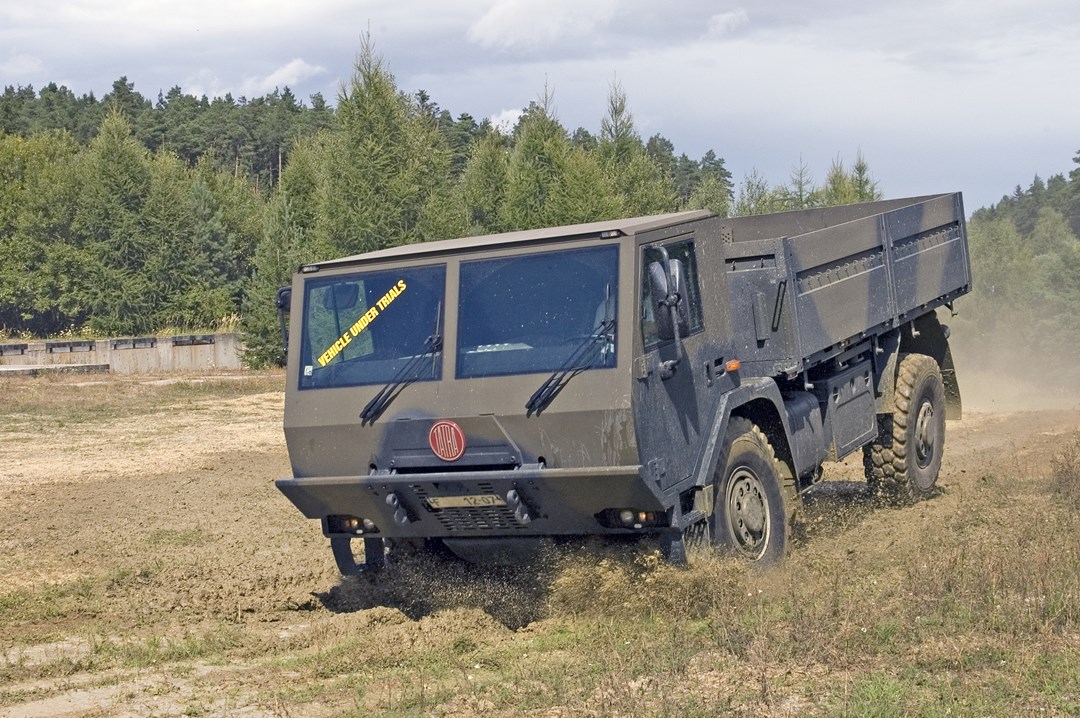

The TATRA T 815-7 is a family of tactical military truck system designed to operate in extremely difficult terrain and climate conditions, to support peacekeeping missions and to be used in warfare operations worldwide. Its chassis has outstanding driving characteristics on harsh terrain and its resistance to torsion, flexion and vibrations is suitable for transportation of troops, ammunition, electronic devices, radar and other special containers. The T 815-7 vehicle is also suitable for fire fighting and law enforcement operations. Fully compliant with NATO and civil standards, this truck system is available in 4x4, 6x6 and 8x8 configurations. The T 815-7EOR89 is a 10x10 version which has only been produced as a prototype not being available in the T 815-7 product line. The TATRA T 815-7 platform allows to use a wide variety of engines and power trains ranging from TATRA's air cooled diesel engines to water-cooled engines made by foreign manufacturers as well as third party's mechanical or automatic transmissions. Standard features for this vehicle family include: low vehicle construction enabling air transport of the vehicles by C-130 aircraft; all wheel drive with differential locks, CTIS system enabling re-inflation of tires during the drive; high payload on and off road; optional armored cab with protection up to STANAG 4569 using add-on armor kits which also protects windows; advanced pneumatic suspension for variable ground clearance; small turning radiuses where powerful engines and automatic transmissions qualify the truck to meet requirements for high acceleration, and where perfect mobility necessary for fighting fires in areas inaccessible to other vehicles is a standard.

Ground Specifications
Mobility Type Wheeled (4x4)
Max Speed 115.0 km/h
Range 500.0 km
Overview (Deagel)
Group Military Trucks
Status Active
Also Known As T 815-780R59, T 815-7APR59, T 815-7L0R59
Origin Czechia
Contractor TATRA
Total Production ?
Specifications (Deagel)
Wheel Drive 4
Wheels 4
Degree — Approach Angle 42 °
Degree — Departure Angle 29 °
Dimensions — Ground Clearance 380 millimeter
Dimensions — Height 2.7 meter
Dimensions — Length 8.1 meter
Dimensions — Track 2.1 meter
Dimensions — Width 2.5 meter
Energy — Max Torque 1,550 Nm
Mass — Cargo 8,500 kilogram
Mass — Max Gross Train Weight 37,000 kilogram
Mass — Max Weight 19,000 kilogram
Percentage — Gradient 75 %
Percentage — Side Slope 45 %
Performance — Ditch Crossing Ability 0.90 meter
Performance — Fording Depth 1.5 meter
Performance — Max Range 500 kilometer
Performance — Step Climbing Ability 0.50 meter
Performance — Turning Radius 9.3 meter
Power — Power 257 kW
Speed — Top Speed 115 kph
Volume — Fuel Tank Capacity 220 liter
Variants
Variant 1 T 815-7 4x4
Variant 2 T 815-7 6x6
Variant 3 T 815-7 8x8
Details
Country of Origin Czech Republic
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8.1 m
Width
2.5 m
Height
2.7 m
Weight
37000 kg
