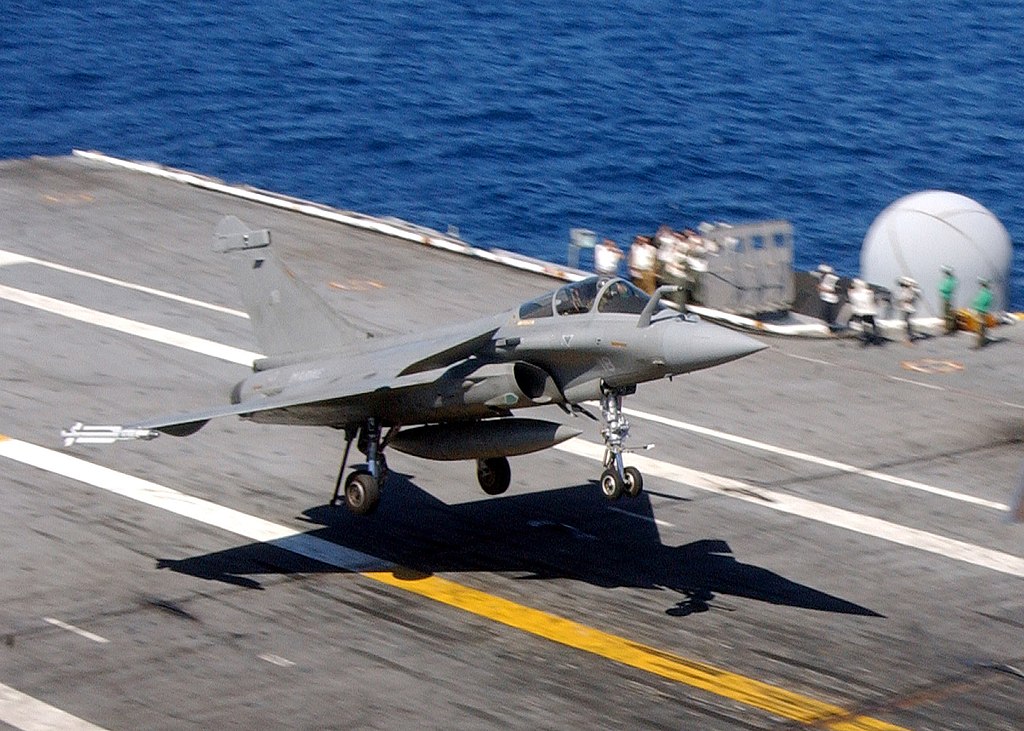

Rafale C

Rafale C

Multi-Role Fighters
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Rafale C
Designation
Rafale C
Alternate Designation
Rafale F3R, Rafale F4
Equipment Type
Multi-Role Fighters
Manufacturer
Dassault-Aviation
Date of Introduction
2006
Description

The single-seat Rafale C will perform air-to-air missions as well as ground attack missions. The French Air Force will procure up to 95 Rafale Cs through 2019. The first squadron equipped with the Rafale C will achieve initial operational capability in 2006. It will replace current Mirage F1 and Mirage 2000B/C aircraft. On 27 June 2006, the French Air Force declared the first Rafale-equipped squadron operational at Air Force Base 113, BA 113, in Saint-Dizier. EC 01.007 squadron, also known as Provence, is equipped with the first 10 Rafale multi-role aircraft of the French Air Force. On September 24, 2004, the French Ministry of Defense awarded a €3.1 billion multiyear contract for 59 Rafale aircraft to an industry team comprising Dassault Aviation (€1.5 billion), Snecma (€600 million), Thales (€500 million), MBDA and Sagem. The Rafale aircraft ordered by the French Armed Forces will be furnished following the multi-role standard F3 specifications. Deliveries are expected to begin in June 2008 and will continue through January 2012. Under the terms of the multiyear contract, the French Air Force will receive 11 single-seat Rafale Cs replacing aging Mirage F1 and Jaguar aircraft. French Minister of Defense, Alliot-Marie, announced that the third batch of Rafale, comprising 59 aircraft, turn into firm order on December 6, 3004, during a speech at the French Senate about Defense budget. The Rafale first batch contract was awarded in 1994 and was set for 13 aircraft. The second order was awarded in 1999 for 48 aircraft. The third order was announced in September 2004 consisting of 59 aircraft and 118 engines. The total number of Rafale ordered for the French armed forces now stands at 120 units.

Air & Air Defense Specifications
Crew 1
Max Speed 2222.6 km/h
Range 1900.0 km
Service Ceiling 15000 m
Wingspan 10.90 m
Overview (Deagel)
Group Multi-Role Fighters
Status Active
Also Known As Rafale F3R, Rafale F4
Origin France
Contractor Dassault-Aviation
Initial Operational Capability (IOC) 2006
Total Production 182
Unitary Cost EUR 120 million
Specifications (Deagel)
Crew 1
Number of Engines 2
Dimensions — Height 5.3 meter
Dimensions — Length 15.3 meter
Dimensions — Main Gun Caliber 30 millimeter
Dimensions — Wingspan 10.9 meter
G-load — Max Maneuvering Load Factor 11 g
Mass — Empty Weight 10,000 kilogram
Mass — Max Takeoff Thrust 34,000 pound
Mass — Max Takeoff Weight 24,500 kilogram
Mass — Payload 9,500 kilogram
Performance — Ceiling 15,000 meter
Performance — Max Range 1,900 kilometer
Speed — Top Speed at High Altitude 1.8 mach
Time — Flight Endurance 3 hour
Gear (Deagel)
Item 1 Air-to-Air Missiles: Mica IR
Item 2 Air-to-Air Missiles: Mica RF
Item 3 Anti-Ship Missiles: AM39 Exocet
Item 4 Anti-Ship Missiles: ANF
Item 5 Bombs: AASM 250
Item 6 Bombs: AASM IR
Item 7 Bombs: BGL 1000
Item 8 Bombs: BGL 250
Item 9 Bombs: BGL 400
Item 10 Bombs: GBU-12 Paveway II
Item 11 Cruise Missiles: ASMP
Item 12 Cruise Missiles: ASMP A
Item 13 Cruise Missiles: Storm Shadow
Item 14 Jamming Systems: Spectra (1)
Item 15 Optronic Systems: FSO (1)
Item 16 Radar Systems: RBE2 (1)
Item 17 Standoff Weapons: Apache AP
Item 18 Standoff Weapons: Apache IZ
Item 19 Standoff Weapons: AS30L
Variants
Variant 1 Rafale M
Variant 2 Rafale C
Variant 3 Rafale B
Details
Country of Origin France
Category Multirole Aircraft
Air > Multirole Aircraft
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
15.3 m
Width
10.9 m
Height
5.3 m
Weight
24500 kg
Related Equipment (1)
Operators (8)
France
India
Serbia
Croatia
Egypt
Greece
Indonesia
Qatar
