Mig-21

Mig-21

Air Defense Fighters
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Mig-21
Designation
Mig-21
Alternate Designation
F-7, Fishbed, J-7, JJ-7, Mig-21 bis, Mig-21-2000, Mig-21-93, Mig-21F, Mig-21FL, Mig-21MF, Mig-21P, Mig-21PF, Mig-21PFM, Mig-21PFMA, Mig-21PFS, Mig-21R, Mig-21S (equipped with GSh-23L gun), Mig-21SM, Mig-21SMB, Mig-21SMT, Mig-21U, Mig-21UM, Mig-21UPG, Mig-21US, Mongol
Equipment Type
Air Defense Fighters
Manufacturer
Russian Aircraft Corporation MiG, Sokol
Date of Introduction
1960
Description

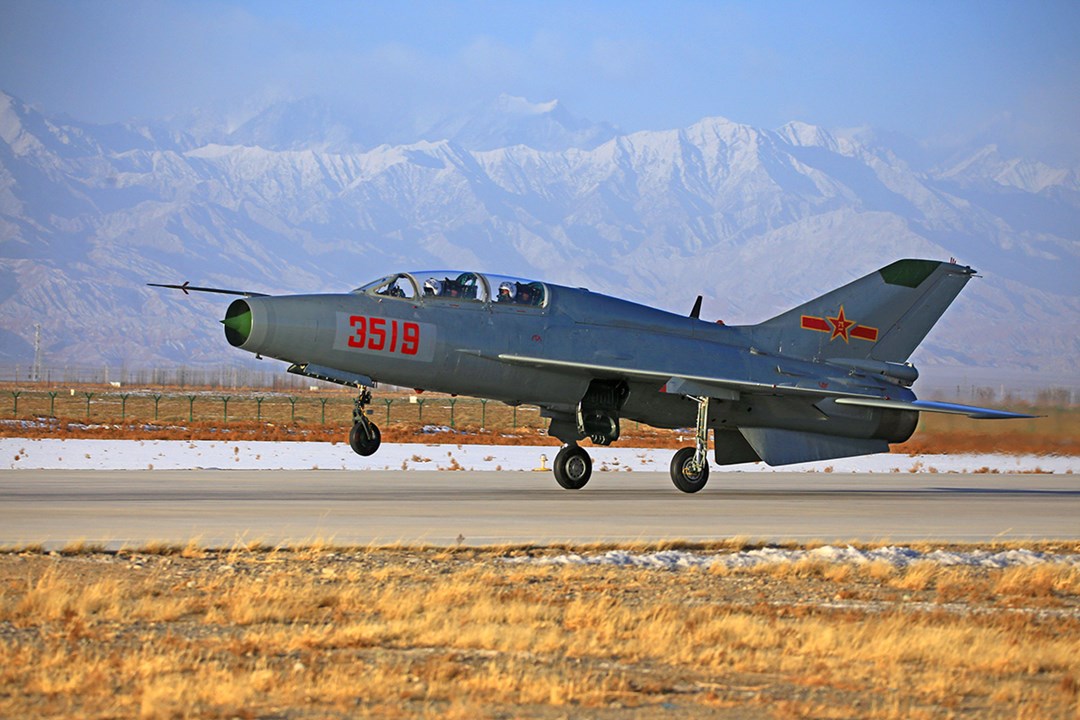

The Mig-21 is a supersonic, single-engine, lightweight day fighter-interceptor introduced by the Soviet Union in 1960. It was the backbone of the Soviet Union and Warsaw Pact Air Forces in the 1960s and 1970s. With over 11,000 aircraft built in the Soviet Union and under license, Mig-21 was the benchmark in combat aviation after WWII. NATO nicknamed single-seat Mig-21s 'Fished' while two-seat Mig-21U was dubbed 'Mongol'. Both aircraft were powered by a single R-13 engine providing 14,300 pounds of thrust with afterburner. More than 8,000 first generation Mig-21s have been produced so far. In 2005 Indian Air Force's Mig-21s were undergoing a modernization program being carried in partnership between Sokol Plant, HAL and Mig Aircraft Corporation. Up to 125 existing Indian Mig-21s were expected to be converted into Mig-21UPG aircraft which is a far more capable variant of Mig-21 produced to date. Mig-21 built under license in China are called J-7/F-7. Even in the first decade of the 21st century J-7/F-7 forms the backbone of the Chinese People's Liberation Army Air Force (PLAAF). Mig-21 bis is an improved model featuring ground attack secondary capability and R-25 engine rated at 15,000+ pounds of thrust. Mig-21 bis achieved Initial Operational Capability (IOC) in 1972 with between 2,000 to 3,000 aircraft produced to date. Most of the surviving Mig-21s are Mig-21 bis models. Mig-21-2000 and Mig-21-93 designations refer to upgrades available for existing Mig-21s.

Air & Air Defense Specifications
Crew 1
Max Speed 2390.4 km/h
Range 1100.0 km
Service Ceiling 14000 m
Wingspan 7.20 m
Overview (Deagel)
Group Air Defense Fighters
Status Active
Also Known As F-7, Fishbed, J-7, JJ-7, Mig-21 bis, Mig-21-2000, Mig-21-93, Mig-21F, Mig-21FL, Mig-21MF, Mig-21P, Mig-21PF, Mig-21PFM, Mig-21PFMA, Mig-21PFS, Mig-21R, Mig-21S (equipped with GSh-23L gun), Mig-21SM, Mig-21SMB, Mig-21SMT, Mig-21U, Mig-21UM, Mig-21UPG, Mig-21US, Mongol
Origin Russia
Contractors Russian Aircraft Corporation MiG, Sokol
Initial Operational Capability (IOC) 1960
Total Production 11,000
Specifications (Deagel)
Crew 1
Number of Engines 1
Dimensions — Height 4.8 meter
Dimensions — Length 15.8 meter
Dimensions — Main Gun Caliber 23 millimeter
Dimensions — Wingspan 7.2 meter
Mass — Max Takeoff Thrust 15,600 pound
Mass — Max Takeoff Weight 8,170 kilogram
Performance — Ceiling 14,000 meter
Performance — Max Range 1,100 kilometer
Speed — Cruise Speed 250 mps
Speed — Top Speed at High Altitude 664 mps
Gear (Deagel)
Item 1 Air-to-Air Missiles: K-5
Item 2 Air-to-Air Missiles: PL-7 (2)
Item 3 Air-to-Air Missiles: PL-9C (2)
Item 4 Air-to-Air Missiles: R-3
Item 5 Air-to-Air Missiles: R-60 (2)
Item 6 Medium Caliber Cannons: GSh-23L (1)
Item 7 Standoff Weapons: Kh-23M
Details
Country of Origin Russia
Category Multirole Aircraft
Air > Multirole Aircraft
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
15.8 m
Width
7.2 m
Height
4.8 m
Weight
8170 kg
Operators (58)
Russia
China
Germany
Ukraine
Poland
India
Iran
North Korea
Pakistan
Soviet Union
Czech Republic
Serbia
Belarus
Afghanistan
Albania
Algeria
Angola
Azerbaijan
Bangladesh
Bulgaria
Burkina Faso
Cambodia
Chad
Croatia
Cuba
Egypt
Ethiopia
Finland
Georgia
Guinea
Guinea-Bissau
Hungary
Indonesia
Iraq
Kazakhstan
Kyrgyzstan
Laos
Libya
Madagascar
Mali
Mongolia
Mozambique
Myanmar
Namibia
Nigeria
Romania
Slovakia
Somalia
Sri Lanka
Sudan
Syria
Tanzania
Turkmenistan
Uganda
Vietnam
Yemen
Zambia
Zimbabwe
