YPR-765 PRGWT Dutch Armored Medical Evacuation Vehicle (AMEV)

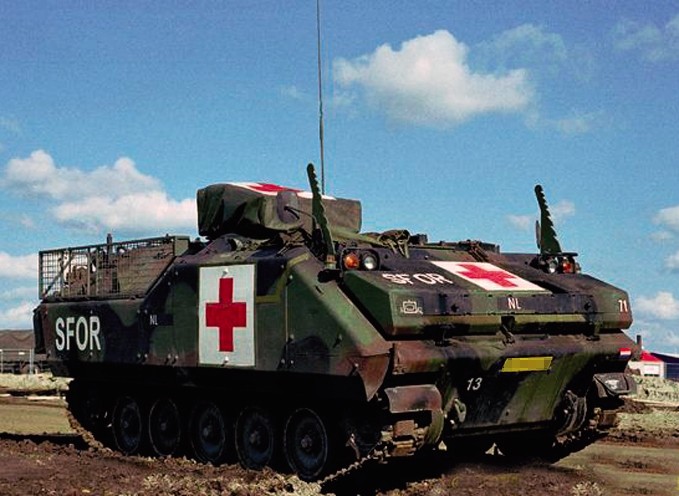

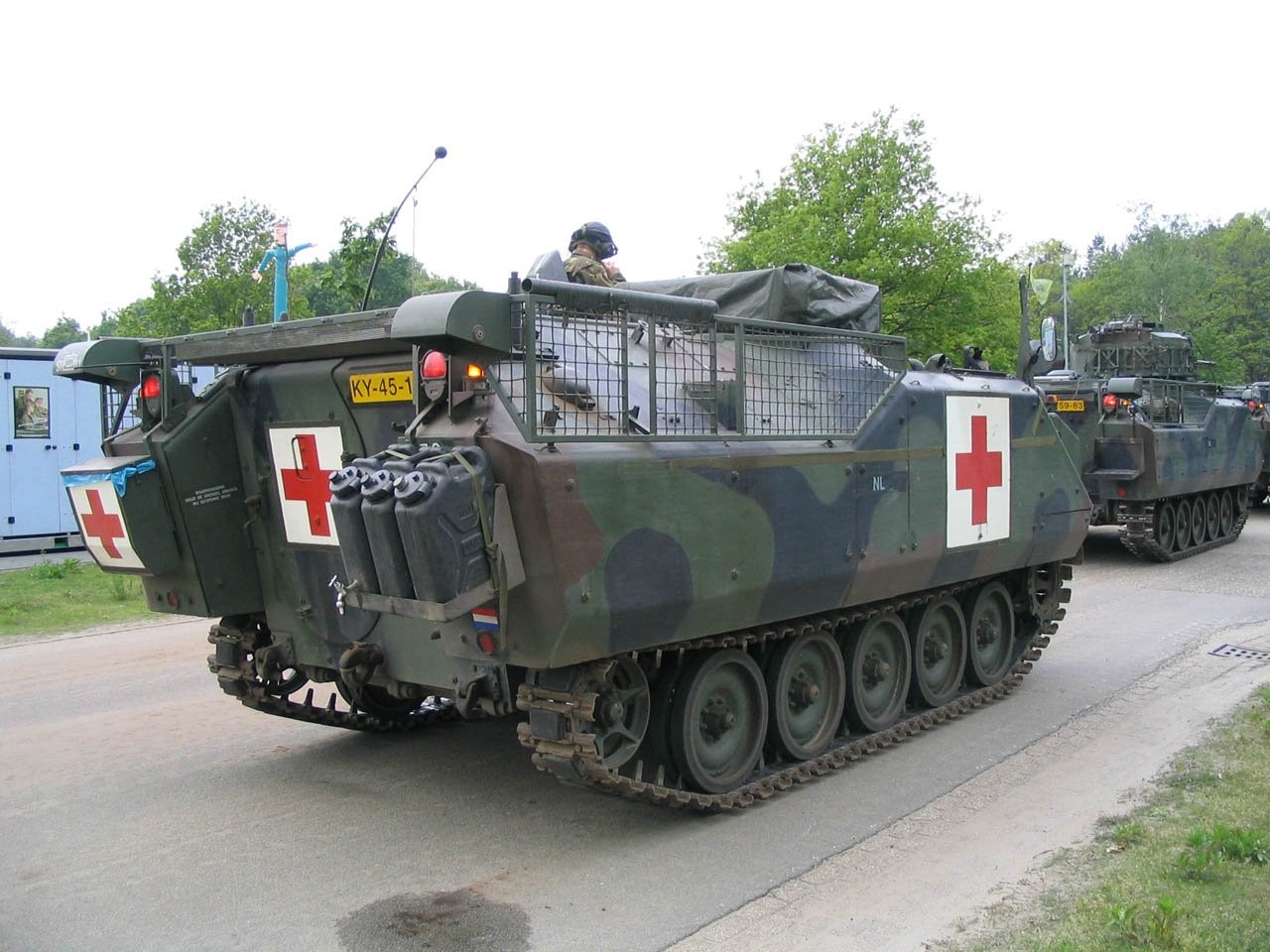

YPR-765 PRGWT — armored medical evacuation vehicle (AMEV); unarmed; crew of three plus five passengers; rear compartment has two forward-facing seats on the left, bins for the personal equipment of the wounded on either side, and can hold two stretchers on either side, suspended from chains. The vehicle is equipped with a diesel-heater. The AIFV (Armored Infantry Fighting Vehicle) is a tracked light armored vehicle that serves as an infantry fighting vehicle (IFV) in the armies of several countries. It is a development of the M113A1 armored personnel carrier. The hull of the vehicle is made of welded aluminum, with spaced steel laminate armor bolted onto the side and front. The voids of the armor are filled with polyurethane foam, which gives the vehicle extra buoyancy when travelling in the water. Original production AIFV's can swim without deploying flotation curtains, using only a large front-mounted trim vane; they are propelled in the water by their tracks. The engine sits on the front right of the hull, behind a hatch that can be used to remove the complete powerpack. The powerpack is similar to the M113A1, except for a larger radiator capacity and turbocharger. The transmission is also fitted with heavy duty components from the M548 tracked cargo carrier. Immediately to the left of the engine is the driver, above whom is a hatch that opens to the right. The driver has four M27 day periscopes. The driver's center periscope can be replaced by a passive infra-red periscope for night driving. The commander sits immediately behind the driver, and has a cupola that can be completely traversed. The cupola has five periscopes, four of which are M17 day periscopes, the fifth has 1x to 6x variable magnification. The turret is fitted on the right side of the hull behind the engine. The turret, which has electro-hydraulic traverse, can elevate from -10 to +50° and can traverse and elevate at a speed of 60°/sec. The turret mounts an Oerlikon Contraves 25 mm KBA-B02 cannon with a dual ammunition feed and 180 rounds of ready use ammo, with another 144 rounds stored in the hull. Mounted to the left of this gun is a 7.62 mm FN MAG machine gun, which has 230 rounds of ready ammo, with a further 1,610 in the hull. There is a six-barrel smoke discharger mounted at the front, just above the large trim vane. The troop compartment is at the rear of the hull; a large power operated ramp allows access through the rear of the vehicle, a door is also provided in the ramp. Additionally a single piece hatch covers the top of the troop compartment. The compartment contains seven troops in the Dutch variant, with six sitting back to back facing outwards and a single passenger sitting between the command and the turret facing backwards. There are two firing ports in each side of the hull and a single firing port in the rear. The side firing ports are provided with M17 periscopes, the rear one is fitted with an M27 periscope.
