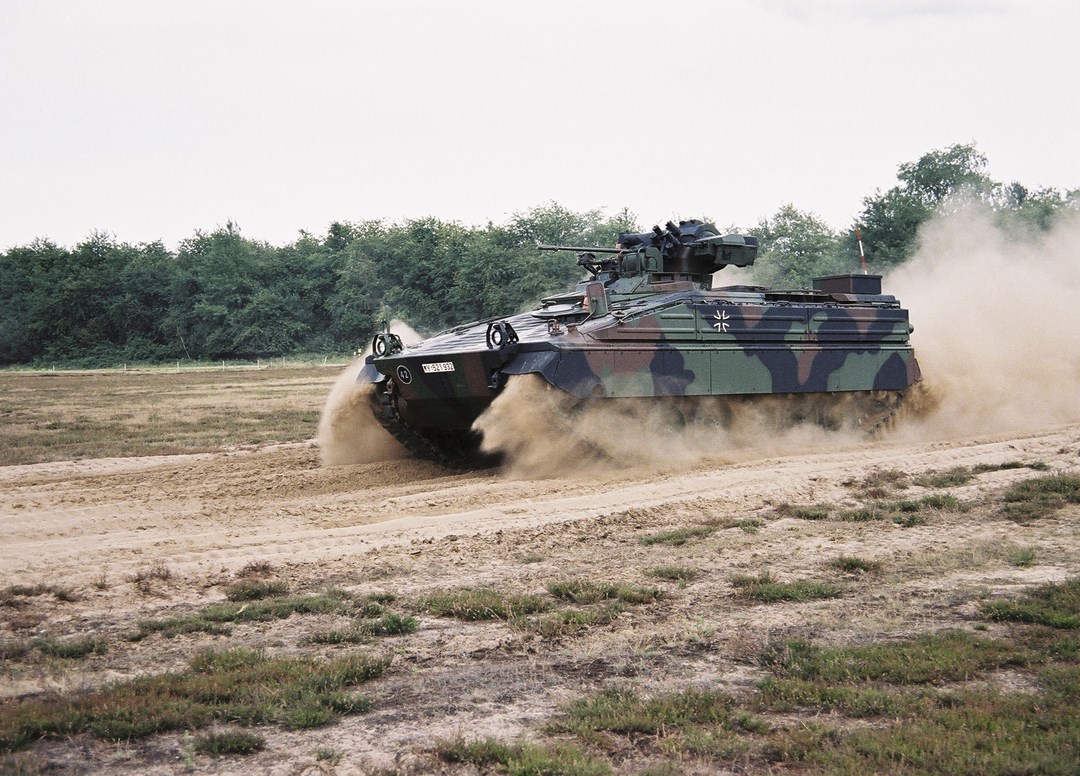

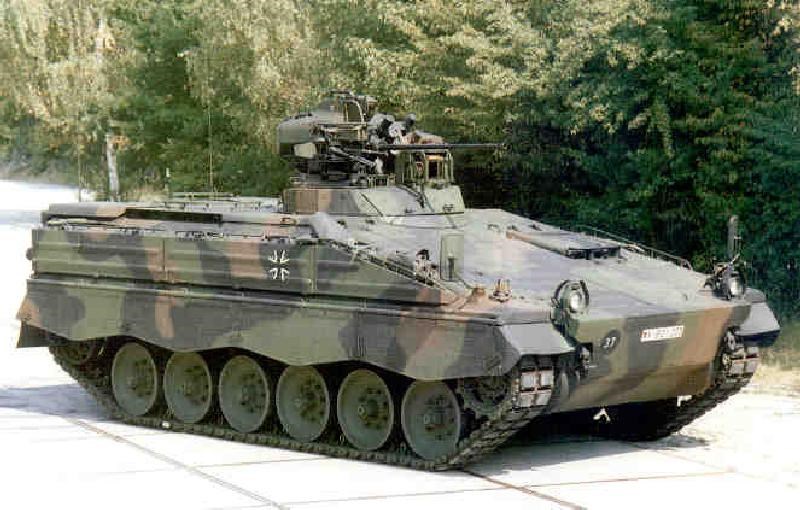

Marder 1

Marder 1

Tracked Armored Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Marder 1
Designation
Marder 1
Alternate Designation
Marder 1 A1, Marder 1 A2, Marder 1 A3, Marder 1 A5
Equipment Type
Tracked Armored Vehicles
Manufacturer
Rheinmetall Defence
Date of Introduction
1971
Description

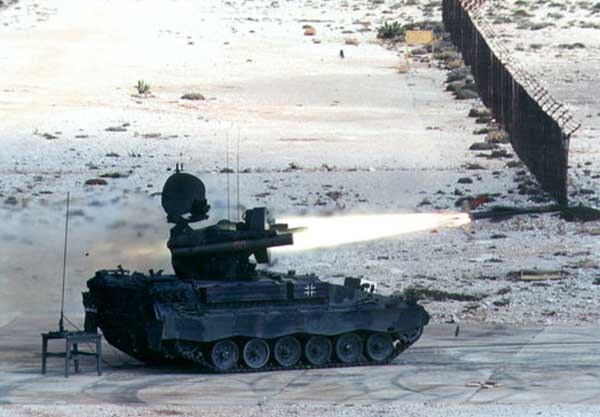

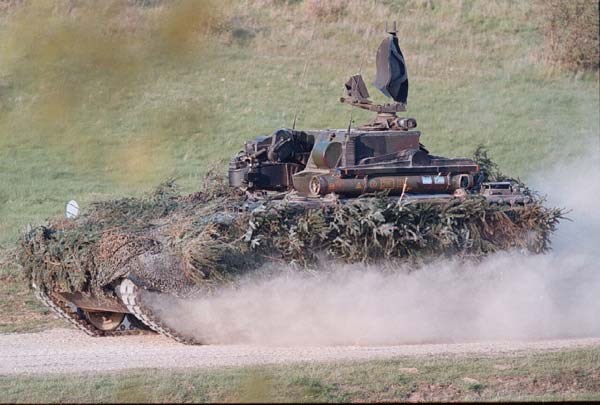

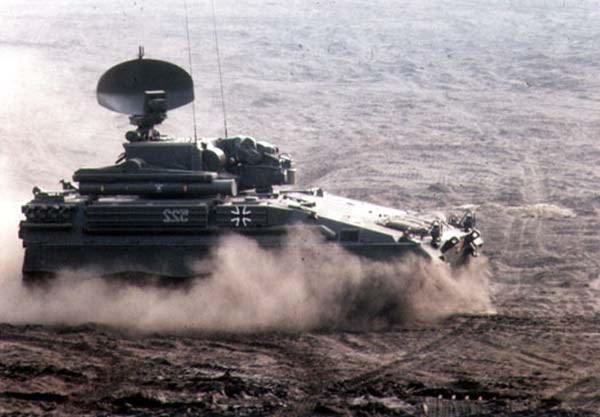

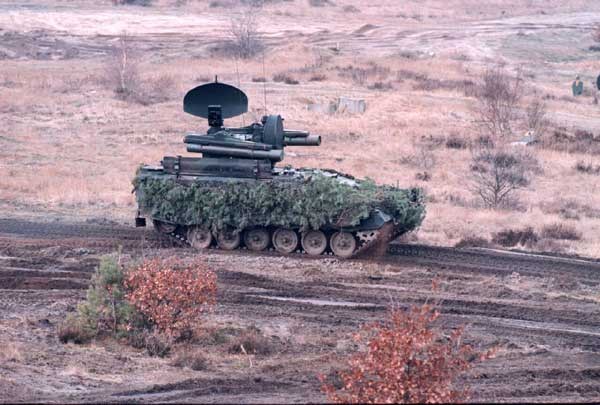

The Marder is an infantry fighting vehicle designed to transport dismounted infantry to the battlefield. The crew consists of driver, gunner and commander along with up to six-infantryman. It offers protection and fire support to dismounted infantrymen thanks to the 20mm Rh 202 machine gun and a coaxial 7.62mm machine gun. The Marder can be equipped with Milan anti-tank missiles and other weapon/missile systems such as Hot, Roland and TOW. The Marder 1 armored carrier achieved initial operational capability in 1971. The Marder 1 A1 variant entered service in 1979 and was followed by the improved models Marder 1 A2 in 1984 and Marder 2 A3 in 1989. The Marder 1 A5 is a mine protected variant that entered service in 2003, 74 of these vehicles are being procured by the German Army through 2005. The Marder was developed to meet the requirements of the German Army for troops armored transport complementing Leopard 1 and Leopard 2 main battle tanks. The production of the Marder armored vehicle started in 1970 and the latest version, Marder 1 A5, entered service in 2003. Currently, the German Army plans to begin replacing Marders with the new Puma armored vehicle in the 2005-2010 timeframe.

Ground Specifications
Crew 3
Troop Capacity 6
Max Speed 65.2 km/h
Range 460.0 km
Overview (Deagel)
Group Tracked Armored Vehicles
Status Active
Also Known As Marder 1 A1, Marder 1 A2, Marder 1 A3, Marder 1 A5
Origin Germany
Contractor Rheinmetall Defence
Initial Operational Capability (IOC) 1971
Total Production 3,000
Specifications (Deagel)
Crew 3
Troops 6
Dimensions — Height 3.0 meter
Dimensions — Length 6.8 meter
Dimensions — Main Gun Caliber 20 millimeter
Dimensions — Width 3.2 meter
Mass — Combat Weight 33,500 kilogram
Performance — Main Gun Max Range 2,000 meter
Performance — Max Range 460 kilometer
Power — Power 600 shp
Rate — Max Rate of Fire 1,000 roundperminute
Speed — Top Speed 18.1 mps
Gear (Deagel)
Item 1 Anti-Tank Guided Missiles: MELLS
Item 2 Anti-Tank Guided Missiles: Milan
Details
Country of Origin Germany
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.8 m
Width
3.2 m
Height
3 m
Weight
33500 kg
Operators (6)
Germany

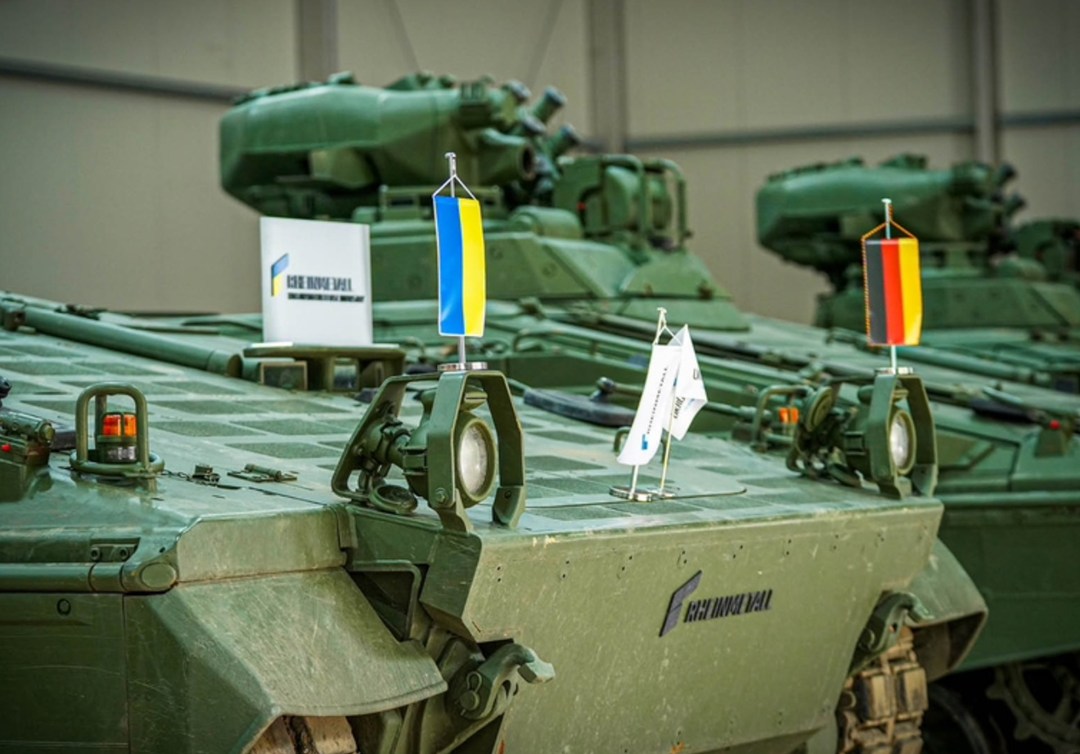

Ukraine
Chile
Greece
Indonesia
Jordan
