C-130 Hercules

C-130 Hercules

Military Transport Aircrafts
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
C-130 Hercules
Designation
C-130 Hercules
Alternate Designation
Equipment Type
Military Transport Aircrafts
Manufacturer
Lockheed Martin
Date of Introduction
Description

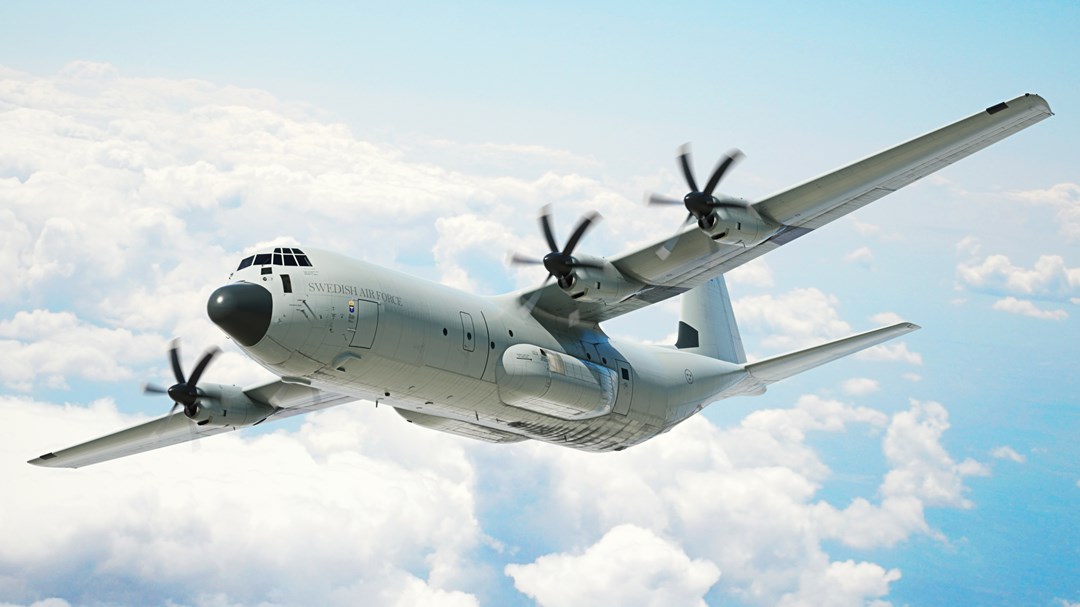

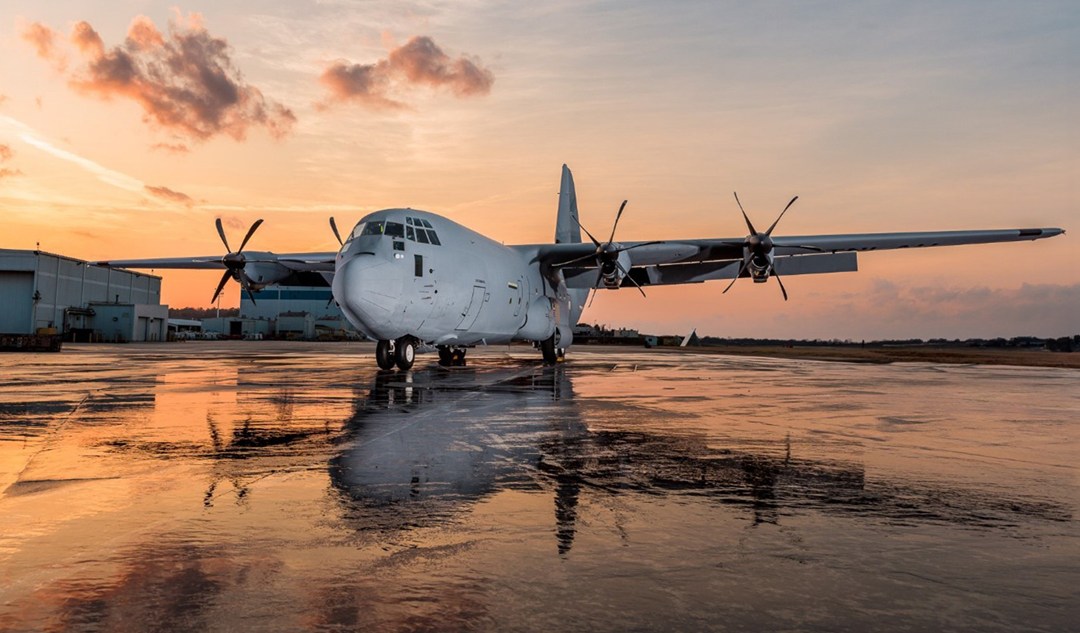

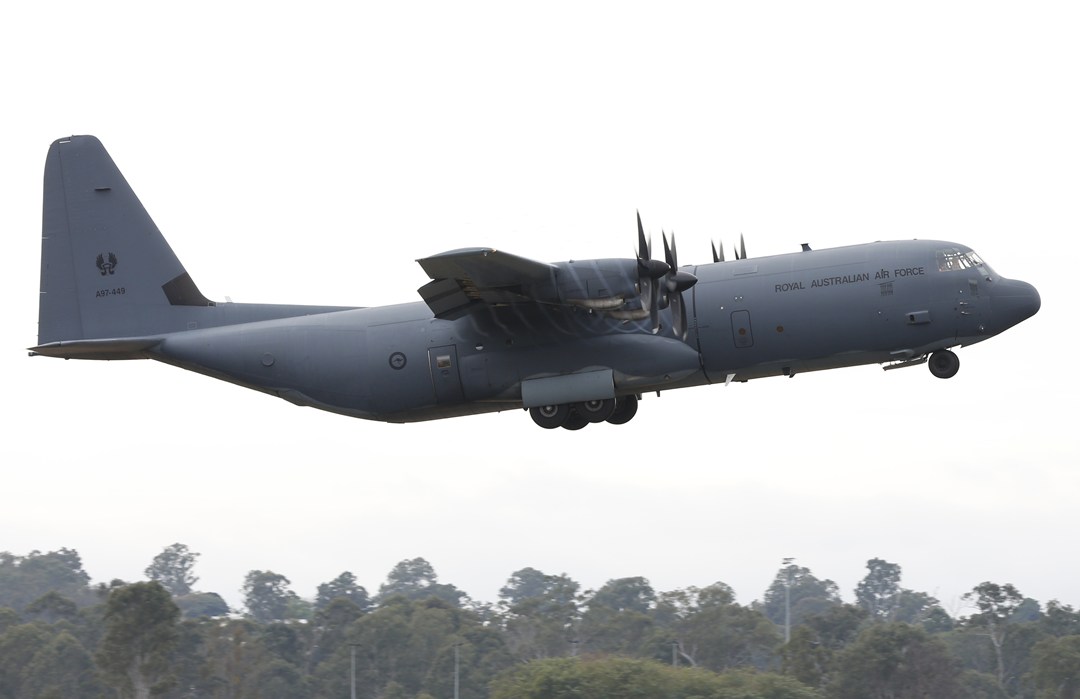

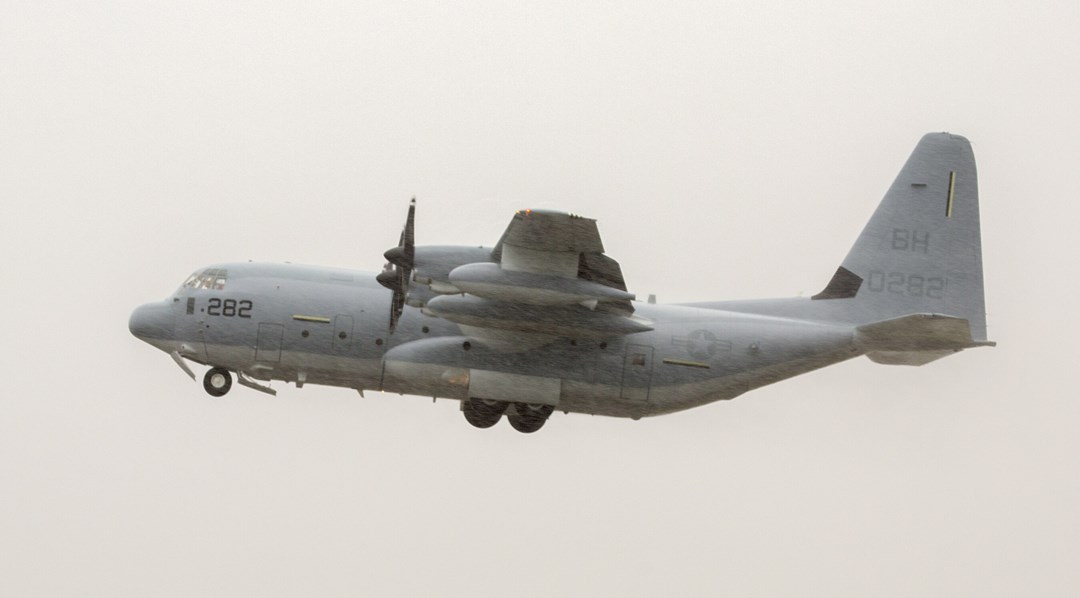

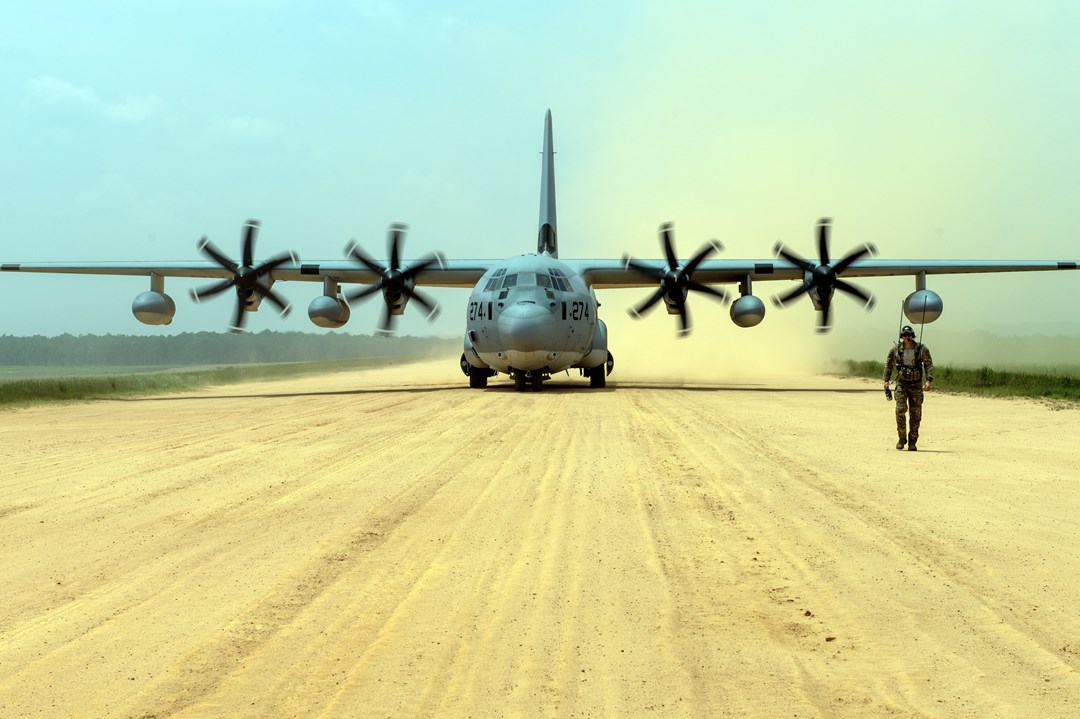

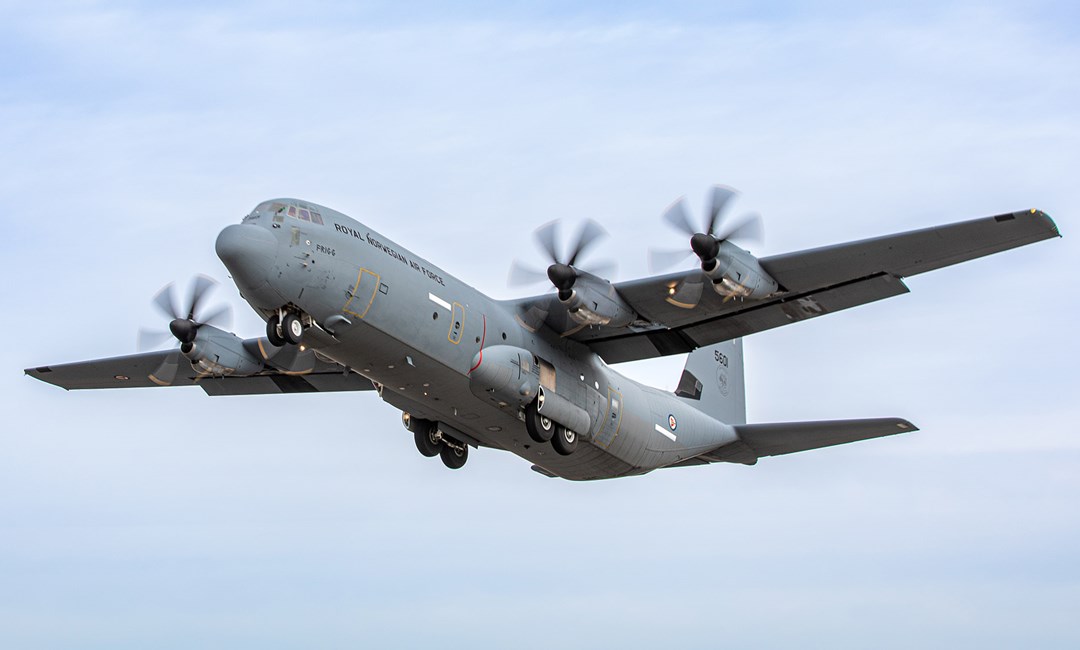

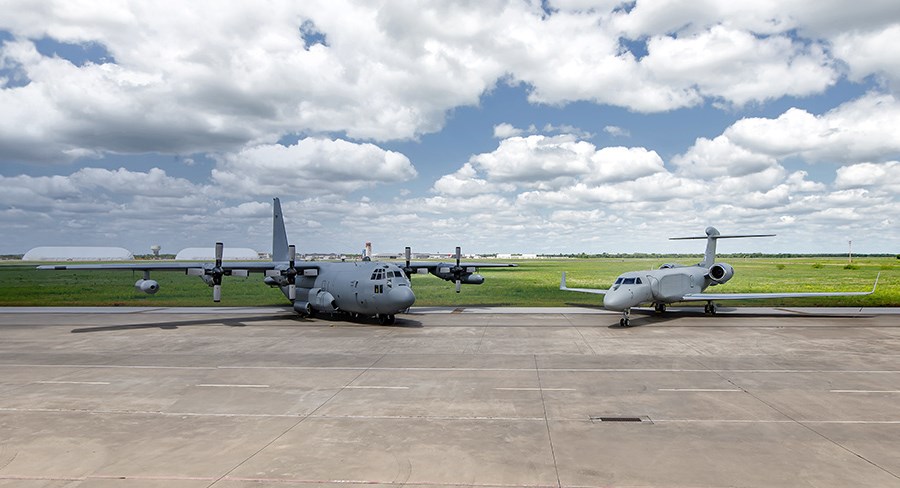

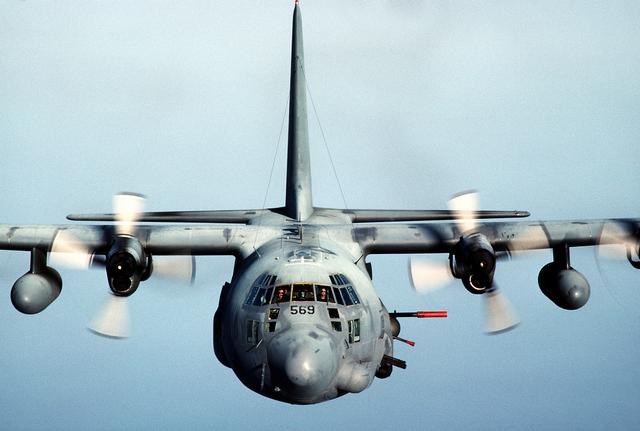

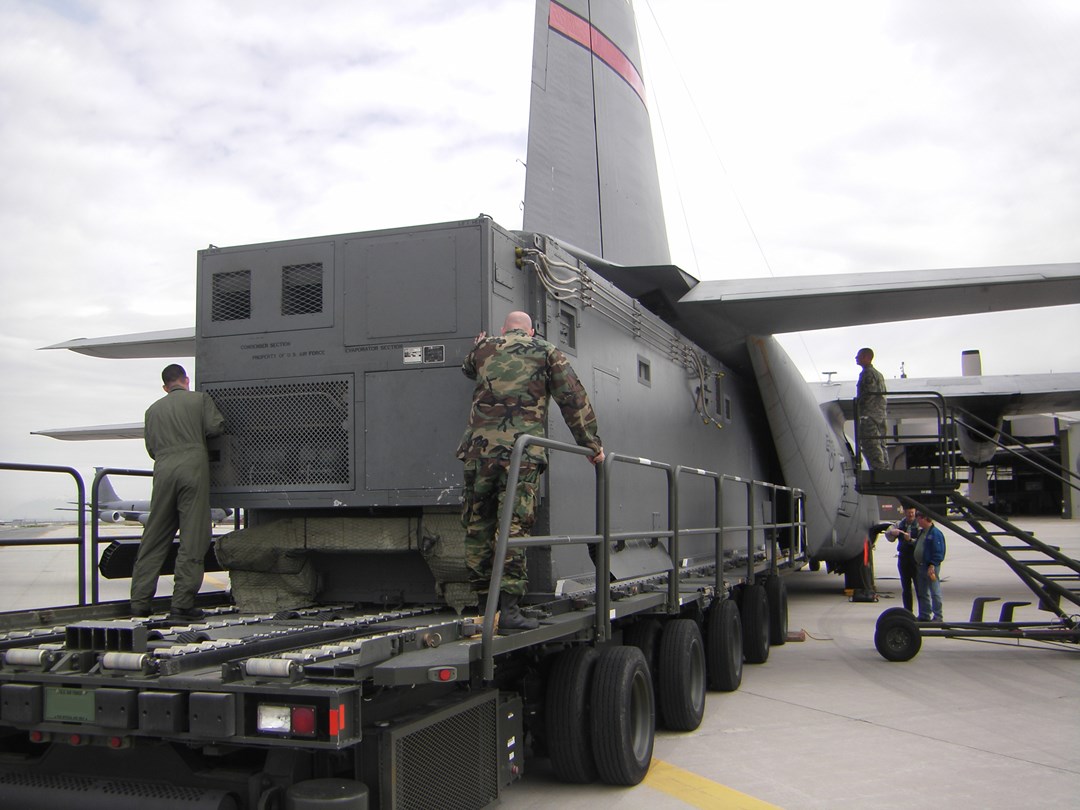

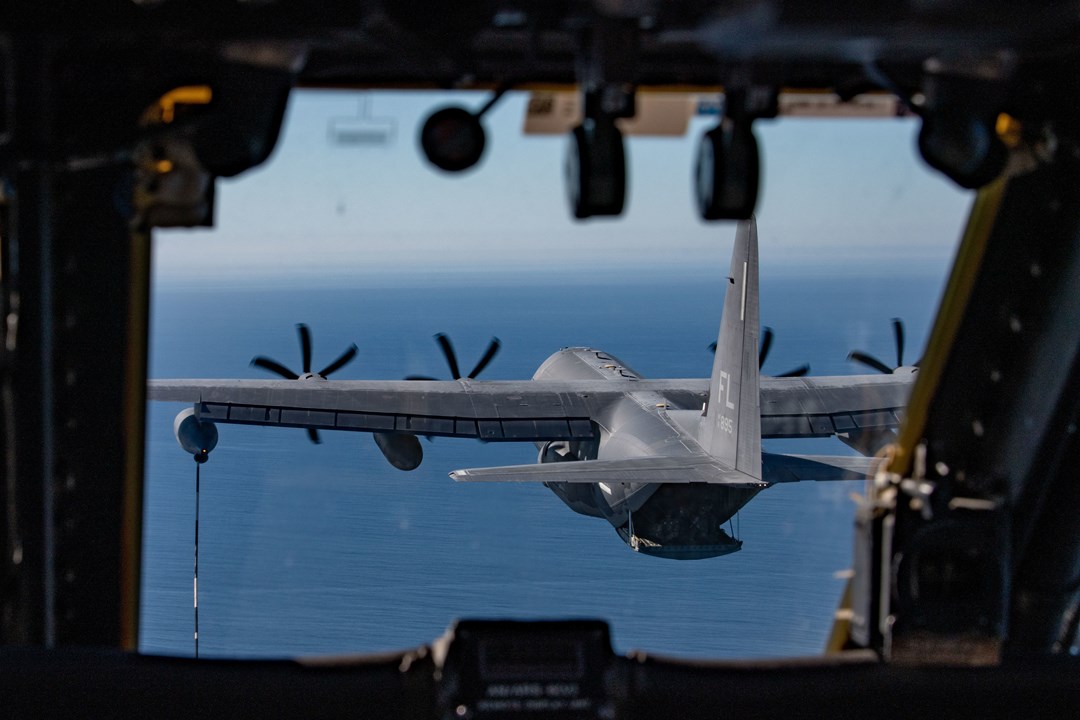

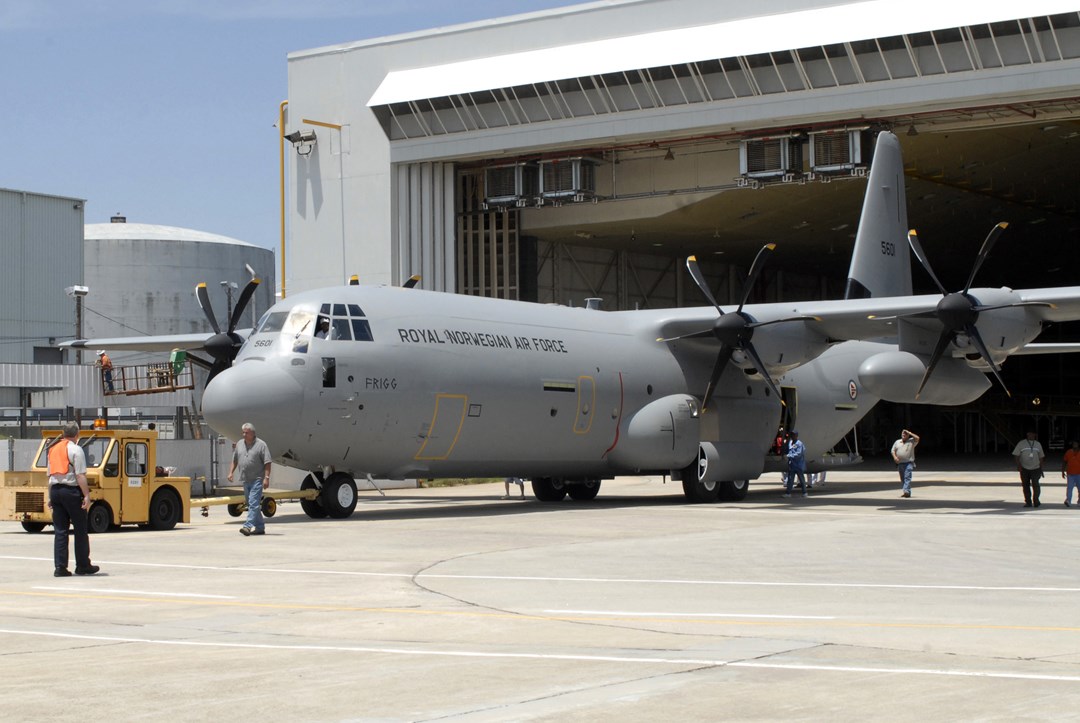

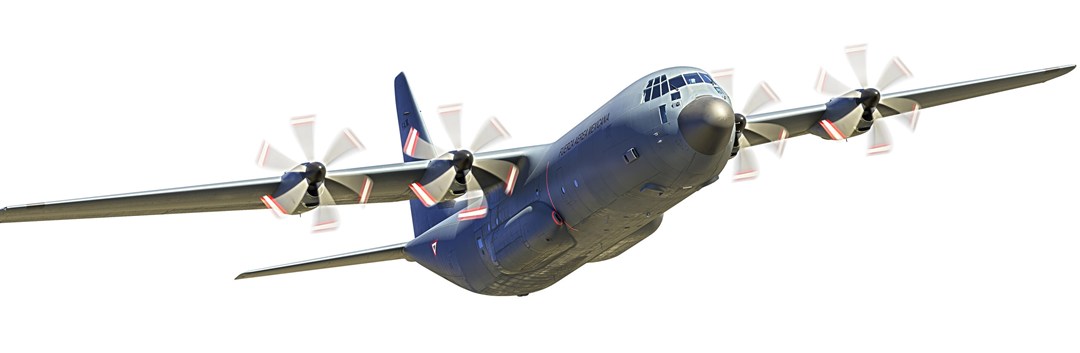

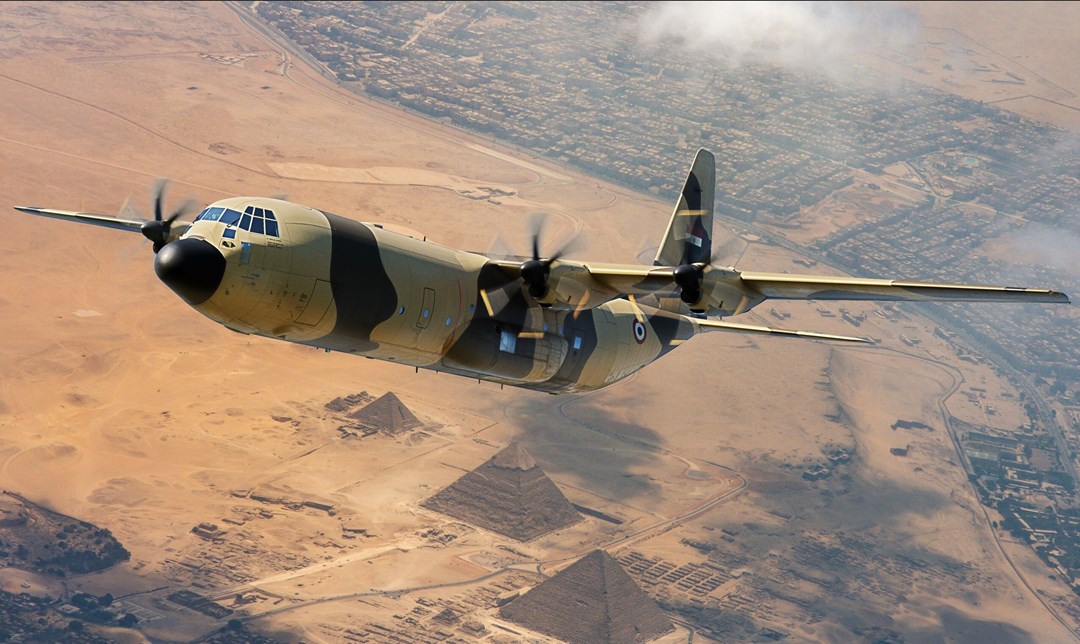

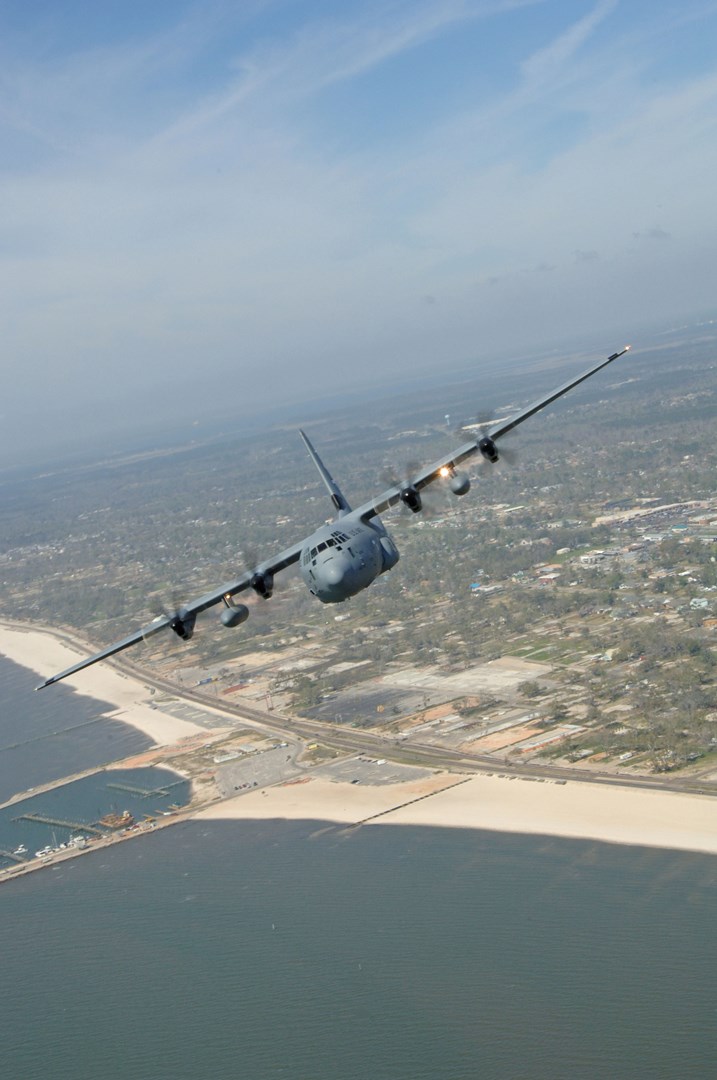

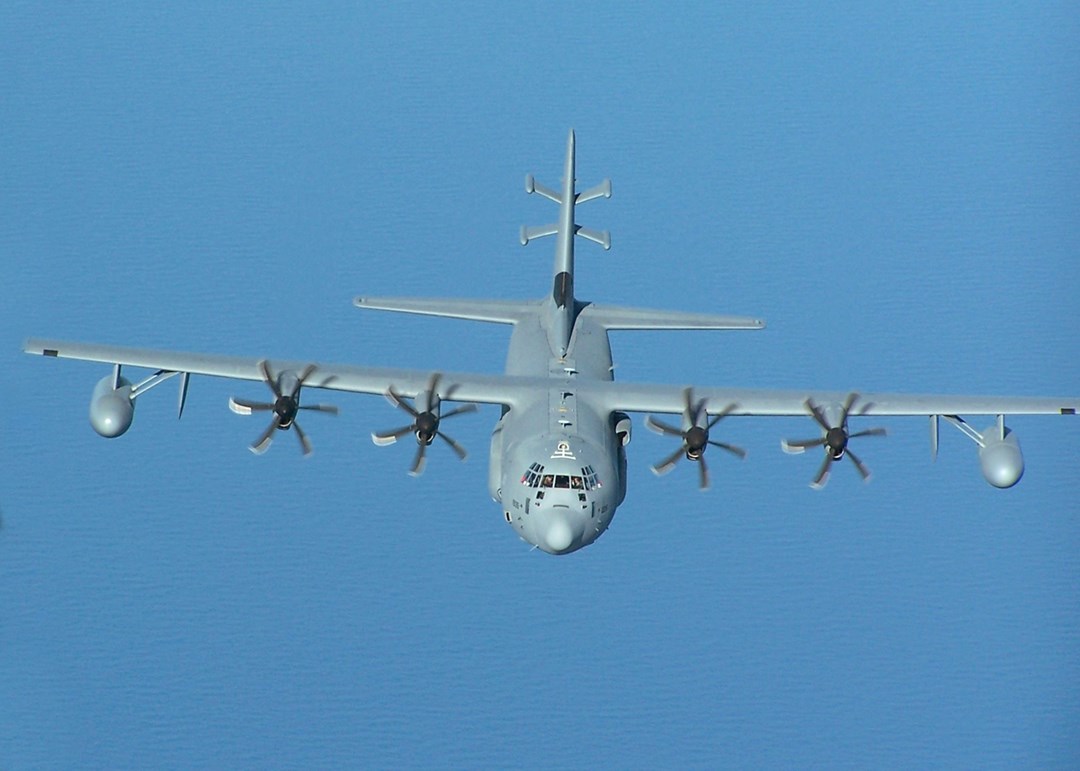

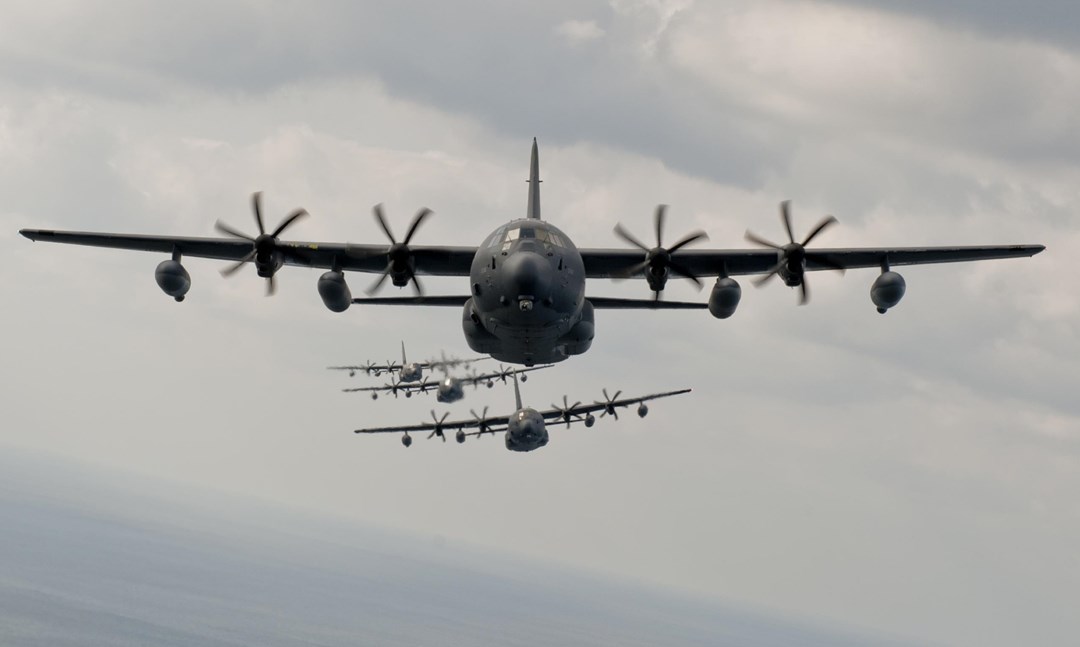

The Lockheed Martin C-130 Hercules is a medium-size transport aircraft designed to operate from rough dirt strips. The first prototype, the YC-130A, maiden flight took place in 1954. The first model C-130A achieved initial operational capability in December1956 becoming thereafter the most important cargo transport aircraft of the free world. Since then, the C-130s had assumed a wide range of military tasks such as airlift, airdrop, reconnaissance, special operations, close air support, electronic warfare, air refueling, etc. The C-130 features an aft loading ramp and door and is able to accommodate a wide variety of oversized cargo, including everything from utility helicopters and six- to eight-wheeled armored vehicles to standard palletized cargo and military personnel. The Hercules can be configured to carry out different missions and re-configured to its original cargo transport mission. To date, more than 2,400 C-130s in more than 70 variants to five basic models (A, B , E, H and J) have been produced for customers worldwide. In the first decade of 21st century the majority of C-130s in service belong to the E, H and J basic models introduced in the early 1960s, in the 1970s and late 1990s respectively. The US Air Force, Navy and Marines operate the C-130 aircraft as well as the air forces of 66+ other nations worldwide. The US Air Force plans to convert the surviving E and H models to the C-130AMP (Avionics Modernization Program) configuration beginning in 2007. AMP covers avionics modernization and some engine improvements to keep the fleet flying and serviceable well beyond 2020. In October 2019 Lockhed delivered the 2,600th C-130 aircraft.

Air & Air Defense Specifications
Crew 5
Max Speed 622.8 km/h
Range 3228.0 km
Overview (Deagel)
Group Military Transport Aircrafts
Status Active
Also Known As C-130 AMP, C-130A Hercules, C-130AMP, C-130B, C-130E, C-130H Qarnaf (Israel), C-130HE (Airborne Electronic Surveillance System), C-130K, EC-130H Compass Call, HC-130H, HC-130P, KC-130 (Tanker aircraft), L-100-30 (commercial version), LC-130 Hercules (ski-equipped cargo aircraft), WC-130H
Origin United States of America
Contractor Lockheed Martin
Initial Operational Capability (IOC) 1974
Total Production ?
Unitary Cost USD $30 million
Specifications (Deagel)
Crew 5
Number of Engines 4
Troops 64
Dimensions — Height 11.7 meter
Dimensions — Length 29.8 meter
Dimensions — Wingspan 40.4 meter
Mass — Cargo 19,754 kilogram
Mass — Max Takeoff Weight 70,308 kilogram
Performance — Ceiling 10,060 meter
Performance — Max Range 3,228 kilometer
Power — Max Power at TakeOff 18,032 shp
Speed — Top Speed at High Altitude 173 mps
Gear (Deagel)
Item 1 Decoy Systems: DASS-2000
Item 2 ESM & Warning Systems: AN/ALR-46 (1)
Item 3 ESM & Warning Systems: AN/ALR-69
Item 4 ESM & Warning Systems: MWS-20
Item 5 Jamming Systems: AN/ALQ-156
Item 6 Jamming Systems: AN/ALQ-157
Item 7 Jamming Systems: AN/ALQ-173
Item 8 Turboprop Engines: T56-A-15 (4)
Item 9 Turboprop Engines: T56-A-501D (4)
Variants
Variant 1 C-130H Hercules
Variant 2 MC-130H Talon II
Variant 3 AC-130U Spooky
Variant 4 C-130J Super Hercules
Variant 5 CC-130J Super Hercules
Variant 6 KC-130J Super Hercules
Variant 7 WC-130J
Variant 8 MC-130W Combat Spear
Variant 9 EC-130J Commando Solo
Variant 10 MC-130J Commando II
Variant 11 AC-130J Ghostrider

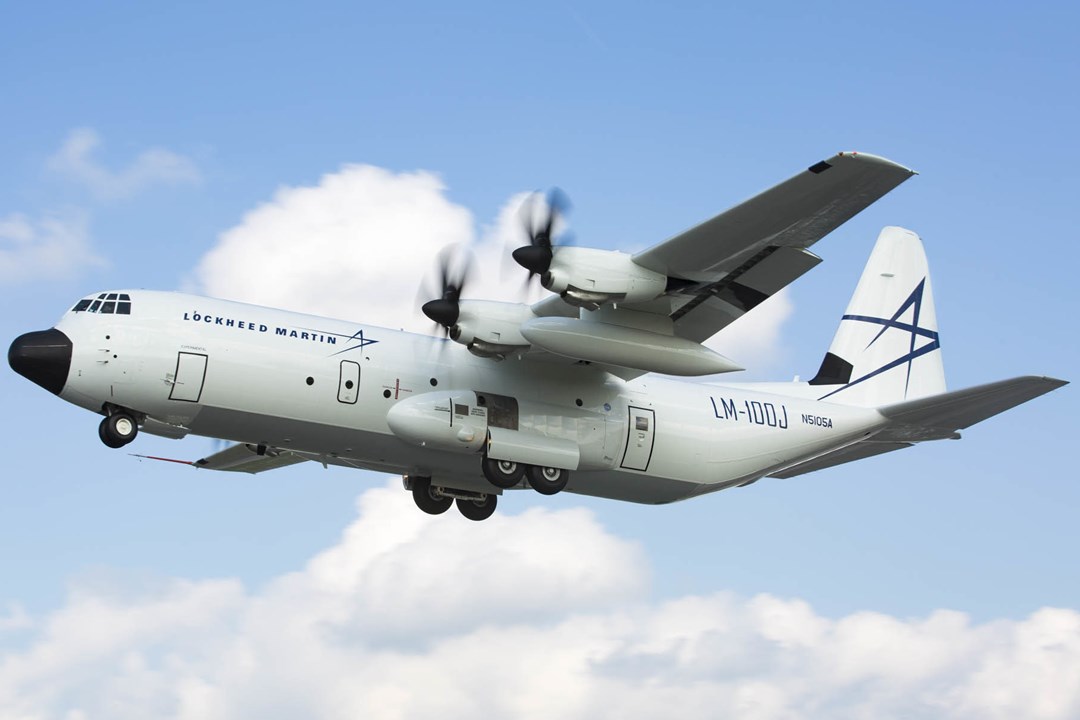

Variant 12 LM-100J
Variant 13 C-130J-SOF
Details
Country of Origin United States
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
29.8 m
Width
40.4 m
Height
11.7 m
Weight
70308 kg
Operators (1)
United States
