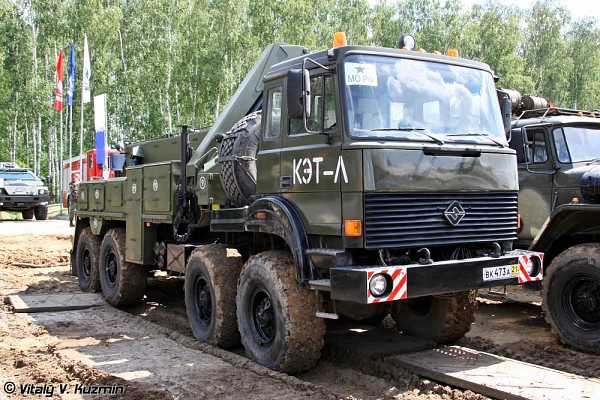

KET-L Russian 8x8 Recovery Truck

KET-L

Armored Recovery Vehicle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
KET-L Russian 8x8 Recovery Truck
Designation
KET-L
Alternate Designation
KET-L
Equipment Type
Armored Recovery Vehicle
Manufacturer
Date of Introduction
2009
Description

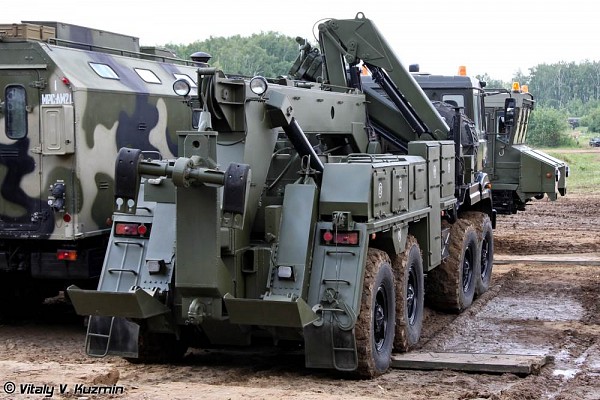

The KET-L is a medium-sized recovery vehicle of Russian origin. It is based on the Ural 5323-62 chassis 8x8 10 t truck chassis. It was designed to supplement the older and larger KET-T recovery vehicle which is based on the much larger MAZ-537 8x8 truck chassis. An earlier model of the KET-L was based on the Ural 375 chassis. The older variant has a lower recovery capacity than this newer vehicle. The role of the KET-L is to recover various types of wheeled vehicles up to 16 t and transport these immobilized vehicles to a field workshop. The KET-L features a smaller crane for lifting objects, vehicle parts, and cargo. A larger recovery jib crane extends over the rear and features two jacks that double as an earth anchor. The recovery crane is also used to partially lift vehicles while moving them to a field workshop.

Ground Specifications
Crew 2
Mobility Type Wheeled (8x8)
Engine V-8 Turbocharged Diesel (300 hp)
Max Speed 85.0 km/h
Variants
KET-T The KET-T is a heavy recovery vehicle. It is based on a MAZ-537 8x8 heavy high mobility vehicle. This vehicle is fitted with special recovery equipment. It entered service with the Soviet Army in the 1960s. Despite its age the KET-T is still in service with Russia and possibly some other countries.
System
Alternative Designation KET-L
Type Recovery Vehicle
Manufacturer INA
Configuration 8x8
Chassis Ural 5323-62 chassis
Crew 2 ea
Dimensions
Length 9.8 m
Width 2.5 m
Height 3.81 m
Weight, with Equipment 20.2 tons
Gross Weight, Towing Recovered Vehicles 24.5 tons
Automotive
Engine Name YaMZ-238B
Engine Type V8 turbo-diesel
Engine Power 300 hp at 2.000 rpm
Fuel Capacity 510 liters
Transmission 4 forward, 1 reverse
Maximum Speed 85 km/h
Maximum Speed, while Towing 50 km/h
Range INA
Ground Clearance 0.4 m
Fording 1.2 m
Tire Size 14.00 x20
Recovery Equipment
Main Winch Capacity 15 tons
Auxiliary Winch Capacity 1 ton
Lifting Crane, Maximum Load 2.8 tons
Lifting Crane, Maximum Height of Hook 8.25 tons
Recovery Job, Load Capacity while moving 4.0 tons
Recovery Job, Load Capacity Stationary 5.5 tons
Main Weapon System
Note There is no crew-served weapon associated with the KET-L
Protection
Hull Armor None, soft skin vehicle
Applique Armor INA
Mine Clearing No
NBC Protection No
Smoke Equipment No
Details
Country of Origin Russia
Category Survivability
Land > Survivability
Filter Label
K
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.8 m
Width
2.5 m
Height
3.81 m
Weight
20200 kg
Operators (1)
Russia
