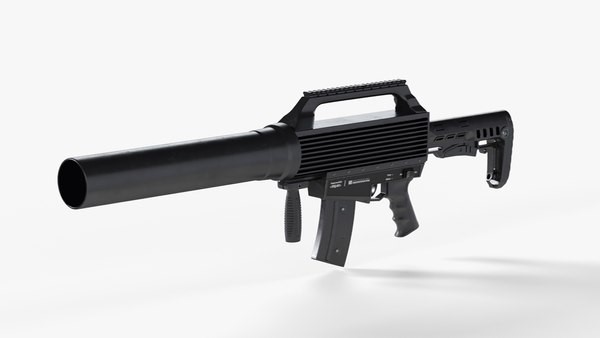

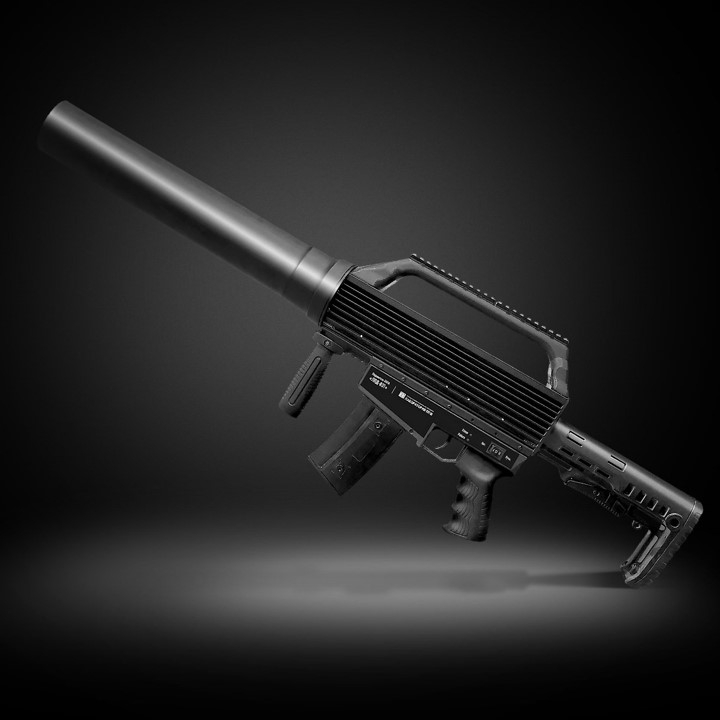

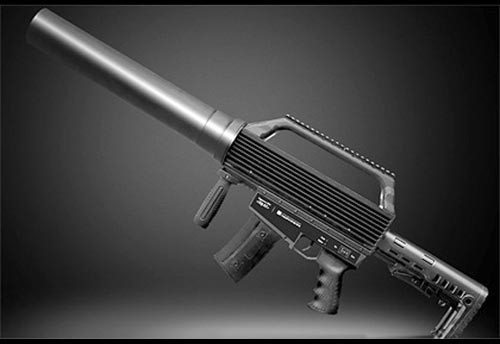

LPD-801 Russian Unmanned Aerial Vehicle (UAV) Jammer
LPD-801
Counter-UAS System
Other
Basic Information
Name
LPD-801 Russian Unmanned Aerial Vehicle (UAV) Jammer
Designation
LPD-801
Alternate Designation
LPD-801
Equipment Type
Counter-UAS System
Manufacturer
PPSH Laboratory
Date of Introduction
2002
Description
The LPD-801 Russian Unmanned Aerial Vehicle (UAV) Jammer is designed to suppress communication channels and data transmission from UAVs, as well as to suppress the navigation channel. The product can be used to disrupt the flight of the UAV in restricted areas, unauthorized transmission of UAV data to the operator, as well as to block radio devices based on Bluetooth, Wi-Fi, GPS, Glonass, Beidou and Galileo. Flight disruption is based on blocking the UAV control channel and the navigation channel. The product is equipped with a quick-detachable magazine-type battery pack, which allows you to quickly replace it. Counter-UAV/Counter-UAS/Anti-Drone.
Ground Specifications
Range
1.0 km
System
Alternate Designation
LPD-801
Type
Unmanned Aerial Vehicle (UAV) Jammer
Manufacturer
PPSH Laboratory
Operating Frequency Range I
2400 - 2483.5 MHz
Operating Frequency Range II
5725 - 5825 MHz
Operating Frequency Range III
1575 - 1602 MHz
Working Mode
Automatic, Manual
Antenna Beam Width Range I
30 deg
Antenna Beam Width Range II
24 deg
Antenna Beam Width Range III
35 deg
UAV Suppression Effective Distance
1 km
Additional Options
As options, it is possible to equip with an optical, thermal imaging or collimator sight.
Note
The product LPD-801 has the Declaration of the EAEU for compliance with the requirements of TR TS 020/2011 Electromagnetic compatibility of technical means.
Dimensions
Length
970 mm
Width
320 mm
Height
100 mm
Weight
4.1 kg with battery
Details
Country of Origin
Russia
Category
Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Filter Label
L
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.97 m
Width
0.32 m
Height
0.1 m
Weight
4.1 kg
Operators (2)
Russia
Ukraine
