V-22 Osprey

V-22 Osprey

VTOL Military Transport Aircrafts
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
V-22 Osprey
Designation
V-22 Osprey
Alternate Designation
Equipment Type
VTOL Military Transport Aircrafts
Manufacturer
Boeing, Textron
Date of Introduction
Description

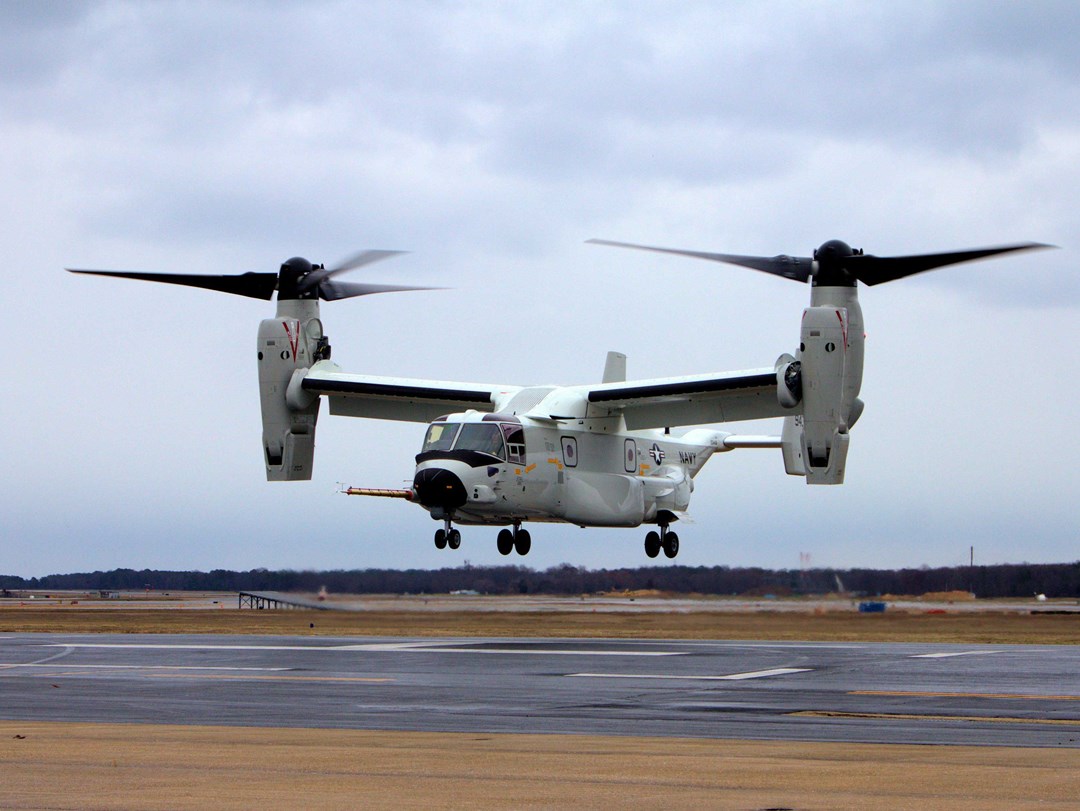

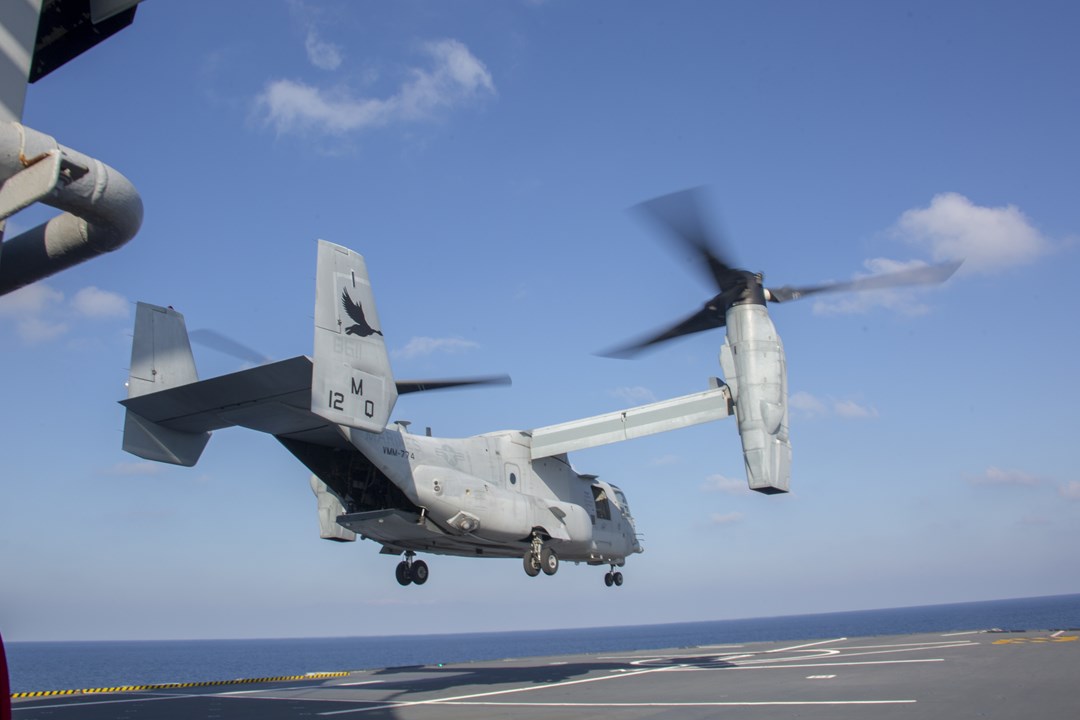

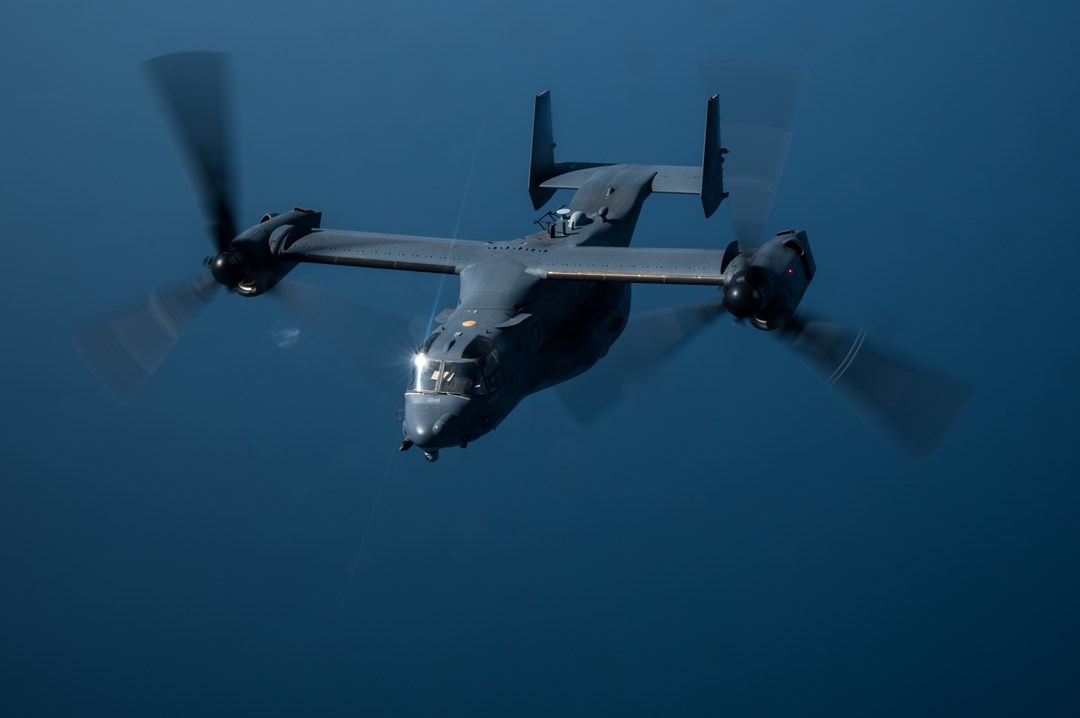

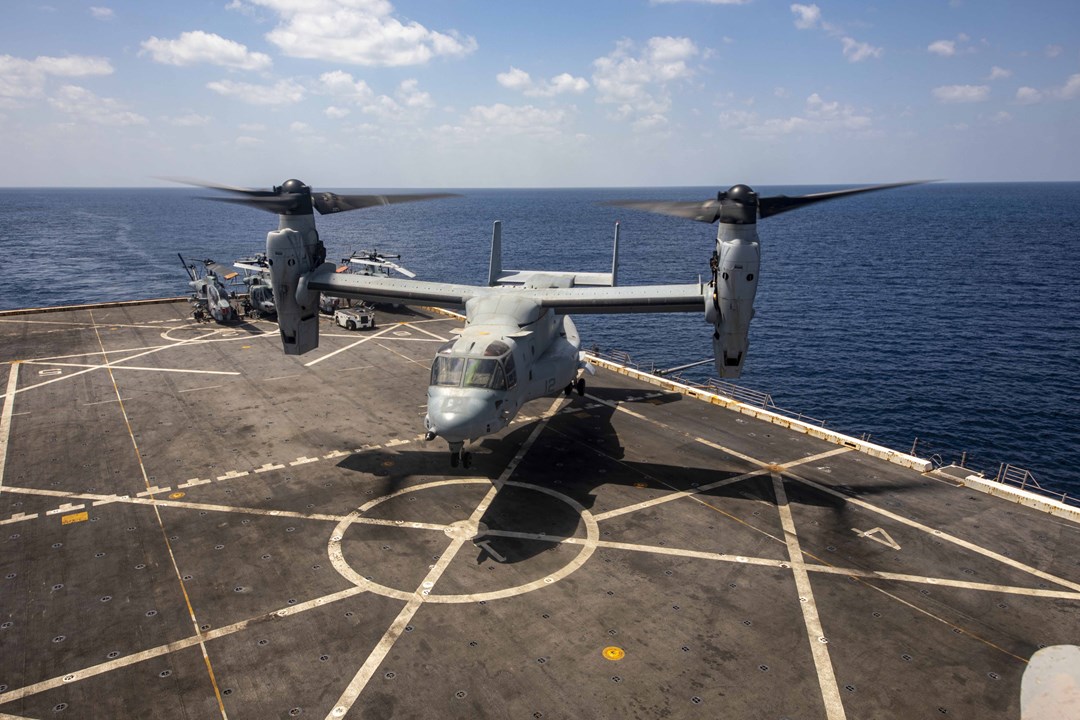

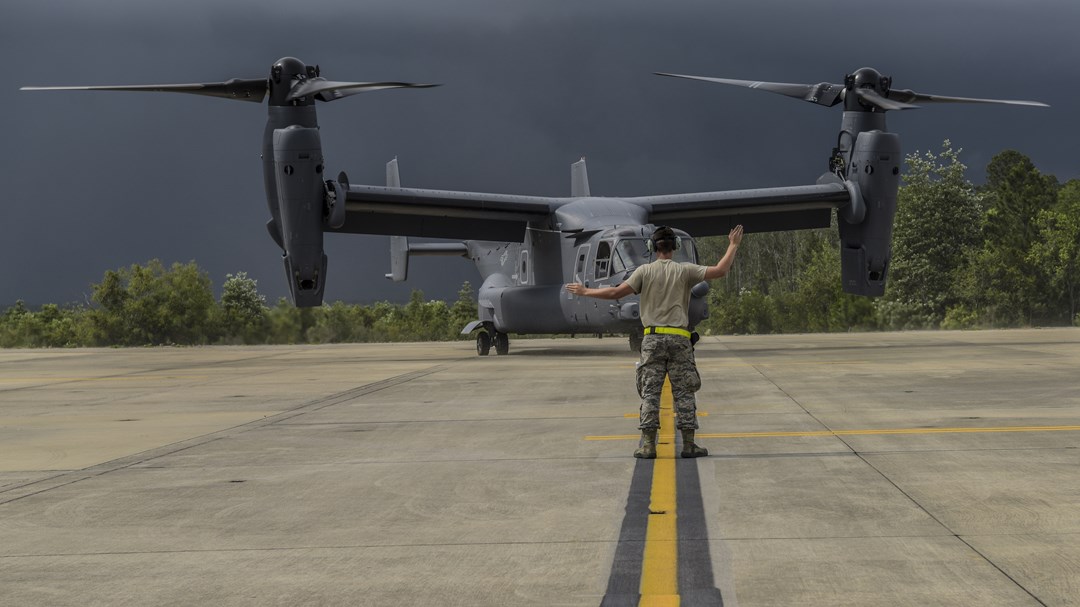

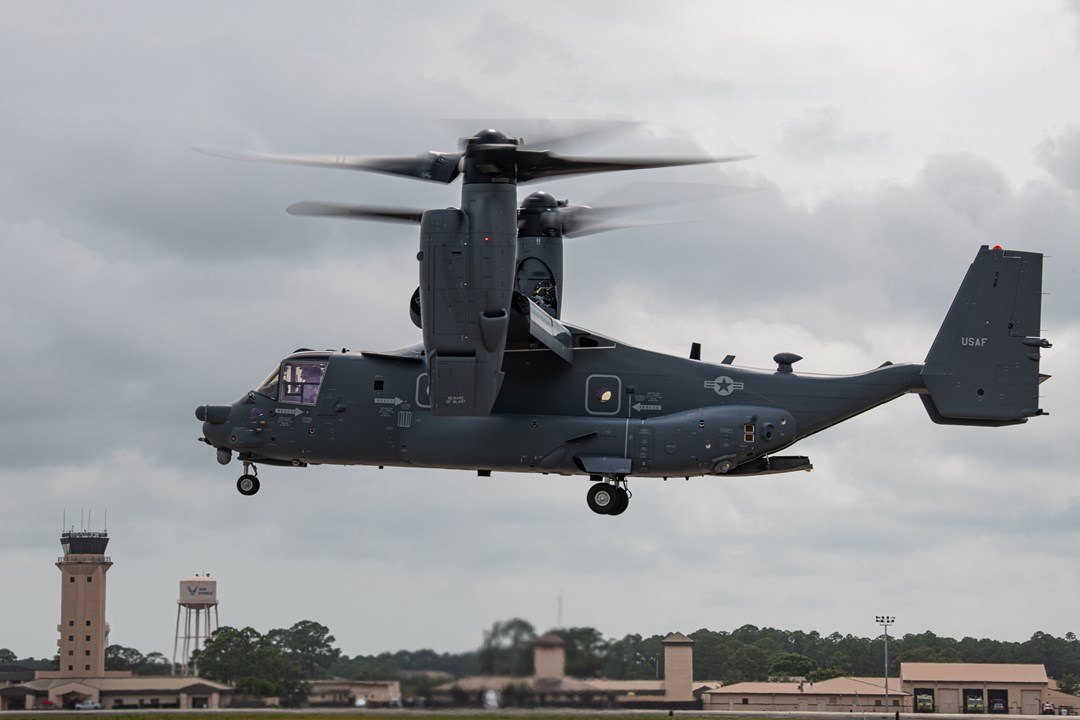

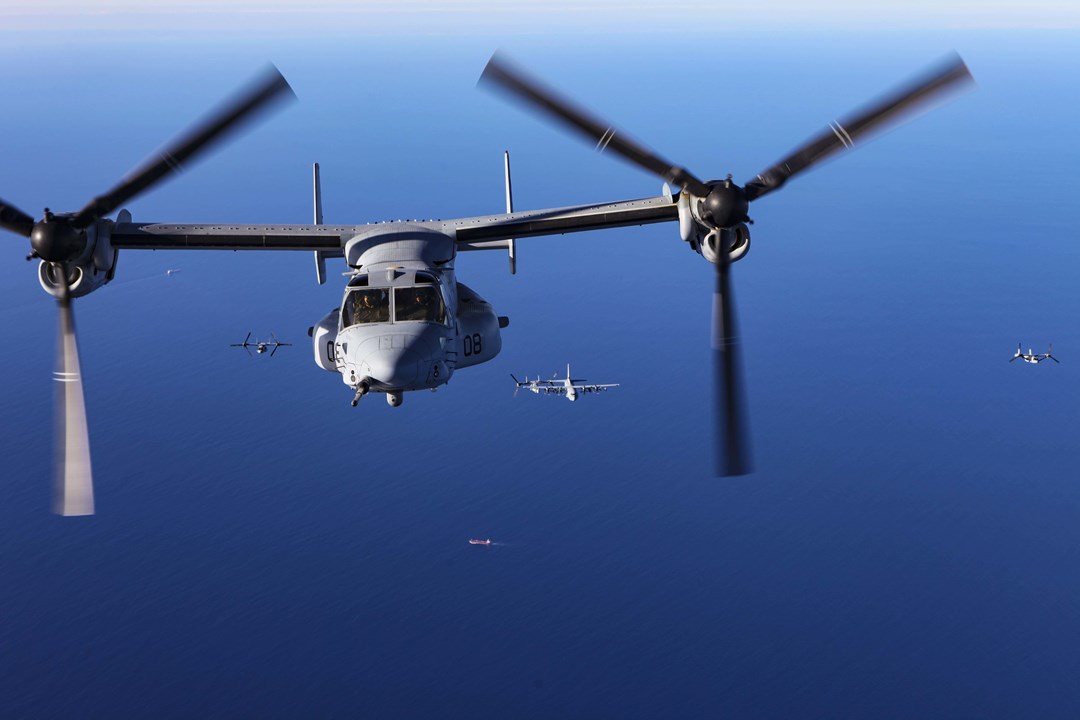

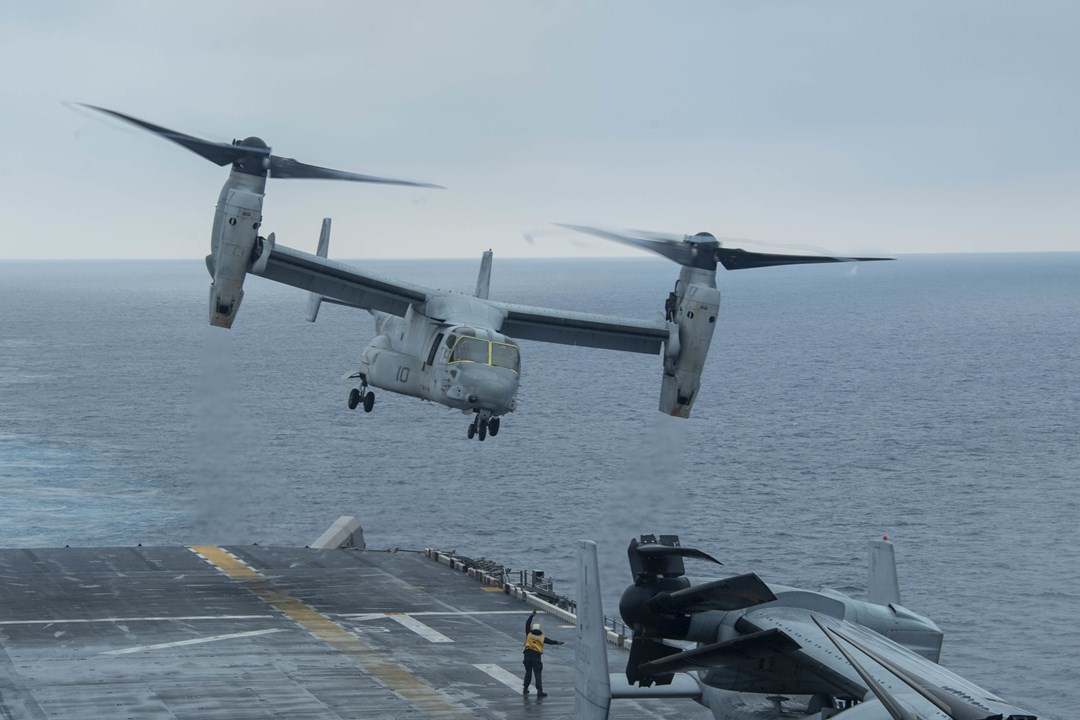

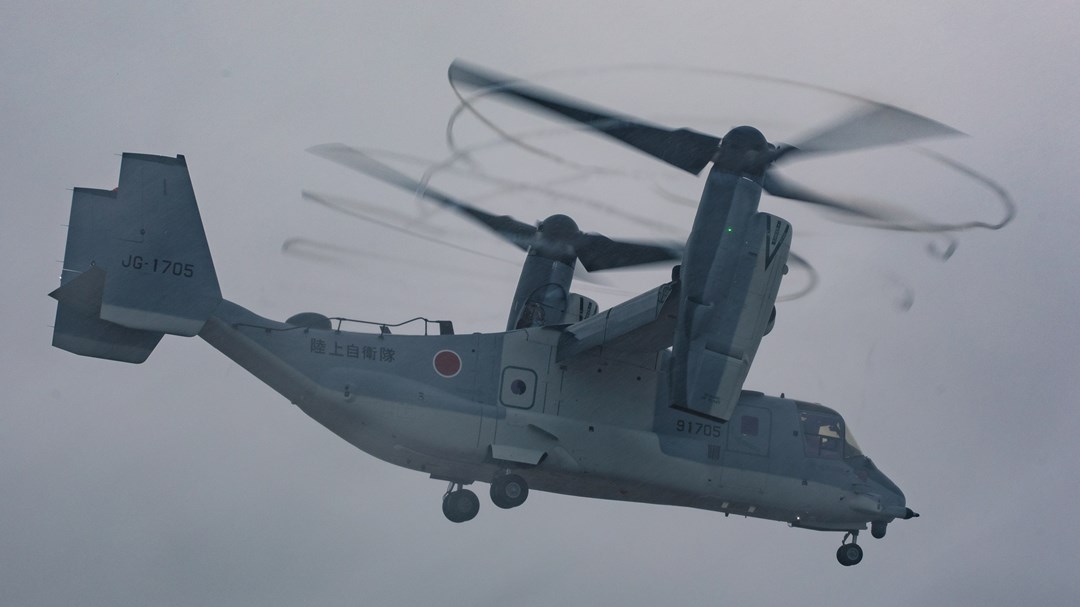

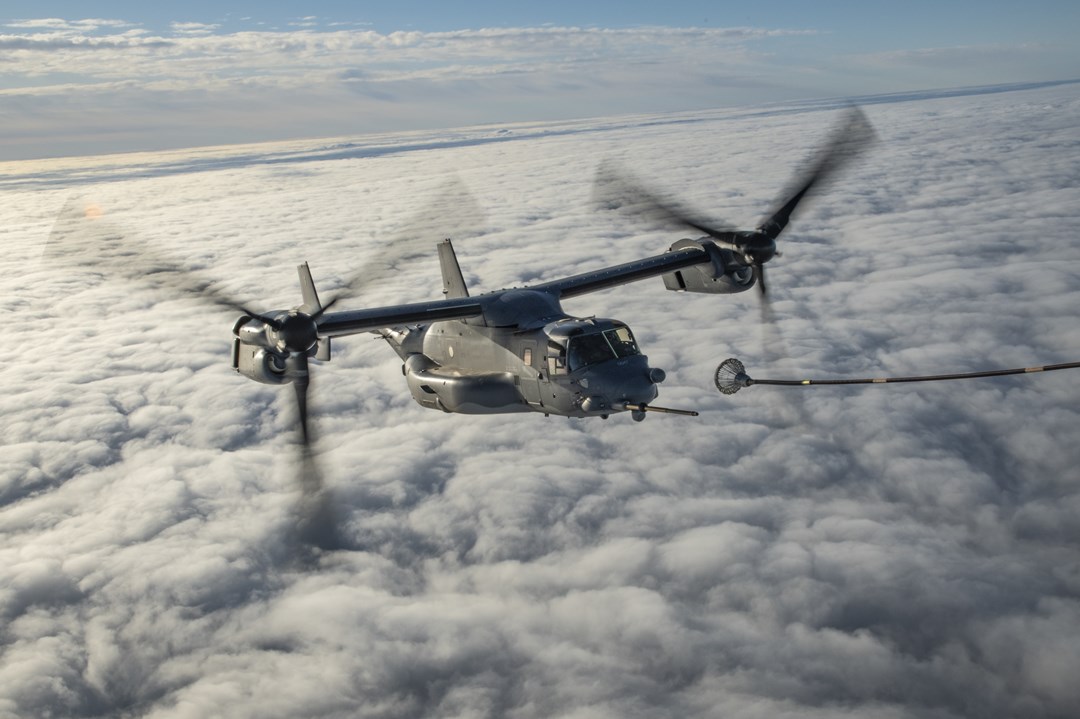

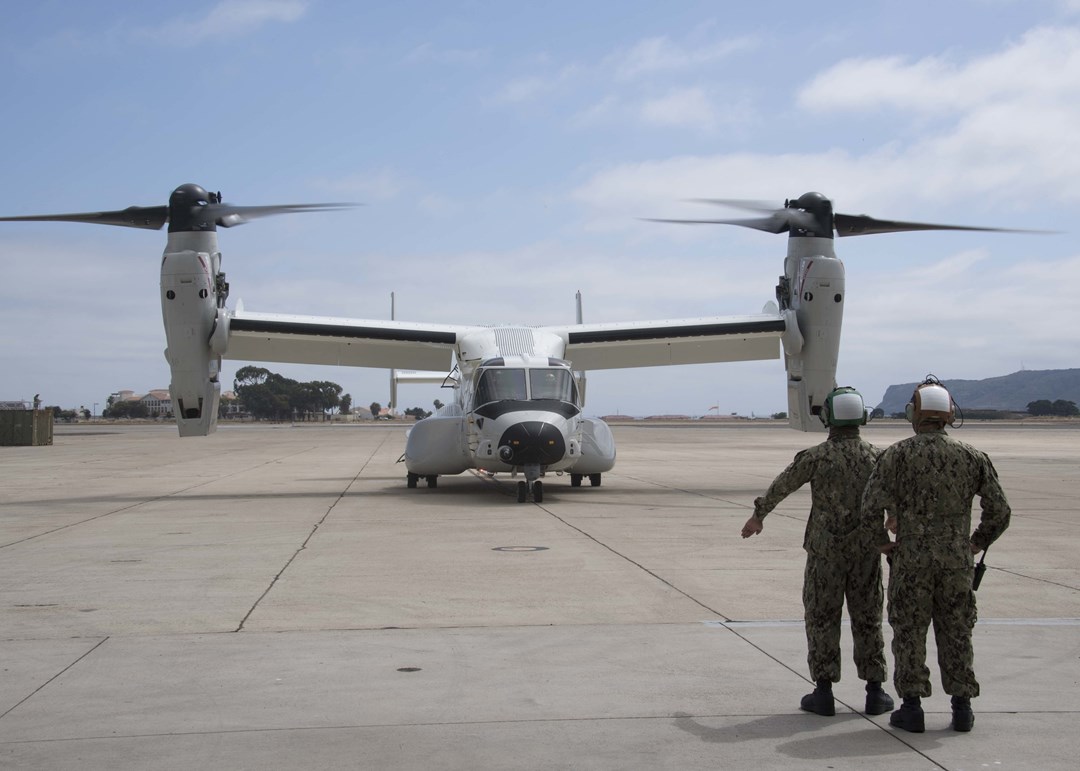

The V-22 Osprey is a multi-mission, tilt-rotor aircraft with vertical takeoff and landing (VTOL) capability. It performs VTOL missions as effective as a conventional helicopter while also having the long range cruise abilities of a twin-turboprop aircraft. The V-22 features a tilt-rotor mounted on each wing tip with its corresponding engine/transmission nacelle. It can operate as a helicopter for takeoff and landing operations and otherwise required. Once airborne, the nacelles rotate forward 90-degree for horizontal flight, converting the V-22 to a high-speed airplane. The V-22's wing rotates for compact storage aboard ships. The V-22 will carry cargo externally and internally and will be armed with two 12.7mm guns. For improved survivability the V-22 includes cross-coupled transmissions so either engine can power the rotors if one engine fails.

Air & Air Defense Specifications
Crew 2
Max Speed 511.0 km/h
Range 3889.0 km
Overview (Deagel)
Group VTOL Military Transport Aircrafts
Status Active
Also Known As MV-22A Osprey (original designation), MV-22B Osprey
Origin United States of America
Contractors Boeing, Textron
Initial Operational Capability (IOC) 2007
Total Production 369
Unitary Cost USD $116 million
Specifications (Deagel)
Crew 2
Number of Engines 2
Troops 24
Dimensions — Height 6.6 meter
Dimensions — Length 17.5 meter
Dimensions — Main Gun Caliber 12.7 millimeter
Dimensions — Wingspan 25.6 meter
Mass — Cargo 9,072 kilogram
Mass — Empty Weight 15,032 kilogram
Mass — Max Takeoff Weight 27,443 kilogram
Performance — Ceiling 7,925 meter
Performance — Max Range 3,889 kilometer
Performance — Min Range 954 kilometer
Power — Max Power at TakeOff 12,300 shp
Speed — Top Speed at High Altitude 511 kph
Gear (Deagel)
Item 1 Decoy Systems: AN/ALE-47 (1)
Item 2 ESM & Warning Systems: AN/AAR-47 (1)
Item 3 ESM & Warning Systems: AN/APR-39D(V)2 (1)
Item 4 ESM & Warning Systems: JATAS
Item 5 Jamming Systems: AN/ALQ-211 SIRFC (1)
Item 6 Optronic Systems: AN/AAQ-27 (1)
Item 7 Riffles & Machine Guns: M3M (1)
Item 8 Tactical Vehicles: LSV (1)
Item 9 Turboprop Engines: AE 1107C (2)
Item 10 Weapon Stations: Remote Guardian System (1)
Variants
Variant 1 MV-22C Osprey
Variant 2 CV-22B Osprey
Variant 3 HV-22A Osprey
Variant 4 CMV-22B Osprey
Variant 5 E-2D AHE CV-22B
Details
Country of Origin United States
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
17.5 m
Width
25.6 m
Height
6.6 m
Weight
27443 kg
