Mahamiru Class Malaysian Minehunter

Mahamiru Class

Multi-Role Response Vessel (MRRV)
Spotted an error? Sign in to suggest an edit.
Mahamiru Class Malaysian Minehunter
Other

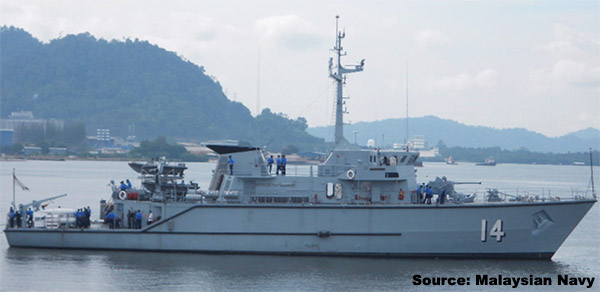

MAHAMIRU_(M-11)_class(B).jpgTRADOC ODIN WEG
Basic Information
Name
Mahamiru Class Malaysian Minehunter
Designation
Mahamiru Class
Alternate Designation
Mahamiru Class
Equipment Type
Multi-Role Response Vessel (MRRV)
Manufacturer
Intermarine
Date of Introduction
1985
Description

The MAHAMIRU Class was designed primarily for minehunting. The ships are also used for patrol duties.

Naval & Littoral Specifications
Crew 43
Beam 9.60 m
Draft 2.90 m
Variants
MAHAMIRU Commissioned: 1985 Status: Active
JERAI Commissioned: 1985 Status: Active
LEDANG Commissioned: 1985 Status: Active
KINABALU Commissioned: 1985 Status: Active
System
Alternative Designation Mahamiru Class
Type Mine Hunting
Builder Intermarine, Sarzana, Italy
Crew 43 (5 off. + 37 enl.)
Submersible 2 x PAP-104 remote-operated; or 1 x ECA Olister remote-operated mine.
Dimensions
Length 51.0 m
Beam 9.6 m
Draft 2.9 m
Displacement, Standard 470 tons
Displacement, Full Load 610 tons
Propulsion System
Engine Name 2 x MTU 12V396 TC82
Engine Type Diesel
Engine Power 2,600 total bhp
Fuel Capacity INA
Propellers 2 x KaMeWa controllable-pitch propellers
Maximum Speed 16 knots
Minehunting Speed 7 knots
Maximum Range at 14 Knots 1,400 nm
Maximum Range at 12 Knots 2,000 nm
Endurance 14 Days
Main Weapon System
System
Name 1 x Bofors 40 mm gun
Type Anti-Aircraft Autocannon
Caliber 40 mm
Length 6.5 m
Barrel Length 2.2 m
Width 1.8 m
Height 1.9 m
Weight 1,981 kg
Barrels 1 or 2 ea
Traverse 360°
Rate of Fire 120 round/min
Muzzle Velocity 881 m/s
Maximum Firing Range 7,160 m
Ammunition
Type Rifle
Caliber 40 mm
Shell 40×311mmR
Basic Load INA
Radar System
Navigation Radar 1 x Decca 1226 navigation radar
Sonar System
Name 1 x Thales TSM 2022 Mark III
Type Mine Hunting Sonar
Protection
Countermeasures Yes, Feeder ( Countermeasures ) Dagie decoy RL
NBC Water Washdown System Yes
Image Sources
Notes https://www.militaryperiscope.com/weapons/ships/mine-warfare/mahamiru-m-11-class/overview/; https://cmano-db.com/ship/1236/;
Details
Country of Origin Malaysia
Category Naval
Naval
Filter Label
M
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
51 m
Width
9.6 m
Height
—
Weight
610000 kg
Operators (1)
Malaysia
