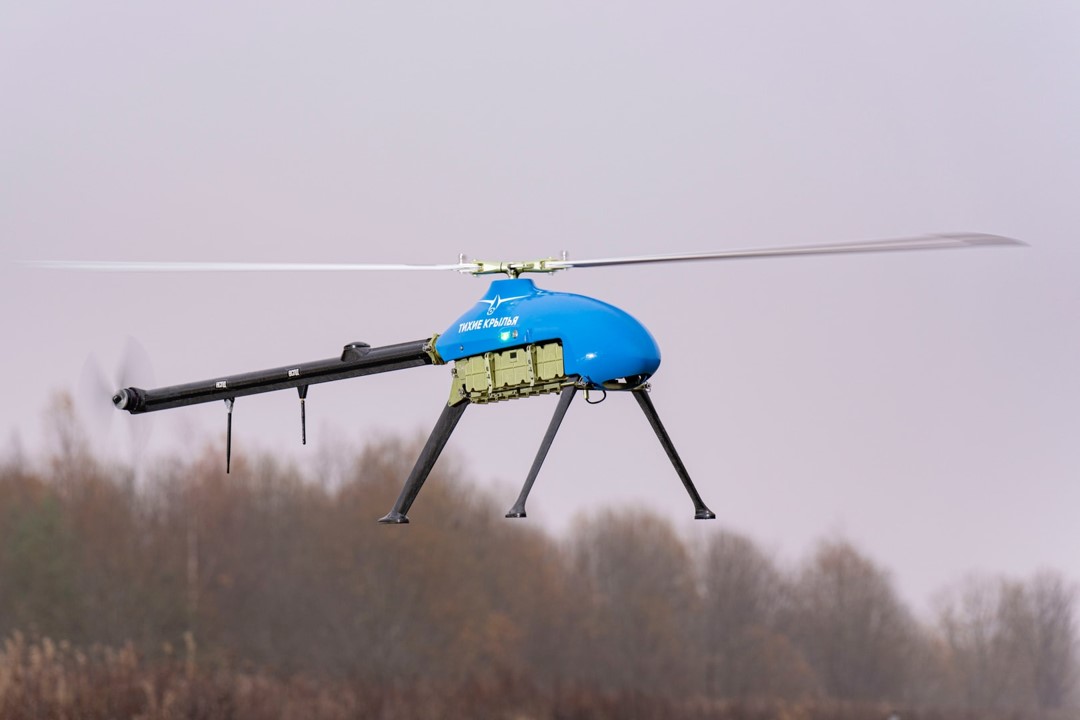

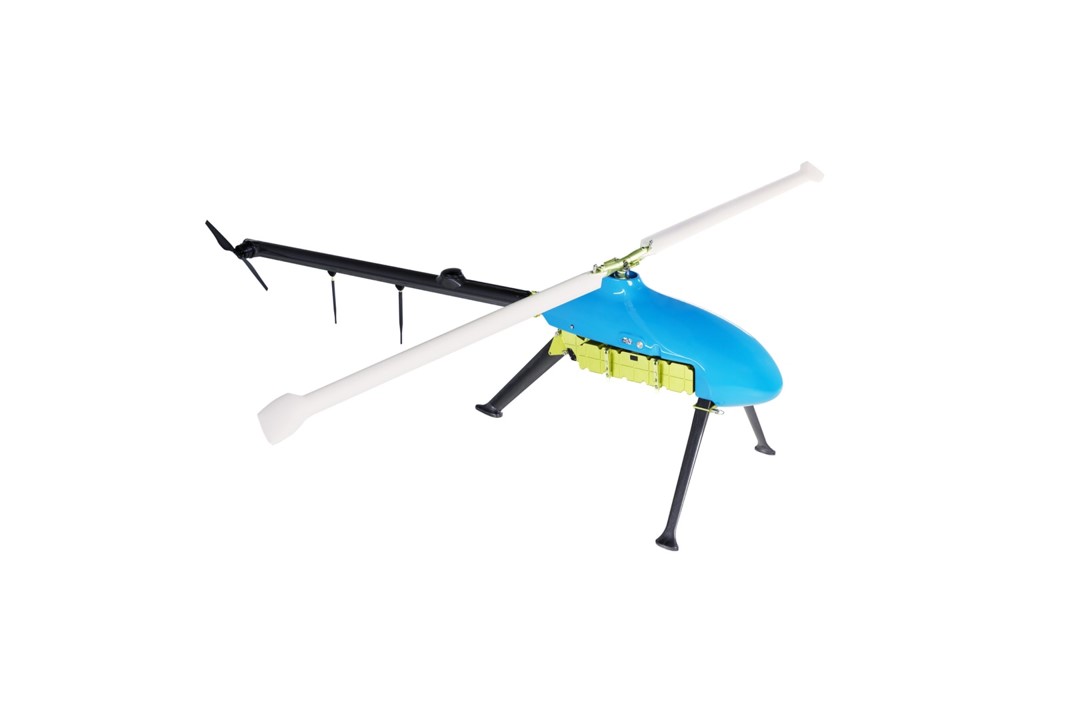

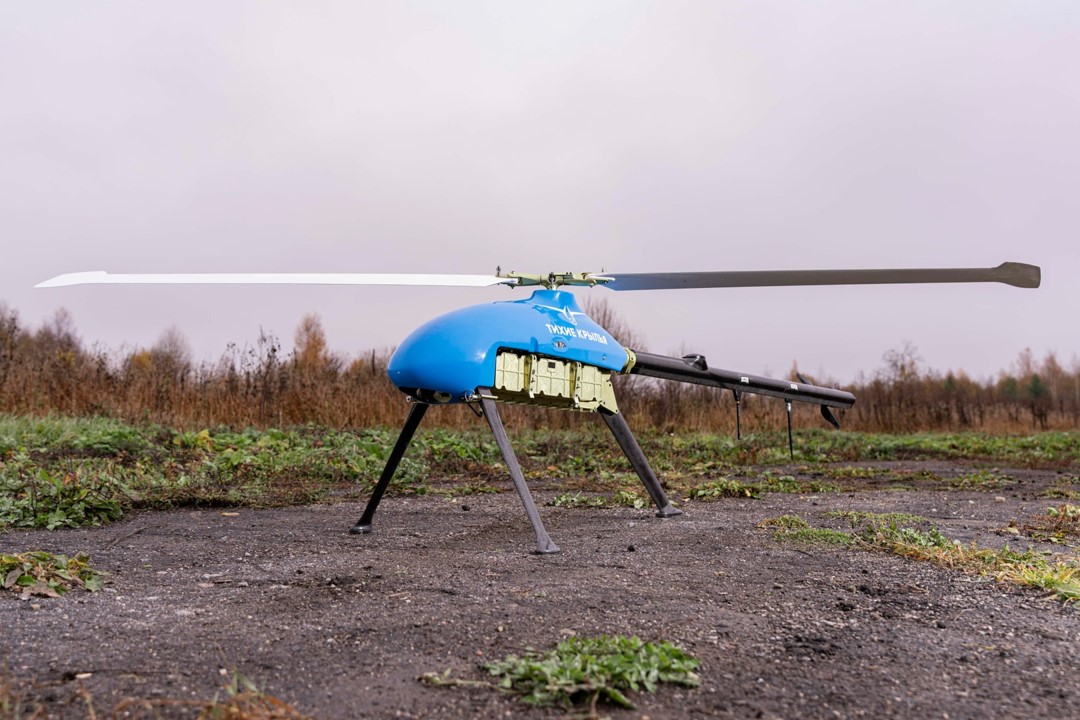

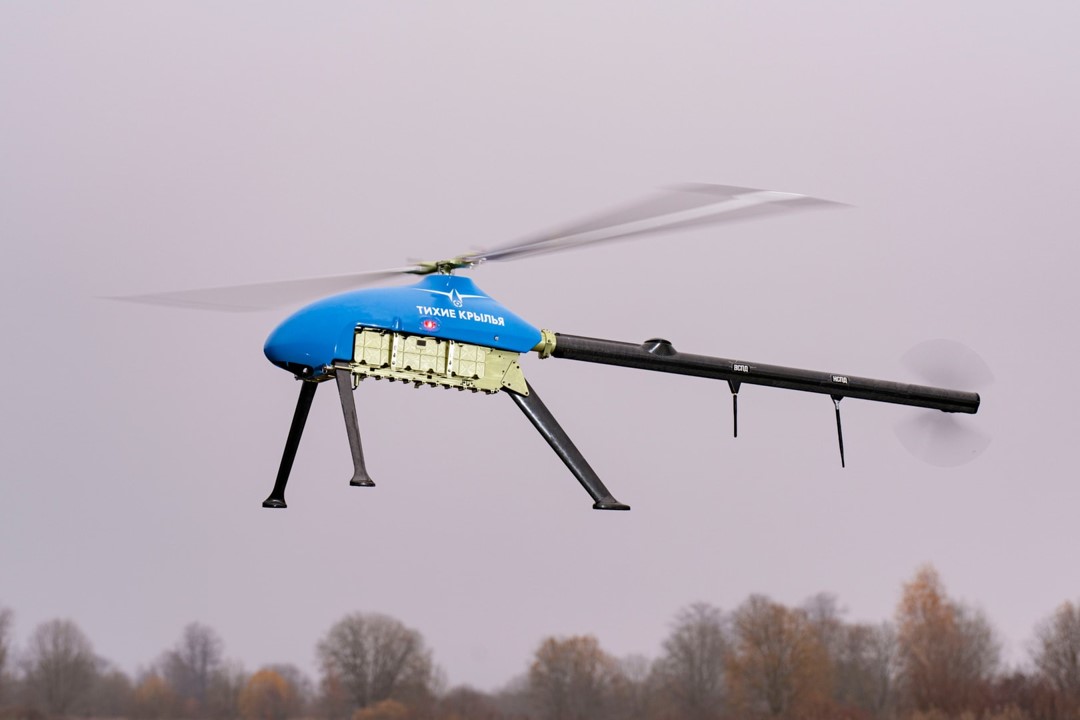

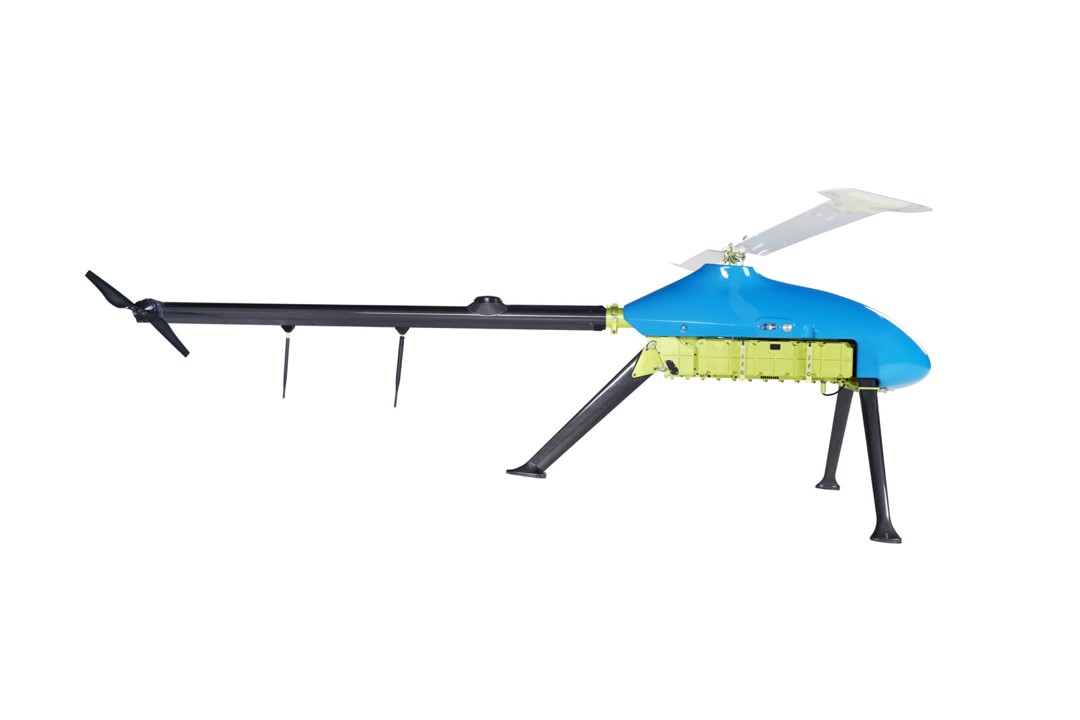

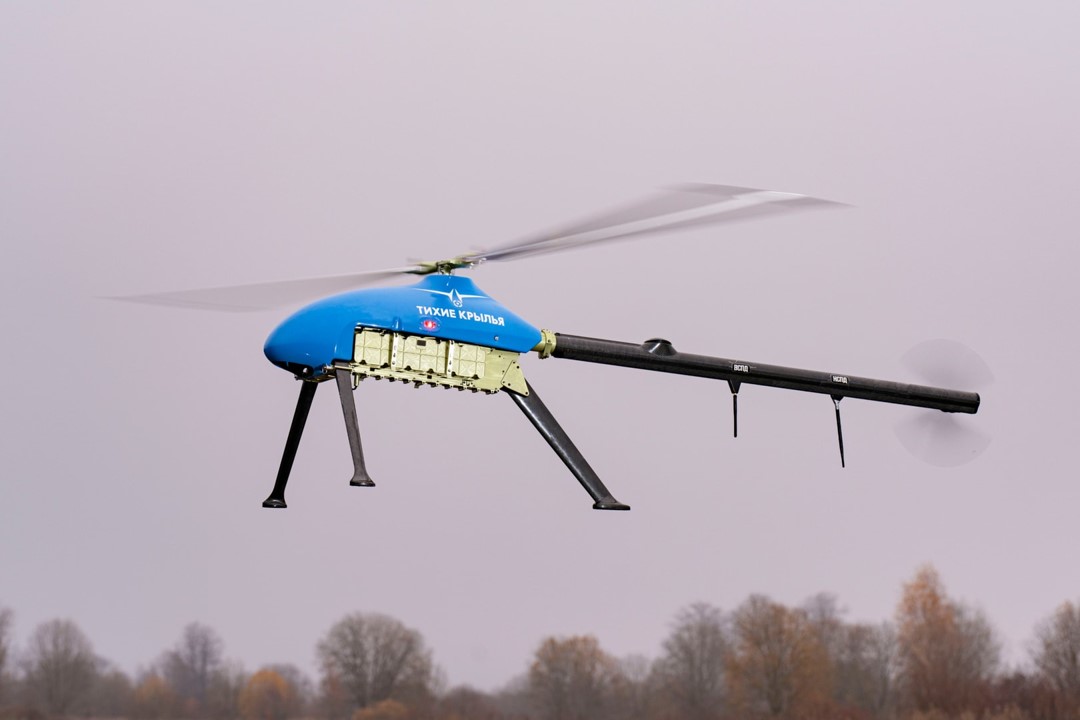

Alfa-E Russian Unmanned Aerial Vehicle (UAV)
Alfa-E
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Alfa-E Russian Unmanned Aerial Vehicle (UAV)
Designation
Alfa-E
Alternate Designation
Alfa-E
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Kalashnikov Concern
Date of Introduction
2024
Description
The Alfa-E Russian Unmanned Aerial Vehicle (UAV) is designed for aerial photography, aerial laser scanning, video monitoring, magnetic survey, cargo carriage, fire patrolling, and people search. The UAV can take off from any solid surface, including moving objects. Its compact size allows it to be transported in a car, and one person can assemble it in 15 minutes. The flight altitude can reach 3000 m, and the operating temperature range is from -30 to +45 °C.
Air & Air Defense Specifications
Crew
2
Engine
Electric
Max Speed
110.0 km/h
Cruise Speed
60.0 km/h
Range
60.0 km
Endurance
105.00 hrs
Service Ceiling
3000 m
Payload Capacity
7 kg
System
Alternate Designation
Alfa-E
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Kalashnikov Concern JSC
Crew
2 ea
Payload Capacity
7.0 kg
Frequency
Command telemetry 868 MHz, GSM standard frequencies
Take-off and Landing
Vertical
Dimensions
Length
3,070 mm
Width
600 mm
Height
INA
Maximum Takeoff Weight
26.7 kg
Automotive
Engine Name
INA
Engine Type
Electric
Engine Power
INA
Maximum Speed
110 km/h
Cruise Speed
60 km/h
Maximum Range
60 km
Service Ceiling
3,000 m
Endurance
105 min
Wind Resistance
15 m/s
Details
Country of Origin
Russia
Category
UAVs
Air > UAVs
Filter Label
A
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
3.07 m
Width
0.6 m
Height
—
Weight
26.7 kg
Operators (1)
Russia
