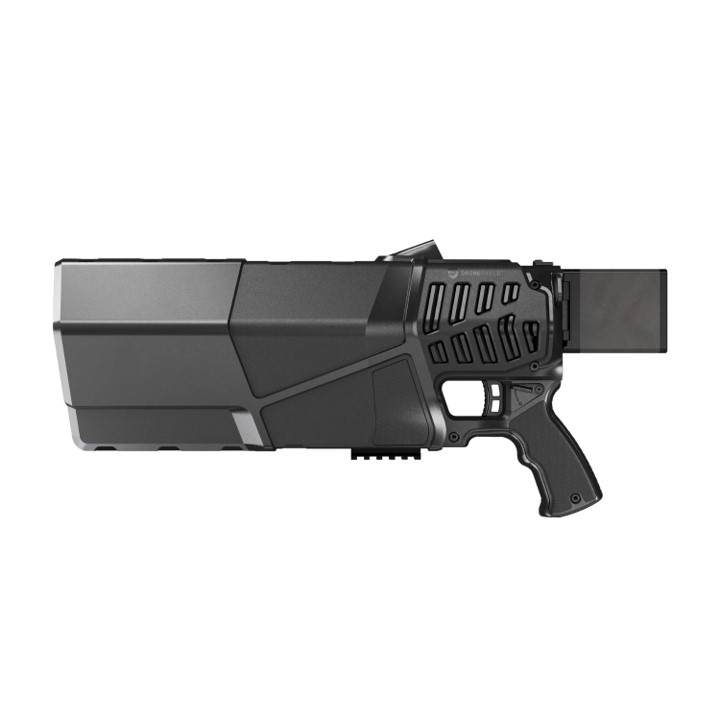

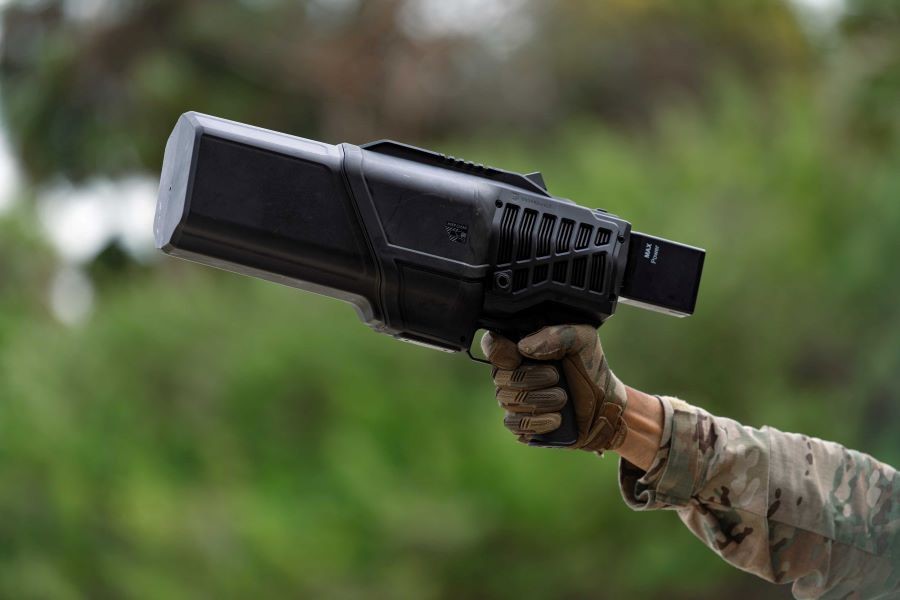

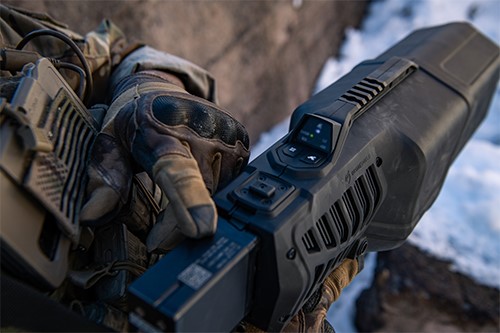

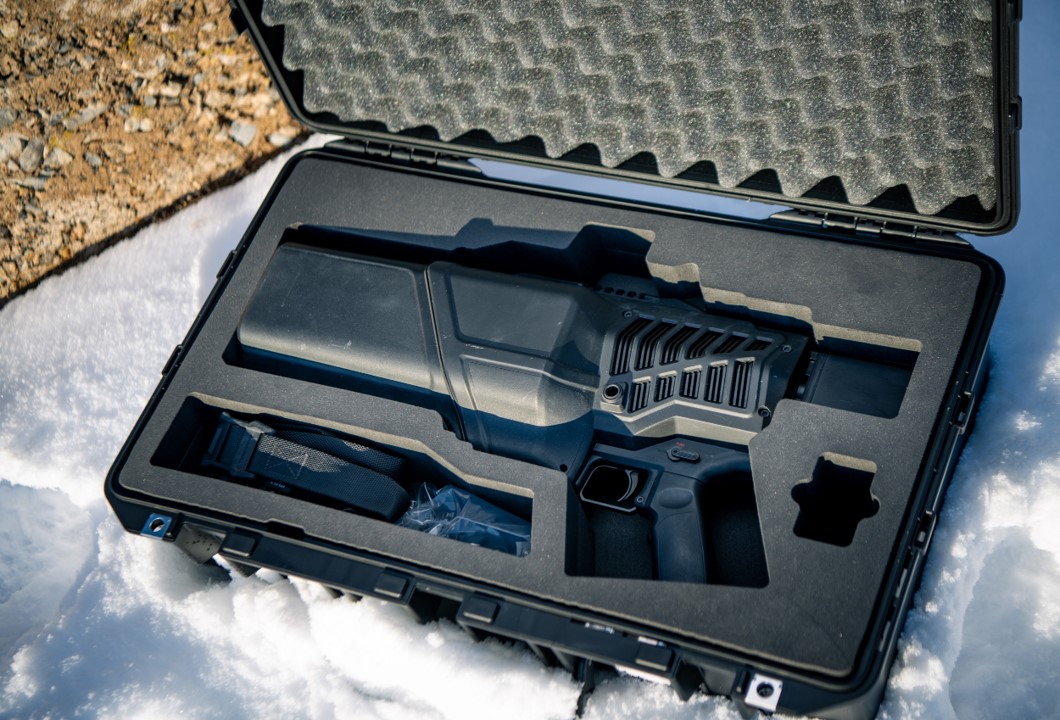

DroneGun Mk4 American Handheld C-UAV

DroneGun Mk4

Counter-UAS System
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
DroneGun Mk4 American Handheld C-UAV
Designation
DroneGun Mk4
Alternate Designation
DroneGun Mk4
Equipment Type
Counter-UAS System
Manufacturer
DroneShield
Date of Introduction
2024
Description

The DroneGun Mk4 American Handheld C-UAV is a rugged, handheld C-UAS effector providing users with compact, rapid response countermeasure capabilities. The device maintains the versatility of its predecessor, while hosting improved performance, ingress protection and serviceability. The DroneGun Mk4 is highly effective against a wide range of UAS types and models. The device can disrupt the control, navigation and video of multiple drones simultaneously. When disruption is triggered, UAS will typically respond via a vertical controlled landing on the spot or return to the operator/controller or starting point. RF disruption can also interfere with any live video streaming (FPV) back to the remote controller, halting the collection of video footage and intelligence by the UAS operator. DroneShield offers multiple C-UxS detection and defeat options to provide defense-in-depth capabilities to counter a wide range of drone threats.

System
Alternate Designation DroneGun Mk4
Type Handheld C-UAV
Manufacturer DroneShield
Frequencies Wide range of ISM bands and GNSS (satellite navigation)
Battery/Power Rechargeable lithium-ion battery; NATO military-grade battery (common use); Quick-release and reload battery operation.
Start-up Time 3 seconds
Operation Time 1 hour (aggregate operational time per charge)
Charger Pass-through charger, AC/DC PSU included
Ingress Protection Rated to IP67
Operating Temperature -20 ºC to +55 °C / -4ºF to +131ºF
Dimensions
Length 640 mm
Width 220 mm
Height 410 mm
Weight 3.2 kg
Details
Country of Origin United States
Category Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Filter Label
D
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.64 m
Width
0.22 m
Height
0.41 m
Weight
3.2 kg
Operators (1)
United States
