PSNR-5 (1-RL-133) Russian Ground Surveillance Radar
TALL MIKE (NATO)
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
PSNR-5 (1-RL-133) Russian Ground Surveillance Radar
Designation
TALL MIKE (NATO)
Alternate Designation
TALL MIKE (NATO); PSNR- 5/IRL133 (Ground); PSNR-
5K/1RL133-1 (Vehicle); IRL
133M (Kredo M-1 ground); 1RL
133M1 (PSNR-8 vehicle)
Equipment Type
—
Manufacturer
—
Date of Introduction
1974
Description
The PSNR-5 Russian Ground Surveillance Radar is used to search for fixed and moving ground targets and to track their movements when the use of other technical means of reconnaissance (from the vehicle equipment) is excluded or not appropriate. It can detect the nature and polar coordinates of the target(s), in this case distance and bearing.
Ground Specifications
Crew
1
Variants
PSNR-5

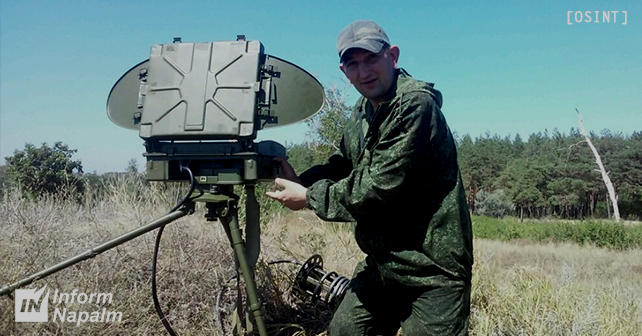

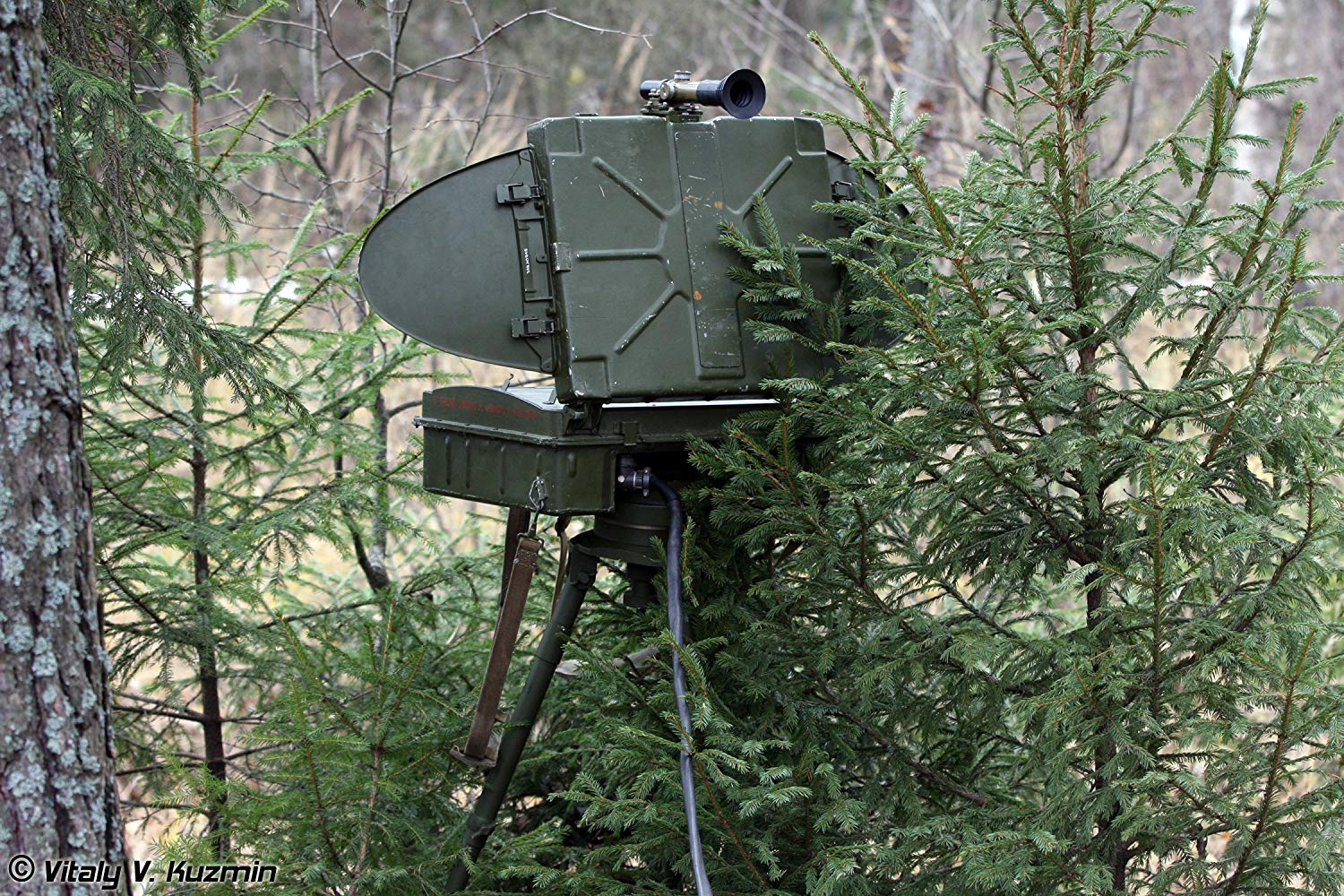

Tripod mounted
PSNR-5K
Mount mast for vehicles (i.e. Russian BRM-1K)
PSNR-5M/Kredo-M
Updated PSNR-5K on vehicles with a notebook computer to display, process, transmit; with GPS
Monitor-M
Links up to 4 PSNR-5M radars to provide 360 deg view
Kredo-M1/PSNR-5M Modernized
PSNR-5M with additional upgrades with range of 5 km 8.5 km (personnel); 20 km (tanks); 32 km (trucks); with 12 km (tracking)
Strazh-ST
Vehicle sensor pod with Kredo-M1 & EO cameras (PRP-4M uses the PSNR-5M system; the PRP-4MU has an option for the Kredo-M1)
System
Alternative Designation
TALL MIKE (NATO); PSNR- 5/IRL133 (Ground); PSNR-
5K/1RL133-1 (Vehicle); IRL
133M (Kredo M-1 ground); 1RL
133M1 (PSNR-8 vehicle)
Description
Ground Surveillance Radar (GSR) can be operated by 1 or 2 soldiers; 3 soldiers required for
dismounted carry
Ground Pressure
Varies by vehicle kg/cm2
Crew
1 (Vehicle); 2 (Dismounted) ea
Notes
Sources: 2014 WEG. With the pintle mount, this radar can be mounted on almost any vehicle to modify
It into a reconnaissance vehicle. (photos from 2014 WEG
)
Dimensions
Height, Overall
Varies by vehicle m
Length, Chassis Overall
Varies by vehicle m
Width, Overall
Varies by vehicle m
Weight, Combat
56.0; 50 (including 2 batteries for Kredo-M1) kg
Automotive
Engine Name
Varies by vehicle
Engine Type
Varies by vehicle
Fording Depth
Varies by vehicle m
Range, Cruising
Varies by vehicle km
Speed
Varies by vehicle km/h
Communications
Radio
Radio
INA
Equipment
Name
PSNR-1 Kredo-M1 (both C & K used in translations);
Antenna Type
Parabolic dish with cable link
Azimuth coverage
360; 180 in surveillance sector; +/- 18 (Tripod can be adjusted for more vertical coverage) deg
Console
INA
Radar
Motor-driven for azimuth adjustment with remote control
Operation
Remote
Display
Monochrome digital readouts; color on Baget-14 notebook computer for Kredo-
M1
Remote Operation
25 m away for concealed operators
Remote user transmission
INA
Target Acquisition
INA
Tone Signal
INA
TV Monitor
INA
Performance
Countermeasure Resistance
INA
Range, Surveillance
PSNR-5/5M: 3-5 (personnel); 10-15 (vehicles); range reduced 50% at wind
speeds more than 5 m/second; 0.2 (minimum)
km
Resolution
100 m in range; 50 mils in azimuth; 25 m for range & 50 mils for azimuth for
Kredo-M1
Tracking Speed
2-60 km/hr (more for some targets)
Transceiver
Accuracy
INA
Compatibility
Operate using analog or digital
processing match user interface.
Emplacement Time
5 minutes (vehicle mast mounted)
Name
Transceiver Coherent pulse Doppler with magnetron
(With klystron for Kredo-M1)
Polarization
INA
Power
90 (Consumption); 12 (Output); 110
(consumption for Kredo-M1)
W
Signal
I-band (9.00 GHz); J-band (10.00-19.00
GHz or US Ku band for Kredo-M1)
Width of radiation pattern lobe
INA
Details
Country of Origin
Russia
Category
Radars
Land > Radars
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Operators (1)
Russia
