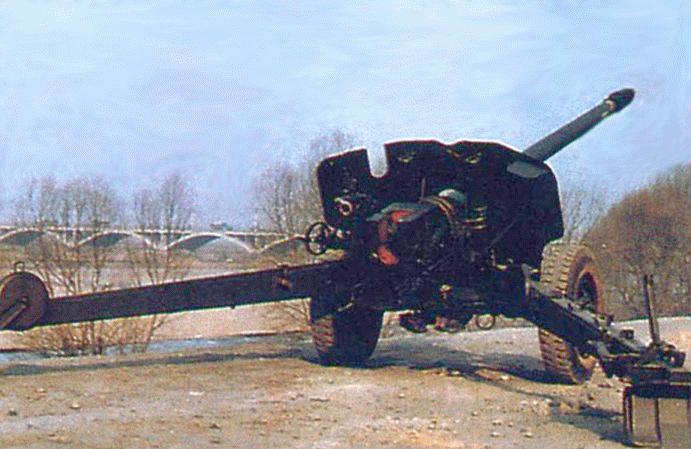

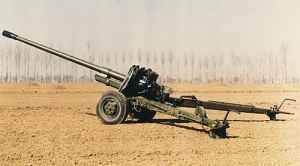

Type 86 Chinese 100mm Towed Anti-Tank Gun
Type 86
Towed Gun
Other
Basic Information
Name
Type 86 Chinese 100mm Towed Anti-Tank Gun
Designation
Type 86
Alternate Designation
Type 86
Equipment Type
Towed Gun
Manufacturer
NORINCO
Date of Introduction
1986
Description
The Type 86 Chinese 100mm Towed Anti-Tank Gun is similar in all respects to the Type 56 (85 mm) towed howitzer, apart from a larger caliber smoothbore barrel taken from the Type 73 Russian 100mm Anti-Tank Gun.
Ground Specifications
Crew
7
Mobility Type
Towed
Main Weapon
100 mm smoothbore gun
Max Speed
50.0 km/h
Range
13.7 km
System
Alternative Designation
Type 86
Type
Towed Anti-Tank Gun
Manufacturer
Norinco
Crew
7 ea
Mobility
The Type 86 Chinese 100mm Towed Anti-Tank Gun is normally towed by a 4×4 or 6×6 cross-country truck that also carries a quantity of ready use 100 mm ammunition. The towing hook is at the trail end with the muzzle in the opposite direction of travel.
Carriage
Split Trail
Towed Speed
50 km/h
Emplacement Time
INA
Displacement Time
INA
Protection
A gun shield is provided for protection from small arm fires and splinters.
Dimensions
Length, Transport Mode
9.52 m
Width, Transport Mode
2.12 m
Height, Transport Mode
1.838 m
Axis of Fire
1.088 m
Weight
3,660 kg
Main Weapon System
Armament
Name
1 × carriage-mounted 100 mm smoothbore gun
Muzzle Brake
Slotted
Elevation
+38° (676 mils)/-4° (-71 mils)
Traverse
100° (1778mils) (50° left/right)
Maximum Firing Range
13,654 m (13.7 km)
Rate of Fire
10 rds/min
Ammunition
Armour Piercing Fin Stabilised Discarding Sabot (APFSDS)
The Type 86 (APFSDS), with a tungsten penetrator. It has a muzzle velocity of 1,610 m/s with an effective range of 1,800 m. When firing this round, the maximum stated rate of fire is 4 to 5 rds/min. Additionally, there is the Type 73 (APFSDS) with tungsten alloy penetrator. The projectile has a length-to-diameter ratio of 13.3:1 and a maximum range in the direct fire role of 1,730 m.
Armour Piercing Discarding Sabot (APDS)
The Type 73 with a tungsten penetrator which has a muzzle velocity of 1,500 m/s with an effective range of 1,700 m.
HEAT
The Type 73 fin-stabilised projectile with a muzzle velocity of 1,010 m/s.
HE
Type 73 fin-stabilised projectile with a muzzle velocity of 900 m/s and a maximum range of 13,700 m.
Details
Country of Origin
China
Category
Land
Land
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.52 m
Width
2.12 m
Height
1.84 m
Weight
3660 kg
Operators (2)
China
Albania
