DF-11

DF-11

Tactical Ballistic Missiles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
DF-11
Designation
DF-11
Alternate Designation
CSS-7 East Wind, Hatf III, Hatf-3 (Pakistan), M-11, Shaheen (Pakistan)
Equipment Type
Tactical Ballistic Missiles
Manufacturer
Date of Introduction
1995
Description

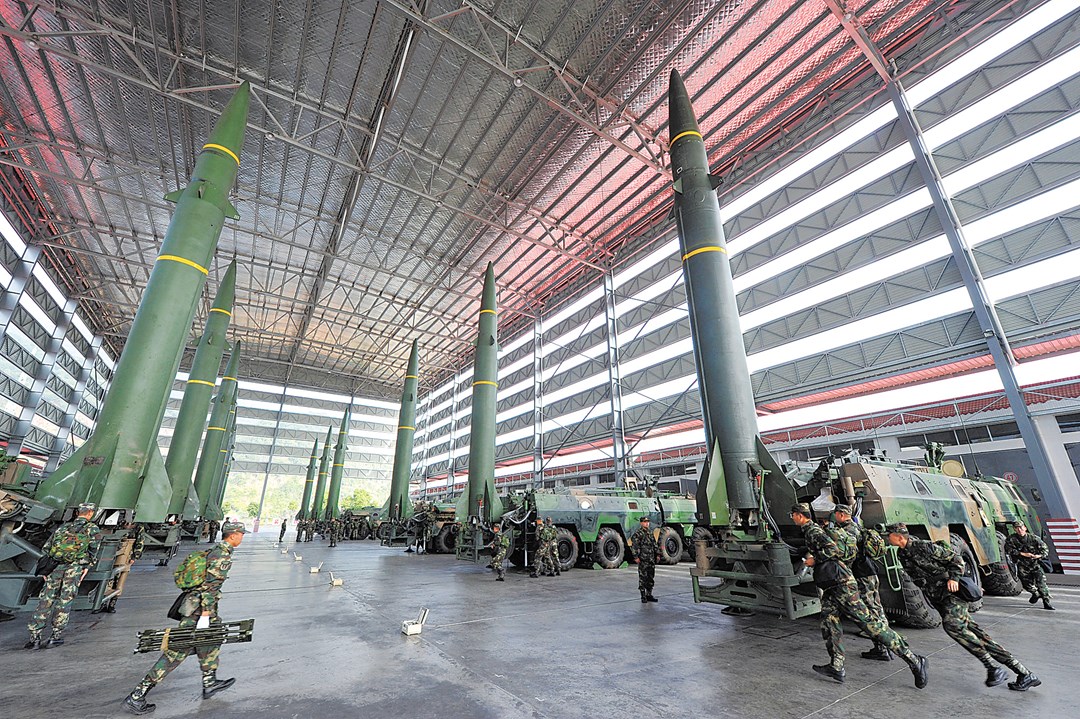

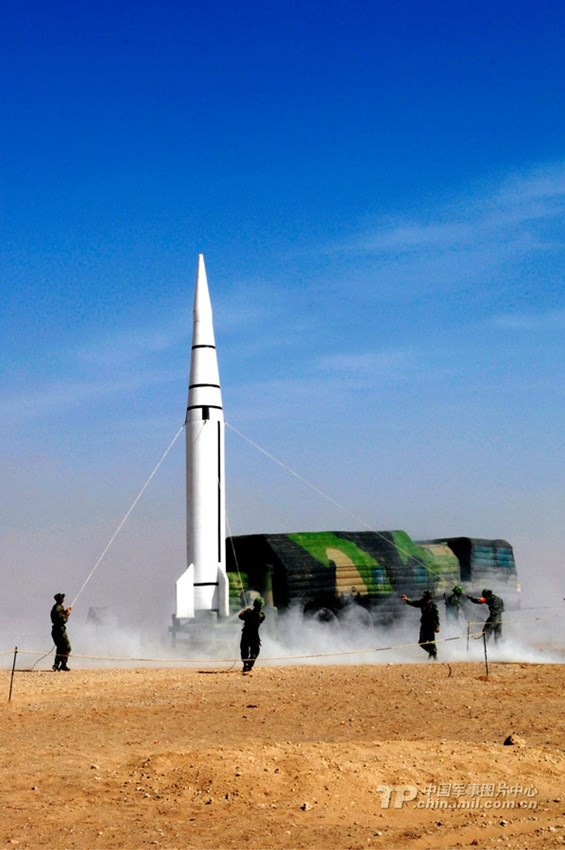

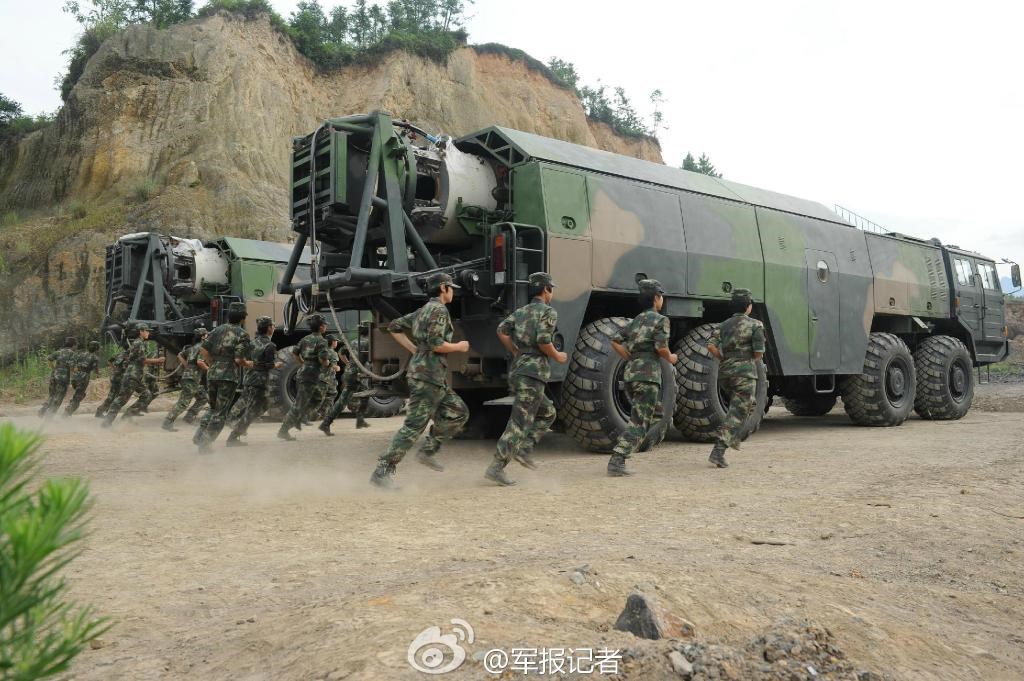

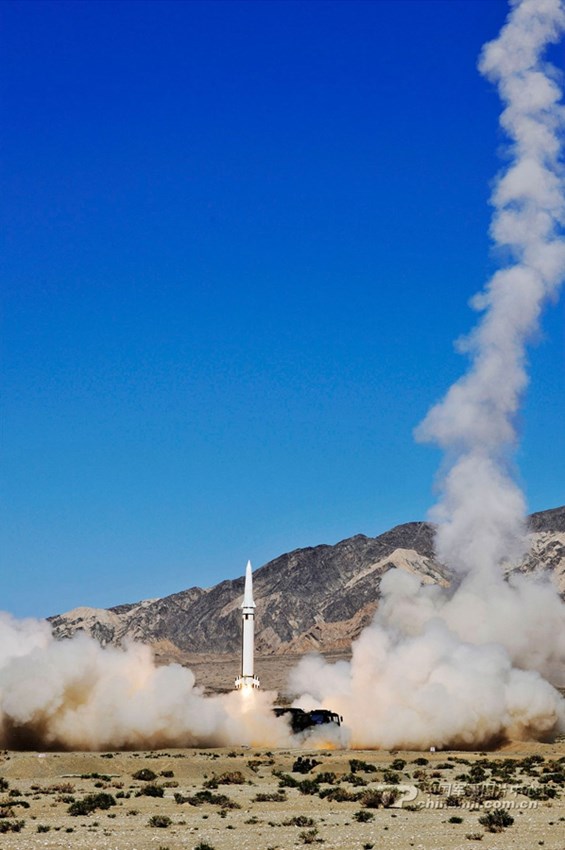

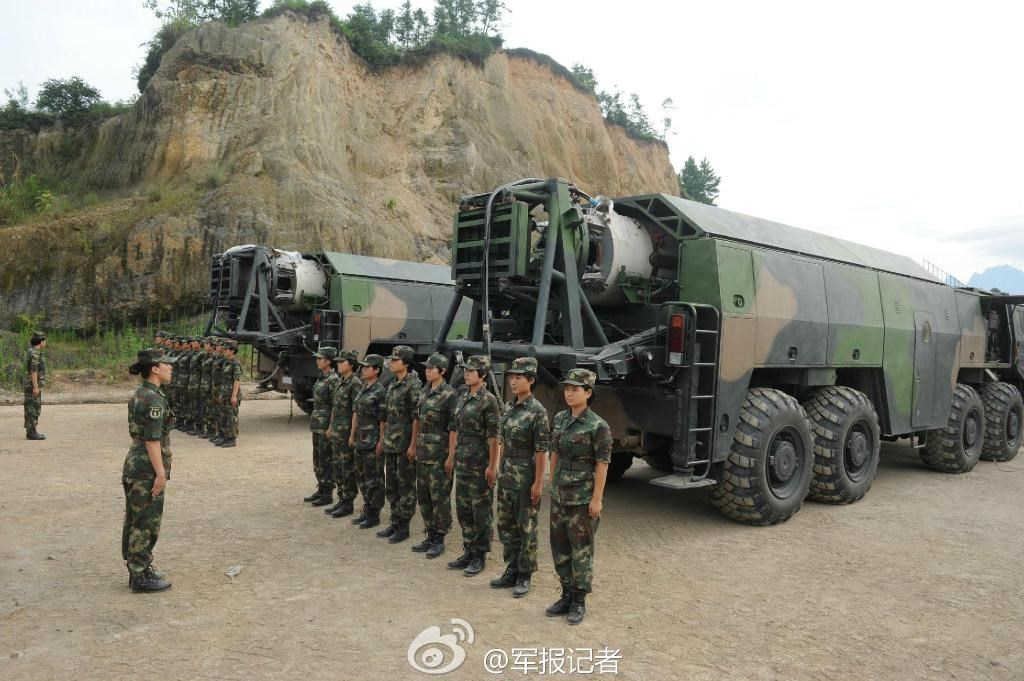

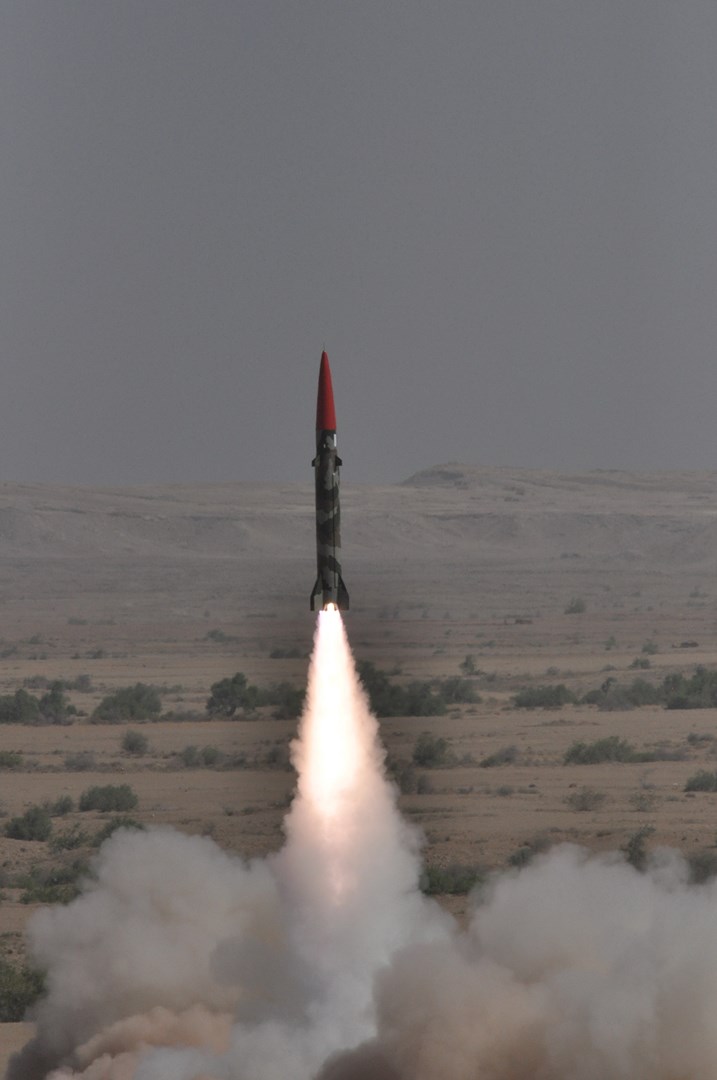

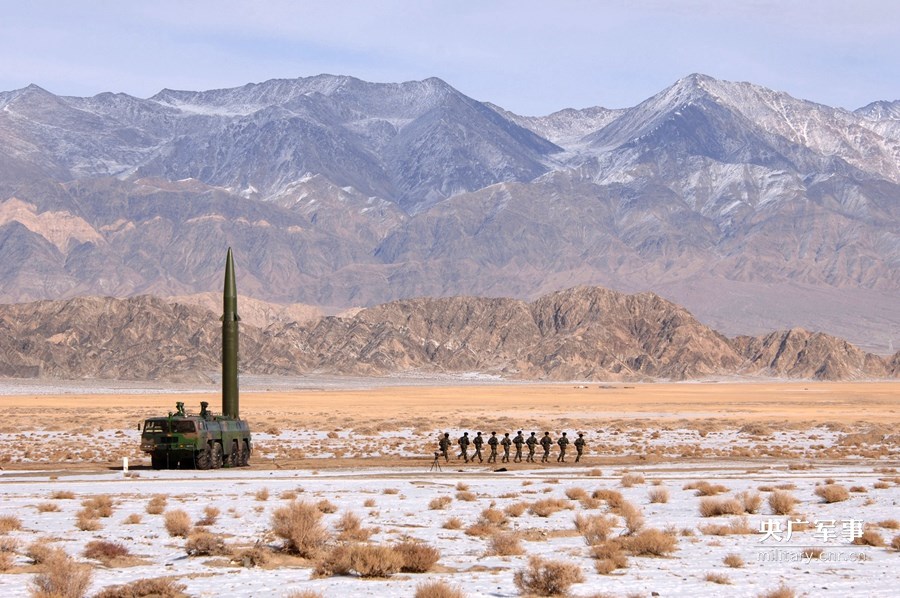

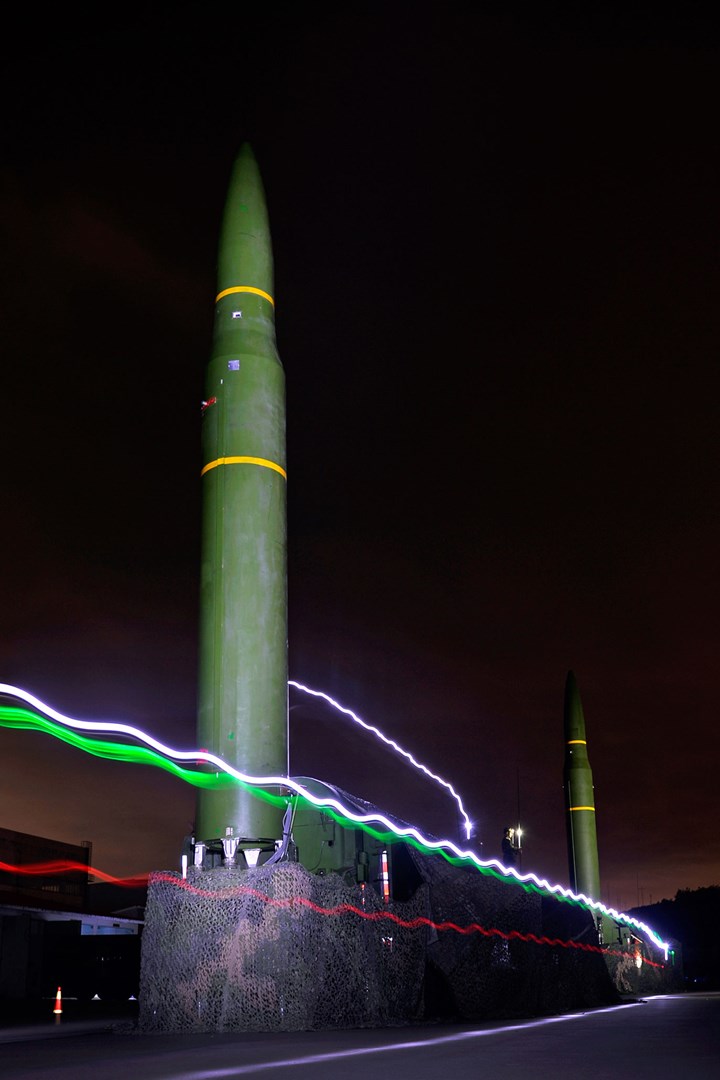

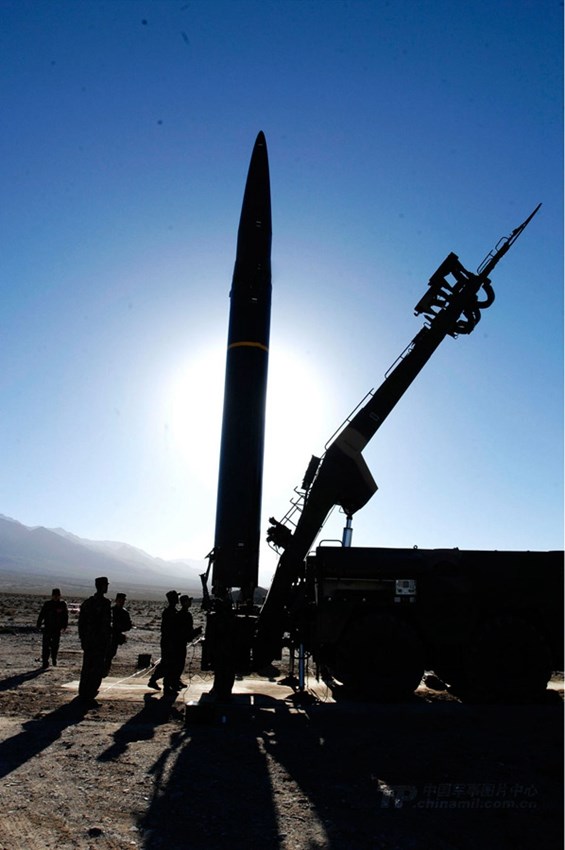

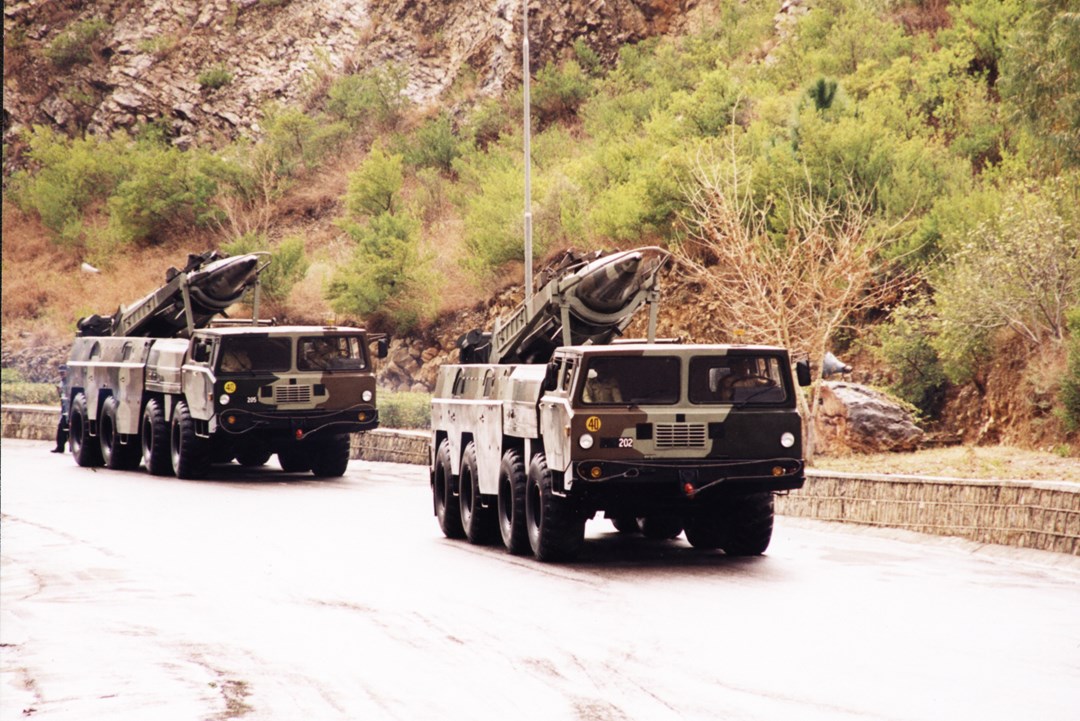

The People's Republic of China (PRC) DF-11, also known as M-11 for the export market or CSS-7 East Wind Western designation, is a Short Range Ballistic Missile (SRBM) intended as a replacement for Scud-sized missiles. It can be equipped with either a conventional or nuclear warhead. M-11 designation refers to DF-11 missiles propelled by a single-stage filled with solid propellant. The M-11 missile system is road-mobile through a Tractor-Erector-Launcher (TEL) vehicle. The M-11 ballistic missile's maximum range doesn't exceed 300 kilometers. China exported the single-stage M-11 missile to Pakistan where its is known as the Shaheen or Hatf-3. The People's Liberation Army (PLA) artillery units have deployed the M-11 missile targeting Taiwan along the Chinese coast surrounding the island.

Air & Air Defense Specifications
Range 300.0 km
Overview (Deagel)
Group Tactical Ballistic Missiles
Status Active
Also Known As CSS-7 East Wind, Hatf III, Hatf-3 (Pakistan), M-11, Shaheen (Pakistan)
Origin China
Initial Operational Capability (IOC) 1995
Total Production 745
Specifications (Deagel)
Number of Stages 1
Number of Warheads 1
Dimensions — Diameter 880 millimeter
Dimensions — Length 11 meter
Mass — Warhead 500 kilogram
Mass — Weight 6,000 kilogram
Performance — CEP 200 meter
Performance — Max Range 300 kilometer
Performance — Min Range 120 kilometer
Time — SetUp Time 45 minute
Variants
Variant 1 DF-11
Variant 2 DF-11A
Details
Country of Origin China
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
11 m
Width
Height
Weight
Operators (2)
China
Pakistan
