Type 082II
Type 082II
Mine CounterMeasures Vessels

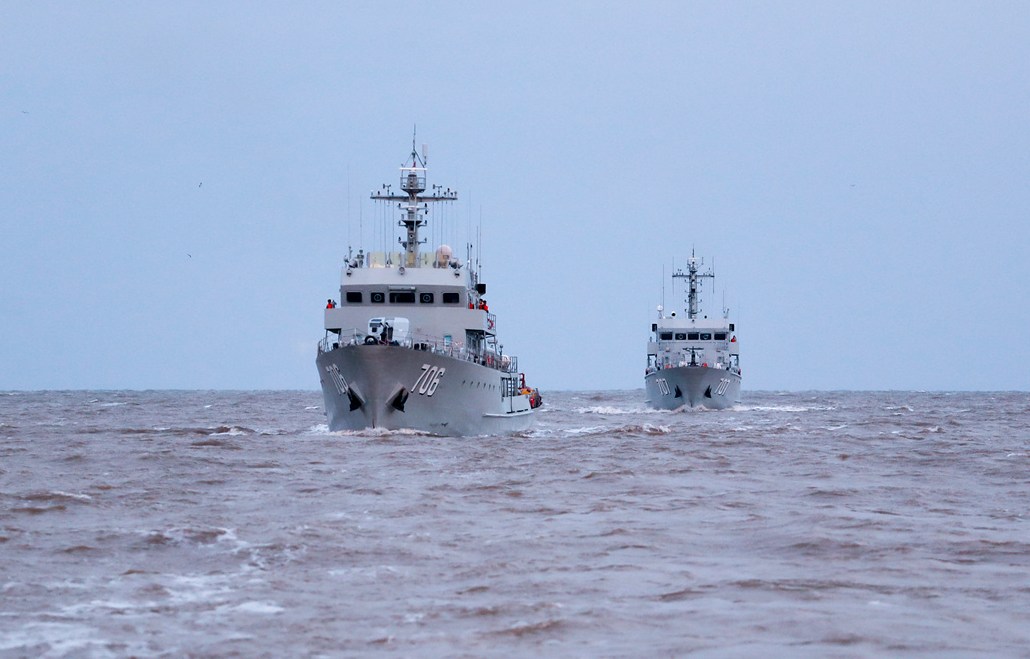

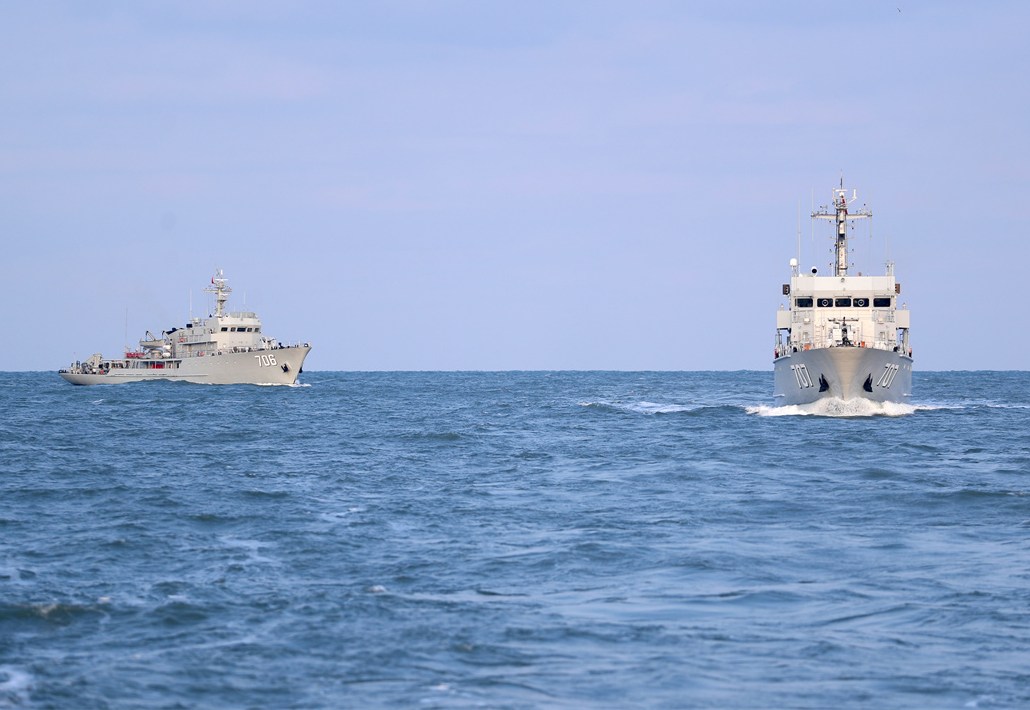

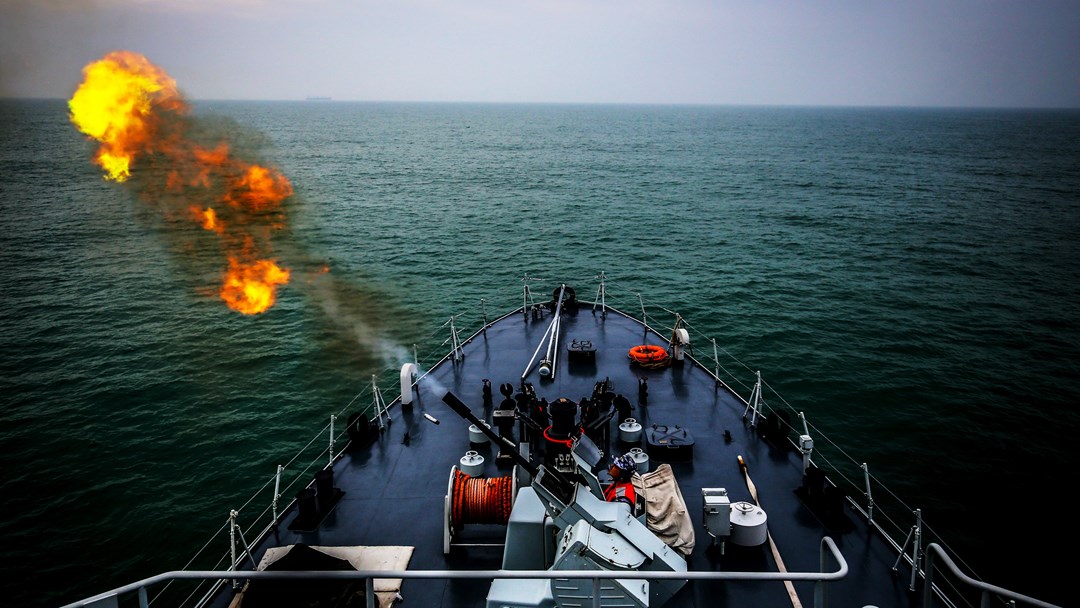

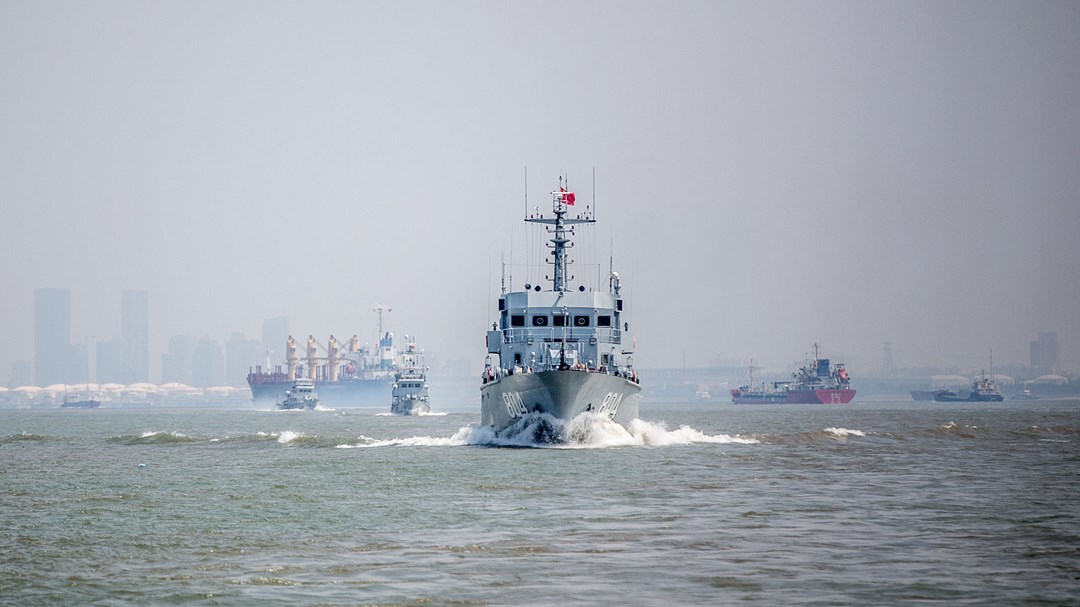

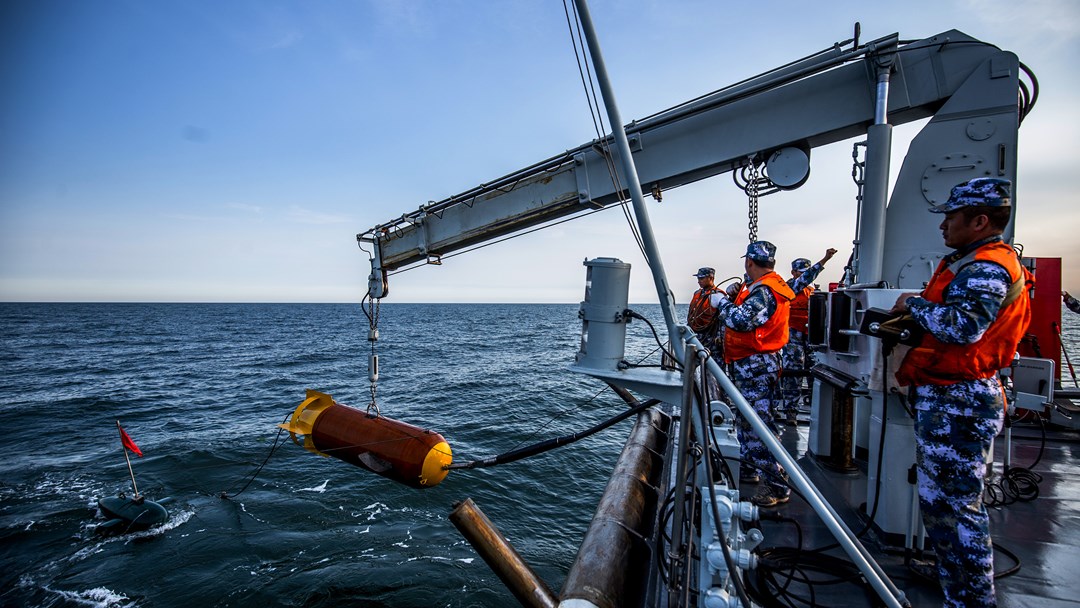

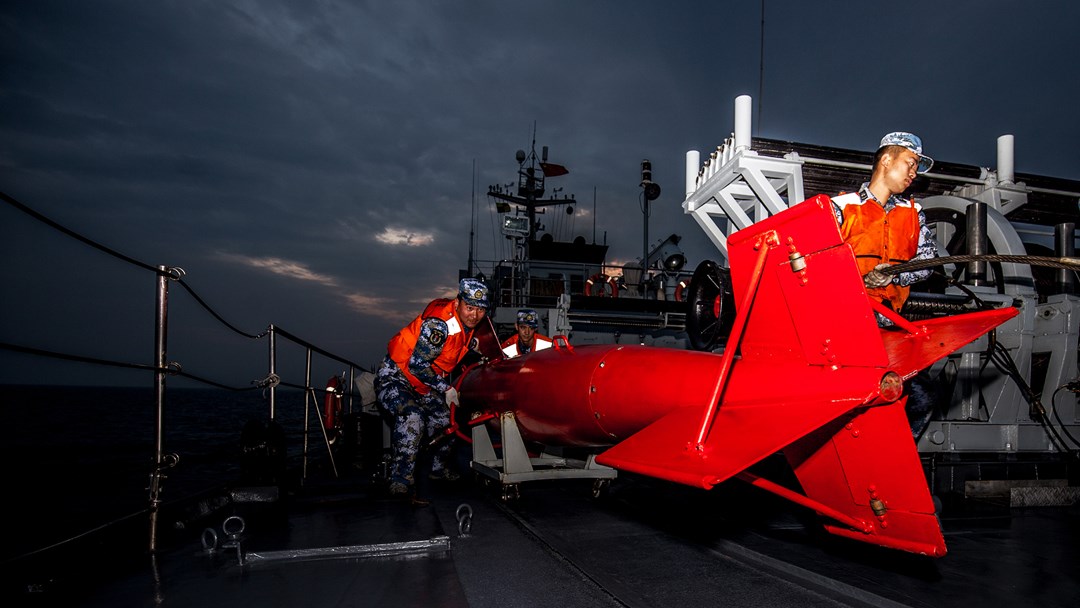

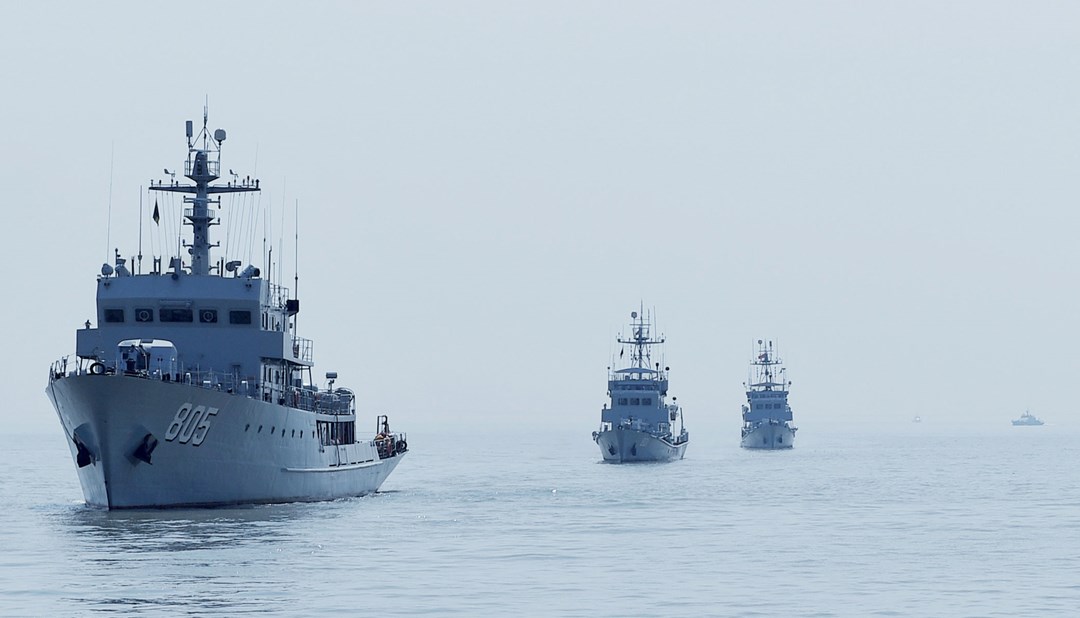

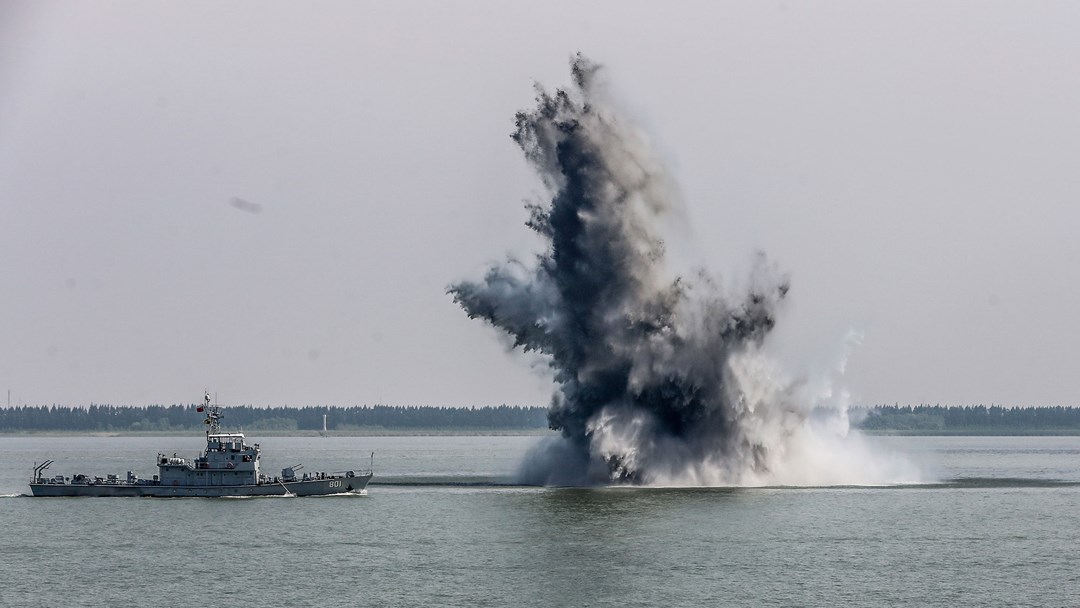

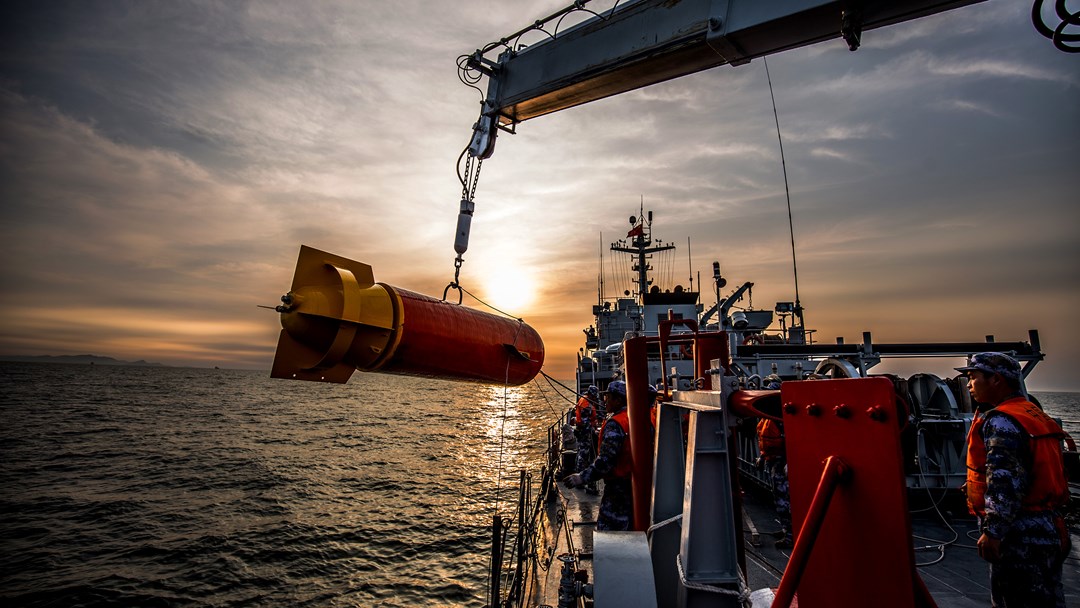

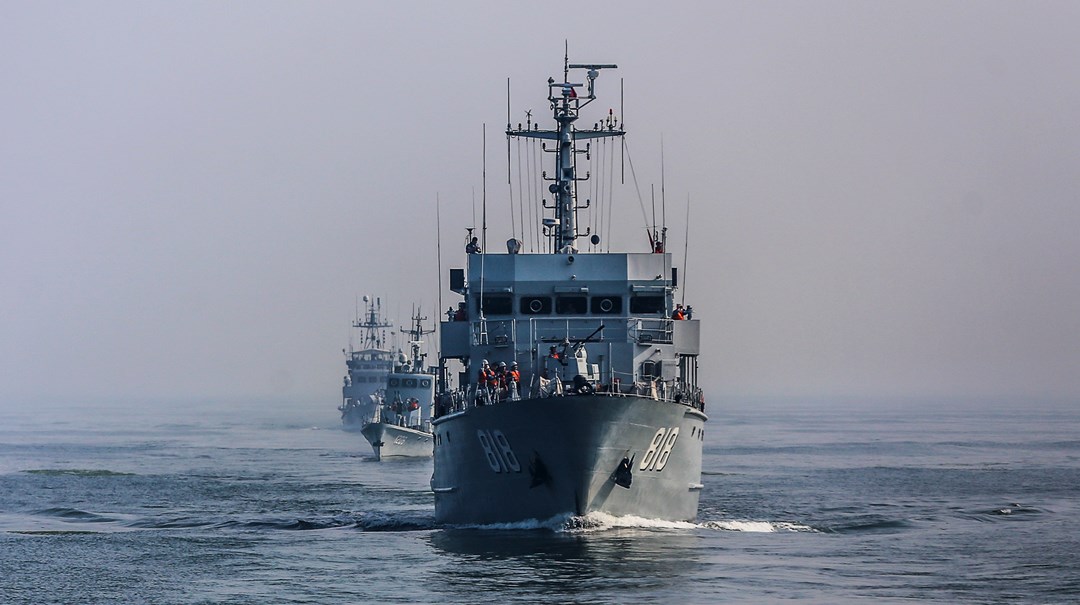

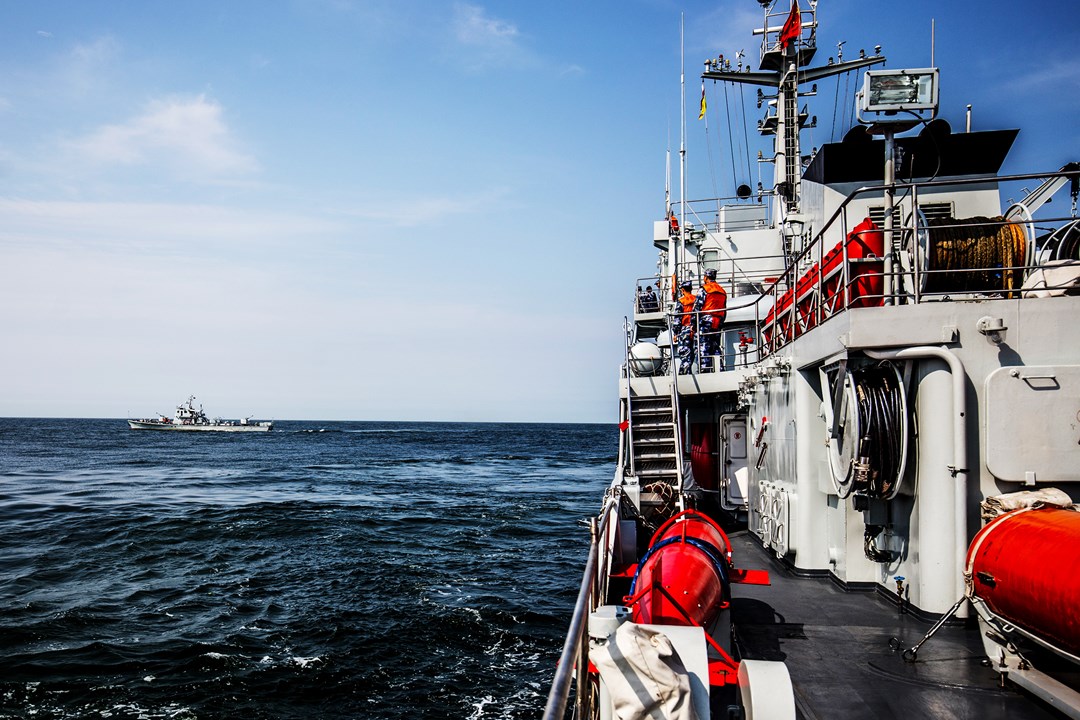

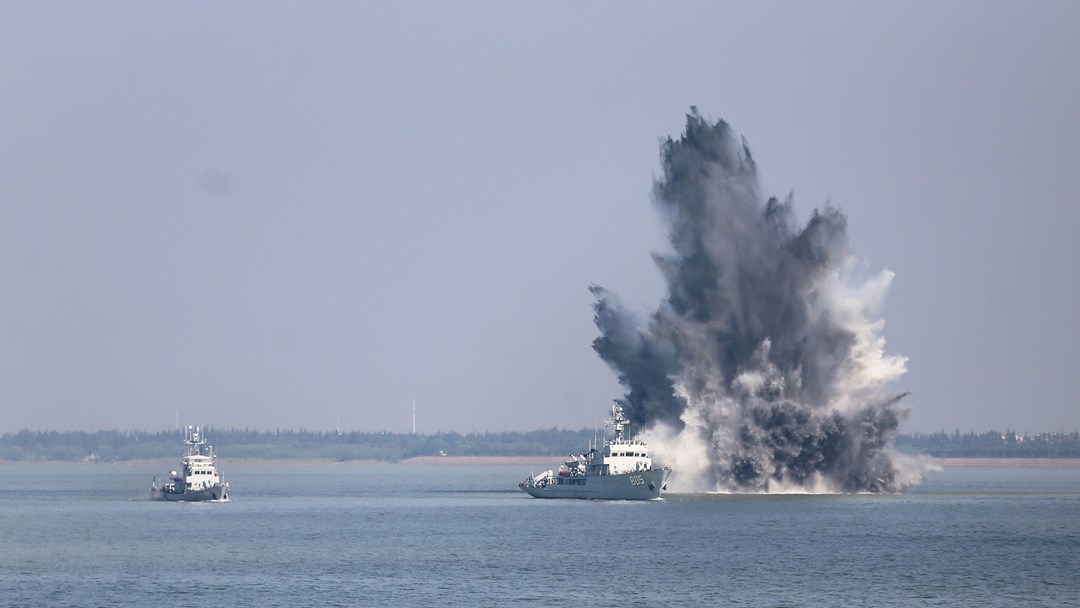

Operational Photo
Basic Information
Name
Type 082II
Designation
Type 082II
Alternate Designation
Wosao, Wozang
Equipment Type
Mine CounterMeasures Vessels
Manufacturer
Qiuxin Shipyard
Date of Introduction
2005
Description
The People's Liberation Army Navy (PLAN) Type 82, also known as the Wosao, is a coastal mine countermeasure vessel class which entered service in 1987. These vessels are powered by four M50 diesel engines allowing a top speed of 25 knots and a maximum range of 900 nautical miles at 15 knots or 500 nautical miles at full speed. About 16-20 Type 082 minesweepers were built by Jiangxin Shipbuilding Factory and Qiuxin Shipyard between the 1980s and 2000s. The improved Type 082II class, also known as Wozang, entered service in 2005 and features fiber glass hull and low magnetic steel. Six vessels were commissioned by the PLAN by 2017.
Naval & Littoral Specifications
Crew
40
Displacement
575.00 tonnes
Beam
9.30 m
Draft
2.60 m
Max Speed
25.0 knots
Overview (Deagel)
Group
Mine CounterMeasures Vessels
Status
Active
Also Known As
Wosao, Wozang
Origin
China
Contractor
Qiuxin Shipyard
Initial Operational Capability (IOC)
June 2005
Total Production
6
Specifications (Deagel)
Crew
40
Number of Engines
4
Dimensions — Beam
9.3 meter
Dimensions — Draft
2.6 meter
Dimensions — Length
55 meter
Dimensions — Main Gun Caliber
25 millimeter
Mass — Full Displacement
575 ton
Performance — Max Range
900 nautical mile
Power — Total Combined Power
4,400 hp
Speed — Economical Speed
15 knot
Speed — Top Speed
25 knot
Details
Country of Origin
China
Sources
deagel.com: https://www.deagel.com/x/x/a003475
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
55 m
Width
9.3 m
Height
—
Weight
575000 kg
Operators (1)
China
