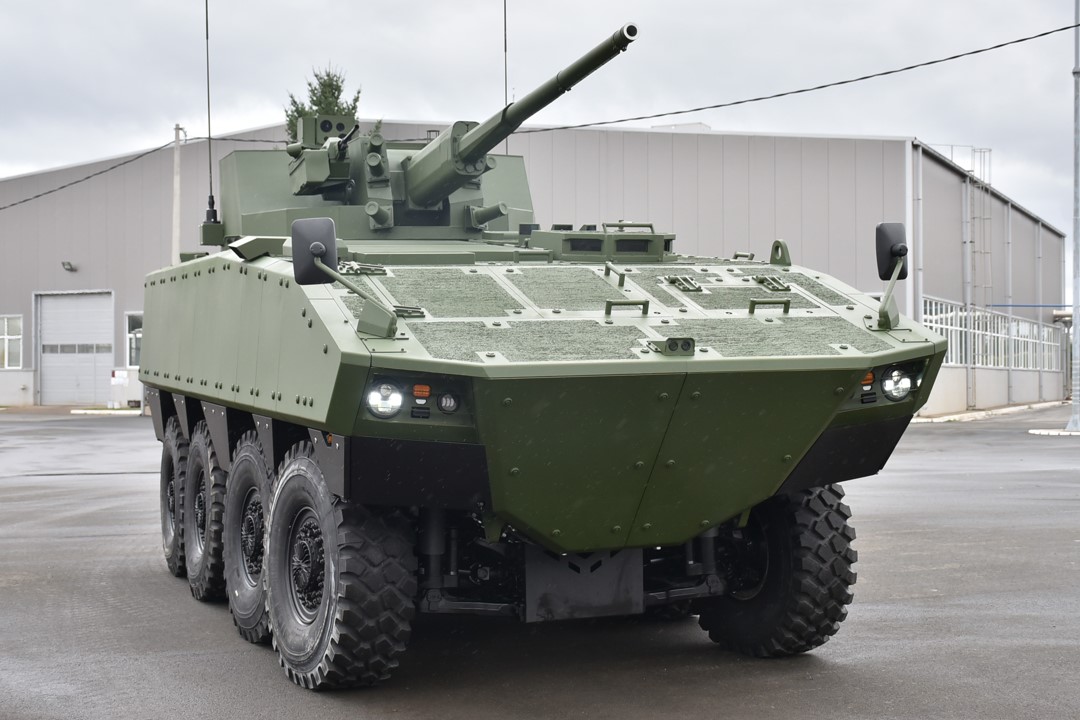

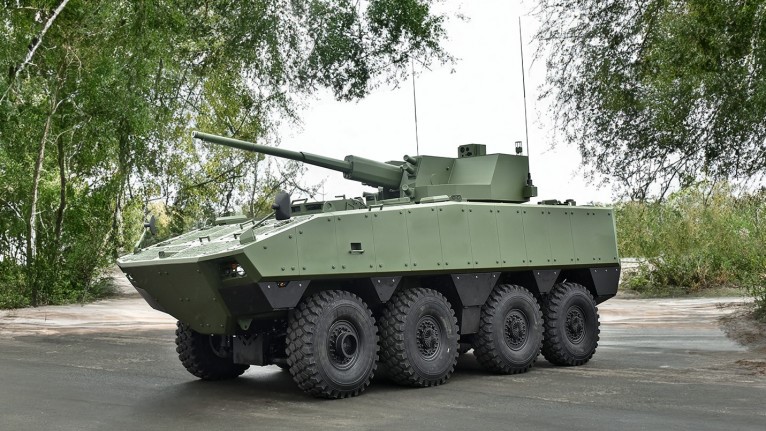

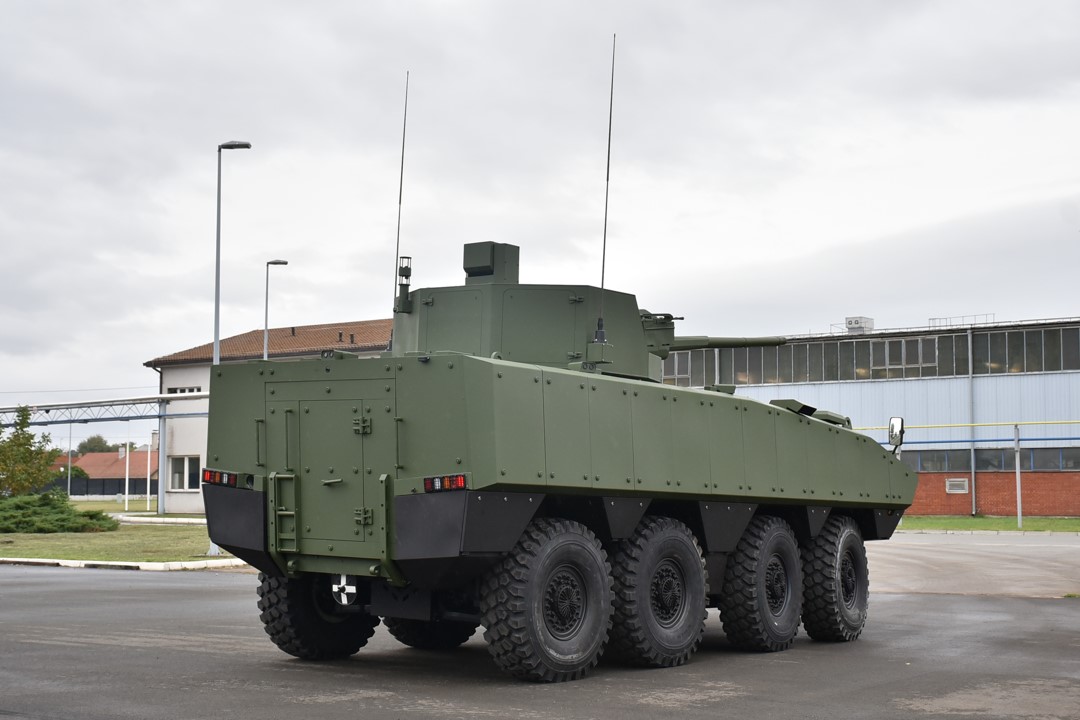

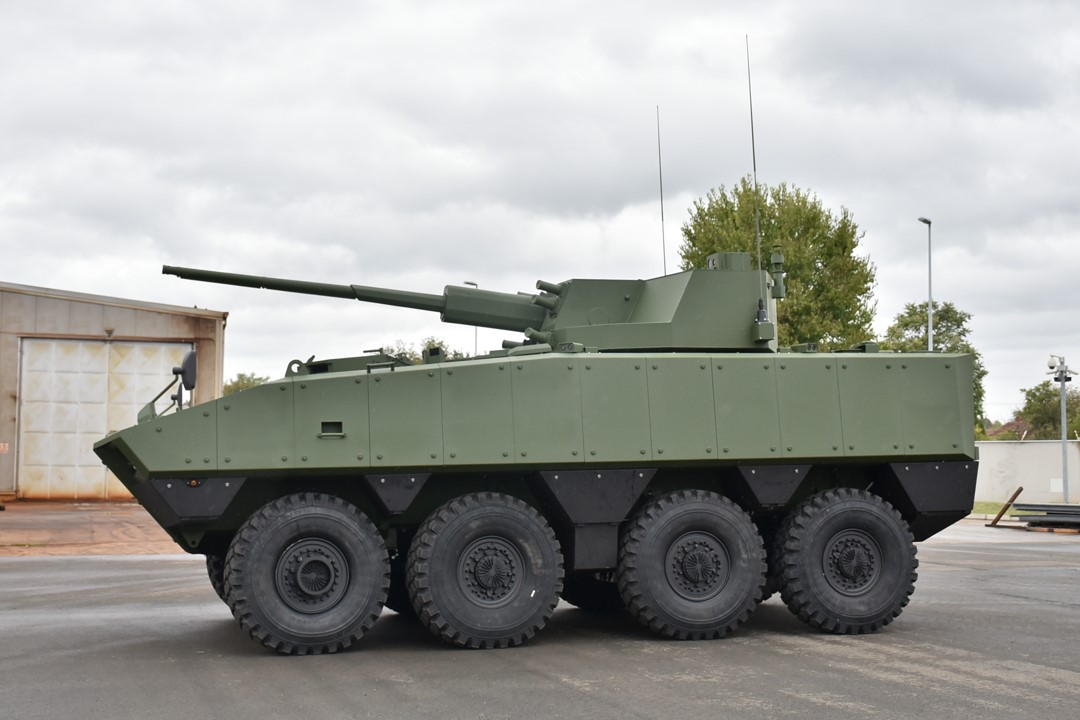

Lazanski Serbian 8x8 Heavy Armored Vehicle
Lazanski
Heavy Armored Personnel Carrier (APC)
Other
Basic Information
Name
Lazanski Serbian 8x8 Heavy Armored Vehicle
Designation
Lazanski
Alternate Designation
Lazanski
Equipment Type
Heavy Armored Personnel Carrier (APC)
Manufacturer
Yugoimport
Date of Introduction
2021
Description
The Lazanski Serbian 8x8 Heavy Armored Vehicle is the most advanced and modern heavy armored vehicle developed by Yugoimport–SDPR. The integration of high-quality components, specialized materials, and cutting-edge technology has resulted in a vehicle that can compete with leading manufacturers worldwide. In the category of 8x8 wheeled vehicles, the Lazanski 8x8 offers exceptional capabilities, with a maximum gross weight of up to 36 tons and a powerful 711 HP turbocharged engine. This robust and formidable vehicle serves as a versatile platform for a wide range of operations, enhancing its effectiveness like never before.
Ground Specifications
Crew
3
Mobility Type
Wheeled (8x8)
Main Weapon
57mm automatic gun
Engine
Turbocharged Diesel (711 hp)
NBC Protection
Yes
System
Alternative Designation
Lazanski
Type
Heavy Armored Vehicle
Manufacturer
Yugoimport
Configuration
8x8
Crew
3 ea
Passengers
10 ea
Dimensions
Length
8.0 m
Width
3.2 m
Height
2.6 m
Weight, Combat
36 tons
Automotive
Engine Name
CATERPILLAR C13
Engine Type
Turbocharged Diesel
Engine Power
711 hp
Maximum Range
INA
Maximum Speed
INA
Amphibious
No
Main Weapon System
Armament
The AU-220M is designed for installation on future armored combat vehicles as well as for the modernization of currently deployed vehicles, enhancing the firepower of motorized rifle and infantry units. This system can also be utilized for air defense missions, which increases the combat flexibility of armored vehicles.
The AU-220M is a remote-controlled, unmanned artillery module with the following capabilities:
- **Rate of Fire**: 80 rounds per minute
- **Firing Range**: Up to 7.5 km (vertical) and up to 14.5 km (horizontal)
- **Laying Angles**:
- Elevation: -5° to +60°
- Traverse: 360°
- **Ammunition Capacity**:
- Automatic Gun: 80 rounds
- Machine Gun: 500 rounds
- **Ammunition Types**: Fixed rounds including high-explosive, armor-piercing, and guided projectiles
- **Weight (including ammunition and in-hull equipment)**: 3,650 kg
- **Mounting Ring Diameter**: 1,740 mm
This comprehensive design ensures that the AU-220M enhances both the offensive and defensive capabilities of armored combat vehicles.
Fire Control System
The Fire Control System (FCS) manages the operations of target detection and identification, as well as the aiming and firing of both the 57mm automatic gun and the 7.62mm machine gun. This system is effective when firing from a stationary position, while moving, and even when afloat in various combat environments. The FCS includes a sighting unit that features a combined sight with both thermal imaging and television channels, a laser rangefinder, and independent dual-axis stabilization for the field of view.
Protection
Armor
All-around fire - protection against 7.62mm bullets (~Level 3 acc. to STANAG 4569).
Front arc - protection against 30mm bullets (~Level 5 acc. to STANAG 4569).
Mine Protection
Stanag level 4a and 4b
Crew Survivability
Special antiblast seats for complete crew members
Ballistic Protection
Yugoimport kit stanag lvl 4 Yugoimport kit stanag level 5 and 6 – in development.
Applique Armor
INA
NBC Protection
Yes
Smoke Equipment
Yes
Details
Country of Origin
Serbia
Category
Wheeled Heavy Armored Vehicles
Land > Heavy Armored Vehicles > Wheeled Heavy Armored Vehicles
Filter Label
L
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8 m
Width
3.2 m
Height
2.6 m
Weight
36000 kg
Operators (1)
Serbia
