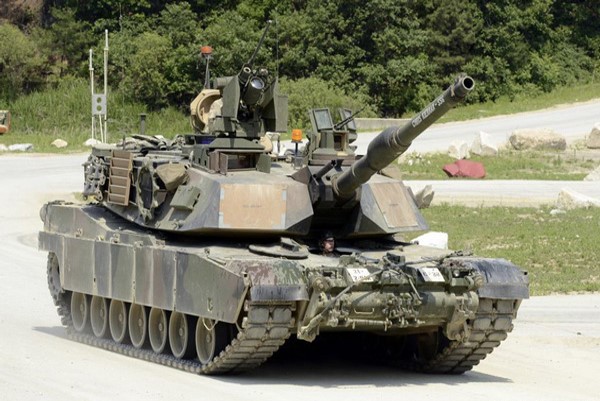

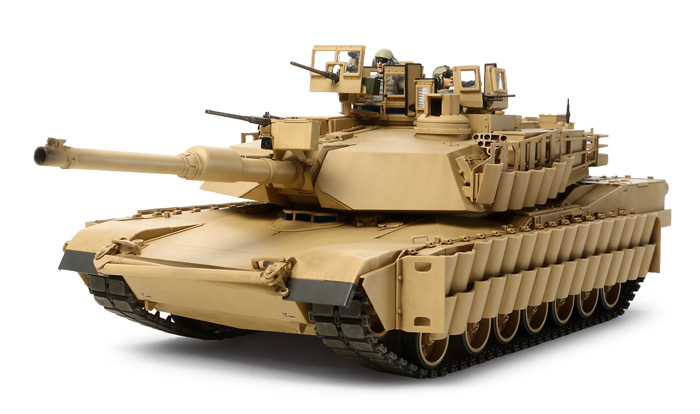

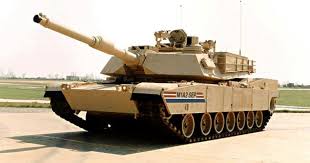

M1A2 Abrams SEP American Main Battle Tank (MBT)

M1A2 Abrams SEP

Main Battle Tank (MBT)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
M1A2 Abrams SEP American Main Battle Tank (MBT)
Designation
M1A2 Abrams SEP
Alternate Designation
M1A2 Abrams SEP v2 (Version two configuration), M1A2 SEP, M1A2 SEPv2, M1A2B
Equipment Type
Main Battle Tank (MBT)
Manufacturer
General Dynamics
Date of Introduction
2001
Description

The M1A2 Abrams main battle tank features a M256 120mm smooth bore gun with 42 rounds, two M240 7.62mm machine guns and a M2 12.7mm crew-served machine gun which provides a short range air defense capability against helicopters and low flying aircraft. The first M1A2 was fielded within the US Army in 1996. US Army M1A2s are remanufactured and upgraded existing M1 Abrams main battle tanks. This model retains mobility and increases firepower compared to previous M1 tank. The M1A2 provides the Abrams with improvements in lethality, survivability, and fightability required to defeat advanced threats. The A2 includes a commander's independent thermal viewer (CITV), an improved weapon station, fire control system, and increased armor. The M1A2 Abrams SEP (System Enhancement Program) features enhanced digital command and control (C2) capabilities allowing the Abrams to use the US Army common command and control software enabling the rapid transfer of digital situational data and map overlays. In addition, a second generation FLIR is provided to gunner and commander, as well as a new auxiliary power unit under armor. The M1A2 Abrams SEP v2 (M1A2SEPv2) standard includes the remotely operated Common Remotely Operated Weapon Station (CROWS II), enhanced microprocessors, color flat-panel displays, and a new operating system. Frontal and side armor were upgraded and the tank was fitted with the Total InteGrated Engine Revitalization (TIGER) affecting the engine and transmission. The US Army plans call for the production of approximately 2,000 M1A2 SEP v2 tanks by June 2014. The M1A1 SA and the M1A2 SEP v2 form the wide majority of the 6,000+ Abrams tanks operated by the US Army and the US Marine Corps.

Ground Specifications
Crew 4
Mobility Type Tracked
Engine Multi-Fuel (1500 hp)
Active Protection In addition to the armor, some USMC Abrams tanks are equipped with a Softkill Active protection system, the AN/VLQ-6 Missile Countermeasure Device (MCD) that can impede the function of guidance systems of some semi-active control line-of-sight (SACLOS) wire- and radio guided anti-tank missiles (such as the Russian 9K114 Shturm) and infrared homing missiles.
Max Speed 68.0 km/h
Range 411.0 km
Overview (Deagel)
Group Main Battle Tanks
Status Active
Also Known As M1A2 Abrams SEP v2 (Version two configuration), M1A2 SEP, M1A2 SEPv2, M1A2B
Origin United States of America
Contractor General Dynamics
Initial Operational Capability (IOC) 2001
Total Production ?
Unitary Cost USD $8.5 million
Specifications (Deagel)
Ammunition Load 42
Crew 4
Rolling Rubber Wheels 7
Dimensions — Height 2.4 meter
Dimensions — Length 9.8 meter
Dimensions — Main Gun Caliber 120 millimeter
Dimensions — Width 3.7 meter
Mass — Combat Weight 71,200 kilogram
Performance — Front Armor Protection APFSDS Round 960 millimeter
Performance — Front Armor Protection HEAT Projectile 1,620 millimeter
Performance — Main Gun Max Range 4 kilometer
Performance — Max Range 411 kilometer
Power — Power 1,500 shp
Speed — Cross Country Speed 48 kph
Speed — Top Speed 68 kph
Gear (Deagel)
Item 1 ATGM & RPG Countermeasures: TROPHY (1)
Item 2 Large Caliber Cannons: 120mm L44 (1)
Item 3 Optronic Systems: CITV (1)
Item 4 Projectiles: M829 APFSDS-T
Item 5 Projectiles: M829A4
Item 6 Projectiles: M830 HEAT-MP-T
Item 7 Projectiles: M831A1 TP-T
Item 8 Projectiles: M865
Item 9 Projectiles: XM1111 Mid Range Munition
Item 10 Riffles & Machine Guns: M2 Browning (1)
Item 11 Riffles & Machine Guns: M240 (1)
Item 12 Vehicle Engines: AGT1500 (1)
Item 13 Weapon Stations: CROWS II (1)
Variants
Variant 1 M1 Abrams
Variant 2 M1A1 Abrams
Variant 3 M1A2 Abrams
Variant 4 M1A2 Abrams SEP
Variant 5 M1A2 Abrams SEPv3
Variant 6 M1A2D Abrams
Variant 7 M1E3 Abrams
Details
Country of Origin United States
Category Tanks
Land > Tanks
Filter Label
M
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.8 m
Width
3.7 m
Height
2.4 m
Weight
71200 kg
Related Equipment (1)
Operators (9)
United States
Australia
Egypt
Iraq
Kuwait
Morocco
Saudi Arabia
Taiwan
CFE Treaty
