Mirach 150 Italian Unmanned Aerial Vehicle (UAV)

Mirach 150

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Mirach 150 Italian Unmanned Aerial Vehicle (UAV)
Designation
Mirach 150
Alternate Designation
Mirach 150
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Selex ES Finmeccanica (since 2016) Leonardo(since 2017)
Date of Introduction
1995
Description

The Mirach 150 is a reconnaissance Unmanned aerial vehicle (UAV) developed in Italy in the 1990s. A turbojet-powered machine, it is apparently a derivative of the Mirach 100 series of targets, being of the same general size and also powered by a Microturbo TRS-18-1 turbojet. Meteor is now promoting a new derivative of the Meteor 150, named the Nibbio, for tactical reconnaissance and other missions. It has an operational radius of 380 kilometers (240 mi) and can carry a 60 kilogram (122 pounds) payload, including Electro-optic/infrared (EO/IR) imagers, Signals intelligence (SIGINT) payloads, or Electronic countermeasure (ECM) payloads. It can be ground or air-launched and is recovered by parachute.

Air & Air Defense Specifications
Engine Turbojet (1 hp)
Max Speed 855.0 km/h
Endurance 1.00 hrs
Service Ceiling 9200 m
Wingspan 2.10 m
System
Alternate Designation Mirach 150
Type Unmanned Aerial Vehicle
Manufacturer Selex ES Finmeccanica (since 2016) Leonardo(since 2017)
Crew Unmanned

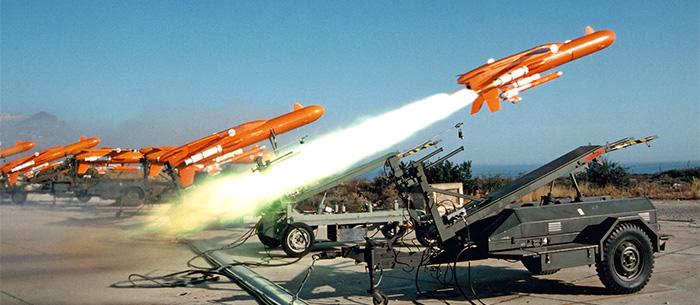

Launch Type Ground or air-launched.
Recovery Type Recovered by parachute.
Payload 60 kg payload, ncluding Electro-optic/infrared (EO/IR) imagers, Signals intelligence (SIGINT) payloads, or Electronic countermeasure (ECM) payloads.
Dimensions
Length 4.70 m
Wingspan 2.10 m
Weight 345 kg
Automotive
Engine Name 1 × Microturbo TRS-18-1
Engine Type Turbojet
Engine Power 1.5 kN (330 lbf) thrust
Maximum Speed 855 km/h
Range 380 km
Service Ceiling 9,200 m
Endurance 1 hour
Details
Country of Origin Italy
Category UAVs
Air > UAVs
Filter Label
M
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
4.7 m
Width
Height
Weight
345 kg
Operators (1)
Italy
