F126

F126

Destroyers
Spotted an error? Sign in to suggest an edit.
F126

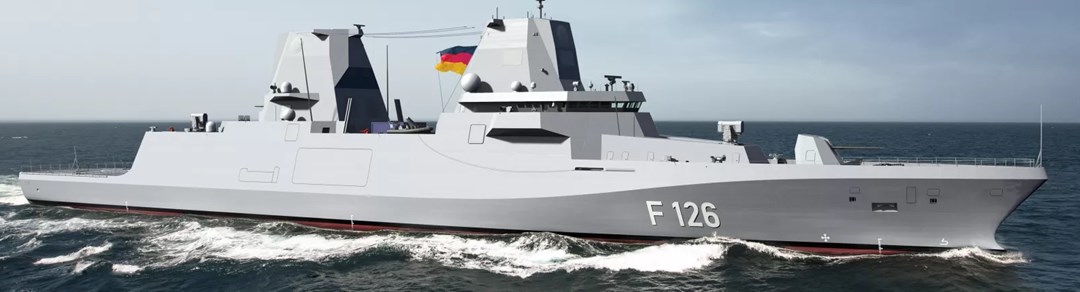

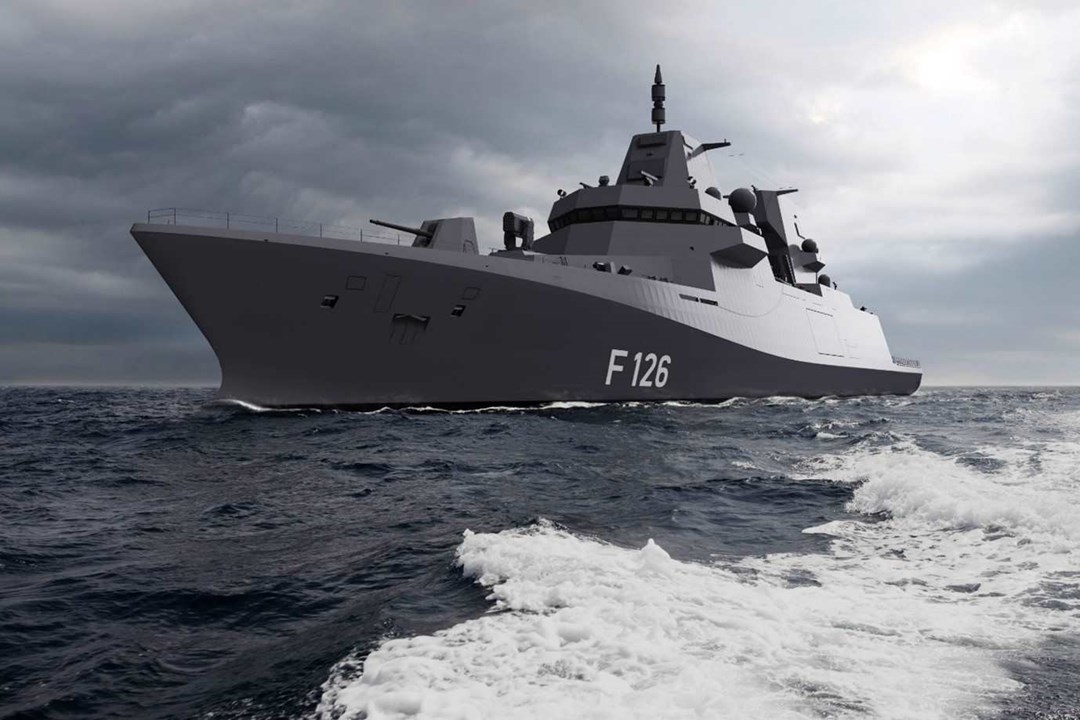

Operational Photo
deagel.com
Basic Information
Name
F126
Designation
F126
Alternate Designation
K131, MKS180, MKS-180
Equipment Type
Destroyers
Manufacturer
Damen Shipyards Group
Date of Introduction
2028
Description

The German Navy MKS-180, also referred to as K131 or F126 class frigate, is a multi-purpose combat ship program aimed at delivering six frigate-sized warships in the early 2030s. The multi-purpose ship is expected to be configured using mission modules to fight a wide variety of targets such as airborne threats, surface ships, submarines as well as providing support for shore deployments. The MKS-180 ship is expected to have a displacement of 10,000 tons with a crew of 180-man. The lead ship of the MKS-180 project is expected to be commissioned in the late 2020s around 2028. The German Navy has a first batch of four frigates on order with Damen Schelde Naval Shipbuilding. The MKS 180 class frigates will be equipped with the TACTICOS combat management system and the Above Water Warfare System (AWWS) fire control cluster. The frigates will include the APAR Block 2 advanced radar system.

Naval & Littoral Specifications
Crew 180
Displacement 10000.00 tonnes
Beam 21.70 m
Draft 6.00 m
Max Speed 26.0 knots
Overview (Deagel)
Group Destroyers
Status Under Development
Also Known As K131, MKS180, MKS-180
Origin Germany
Contractor Damen Shipyards Group
Initial Operational Capability (IOC) 2028
Total Production 6
Unitary Cost EUR 3 billion
Specifications (Deagel)
Crew 180
Number of Aircraft 1
Dimensions — Beam 21.7 meter
Dimensions — Draft 6 meter
Dimensions — Length 180 meter
Dimensions — Main Gun Caliber 127 millimeter
Dimensions — Ship's Height 39 meter
Mass — Full Displacement 10,000 ton
Performance — Max Range 4,000 nautical mile
Power — Total Combined Power 32 MW
Speed — Cruise Speed 18 knot
Speed — Economical Speed 18 knot
Speed — Top Speed 26 knot
Time — Mission Endurance 21 day
Gear (Deagel)
Item 1 Combat Management Systems: TACTICOS
Item 2 Radar Systems: APAR Block 2 (1)
Item 3 Radar Systems: Sea Master 400 (1)
Item 4 Sea-Based Air Defense Systems: AWWS
Item 5 Surface-to-Air Missiles: ESSM Block II
Item 6 Surface-to-Air Missiles: RAM Block 2
Item 7 Weapon Stations: MLG 27 (2)
Details
Country of Origin Germany
Category Destroyers
Naval > Destroyers
Sources

deagel.com: https://www.deagel.com/x/x/a003817

Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
180 m
Width
21.7 m
Height
—
Weight
10000000 kg
Operators (1)
Germany
