A160 Hummingbird

A160 Hummingbird

Reconnaissance Rotorcrafts
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
A160 Hummingbird
Designation
A160 Hummingbird
Alternate Designation
A160T (turbine-powered version)
Equipment Type
Reconnaissance Rotorcrafts
Manufacturer
Boeing
Date of Introduction
Description

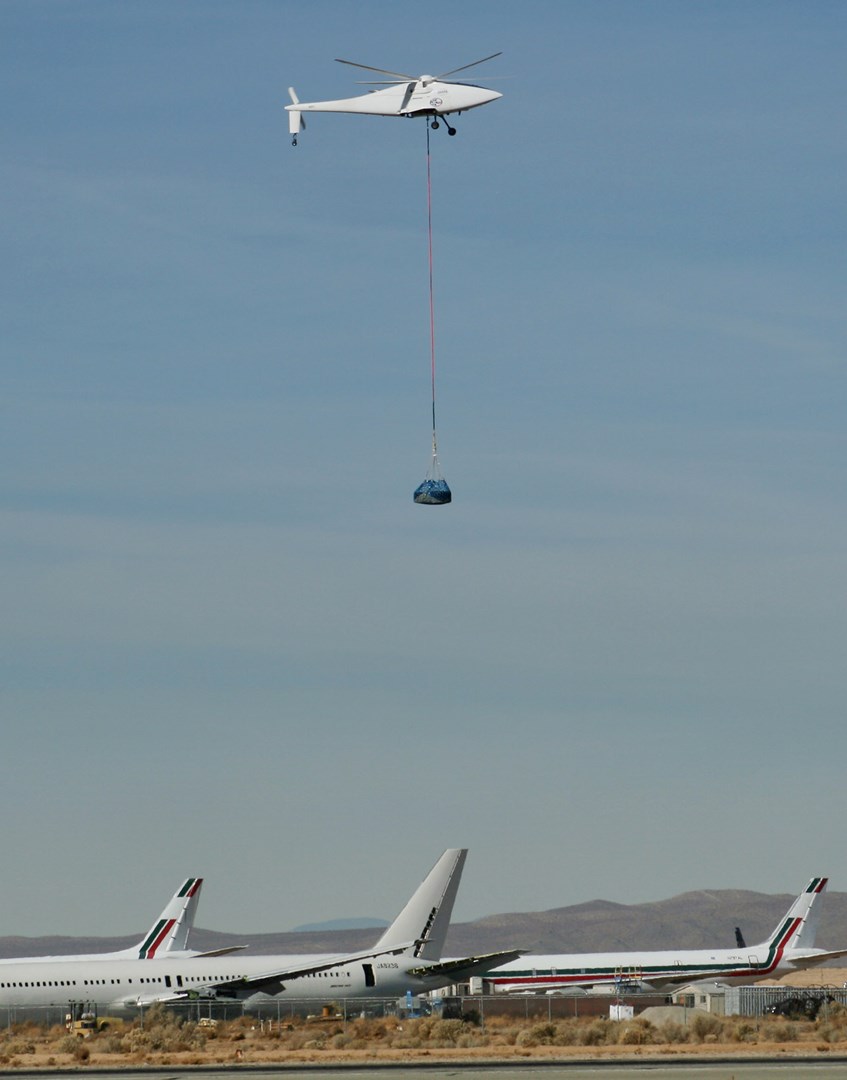

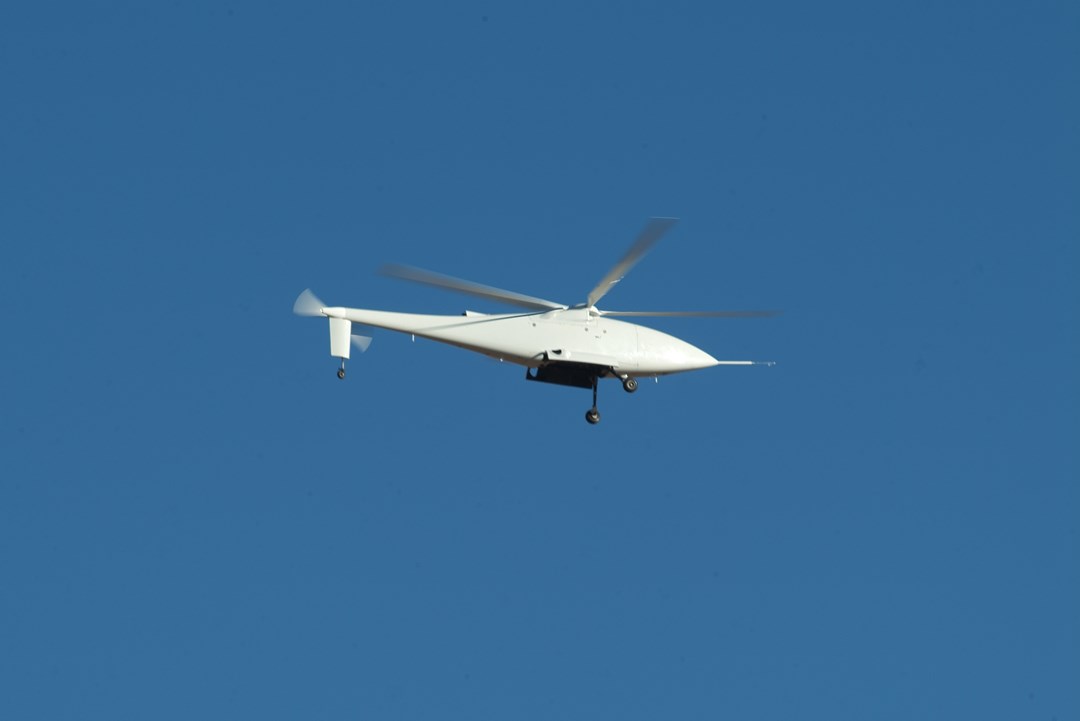

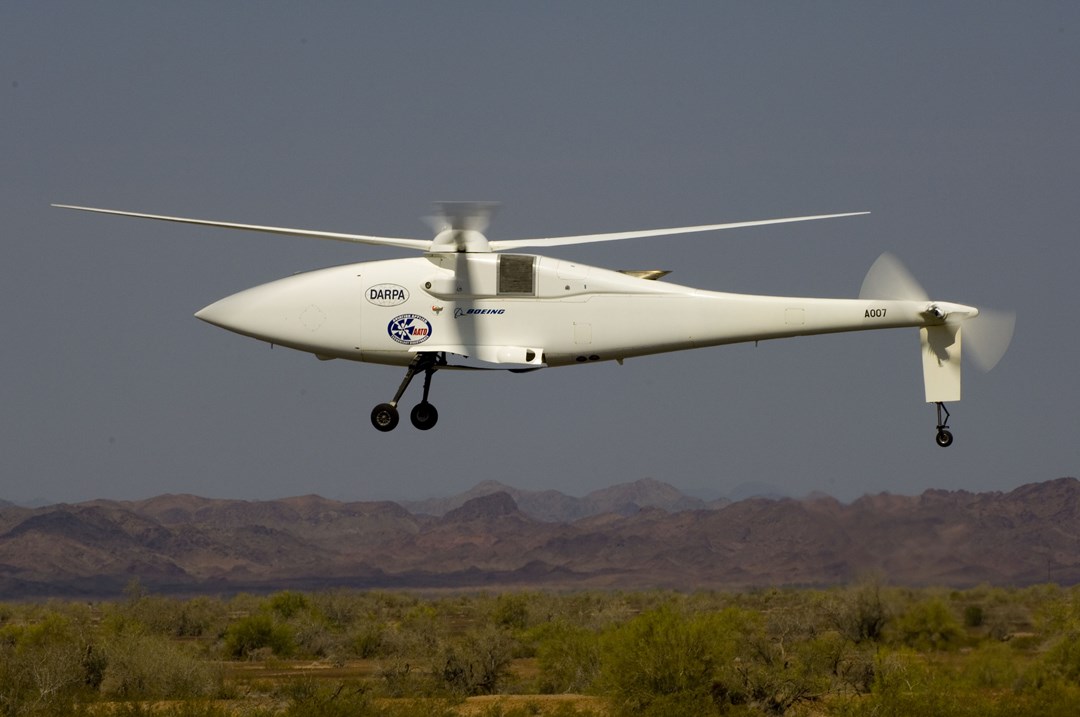

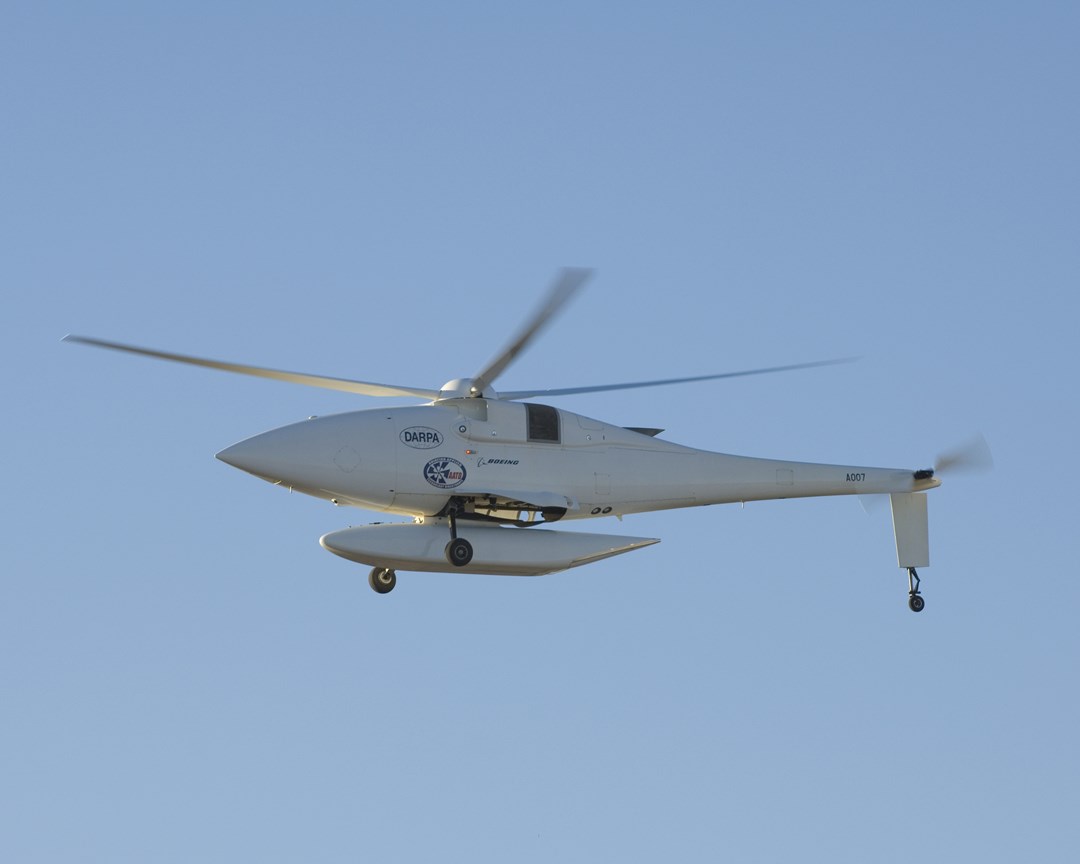

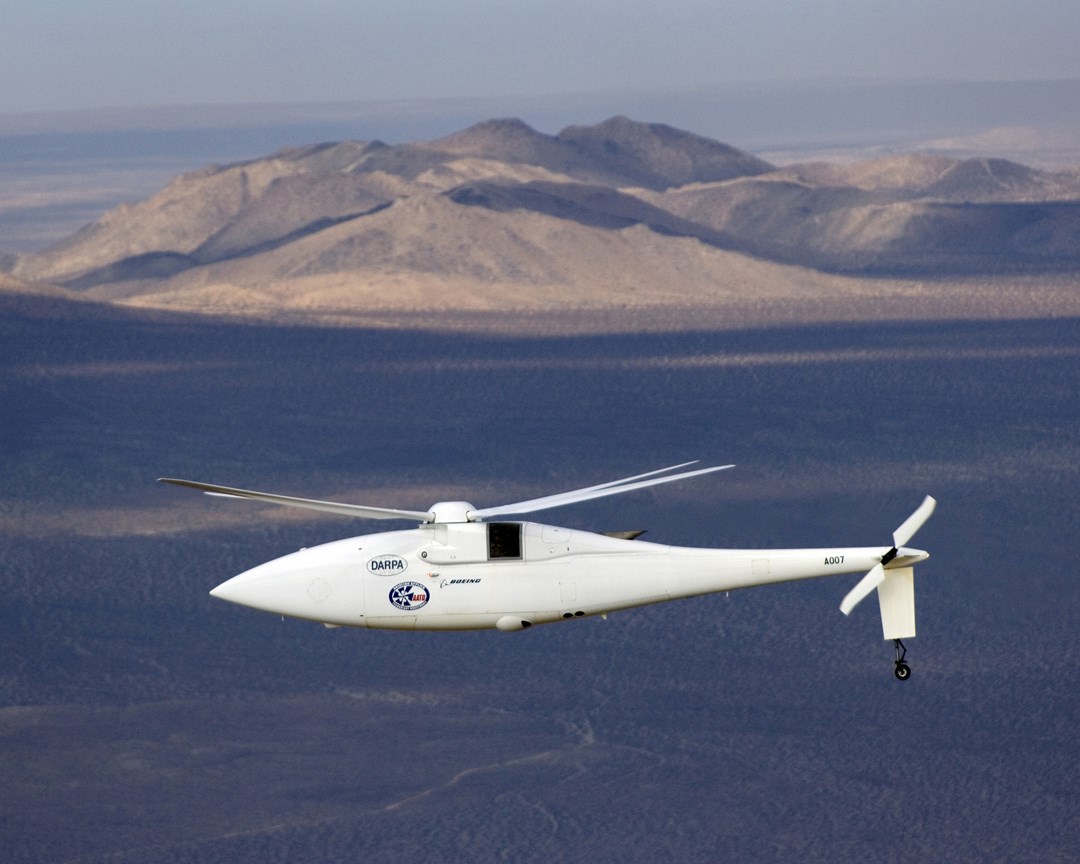

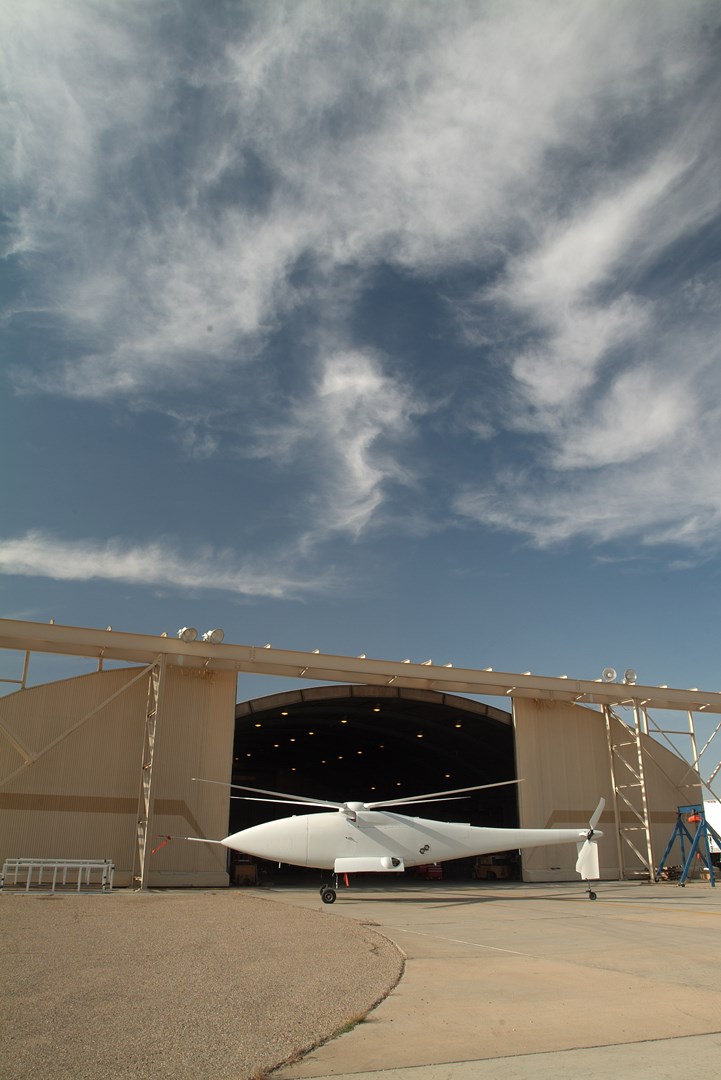

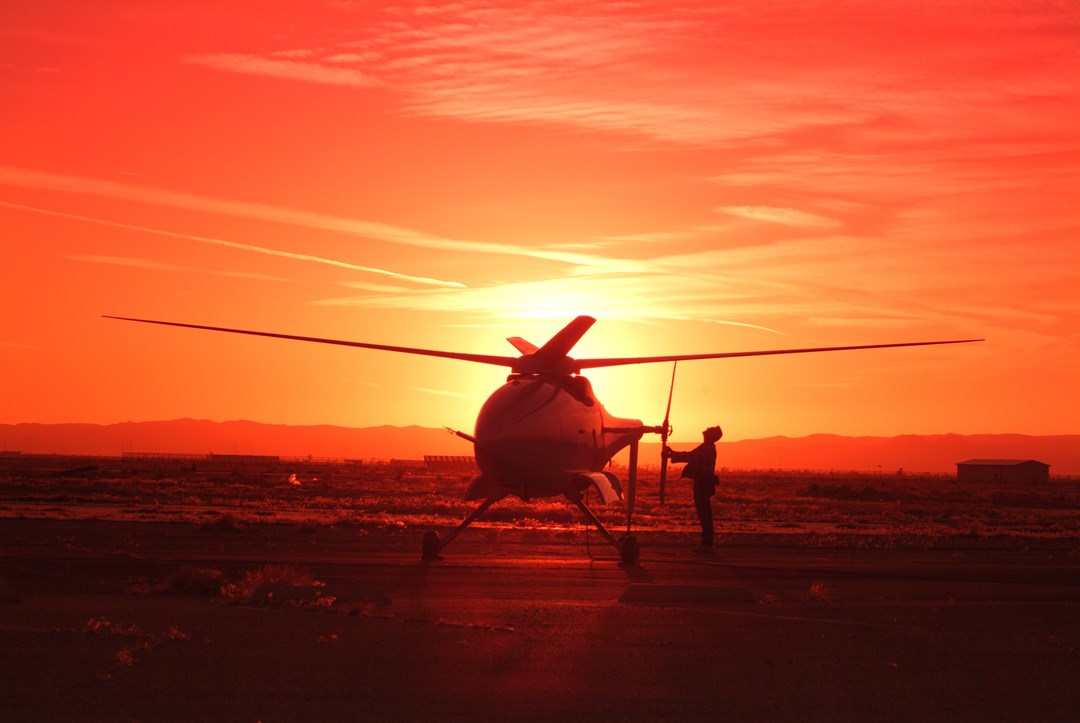

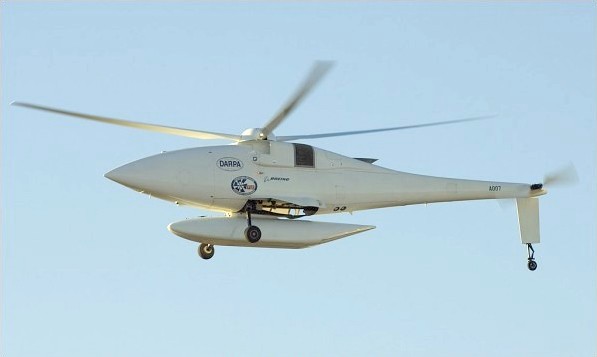

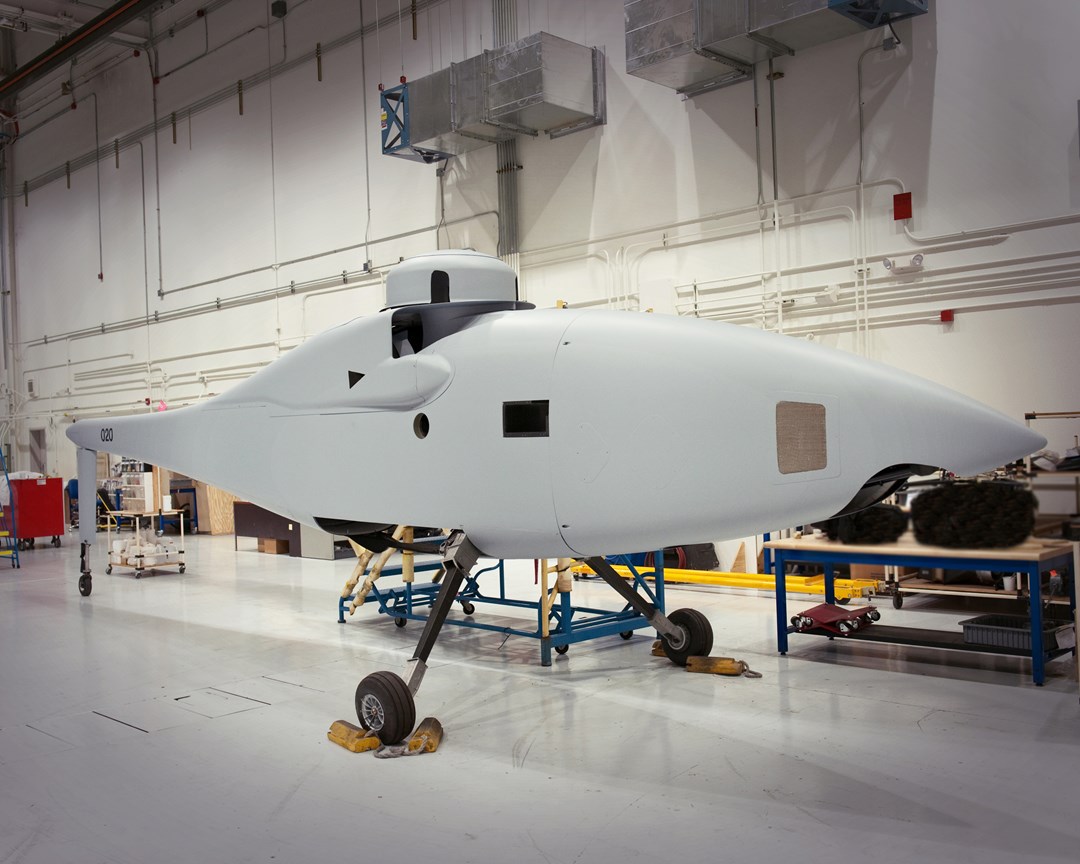

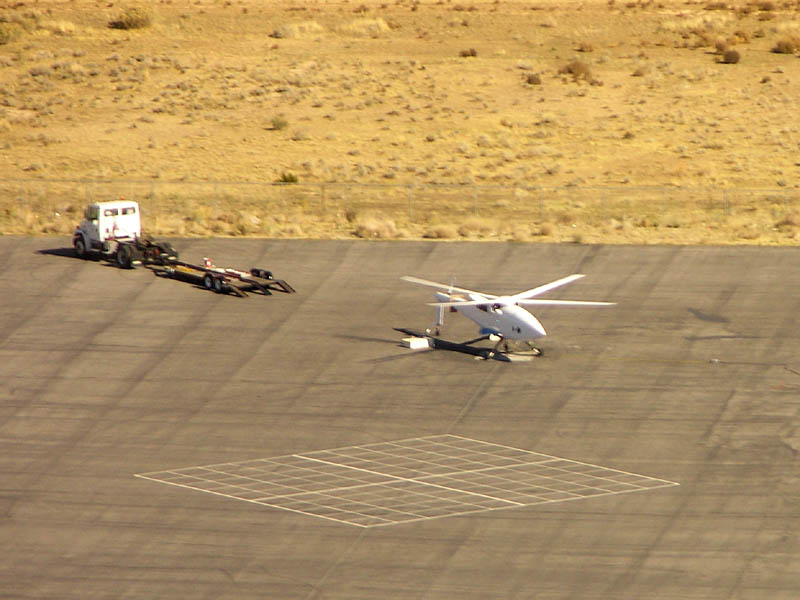

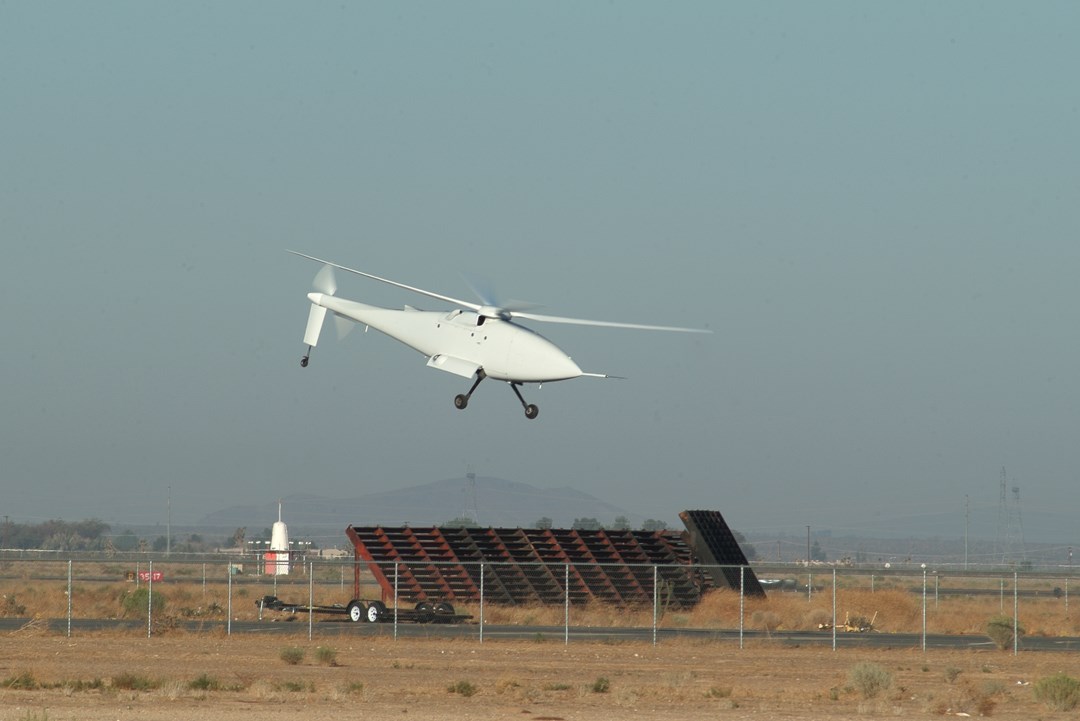

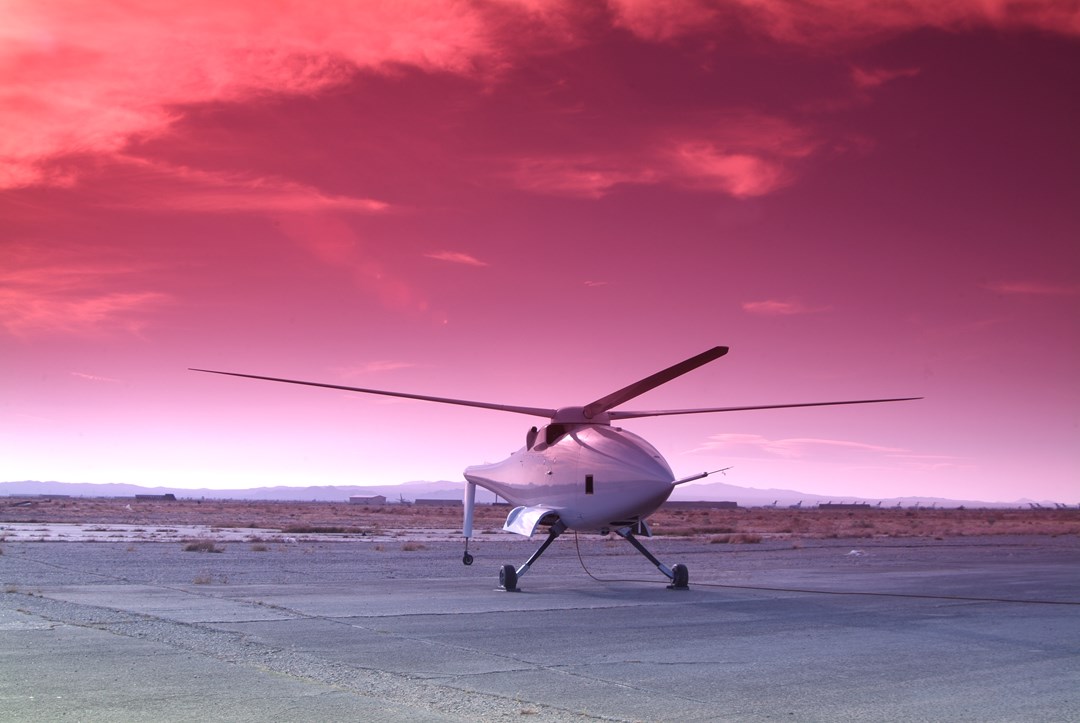

The A160 Hummingbird is a four-blade, vertical take-off and landing Unmanned Aerial Vehicle (UAV) suitable for urban areas which flight development began in November 2002. The aircraft was designed and developed originally by Frontier Systems, Irvine, California. Frontier Systems Inc. was acquired by Boeing in May 2004. The Hummingbird program is being funded by DARPA. The A160 Hummingbird unmanned helicopter will be capable of flying 2,500 nautical miles with endurance in excess of 24 hours and a payload of more than 300 pounds. US and international military forces will benefit from surveillance, reconnaissance, target acquisition, communication relay and precision re-supply provided by this innovative aircraft. On 10 August 2005, Frontier Systems Inc, a Boeing subsidiary, was awarded a $50 million contract for an Advanced Concept Technology Demonstration (ACTD) of the A-160 Hummingbird Vertical Take-Off and Landing (VTOL) Unmanned Aerial Vehicle (UAV) to assess the military utility and affordability of a long-range VTOL UAV employing a wide variety of adaptable payloads. The demonstration program was expected to be complete by August 2008. The A160T is a turbine-powered variant of A160 Hummingbird unmanned aircraft and planned for introduction Spring 2007.

Air & Air Defense Specifications
Max Speed 259.2 km/h
Range 4630.0 km
Service Ceiling 9000 m
Overview (Deagel)
Group Reconnaissance Rotorcrafts
Status Under Development
Also Known As A160T (turbine-powered version)
Origin United States of America
Contractor Boeing
First Flight 2002
Total Production ?
Specifications (Deagel)
Crew 0
Main Rotor Blades 4
Dimensions — Length 10.7 meter
Dimensions — Main Rotor Diameter 11 meter
Mass — Payload 136 kilogram
Performance — Ceiling 9,000 meter
Performance — Max Range 4,630 kilometer
Speed — Top Speed at High Altitude 72 mps
Time — Flight Endurance 24 hour
Gear (Deagel)
Item 1 Mapping Systems: AACER (1)
Details
Country of Origin United States
Category Rotary Wing Aircraft
Air > Rotary Wing Aircraft
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
10.7 m
Width
11 m
Height
Weight
Operators (1)
United States
