Bronco 3 Singaporean Amphibious Tracked Articulated Multipurpose Vehicle
Bronco 3
Tracked Infantry Fighting Vehicle
Other
Basic Information
Name
Bronco 3 Singaporean Amphibious Tracked Articulated Multipurpose Vehicle
Designation
Bronco 3
Alternate Designation
Bronco 3
Equipment Type
Tracked Infantry Fighting Vehicle
Manufacturer
Singapore Technologies Engineering (ST Engineering)
Date of Introduction
2012
Description

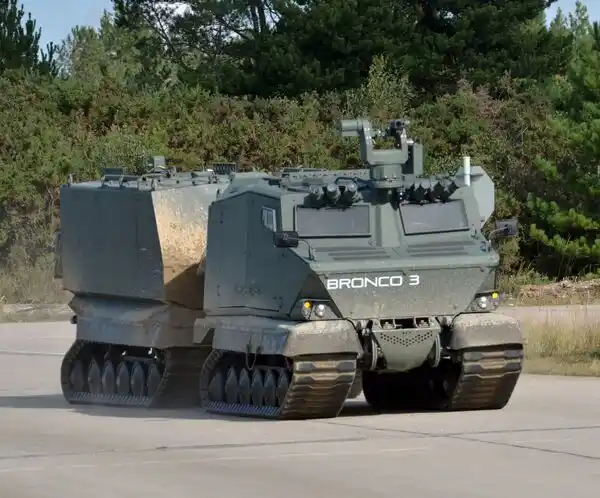

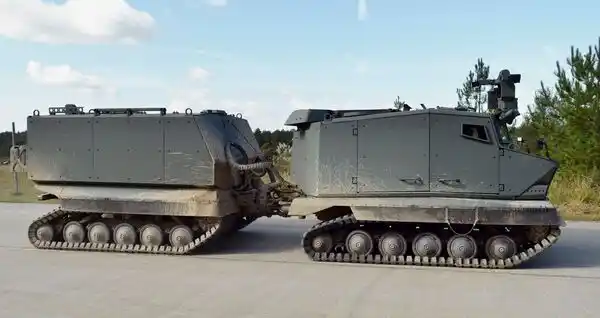

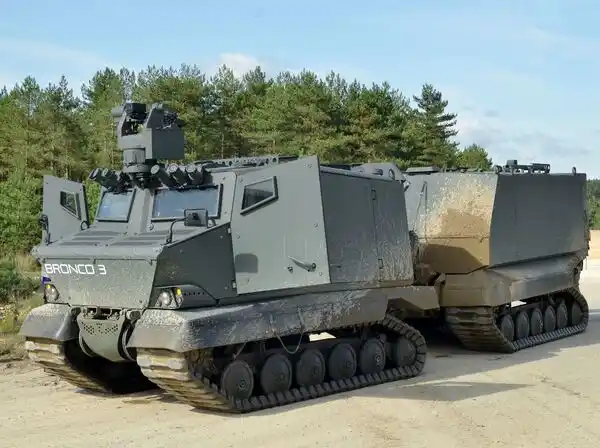

The Bronco 3 Singaporean Tracked Articulated Multipurpose Vehicle is a tracked articulated multipurpose vehicle designed and manufactured by Singapore Technologies Engineering (ST Engineering) in Singapore. It is designed to provide a user with a baseline vehicle that can cross the majority of terrains encountered while providing protection that is sufficient for modern conflict.
Ground Specifications
Crew
4
Engine
Diesel (325 hp)
NBC Protection
Yes
Range
400.0 km
Variants
Bronco
The Bronco is an articulated tracked AFV designed to provide users with mobility across extreme terrain and if required a platform family that can be used to support all of a formation's needs.
System
Alternative Designation
Bronco 3
Type
Tracked Articulated Multipurpose Vehicle
Manufacturer
Singapore Technologies Engineering (ST Engineering)
Configuration
Tracked
Crew
4 ea
Passenger Capacity
8 ea
Payload Capacity
6,300 kg
Operating Temperature
-73°C to 80°C
Dimensions
Length
8.6 m
Width
2.26 m
Height
2.3 m
Track Width
600 mm
Weight, Standard
10,200 kg
Weight, Combat
16,500 kg
Automotive
Engine Name
MTU
Engine Type
Diesel
Engine Power
325 hp at 2,200 rpm
Power-to-Weight Ratio
19.69 hp/t
Fuel Capacity
The vehicle has two fuel tanks; one under the rear module that doubles as protection and a smaller one under the front module. The front fuel tank contains 40 litres of fuel and is continuously supplied by two 200-litre fuel tanks installed under the rear module.
Electrical System
24 V
Batteries
4 × 12 V
Alternator
450 A
Range
400 km
Speed, Maximum Road
65 km/h
Speed, Average Cross
INA
Speed Maximum Swim
4 km/h
Gradient
60%
Side Slope
30%
Turning Radius
8 m
Steering
hydrostatic, articulated, damped
Suspension
rubber brushed
Main Weapon System
Note #1
The standard armament presented on the Bronco 3 is the Adder ROWS installed on the front module. The ROWS can armed with a 12.7 mm heavy MG, a 7.62 mm general-purpose MG, or 40 mm AGL with coaxial 7.62 mm MG.
Note #2
When equipped with a fire support rear module, the Bronco 3 carries a 120 mm Super Rapid Advanced Mortar System (SRAMS), which can fire up to 10 rds/min and is fitted with a semi-automatic loader.
Fire Control System
FCS Name
INA
Computerized FCS
Yes, if the Bronco 3 is equipment with the 120 mm Super Rapid Advanced Mortar System (SRAMS).
Protection
Armor
The Bronco 3 has a V-shaped hull and high ground clearance to increase its protection from the effects of a mine blast. Both modules are built from welded and bent steel armor that can be upgraded with additional passive armors to provide protection up to NATO STANAG 4569 Level 4.
Applique Armor
Available
Mine Clearing
No
Self-Entrenching Blade
No
NBC Protection
Yes
Smoke Equipment
INA
Details
Country of Origin
Singapore
Category
Tracked All-Terrain Vehicles
Land > All-Terrain Vehicles > Tracked All-Terrain Vehicles
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8.6 m
Width
2.26 m
Height
2.3 m
Weight
16500 kg
Operators (2)
Singapore
Thailand
