Supercam S150 Russian Unmanned Aerial Vehicle (UAV)

Supercam S150

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Supercam S150 Russian Unmanned Aerial Vehicle (UAV)
Designation
Supercam S150
Alternate Designation
Supercam S150
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Supercam Unmanned Systems Group
Date of Introduction
2020
Description

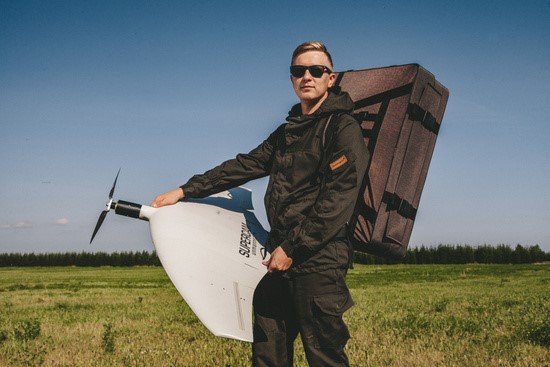

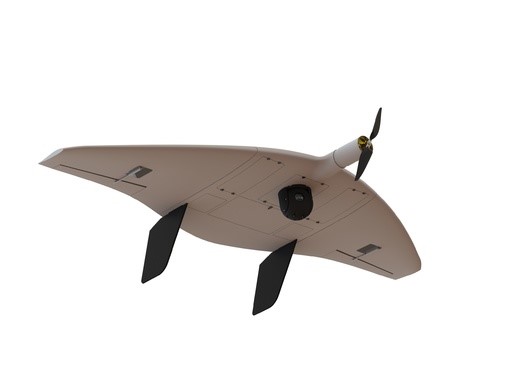

The Supercam S150 Russian Unmanned Aerial Vehicle (UAV) combines optimum capabilities for a wide range of tasks. The aircraft's wingspan is 1.5 meters, while the modular design with removable wing panels allows carrying it in a disassembled state in a small backpack case. S150 is one of the most compact Supercam UAVs while having higher performance characteristics than competitors with similar dimensions. The UAV endurance is 2 hours. The radio link range is up to 50 km, and the video transmission range is up to 25 km via a secure broadband digital video link. Supercam S150 is equipped with cutting-edge optoelectronic systems, vision systems, and automatic target tracking systems. In addition to surveillance and reconnaissance application at any time of the day, Supercam S150 UAS is perfect for high-precision terrain aerial photography. Dual frequency GNSS equipment, 24 to 42 MP cameras, and multispectral cameras of well-known brands designed for agriculture applications can be installed onboard the UAV. Simultaneous operation of several payloads is also possible.

Air & Air Defense Specifications
Engine Battery
Max Speed 120.0 km/h
Range 110.0 km
Endurance 2.00 hrs
Wingspan 1.50 m
System
Alternate Designation Supercam S150
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Supercam Unmanned Systems Group
Autonomy Semi-Autonomous
Crew Unmanned
Radio Link Range up to 30 km
Video Transmission Range up to 25 km
Payload Options - 20/24/42 MP photo camera with the ability to be mounted on the azimuth stabilized platform - Gyro-stabilized thermal imaging camera and/or PAL or HD video camera with 10х optical zoom, that can be combined together, and optionally enhanced with a laser target marker - Multispectral camera
Deployment Time 10 min
Launching System elastic catapult
Recovery System with a parachute in automatic or semi-automatic mode
Operational Temperature -40°С to +45°С
Accessories - Automatic target tracking module - Dual (triple) system, dual-frequency geodetic receiver - Video link for digital broadband transmission within a range of up to 25 km - Radio link of telemetry and control with the ability of FHSS operation
Dimensions
Length INA
Wingspan 1.5 m
Height INA
Maximum Takeoff Weight 5.5 kg
Automotive
Engine Name INA
Engine Type Battery
Engine Power INA
Maximum Speed 120 km/h
Cruising Speed INA
Operational Height INA
Maximum Distance 110 km
Maximum Windspeed 15 m/s
Endurance 2 hours
Details
Country of Origin Russia
Category UAVs
Air > UAVs
Filter Label
S
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
Width
1.5 m
Height
Weight
5.5 kg
Operators (1)
Russia
