Project 23040
Project 23040
Rescue Ships

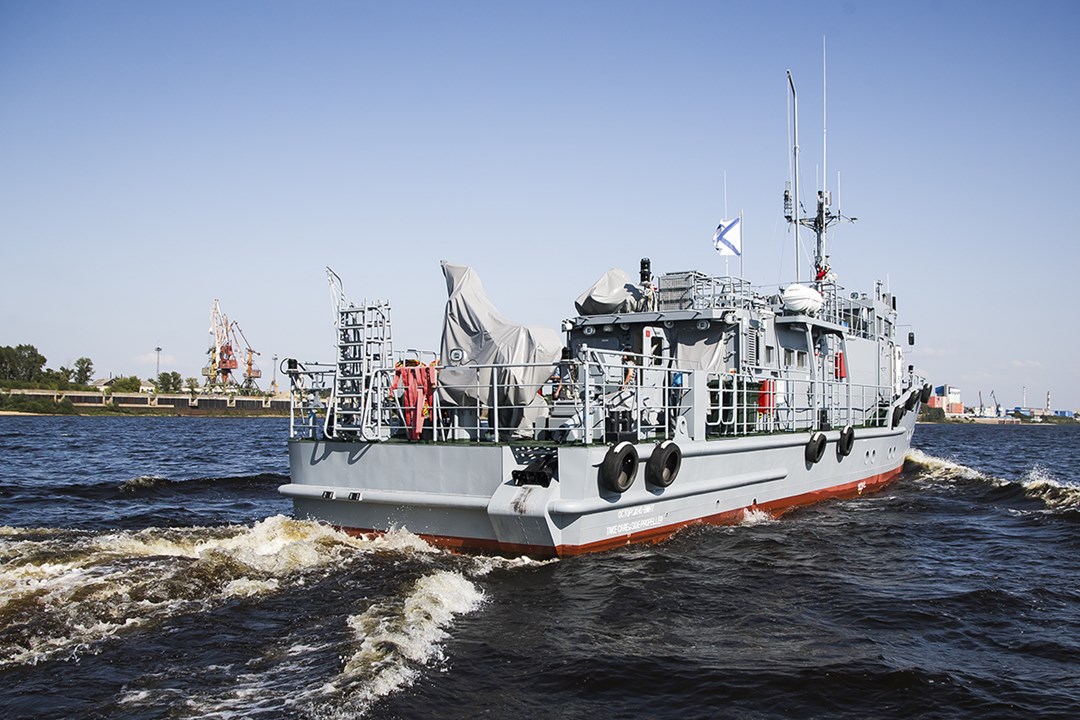

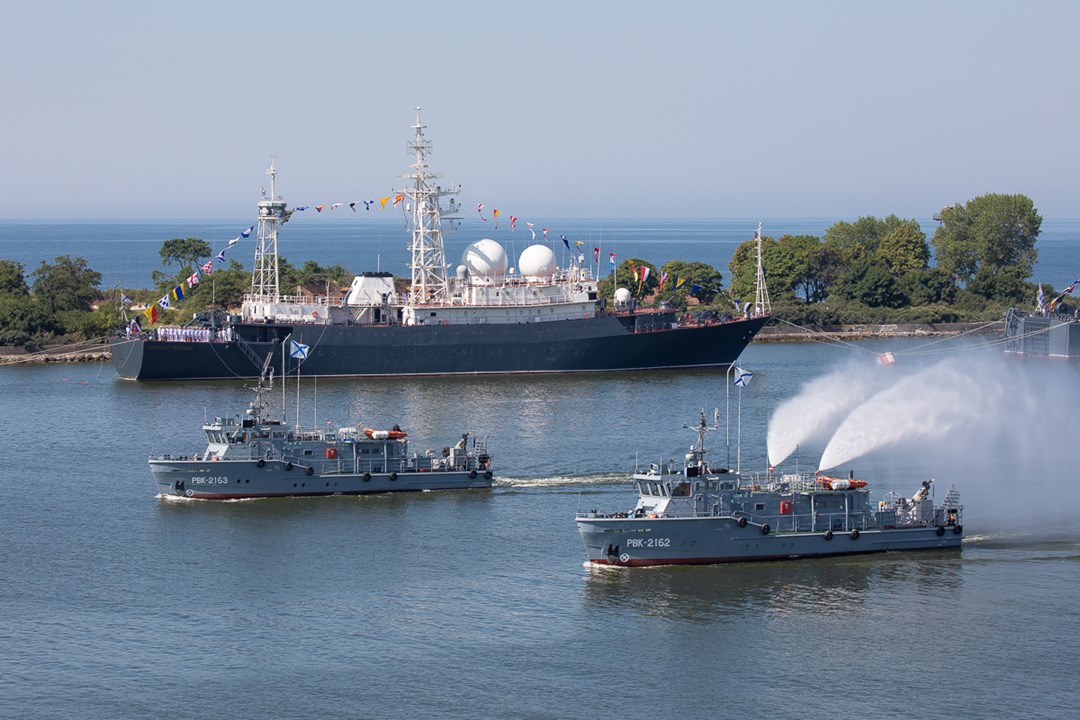

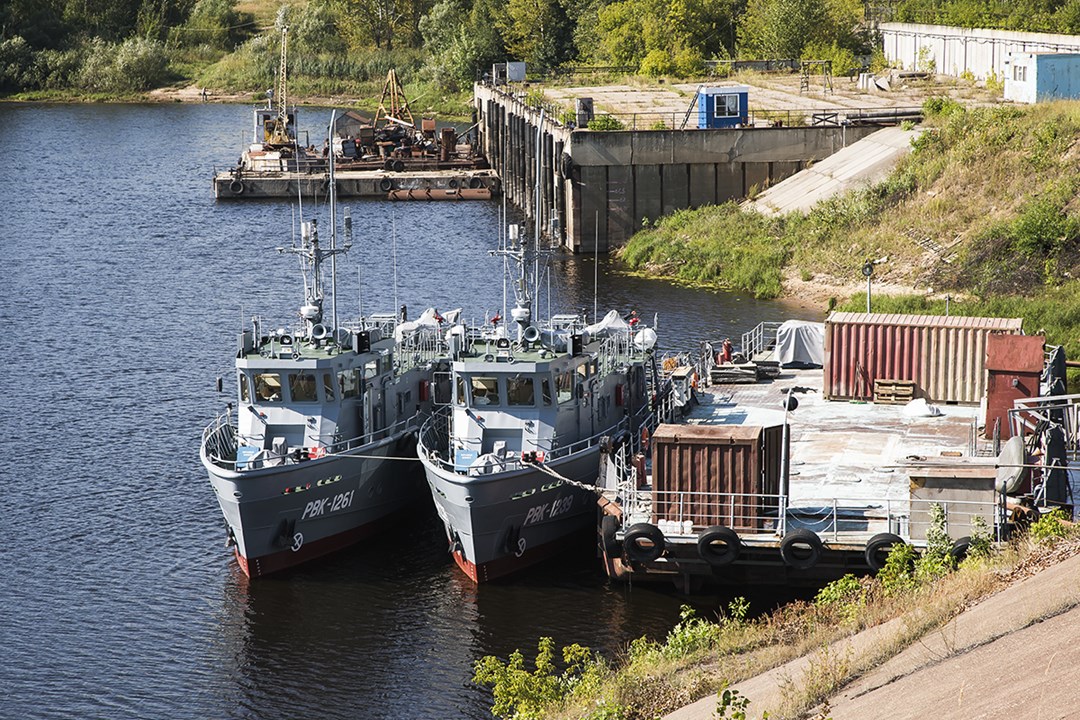

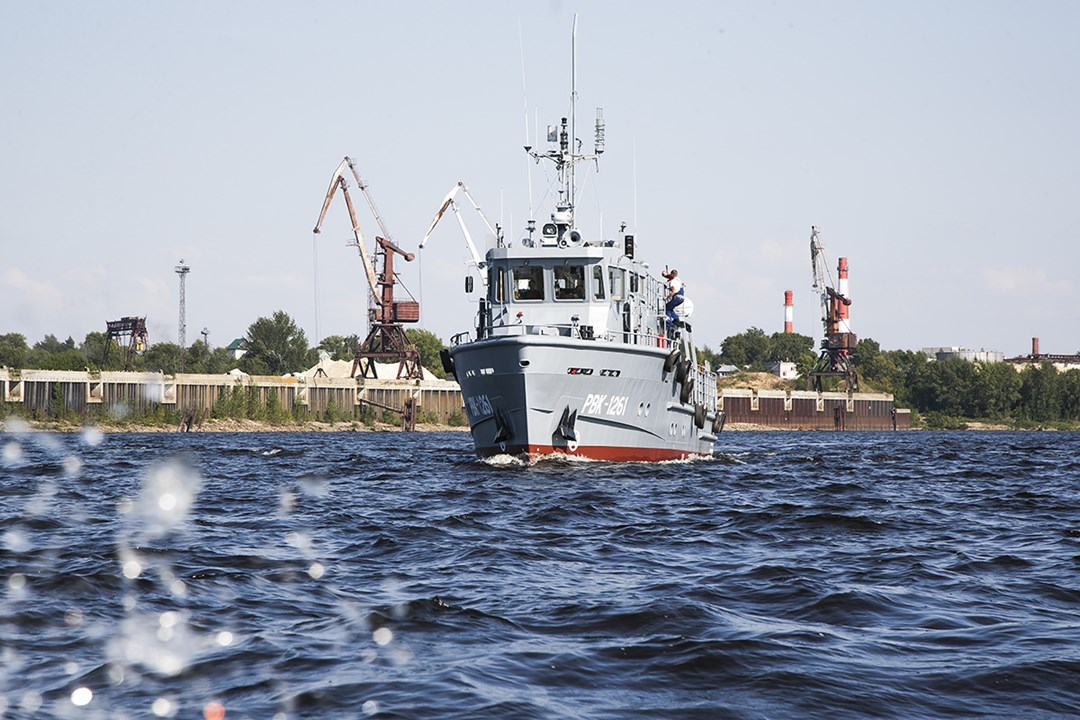

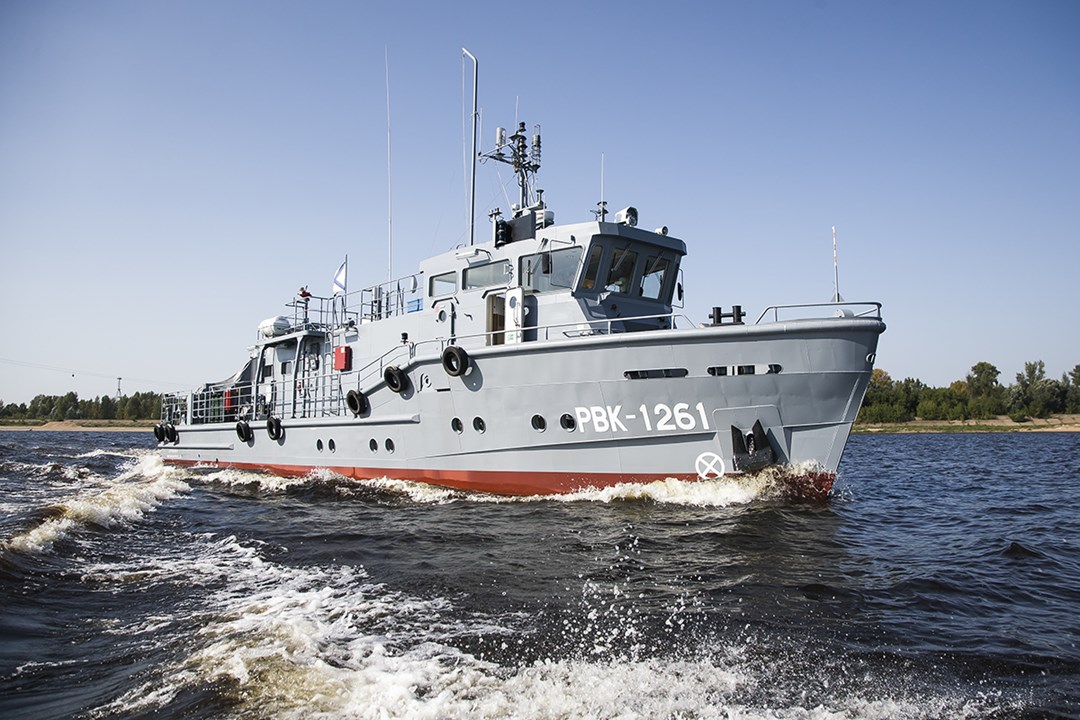

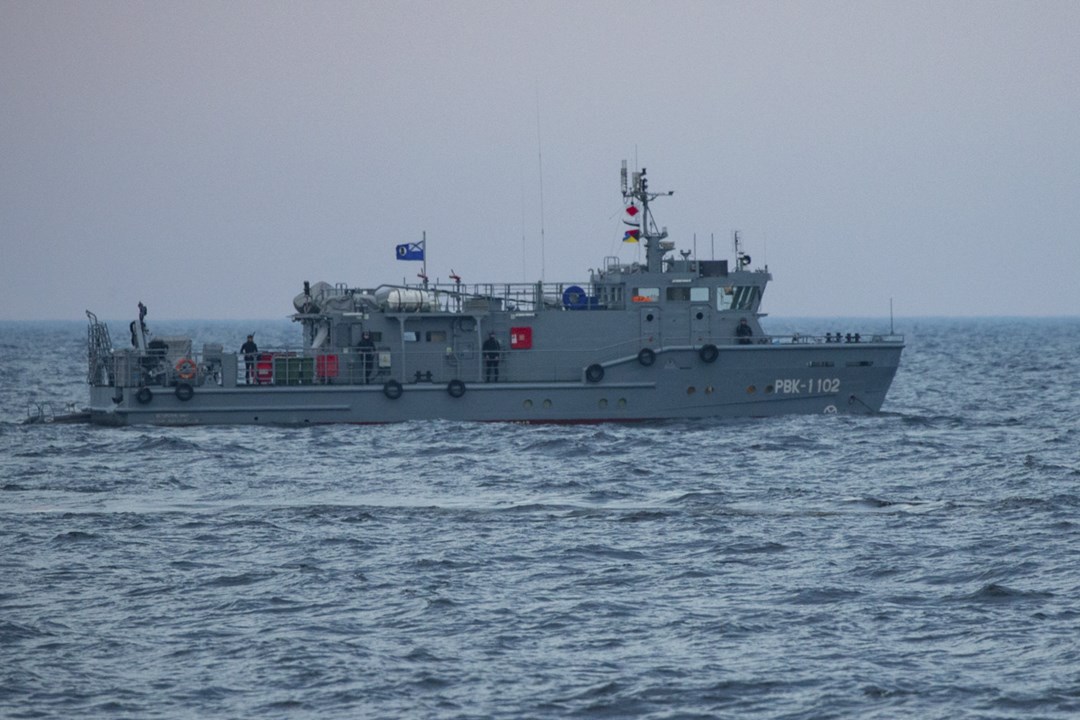

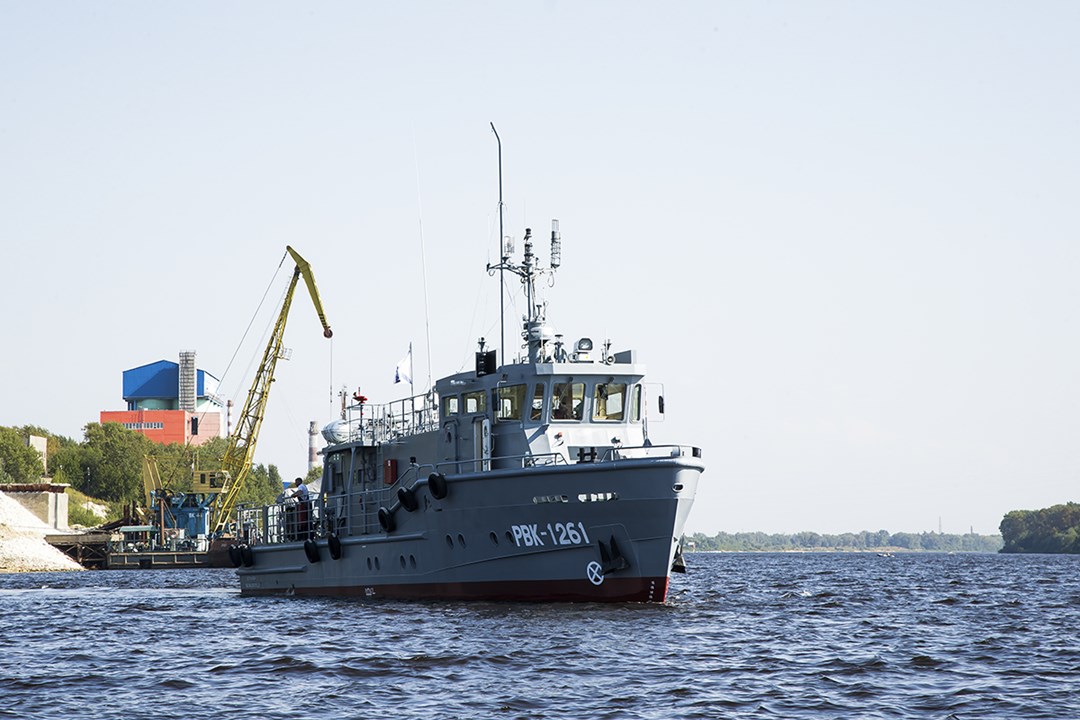

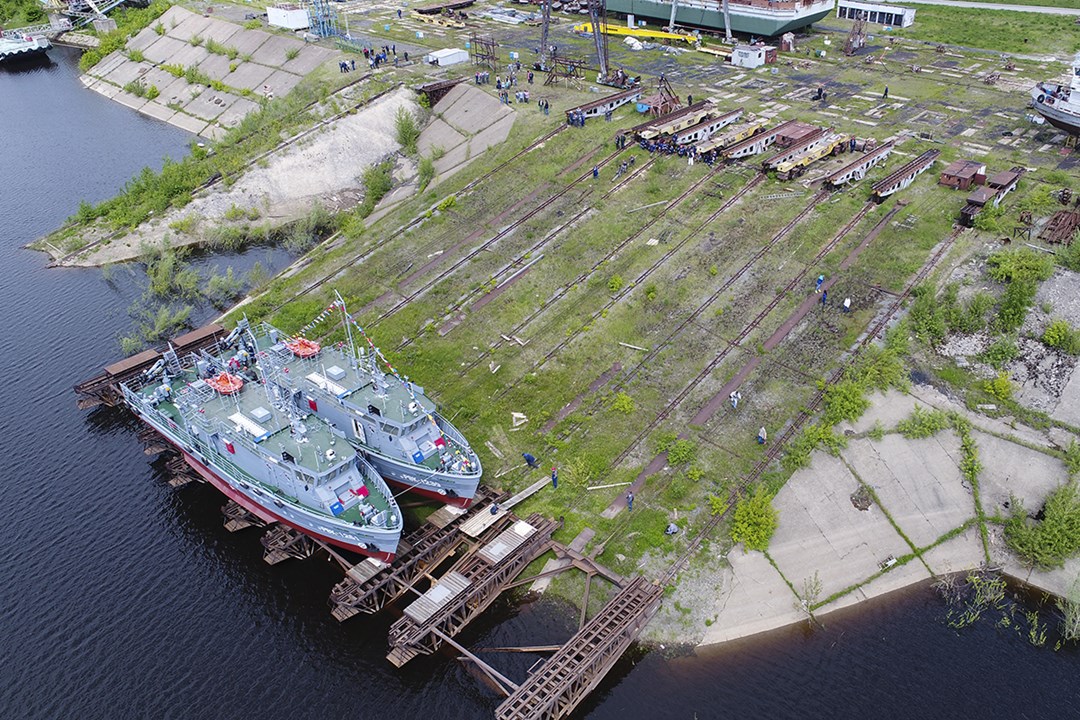

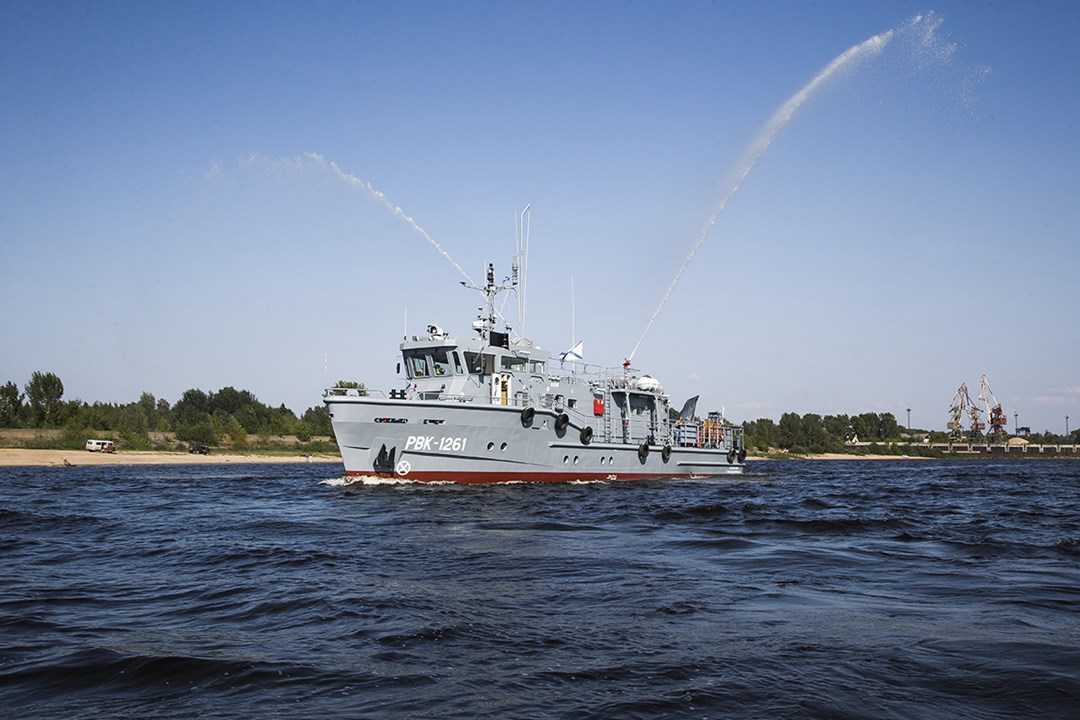

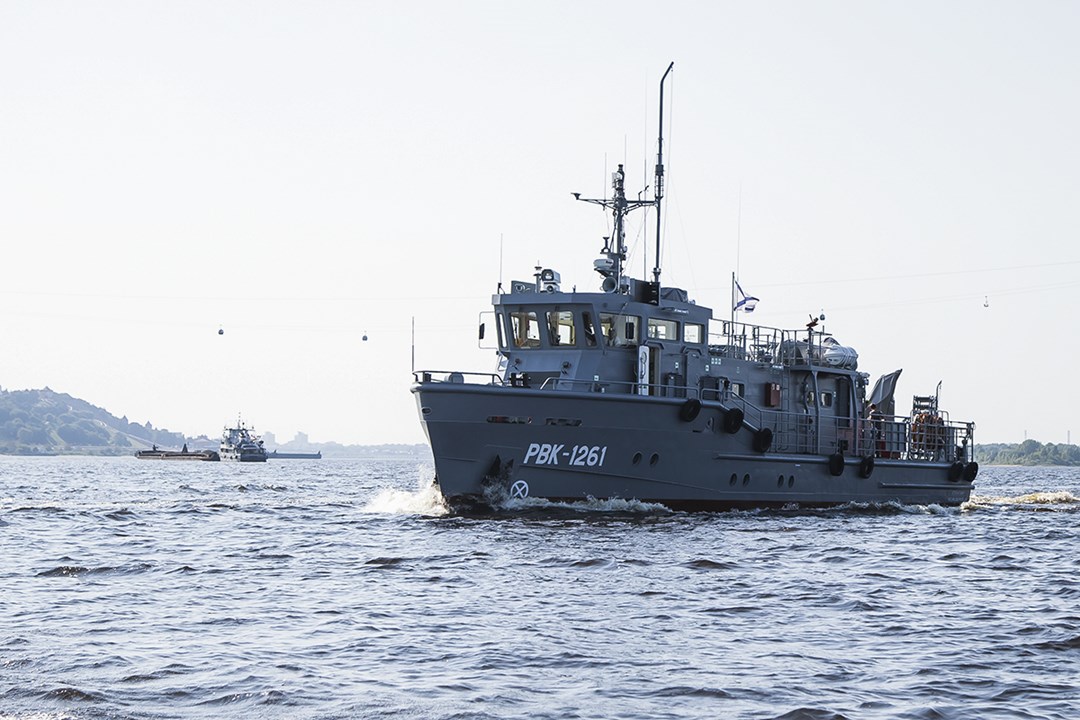

Operational Photo
Basic Information
Name
Project 23040
Designation
Project 23040
Alternate Designation
Project 23040G
Equipment Type
Rescue Ships
Manufacturer
ZNT Yard
Date of Introduction
2013
Description
The Project 23040 is a new class of search and rescue (SAR) vessels built for the Russian Navy by ZNT Yard between 2013 and 2018. Besides, some of these vessels (Project 23040G) are also used as hydrographic survey ships. The vessels are 28-meter long and are powered by two diesel engines allowing a top speed of more than 13 knots and a maximum range of 200 nautical miles. The power system also includes two 80KW diesel generators and one 20 KW diesel generator. The Russian Navy commissioned the first Project 23040 rescue vessel in 2013 with another 21 ships to follow through 2018.
Naval & Littoral Specifications
Crew
8
Displacement
118.00 tonnes
Beam
5.60 m
Draft
1.50 m
Max Speed
13.7 knots
Overview (Deagel)
Group
Rescue Ships
Status
Active
Also Known As
Project 23040G
Origin
Russia
Contractor
ZNT Yard
Initial Operational Capability (IOC)
2013
Total Production
22
Specifications (Deagel)
Crew
8
Dimensions — Beam
5.6 meter
Dimensions — Draft
1.5 meter
Dimensions — Length
28.9 meter
Mass — Full Displacement
118 ton
Performance — Max Range
200 nautical mile
Power — Electric Output
180 kW
Power — Total Combined Power
1,200 hp
Speed — Top Speed
13.7 knot
Time — Mission Endurance
5 day
Details
Country of Origin
Russia
Sources
deagel.com: https://www.deagel.com/x/x/a003546
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
28.9 m
Width
5.6 m
Height
—
Weight
118000 kg
Operators (1)
Russia
