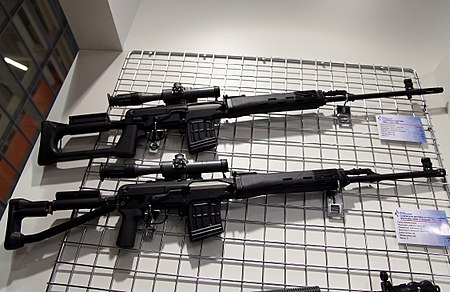

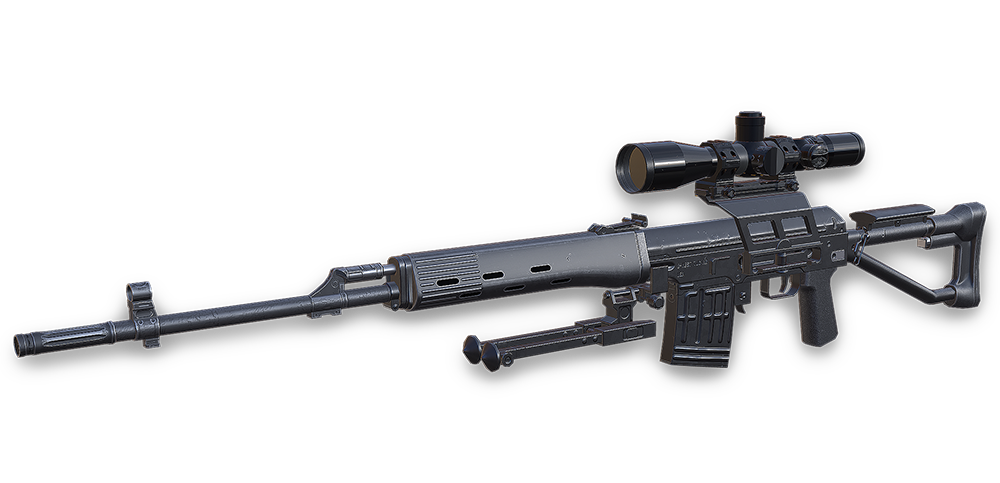

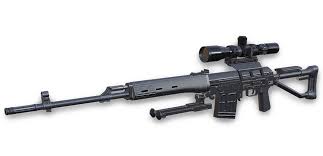

SVD-63 Russian 7.62mm Russian Automatic Sniper Rifle

SVD, Dragunov

Sniper Rifle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
SVD-63 Russian 7.62mm Russian Automatic Sniper Rifle
Designation
SVD, Dragunov
Alternate Designation
SVD, Dragunov
Equipment Type
Sniper Rifle
Manufacturer
Date of Introduction
1963
Description

SVD-63 Russian 7.62mm Russian Automatic Sniper Rifle is a semi-automatic sniper/designated marksman rifle chambered in 7.62×54mmR and developed in the Soviet Union. The Dragunov was designed as a squad support weapon since, according to Soviet and Soviet-derived military doctrines, the long-range engagement ability was lost to ordinary troops when submachine guns and assault rifles (which are optimized for close-range and medium-range, rapid-fire combat) were adopted. It was developed in 1957–1963 and selected as the winner of a contest that included three competing groups of designers: led by Sergei Simonov, Aleksandr Konstantinov, and Yevgeny Dragunov. Extensive field testing of the rifles conducted in a wide range of environmental conditions resulted in Dragunov's proposal being accepted into service on 3 July 1963. An initial pre-production batch consisting of 200 rifles was assembled for evaluation purposes, and from 1964 serial production was carried out by Izhmash, later called Kalashnikov Concern. Since then, the Dragunov has become the standard squad support weapon of several countries, including those of the former Warsaw Pact. China, while having produced an unlicensed copy of the SVD through reverse-engineered samples captured from the Sino-Vietnamese War as the Type 79 and 85, never officially purchased or was given SVD Dragunov by the Soviets, as the Sino-Soviet split had already occurred when the SVD entered service and relations were strained between the two, halting further military cooperation's and aid. Iran also produced a clone as the Nakhjir 3 (as a direct copy of the Chinese Type 79).

Variants
SVD-S Folding stock, 15-rd magazine.
SVU Bullpup (trigger forward of magazine).
OTs-03AS sight. SVU w/PSO-1 sight.
6V1 SVD with PSO-1 sight.
6V1-N3 night sight. SVD with NSPU-3 night sight.
System
Alternative Designation SVD, Dragunov
Type Sniper Rifle
Caliber 7.62 mm
Action Gas-operated, rotating bolt
Operation Gas
Fire Mode Semi-automatic only
Rate of Fire 30.0 rd/min
Muzzle Velocity 830 m/s
Effective Firing Range 800 m
Feed System 10-rd detachable box magazine (15-rd available for the SVD-S)
Dimensions
Length 1,225 mm
Barrel Length 620 mm
Weight 4.30 kg
Ammunition
Note The rifle features mechanically adjustable backup iron sights with a sliding tangent rear sight (the iron sight line can be adjusted from 100 to 1,200 m (109 to 1,312 yd) in 100 m (109 yd) increments). The iron sights can be used with or without the standard issue optical sight in place. This is possible because the scope mount does not block the area between the front and rear sights. The Dragunov is issued with a quick-detachable PSO-1 optical sight.The PSO-1 sight (at a total length of 375 mm with a lens cover and sun shade, 4× magnification and 6° field of view) mounts to a proprietary side mount Warsaw Pact rail that does not block the view of the iron sight line. The PSO-1 sight includes a variety of features, such as a bullet drop compensation (BDC) elevation adjustment knob and an illuminated rangefinder grid that can be used up to 1,000 m (1,094 yd), a reticle that enables target acquisition in low light conditions as well as an infrared charging screen that is used as a passive detection system. The current version of the sight is the PSO-1M2. This telescopic sight is different from the original PSO-1 only in that it lacks the now obsolete Infra-Red detector. The PSO-1 sight enables area targets to be engaged at ranges upwards of 1,300 m (1,422 yd); effective ranges in combat situations have been stated at between 600 to 1,300 m (656 to 1,422 yd), depending on the nature of the target (point or area target) quality of ammunition and skill of the shooter.
Ammunition (Option 1)
Name 57-N-323S
Type Ball, standard steel- core
Caliber 7.62 mm
Cartridge 7.62x54mm (rimmed)
Armor Penetration Steel plate: 6 mm at 520 m, Flak vest: Yes at 110 m
Muzzle Velocity 828.0 m/s
Range, Effective 600.0 m
Range, Effective 300 m (sight INA), night
Ammunition (Option 2)
Name Sniper (7N1)
Type Steel core
Caliber 7.62 mm
Cartridge 7.62x54R (rimmed)
Armor Penetration INA
Muzzle Velocity 823.0 m/s
Range, Effective w/o scope 800.0 m
Range, Effective w/o scope 1000.0 m
Ammunition (Option 3)
Name 7N13
Type Enhanced penetration (steel core)
Caliber 7.62 mm
Cartridge 7.62x54Rmm (rimmed)
Armor Penetration Steel Plate: 6 mm at 660 m, Flak Vest: 800 m
Muzzle Velocity 828.0 m/s
Range, Effective w/o scope 800.0 m
Range, Effective w/o scope 1000.0 m
Ammunition (Option 4)
Name 7B2-3
Type AP-I
Caliber 7.62 mm
Cartridge 7.62x54R (rimmed)
Muzzle Velocity 808.0 m/s
Armor Penetration 10-mm armor plate at 200 m
Range, Effective w/o scope 800.0 m
Range, Effective w/o scope 1000.0 m
Ammunition (Option 5)
Name 7T2m
Type Tracer
Caliber 7.62 mm
Cartridge 7.62x54R-(rimmed)
Muzzle Velocity 798.0 m/s
Range, Effective w/o scope 800.0 m
Range, Effective w/o scope 1000.0 m
Trace 1200.0 m
Time of Trace 3.0 sec
Sights
Name PSO-1
Type Infrared detection capability for night firing
Field of View 6.0 deg
Magnification 4x
Sighting Range 1300.0 m
Note PSO-1 telescopic sight, 1PN51/1PN58 night vision sights and iron sights with an adjustable rear notch sight
Night Sights
Available Yes
Notes NSPU-3. The NSPU-3 increases accuracy to 1,000 m at night or during poor visibility.
Details
Country of Origin Russia
Category Sniper Rifles
Land > Infantry Weapons > Sniper Rifles
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Operators (1)
Russia
