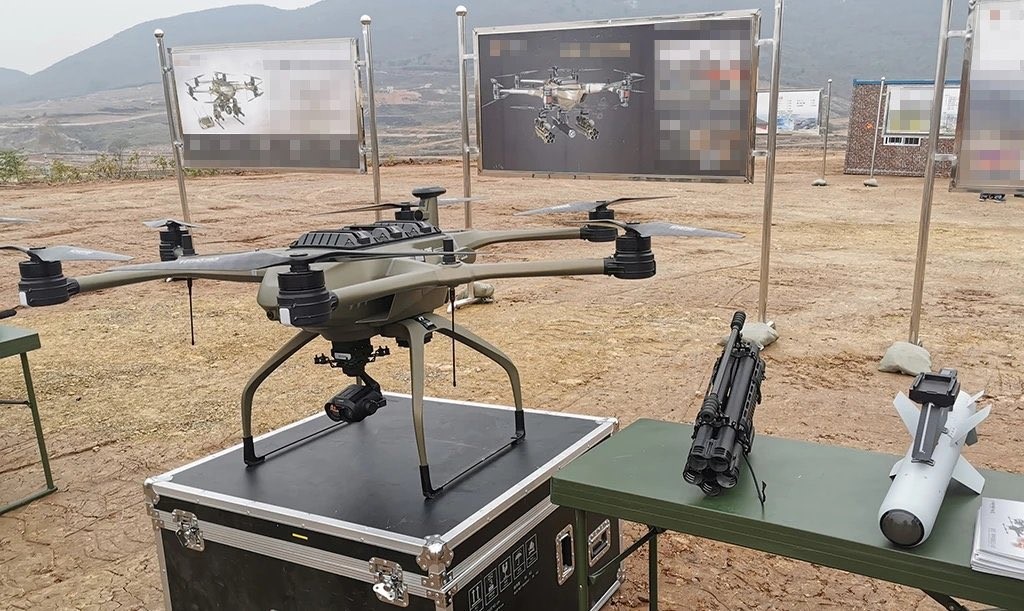

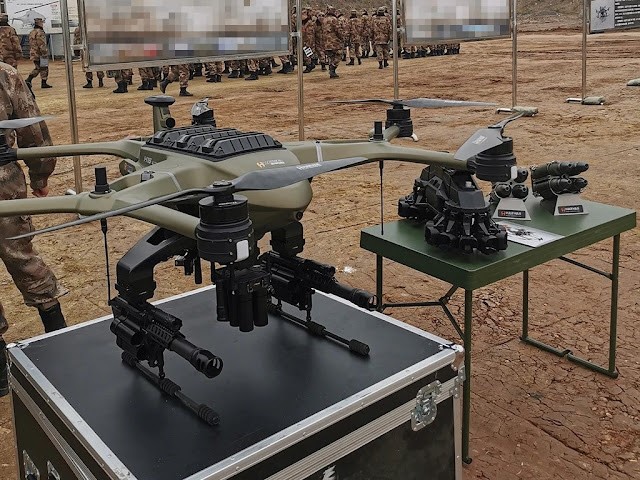

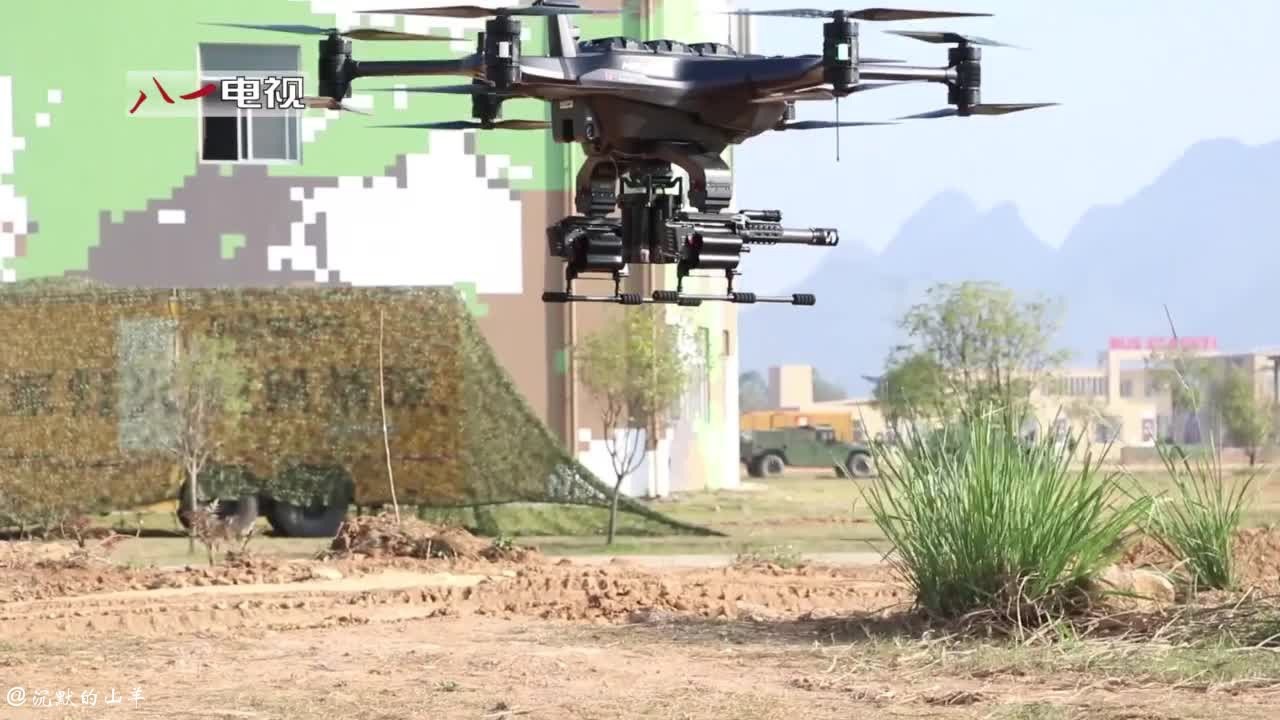

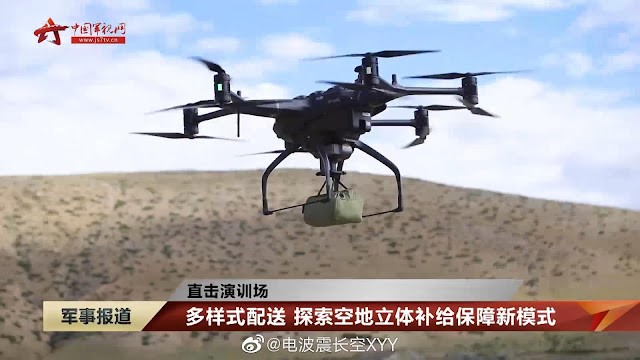

Tomahawk H16-V12 Chinese Unmanned Aerial Vehicle (UAV)
Tomahawk H16-V12
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Tomahawk H16-V12 Chinese Unmanned Aerial Vehicle (UAV)
Designation
Tomahawk H16-V12
Alternate Designation
Tomahawk H16-V12
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Harwar
Date of Introduction
2020
Description
The Tomahawk H16-V12 Chinese Unmanned Aerial Vehicle (UAV) is used for multiple applications (36 times zoom reconnaissance, security control, smoke bombs, detonation bombs, tear grenades and other grenade launch, missile launch, air capture, air Shouting, air lighting, air explosive disposal).
Air & Air Defense Specifications
Engine
Battery
Max Speed
64.8 km/h
Endurance
60.00 hrs
Service Ceiling
5834 m
Payload Capacity
25 kg
System
Alternate Designation
Tomahawk H16-V12
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Harwar
Autonomy
Semi-Autonomous
Crew
Unmanned
Payload Capacity
25 kg
Intelligent Flight Capability
Ground imitation flight, pointing flight, pointing task, breakpoint continued flight, AB point one-key take-off and landing, one-key return, route planning, multi-task management
Omnidirectional Obstacle Avoidance
720° obstacle avoidance, sensing range less than 200 meters
Satellite Positioning
Beidou, GPS, GLONASS, RTK Samsung seven band
Positioning Accuracy
Horizontal: ±0.02m Vertical: ±0.05 m
Safety Protection
Anti-electromagnetic interference Triple redundancy protection, Low electricity return, Low voltage return, Propeller broke protect.
Launching System
Vertical Take-Off and Landing (VTOL)
Recovery System
Vertical Take-Off and Landing (VTOL)
Dimensions
Length
1,530 mm
Width
1,750 mm
Height
830 mm
Maximum Takeoff Weight
INA
Automotive
Engine Name
INA
Engine Type
Battery Power
Engine Power
INA
Maximum Speed
64.8 km/h
Cruising Speed
INA
Service Ceiling
5,834 m
Flight Radius
15 km
All-Weather
Wind resistance level 7, rain proof, dustproof, adapt to -40-85° environment.
Endurance
60 min
Armament
Note
Multiple applications (36 times zoom reconnaissance, security control, smoke bombs, detonation bombs, tear grenades and other grenade launch, missile launch, air capture, air Shouting, air lighting, air explosive disposal).
Details
Country of Origin
China
Category
UAVs
Air > UAVs
Filter Label
T
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.53 m
Width
1.75 m
Height
0.83 m
Weight
—
Operators (1)
China
