RASIT French 6x6 Ground-Surveillance Pulse Doppler Radar Vehicle

RASIT 3190B

Spotted an error? Sign in to suggest an edit.

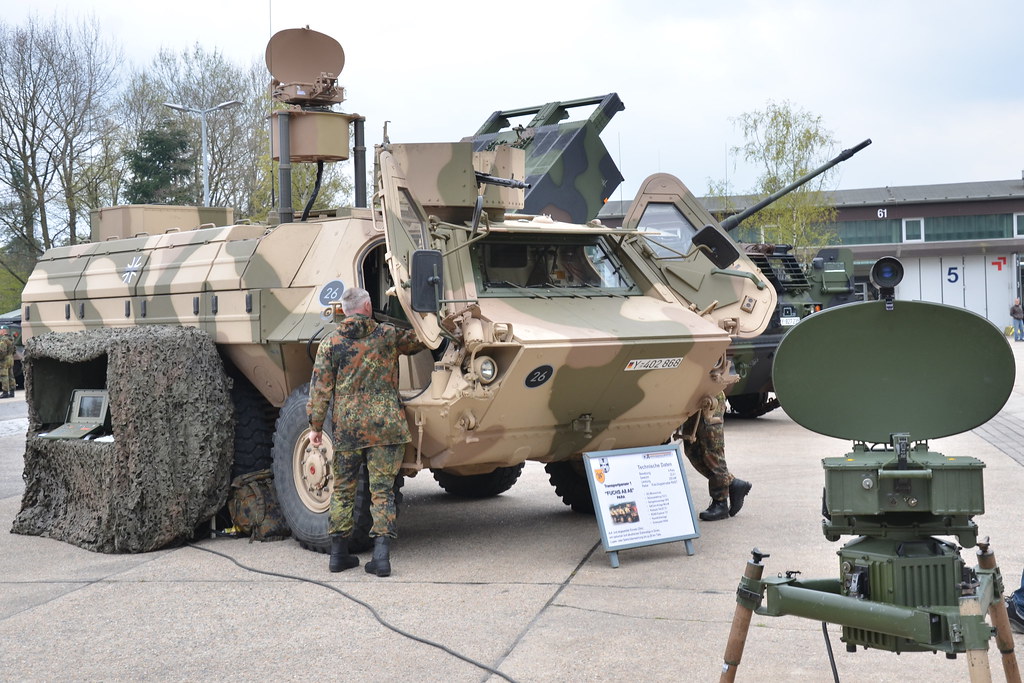

RASIT French 6x6 Ground-Surveillance Pulse Doppler Radar Vehicle — Rasit_(B).jpgTRADOC ODIN WEG

Basic Information

Name

RASIT French 6x6 Ground-Surveillance Pulse Doppler Radar Vehicle

Designation

RASIT 3190B

Alternate Designation

RASIT 3190B; RACIT E; DRPT-5; Basir 110D (Iran)

Equipment Type

—

Manufacturer

Thomson-CSF

Date of Introduction

1975

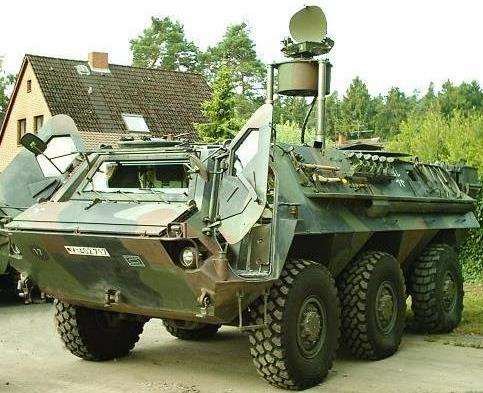

Description

RASIT (RAdar de Surveillance des InTervalles) is a ground-surveillance pulse doppler radar developed by Thomson-CSF (now Thales), and fielded by several militaries. The original version of RASIT had a range of 20 kilometers and allowed a skilled operator to distinguish between personnel, vehicles, and aircraft. RASIT operates in the I band and has a peak power of two kilowatts. The system is deployed on vehicles (although it can be removed from its mount and emplaced on the ground) and has been used by at least 32 nations. The latest version of RASIT, the RASIT-E, has a range of 40 kilometers. RASIT was developed in the mid-1970s and over 700 units had been sold by 1996. The latest RASIT customer is Estonia, where the radar is used for border surveillance.

Ground Specifications

Crew 2

Mobility Type Wheeled (6x6)

Range 40.0 km

System

Alternative Designation RASIT 3190B; RACIT E; DRPT-5; Basir 110D (Iran)

Description Ground Surveillance Radar (GSR) can be operated by a crew of 1 or 2; entire system breaks down to 3 90-kg sections; vehicle or tripod- mounted

Crew 2 (operator & assistant operator); more for vehicle ea

Dimensions

Height, Overall Varies by vehicle m

Length, Chassis Overall Varies by vehicle m

Width, Overall Varies by vehicle m

Weight, Combat 90 kg

Automotive

Engine Name Varies by vehicle

Engine Type Varies by vehicle

Fording Depth Varies by vehicle m

Range, Cruising Varies by vehicle km

Speed Varies by vehicle km/h

Communications

Radio

Name INA

Equipment

Antenna Type Flat array type; slotted waveguide antenna; cable link

Azimuth Coverage Operator section: 10 to 240 (200 to 4300 mils) deg

Console Digitally operated including display

Name Radar Acquisition de Surveillance Intermediare (RASIT)

Radar Motor-driven for azimuth adjustment with remote control

Operation

Alternate Modes of Operation

Mode 1 Magnified mode:

Mode 2 FDC mode:

Mode 3 Air Defense (AD) mode:

Mode 4 Early Warning mode:

Mode 5 GPS mode:

Remote

Display Plotting table or mapping computer

Remote Operation Console 300 m from dish

Remote user transmission Standard interface; RASIT E can be integrated with battle management system using TCP/IP interface

Target acquisition Automatically detects, tracks, & identifies all targets

Tone Signal Yes

TV Monitor Polar & Universal Transverse Mercator (UTM) coordinates

Performance

Countermeasure Resistance ECCM & LPI capable

Resolution +/- 10 m range; +/- 0.6 in azimuth

Surveillance Range (Personnel) 22.0 km

Surveillance Range (Vehicles) 35.0 km

Surveillance Range (Aircraft) 34.0 km

Tracking Speed 103 km/hr

Transceiver

Accuracy 90% probability of detection

Compatibility With IFF systems & ECCM capabilities

Name Transceiver

Polarization Linear & circular

Power 3000 (consumption); 150 (Output) W

Signal I-Band (8.00 10.00 GHz)

Width of radiation pattern lobe -11 to 240 deg

Image Sources

Notes https://www.flickr.com/photos/44560307@N06/35309904136; https://en.wikipedia.org/wiki/RASIT;

Details

Country of Origin France

Category Radars

Land > Radars

Classification

Domain

Ground

Equipment Status

Active

Operators (2)

France

Estonia
