Karrar Iranian Unmanned Aerial Vehicle (UAV)
Karrar
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Karrar Iranian Unmanned Aerial Vehicle (UAV)
Designation
Karrar
Alternate Designation
Karrar
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
HESA
Date of Introduction
2010
Description

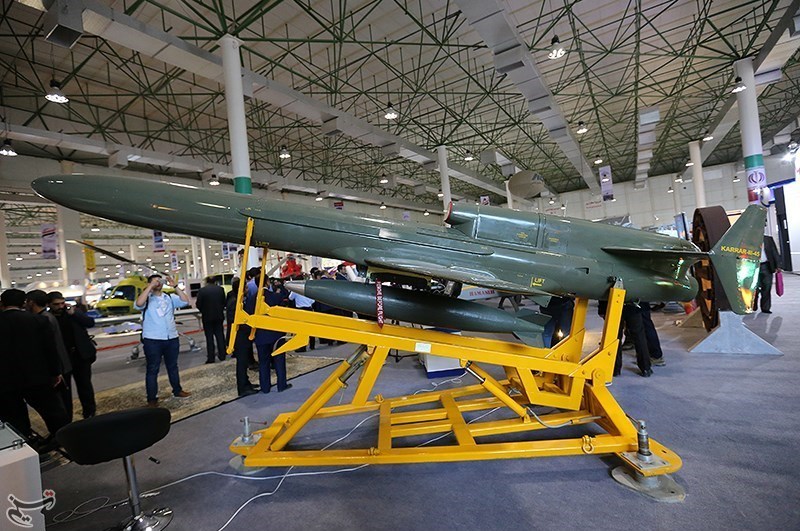

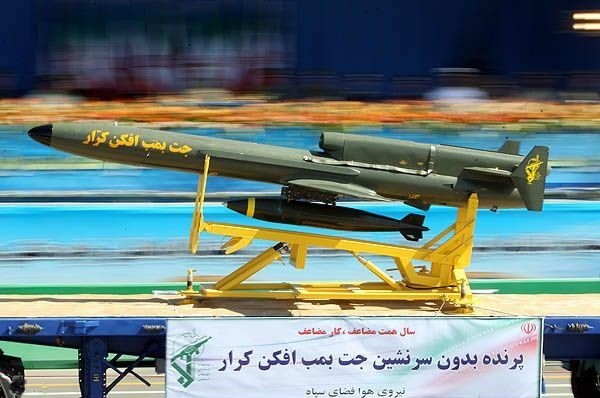

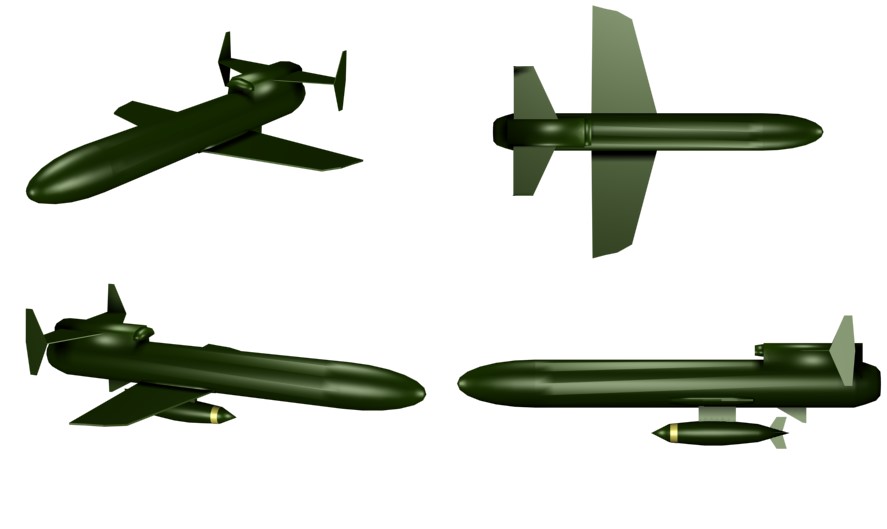

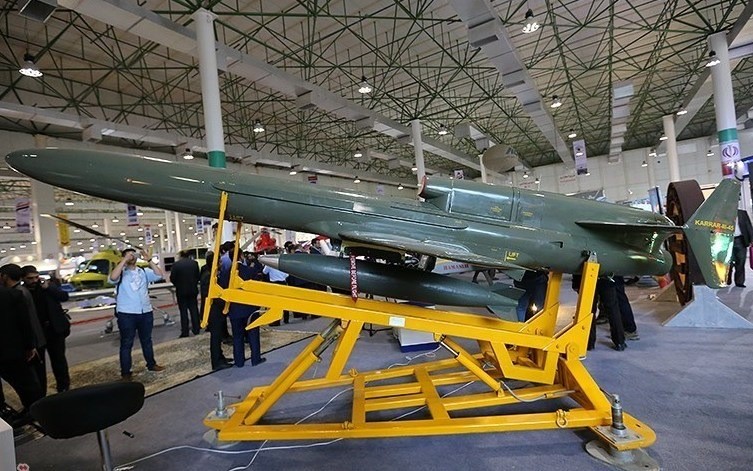

Hezbollah Proliferation. The Karrar Iranian Unmanned Aerial Vehicle (UAV) is an Iranian jet-powered target drone manufactured by Iran Aircraft Manufacturing Industrial Company (HESA) since 2010. The Karrar is a derivative of the American 1970s-era Beechcraft MQM-107 Streaker target drone, probably incorporating elements from the South African Skua, with hardpoints added for munitions. The Karrar was developed during the Ahmadinejad presidency.
Air & Air Defense Specifications
Engine
Turbojet (4 hp)
Max Speed
900.0 km/h
Range
1000.0 km
Wingspan
2.50 m
Payload Capacity
227 kg
System
Alternate Designation
Karrar
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Iran Aircraft Manufacturing Industrial Company (HESA)
Proliferation
Hezbollah
Crew
none
Payload Capacity
227 kg
Hardpoints
5 ea
Note

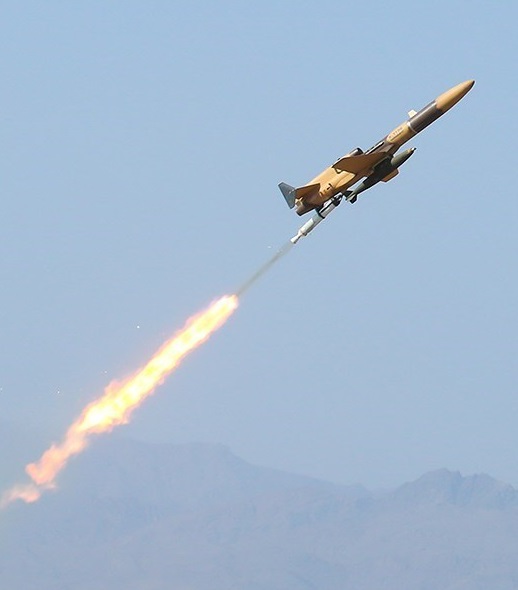

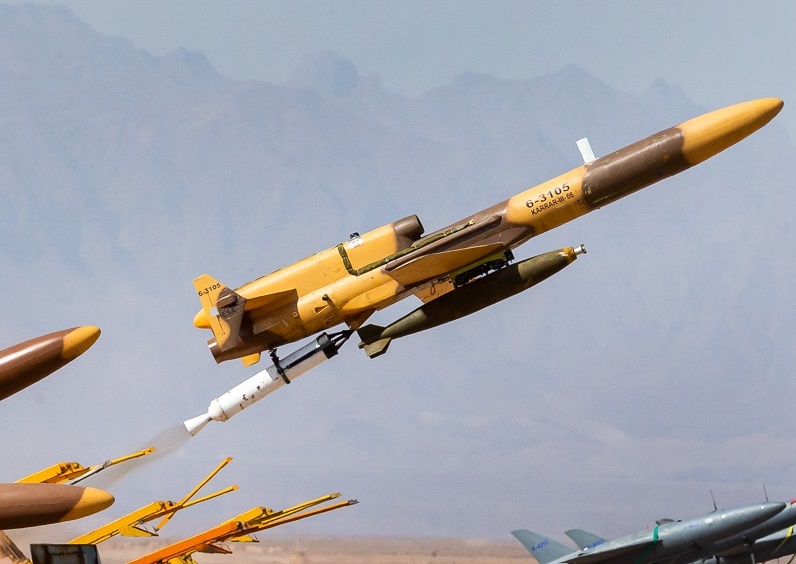

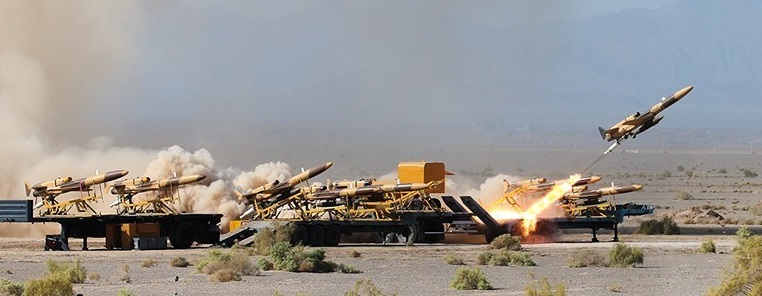

The Karrar uses a rocket assist system to take off and is recovered by parachute.
Dimensions
Length
4.0 m
Wingspan
2.5 m
Maximum Takeoff Weight
700 kg
Automotive
Engine Name
1 × Tolloue 5 or Microturbo TRI 60-5
Engine Type
Turbojet
Engine Power
4.2–4.4 kN (940–990 lbf) thrust (est.)
Maximum Speed
900 km/h
Maximum Range
1,000 km
Combat Range
500 km
Service Ceiling
INA
Endurance
INA
Details
Country of Origin
Iran
Category
UAVs
Air > UAVs
Filter Label
K
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
4 m
Width
2.5 m
Height
—
Weight
700 kg
Operators (2)
Iran
Non-State Actors
